NSN 5310-00-164-6409 H19817836, H19817-836, HCG8WN08S

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

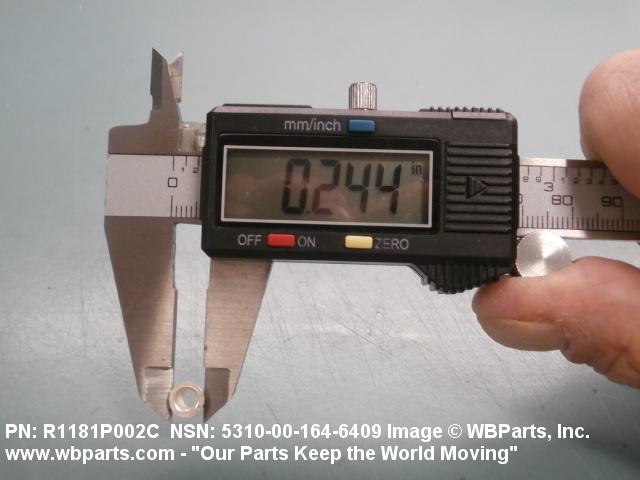

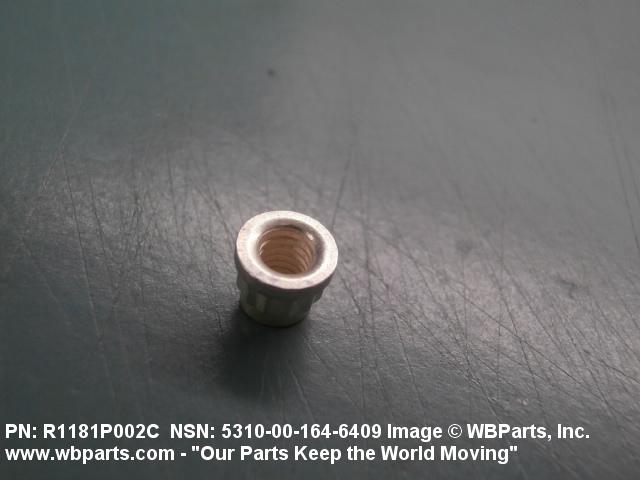

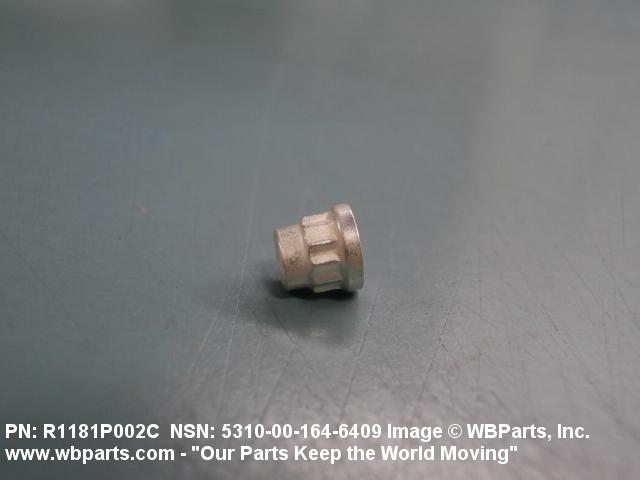

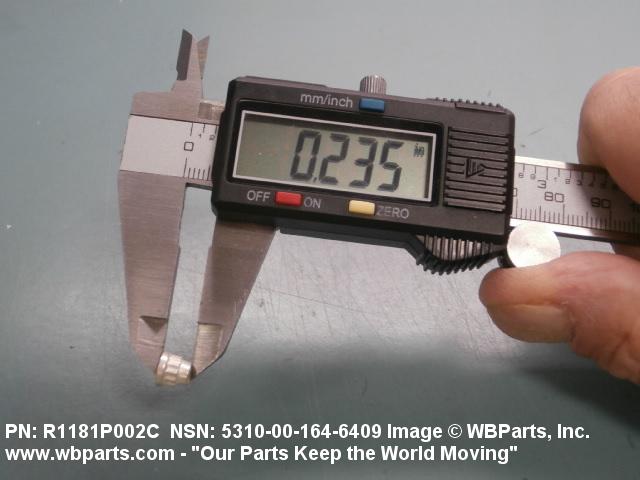

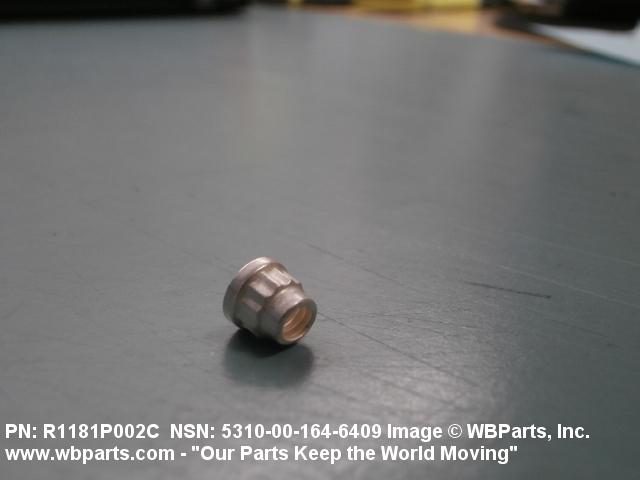

5310-00-164-6409 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: H19817836, H19817-836, HCG8WN08S, HCG8WN-08-S , R1181, R1181P002, R1181P002C, 5310-00-164-6409, 00-164-6409, 5310001646409, 001646409

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 FEB 1973	00-164-6409	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

Drawings & Photos | NSN 5310-00-164-6409

Part Number	Request Date	QTY	Origin
5310-00-164-6409	2024-06-171	6	us
5310-00-164-6409	2024-06-171	6	us
R1181P002C	2021-10-293	50	Taiwan
R1181P002	2021-10-279	10	Slovakia
R1181P002	2021-03-76	10	United States
H19817-836	2021-03-63	4494	DIBBS
H19817-836	2021-01-03	13096	DIBBS
H19817-836	2020-12-342	21698	DIBBS
R1181P002	2020-10-295	750	US
5310-00-164-6409	2020-09-258	100	TW
5310-00-164-6409	2020-09-252	100	Taiwan
H19817-836	2020-08-243	3254	DIBBS
H19817-836	2020-05-141	5282	DIBBS
H19817-836	2020-05-124	10661	DIBBS
5310-00-164-6409	2020-04-119	20	Poland
5310-00-164-6409	2019-06-177	20	United States
R1181P002	2017-07-186	100	CA
5310-00-164-6409	2015-02-34	2973	DIBBS
5310-00-164-6409	2014-09-254	51	MANUAL
5310-00-164-6409	2013-12-343	60	United States
5310-00-164-6409	2013-10-302	60	United States
5310-00-164-6409	2013-08-225	1	DIBBS-RFPs
5310-00-164-6409	2013-07-207	1	DIBBS-RFPs
5310-00-164-6409	2013-01-28	1148	US
R1181P002C	2012-11-318	1400	US
5310-00-164-6409	2008-10-282	2301	DIBBS
5310-00-164-6409	2008-08-232	336	DIBBS
5310-00-164-6409	2008-07-190	466	DIBBS

Cross Reference | NSN 5310-00-164-6409

Part Number	Cage Code	Manufacturer
H19817-836	15653	ALCOA GLOBAL FASTENERS, INC.
H19817-836	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
R1181	99207	GENERAL ELECTRIC COMPANY DBA GE
R1181P002	99207	GENERAL ELECTRIC COMPANY DBA GE
R1181P002C	99207	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-164-6409

Compare

Related Products | NSN 5310-00-164-6409

5310-00-164-6412, 5310-00-164-6414, 5310-00-164-6416, 5310-00-164-6417, 5310-00-164-6423

Technical Data | NSN 5310-00-164-6409

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	36
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	SILVER OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A293 DOUBLE HEXAGON
WASHER OUTSIDE DIAMETER	0.266 INCHES MINIMUM AND 0.281 INCHES MAXIMUM
OVERALL HEIGHT	0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
WASHER THICKNESS	0.015 INCHES MINIMUM AND 0.035 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.212 INCHES MINIMUM AND 0.220 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	ANY ACCEPTABLE NUT
TEMP RATING	1200.0 DEG FAHRENHEIT NOMINAL
III PRECIOUS MATERIAL	SILVER
MANUFACTURERS CODE	99207
MFR SOURCE CONTROLLING REFERENCE	R1181
