NSN 5310-00-141-1846 C60676321, C6067-632-1, 10538
Product Details | NUT STRIP
5310-00-141-1846 A fastening device of rigid or semirigid material of various shapes and lengths having two or more apertures with lugs or prongs; threaded holes; or nuts. The apertures, threaded holes or nuts may be of any predetermined spacing.
Part Alternates: C60676321, C6067-632-1, 10538, 5310-00-141-1846, 00-141-1846, 5310001411846, 001411846
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-141-1846 | 16009 ( NUT STRIP ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-141-1846
Related Products | NSN 5310-00-141-1846
Technical Data | NSN 5310-00-141-1846
Characteristic | Specifications |
---|---|
MATING MEMBER DIAMETER ACCOMMODATED | 0.138 INCHES NOMINAL |
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | PHOSPHATE OR ZINC OR CHROMATE OVERALL |

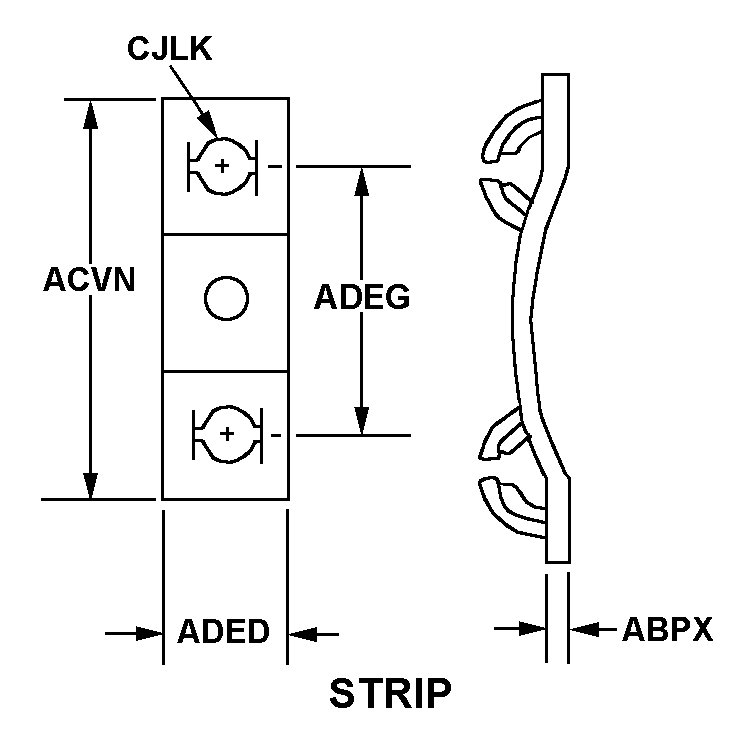

NUT STYLE | A232 STRIP |
MATERIAL THICKNESS | 0.012 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
NUT LENGTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
NUT WIDTH | 0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
APERTURE QUANTITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5310-00-141-1846
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
