NSN 5310-00-138-4258 AN960XC10L, NAS1149C0332B, NAS1149CN0332B
Product Details | FLAT WASHER

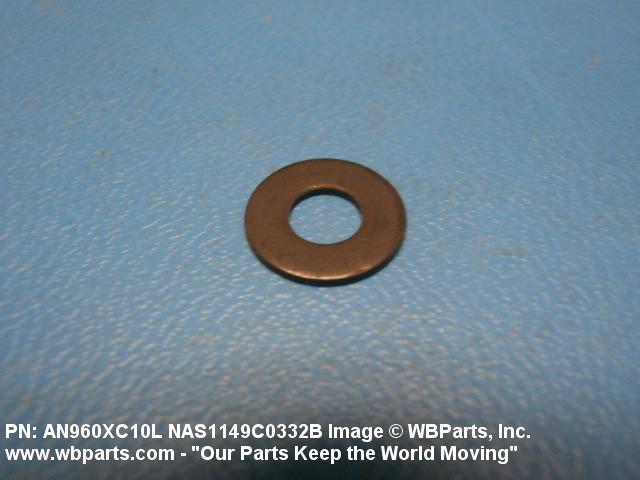

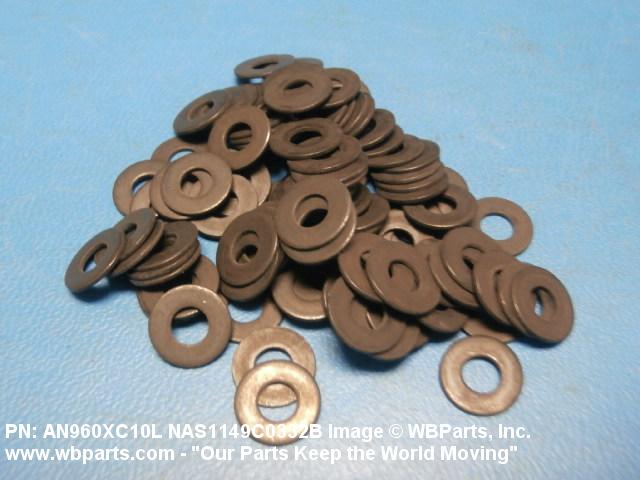

5310-00-138-4258 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960XC10L, NAS1149C0332B, NAS1149CN0332B, NAS14055, NAS1405-5 , FFW92, 418009-197 , 30082687, 3008268-7, 5310-00-138-4258, 00-138-4258, 5310001384258, 001384258, 418009197
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1971 | 00-138-4258 | 13393 ( WASHER, FLAT ) |
Drawings & Photos | NSN 5310-00-138-4258
Demand History | NSN 5310-00-138-4258
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1149C0332B | 2024-11-311 | 20 | Japan |
| 5310-00-138-4258 | 2022-01-13 | 488 | DIBBS |
| 5310-00-138-4258 | 2020-11-317 | 284 | DIBBS |
| NAS1149C0332B | 2020-05-128 | 100 | US |
| NAS1149CN0332B | 2020-03-66 | 800 | US |
| 5310-00-138-4258 | 2018-11-319 | 376 | DIBBS |
| FFW92 | 2018-07-207 | 2 | United States |
| NAS1149C0332B | 2017-01-18 | 20 | Philippines |
| FFW92 | 2016-08-217 | 21 | US |
| AN960XC10L | 2016-04-95 | 100 | United States |
| NAS1149C0332B | 2016-03-82 | 20 | United States |
| AN960XC10L | 2015-01-13 | 5000 | United States |
| AN960XC10L | 2013-10-298 | 2200 | United States |
| 5310-00-138-4258 | 2013-06-154 | 400 | US |
| AN960XC10L | 2012-11-310 | 50 | |
| NAS1149C0332B | 2012-06-177 | 50 | India |
| 5310-00-138-4258 | 2011-11-327 | 1018 | DIBBS |
| FFW92 | 2011-10-304 | 495 | United States |
| AN960XC10L | 2010-03-62 | 8 | Spain |
| AN960XC10L | 2009-11-308 | 100 | US |
| NAS1149C0332B | 2009-08-218 | 12 | US |
| 5310-00-138-4258 | 2009-06-170 | 65 | US |
| 5310-00-138-4258 | 2009-03-77 | 1600 | India |
| 5310-00-138-4258 | 2008-03-77 | 92 | DIBBS |
| 5310-00-138-4258 | 2006-09-252 | 100 | South Korea |
| 5310-00-138-4258 | 2006-09-252 | 100 | South Korea |
Cross Reference | NSN 5310-00-138-4258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3008268-7 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| AN960XC10L | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FFW92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| NAS1149CN0332B | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-138-4258
Related Products | NSN 5310-00-138-4258
Technical Data | NSN 5310-00-138-4258
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 2ND MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 3RD MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK OVERALL |

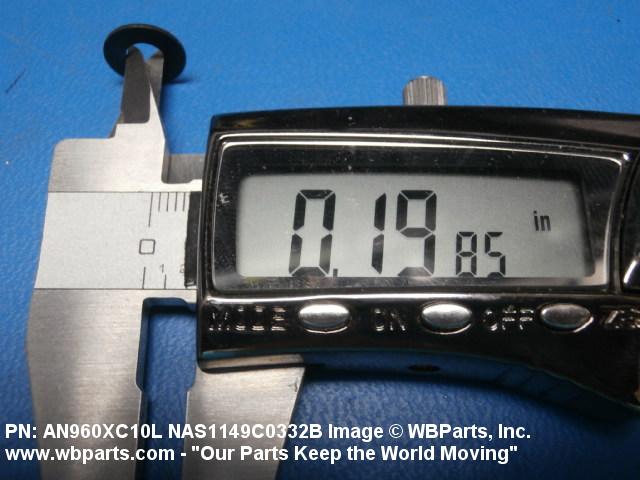

| HOLE DIAMETER | 0.203 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

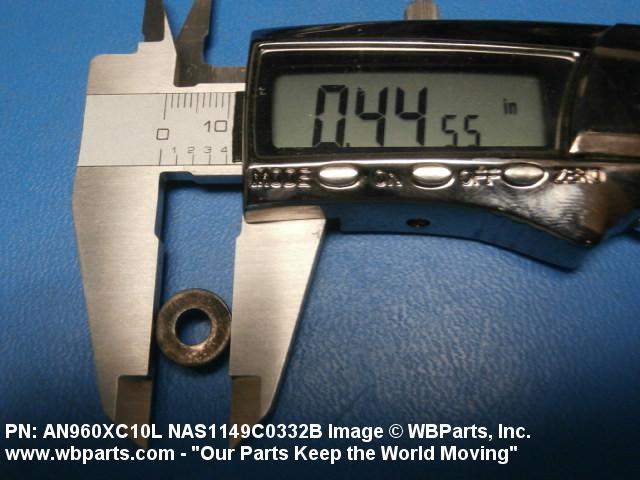

| OVERALL DIAMETER | 0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

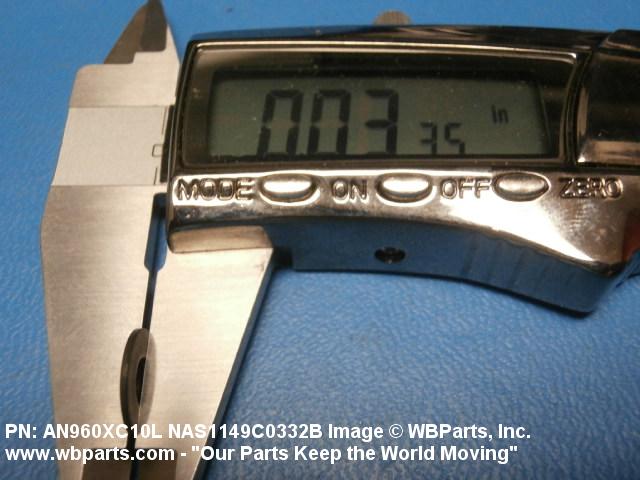

| THICKNESS | 0.032 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 GRADE AND B CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFW92 |
