NSN 5310-00-090-4136 MS141445, MS14144-5, MS14144L5

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-090-4136 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS141445, MS14144-5, MS14144L5, NASM 14144 P/N L5, NASM14144PNL5, PHCR355M, PHCR-355M, RME98685, RME9868-5, GN512FP5, 73781M524, 10116549 , 5310-00-090-4136, 00-090-4136, 5310000904136, 000904136

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 NOV 1972	00-090-4136	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

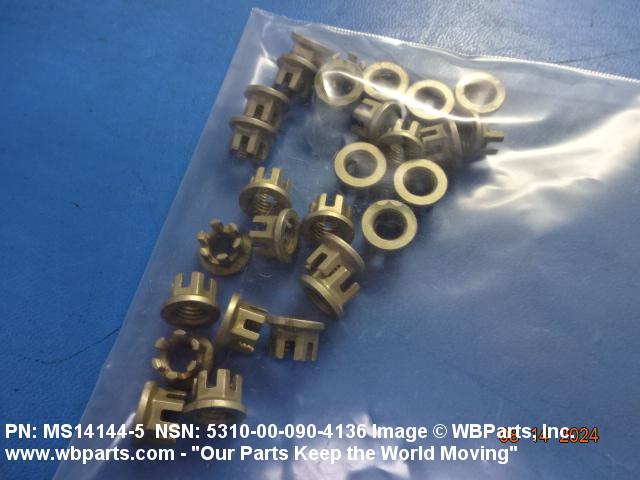

Drawings & Photos | NSN 5310-00-090-4136

Part Number	Request Date	QTY	Origin
MS141445	2024-08-222	28	United States
MS14144L5	2022-01-28	500	United States
5310-00-090-4136	2020-03-76	5700	DIBBS
MS14144L5	2020-01-29	3	United States
5310-00-090-4136	2019-10-297	2179	DIBBS
MS14144L5	2019-02-42	10	Lebanon
5310-00-090-4136	2018-07-206	8000	DIBBS
5310-00-090-4136	2018-06-170	5840	DIBBS
5310-00-090-4136	2017-10-288	3332	DIBBS
5310-00-090-4136	2017-05-136	3557	DIBBS
5310-00-090-4136	2017-02-57	2615	DIBBS
5310-00-090-4136	2016-05-123	900	DIBBS
5310-00-090-4136	2016-04-101	999	DIBBS
5310-00-090-4136	2015-09-272	1398	DIBBS
ms14144l5	2015-02-37	20	EC
MS14144L5	2014-10-283	30	United States
5310-00-090-4136	2014-04-99	5057	DIBBS
MS14144L5	2013-07-205	4	Singapore
MS14144-5	2013-05-134	50	CZ
5310-00-090-4136	2011-04-115	13434	DIBBS
5310-00-090-4136	2010-09-270	100	NL
5310-00-090-4136	2009-11-323	1	Australia
MS14144L5	2009-06-173	50	US
MS14144L5	2008-10-305	100	Canada
5310-00-090-4136	2008-04-107	12067	DIBBS
5310-00-090-4136	2007-12-335	50	US
5310-00-090-4136	2007-08-218	5000	US
MS14144L5	2007-05-123	30	MX
MS14144L5	2006-08-229	150	Sri Lanka

Cross Reference | NSN 5310-00-090-4136

Part Number	Cage Code	Manufacturer
73781M524	50392	SPS TECHNOLOGIES INC
73781M524	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
GN512FP5	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MS14144-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS14144L5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM 14144 P/N L5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
PHCR-355M	62554	ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV
RME9868-5	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RME9868-5	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-090-4136

Compare

Related Products | NSN 5310-00-090-4136

5310-00-090-4138, 5310-00-090-4604, 5310-00-090-4606, 5310-00-090-4607, 5310-00-090-4608

Technical Data | NSN 5310-00-090-4136

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON
WASHER OUTSIDE DIAMETER	0.520 INCHES MAXIMUM
OVERALL HEIGHT	0.328 INCHES NOMINAL
WASHER THICKNESS	0.055 INCHES NOMINAL
WIDTH ACROSS FLATS	0.367 INCHES MINIMUM AND 0.378 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE	ANY ACCEPTABLE NUT
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14144L5

Restrictions/Controls & Freight Information | NSN 5310-00-090-4136

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-090-4136

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	HL	TG:TH-1H SUPT HELICOPTER
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
