NSN 5310-00-088-0553 MS21044N5, SG4013SYMB0LJ, BM1135907
Product Details | HEXAGON SELF-LOCKING NUT
5310-00-088-0553 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS21044N5, SG4013SYMB0LJ, BM1135907, BM11359-07, F52NE054, 4-00560-005, 190139, 2211675, 22NE054, 22-NE-054, 305-524031 , 55242, 55-242, 85367400, 853674-00, 870126, 87012600, 870126-00, 8805718, 908999K1, 5310-00-088-0553, 00-088-0553, 5310000880553, 000880553, 400560005, 305524031
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-088-0553 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

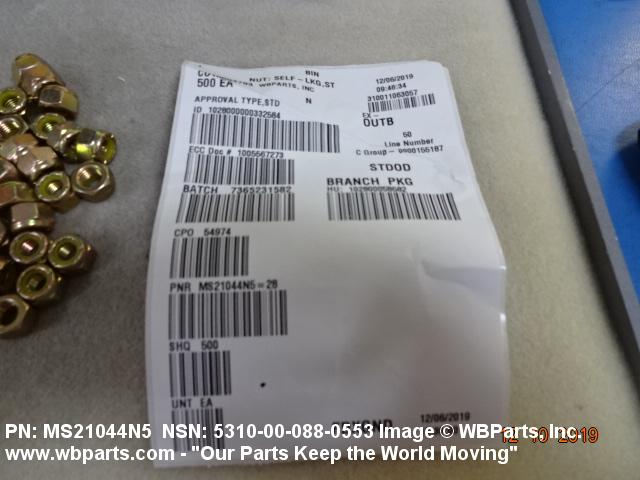

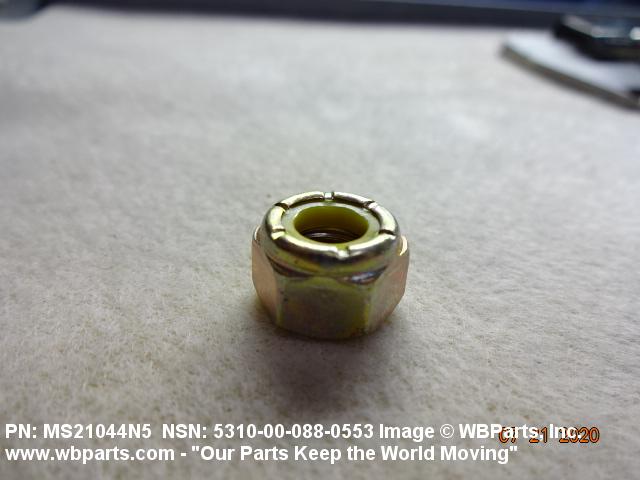

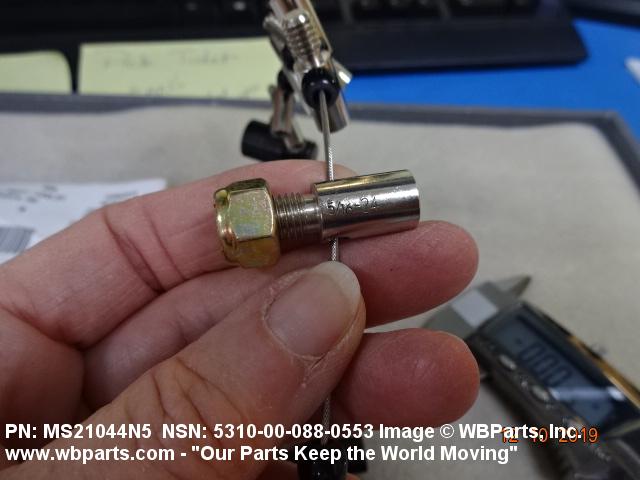

Drawings & Photos | NSN 5310-00-088-0553
Demand History | NSN 5310-00-088-0553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21044N5 | 2025-01-31 | 600 | United States |
| MS21044N5 | 2025-01-29 | 15 | Japan |
| 5310-00-088-0553 | 2024-08-225 | 10 | MX |
| MS21044N5 | 2024-06-164 | 500 | United States |
| MS21044N5 | 2024-04-115 | 1280 | US |
| MS21044N5 | 2024-01-25 | 350 | United States |
| MS21044N5 | 2023-10-278 | 500 | United States |
| MS21044N5 | 2023-09-249 | 500 | United States |
| MS21044N5 | 2023-02-46 | 19 | United States |
| MS21044N5 | 2023-02-41 | 1 | United States |
| MS21044N5 | 2023-02-41 | 25 | United States |
| MS21044N5 | 2022-09-244 | 30 | Croatia |
| MS21044N5 | 2022-06-168 | 600 | United States |
| MS21044N5 | 2021-12-335 | 250 | United States |
| MS21044N5 | 2021-09-270 | 4 | United States |
| MS21044N5 | 2021-04-118 | 400 | United States |
| 5310-00-088-0553 | 2021-02-35 | 750 | KR |
| 5310-00-088-0553 | 2021-01-28 | 100 | AU |
| 5310-00-088-0553 | 2021-01-25 | 30 | KR |
| 5310-00-088-0553 | 2020-09-245 | 14200 | US |
| MS21044N5 | 2020-04-104 | 800 | United States |
| 5310-00-088-0553 | 2020-03-62 | 1 | DIBBS-RFPs |
| 190139 | 2020-01-14 | 40 | United States |
| MS21044N5 | 2019-10-277 | 200 | United States |
| 5310-00-088-0553 | 2019-08-218 | 3 | US |
| MS21044N5 | 2019-04-99 | 1960 | US |
| MS21044N5 | 2018-10-303 | 200 | United States |
| 5310-00-088-0553 | 2018-09-267 | 3313 | DIBBS |
| 5310-00-088-0553 | 2018-09-259 | 3313 | DIBBS |
| MS21044N5 | 2018-07-197 | 20 | SA |
| 5310-00-088-0553 | 2018-06-161 | 1341 | DIBBS |
| MS21044N5 | 2018-04-93 | 24 | United States |
| MS21044N5 | 2018-02-37 | 25 | China |
| MS21044N5 | 2017-10-303 | 210 | United States |
| MS21044N5 | 2017-08-234 | 9 | LB |
| 5310-00-088-0553 | 2017-07-192 | 2979 | MANUAL |
| MS21044N5 | 2017-07-192 | 2979 | PK |
| 5310-00-088-0553 | 2017-06-180 | 4000 | us |
| 5310-00-088-0553 | 2017-06-157 | 2 | United States |
| MS21044N5 | 2017-05-138 | 4 | United States |
| 5310-00-088-0553 | 2017-05-138 | 16 | United States |
| 5310-00-088-0553 | 2017-02-53 | 13440 | United States |
| 5310-00-088-0553 | 2017-02-53 | 2560 | United States |
| MS21044N5 | 2016-10-302 | 180 | United States |
| MS21044N5 | 2016-10-302 | 100 | South Korea |
| MS21044N5 | 2016-07-201 | 250 | US |
| MS21044N5 | 2016-04-102 | 4 | Singapore |
| MS21044N5 | 2016-03-84 | 200 | United States |
| MS21044N5 | 2016-03-62 | 400 | United States |
| 5310-00-088-0553 | 2015-04-107 | 1082 | DIBBS |
| 5310-00-088-0553 | 2015-04-96 | 1082 | DIBBS |
| 5310-00-088-0553 | 2014-12-342 | 602 | DIBBS |
| MS21044N5 | 2014-05-132 | 136 | US |
| MS21044N5 | 2014-03-70 | 62 | United States |
| 5310-00-088-0553 | 2013-12-350 | 2207 | DIBBS |
| MS21044N5 | 2013-11-315 | 100 | India |
| MS21044N5 | 2012-12-346 | 80 | Switzerland |
| MS21044N5 | 2012-12-344 | 80 | Switzerland |
| 5310-00-088-0553 | 2012-05-142 | 4022 | DIBBS |
| 5310-00-088-0553 | 2012-05-125 | 250 | India |
| 5310-00-088-0553 | 2012-04-104 | 10 | MANUAL |
| MS21044N5 | 2012-04-100 | 532 | CO |
| MS21044N5 | 2012-03-90 | 60 | US |
| MS21044N5 | 2012-02-32 | 200 | AE |
| MS21044N5 | 2012-01-26 | 10 | CA |
| 5310-00-088-0553 | 2011-07-189 | 48 | India |
| 5310-00-088-0553 | 2011-06-155 | 10 | MANUAL |
| 5310-00-088-0553 | 2011-06-155 | 10 | MANUAL |
| MS21044N5 | 2011-06-155 | 10 | PK |
| MS21044N5 | 2011-06-155 | 10 | PK |
| MS21044N5 | 2011-03-90 | 1280 | United States |
| MS21044N5 | 2010-12-355 | 29400 | US |
| 5310-00-088-0553 | 2010-10-300 | 120 | India |
| 5310-00-088-0553 | 2010-03-70 | 5940 | United States |
| MS21044N5 | 2009-08-215 | 300 | United States |
| MS21044N5 | 2009-06-173 | 100 | US |
| 5310-00-088-0553 | 2009-03-71 | 1500 | DIBBS |
| 5310-00-088-0553 | 2009-02-58 | 700 | US |
| 5310-00-088-0553 | 2009-01-21 | 3 | Australia |
Cross Reference | NSN 5310-00-088-0553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 190139 | 24617 | GENERAL MOTORS CORP |
| 190139 | 73342 | ALLISON TRANSMISSION, INC. |
| 22-NE-054 | 72962 | HARVARD INDUSTRIES INC |
| 2211675 | 001JK | EMBRAER S/A |
| 2211675 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2211675 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 4-00560-005 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
| 5310000880553 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 55-242 | 27235 | HARDIE-TYNES CO., INC. |
| 853674-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 870126 | 19203 | PICATINNY ARSENAL |
| 870126-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 8805718 | 19203 | PICATINNY ARSENAL |
| 908999K1 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 908999K1 | 2A659 | AIRMOTIVE CARBURETOR |
| BM11359-07 | 19422 | DEMARKUS CORP REFRIGERATION ENGINEERING CORP |
| F52NE054 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52NE054 | 08928 | ABBOTT-INTERFAST CORP |
| F52NE054 | 72962 | HARVARD INDUSTRIES INC |
| H0698 | 7J998 | COMPOSITE ENGINEERING INC DIV SUBSIDIARY OF KRATOS DEFENSE & |
| MS21044N5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21044N5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SG4013SYMB0LJ | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-088-0553
Related Products | NSN 5310-00-088-0553
Technical Data | NSN 5310-00-088-0553
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

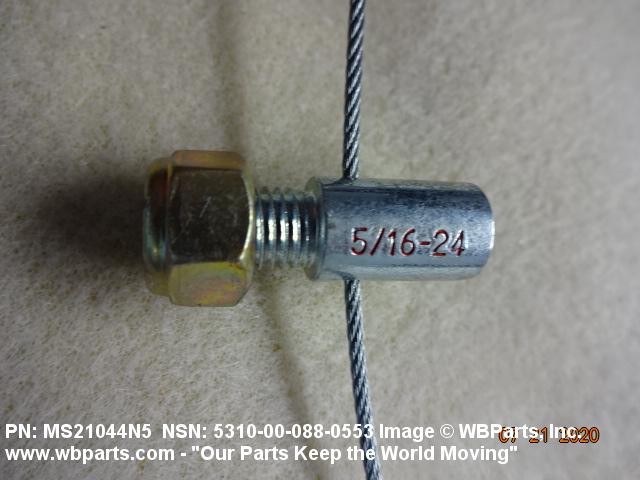

| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1006 OR STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1010 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1035 OR STEEL COMP 11L37 OR STEEL COMP 1213 OR STEEL COMP 12L14 NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

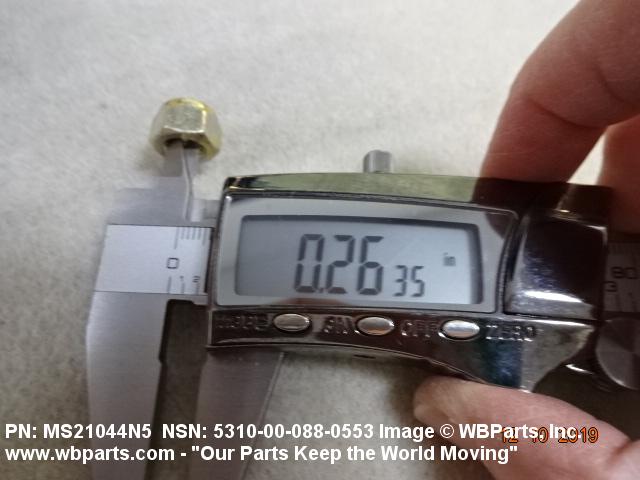

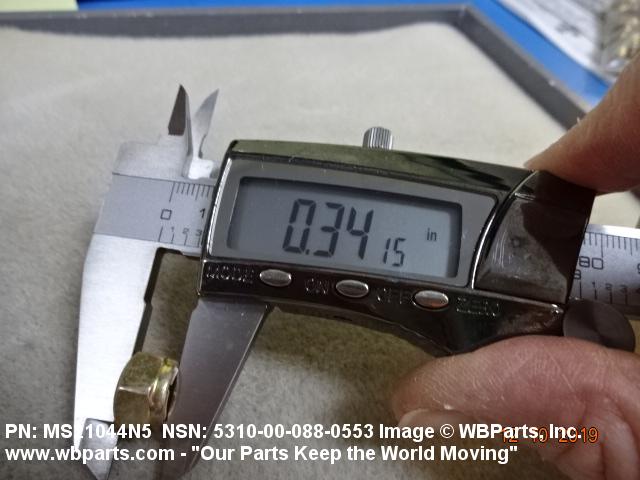

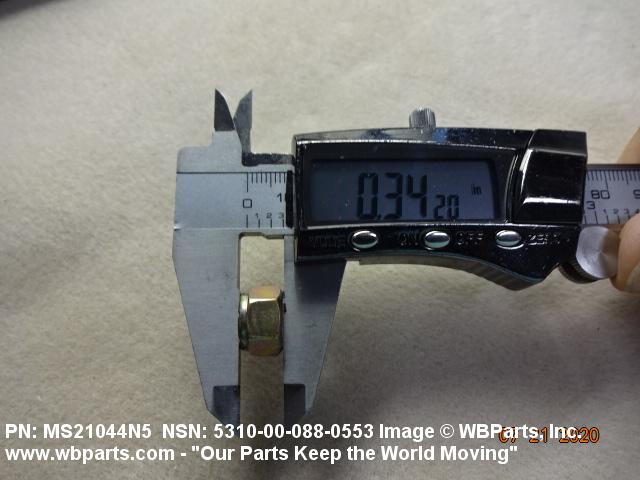

| NUT HEIGHT | 0.271 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |

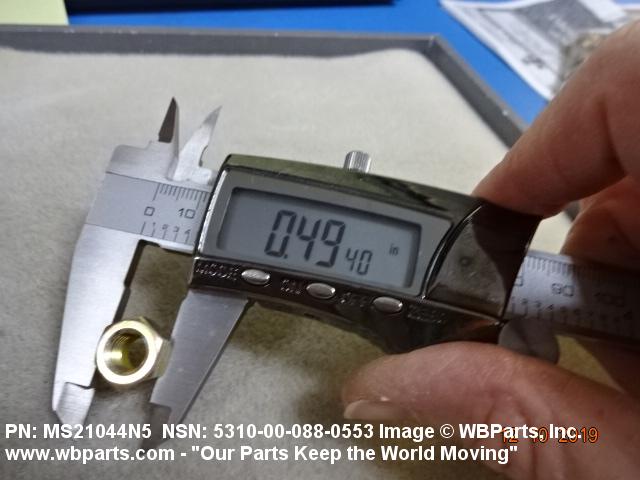

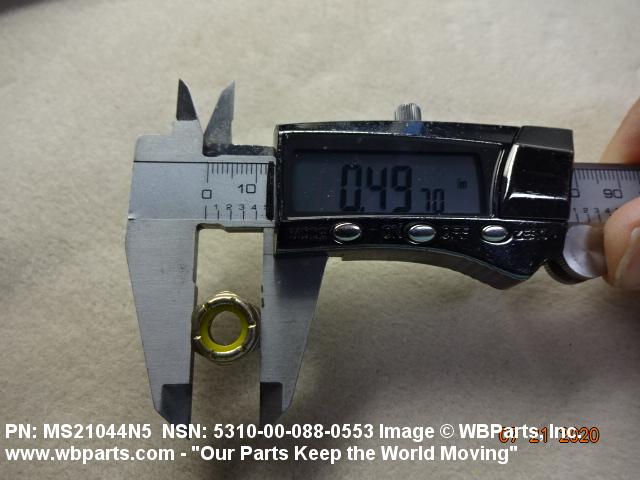

| WIDTH ACROSS FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED OR WASHER FACED |

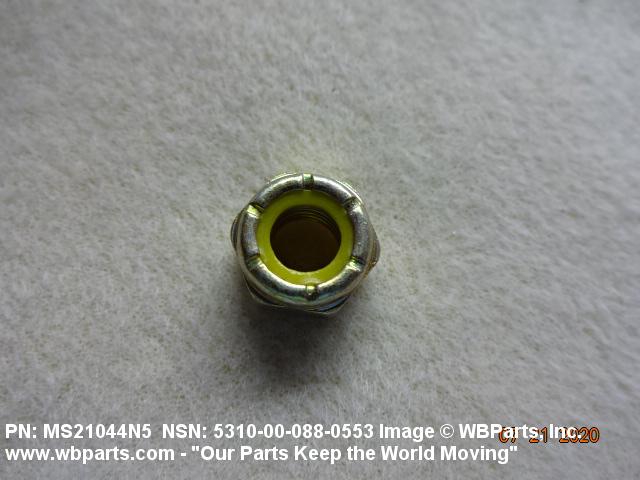

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES NOMINAL NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-088-0553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-088-0553
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
