NSN 5310-00-083-4640 B198801, B1988-01, GN512F3218

Product Details | BLIND RIVET PLAIN NUT

5310-00-083-4640 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.

Part Alternates: B198801, B1988-01, GN512F3218, GN512F3-218, 5310-00-083-4640, 00-083-4640, 5310000834640, 000834640

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 NOV 1972	00-083-4640	01873 ( NUT, PLAIN, BLIND RIVET )

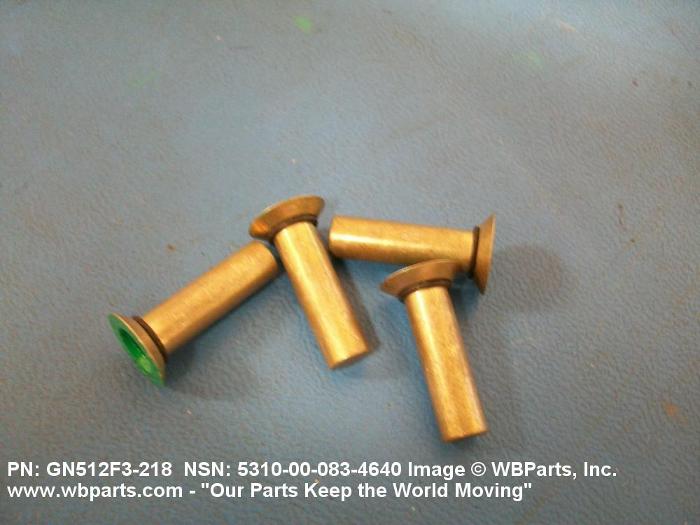

Drawings & Photos | NSN 5310-00-083-4640

Part Number	Request Date	QTY	Origin
5310-00-083-4640	2013-10-290	183	DIBBS
5310-00-083-4640	2013-04-92	152	DIBBS
5310-00-083-4640	2012-04-118	12	DIBBS
5310-00-083-4640	2012-04-93	100	DIBBS
5310-00-083-4640	2012-03-74	83	DIBBS
5310-00-083-4640	2011-12-343	29	DIBBS
5310-00-083-4640	2011-10-278	35	DIBBS
GN512F3218	2011-07-210	24	United States
5310-00-083-4640	2011-06-167	36	United States
5310-00-083-4640	2011-05-140	24	DIBBS

Cross Reference | NSN 5310-00-083-4640

Part Number	Cage Code	Manufacturer
B1988-01	03481	BFGOODRICH CO THE AEROSPACE DIV
GN512F3-218	0VK23	BOLLHOFF RIVNUT., INC. FASTENING AND ASSEMBLY TECHNOLOGY
GN512F3-218	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GN512F3-218	3H464	BOLLHOFF INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-083-4640

Compare

Related Products | NSN 5310-00-083-4640

5310-00-083-4643, 5310-00-083-4644, 5310-00-083-4646, 5310-00-083-4672, 5310-00-083-4693

Technical Data | NSN 5310-00-083-4640

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 4037 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A22 BLIND RIVET W/SMOOTH ROUND SHANK
NUT DIAMETER	0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
NUT LENGTH	0.891 INCHES MINIMUM AND 0.921 INCHES MAXIMUM
NUT GRIP RANGE	0.158 TO 0.218 INCHES
HEAD STYLE	D10 FLAT COUNTERSUNK UNDERCUT
HEAD DIAMETER	0.481 INCHES NOMINAL
HEAD HEIGHT	0.073 INCHES MAXIMUM
HEAD COUNTERSINK ANGLE	99.00 DEGREES MINIMUM AND 101.00 DEGREES MAXIMUM
SHANK END TYPE	CLOSED
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIAL FEATURES	IDENTIFICATION COLOR GREEN FURNISHED W/ O RING
MANUFACTURERS CODE	03481
DESIGN CONTROL REFERENCE	B1988-01

Restrictions/Controls & Freight Information | NSN 5310-00-083-4640

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-083-4640

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
