NSN 5310-00-063-7928 NAJ27J82, NAJ27-J-82, NAS1033D08
Product Details | PLATE SELF-LOCKING NUT

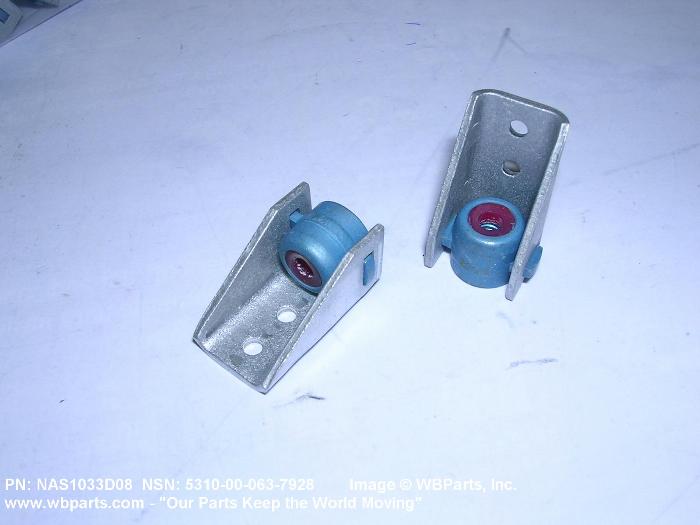

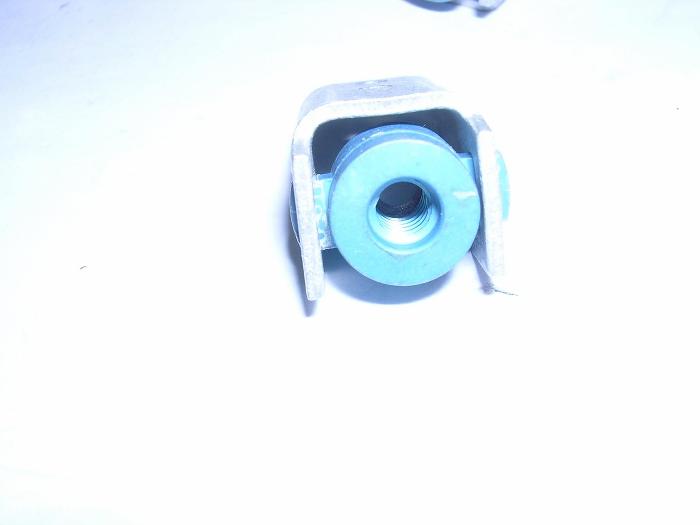

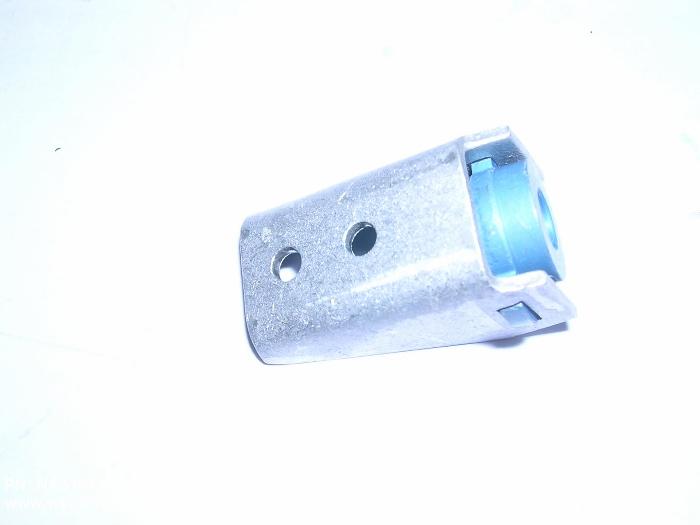

5310-00-063-7928 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAJ27J82, NAJ27-J-82, NAS1033D08, 5310-00-063-7928, 00-063-7928, 5310000637928, 000637928
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-063-7928 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

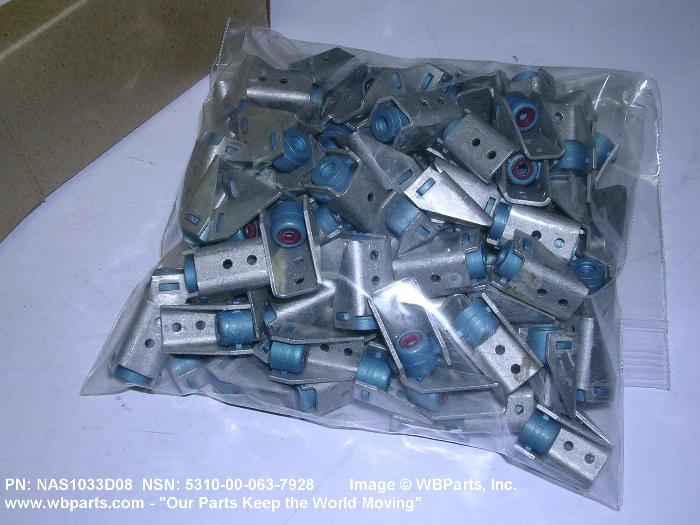

Drawings & Photos | NSN 5310-00-063-7928
Demand History | NSN 5310-00-063-7928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1033D08 | 2022-08-215 | 40 | US |
| 5310-00-063-7928 | 2014-03-73 | 4 | US |
| NAS1033D08 | 2010-08-216 | 50 | United States |
| NAS1033D08 | 2009-01-14 | 100 | United States |
| 5310-00-063-7928 | 2008-04-106 | 125 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-063-7928
Related Products | NSN 5310-00-063-7928
Technical Data | NSN 5310-00-063-7928
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC LOCKING INSERT ALUMINUM ALLOY NUT ALUMINUM ALLOY SHELL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE NUT ANODIZE OR CHROMATE SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE NUT MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A122 PLATE |
| NUT LENGTH | 0.906 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.281 INCHES NOMINAL |
| NUT HEIGHT | 0.343 INCHES MAXIMUM |
| PLATE THICKNESS | 0.075 INCHES MAXIMUM |
| PLATE WIDTH | 0.619 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.070 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | 0.170 INCHES MINIMUM AND 0.185 INCHES MAXIMUM NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F3 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.484 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.250 INCHES NOMINAL |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS 1033 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
