NSN 5310-00-062-3315 A4972882, A4972-8-82, BACN10FX81
Product Details | CLIP-ON NUT
5310-00-062-3315 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: A4972882, A4972-8-82, BACN10FX81, BACN10FX83, BRC500808, BRC500-8-08, C64608, C646-08, SL213081, SL213-08-1, SL237011, SL2370-11, STSCJ004C04, STSCJ004E04, RM52LHA4972882, RM52LHA4972-8-82, 0623315, 062-3315, 130007, 1308000143, 13080001-4-3, 294671L, 5310-00-062-3315, 00-062-3315, 5310000623315, 000623315
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUN 1967 | 00-062-3315 | 35871 ( NUT, CLIP-ON ) |

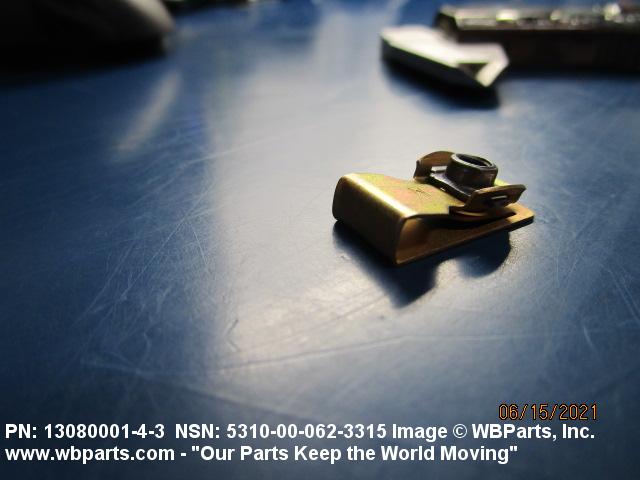

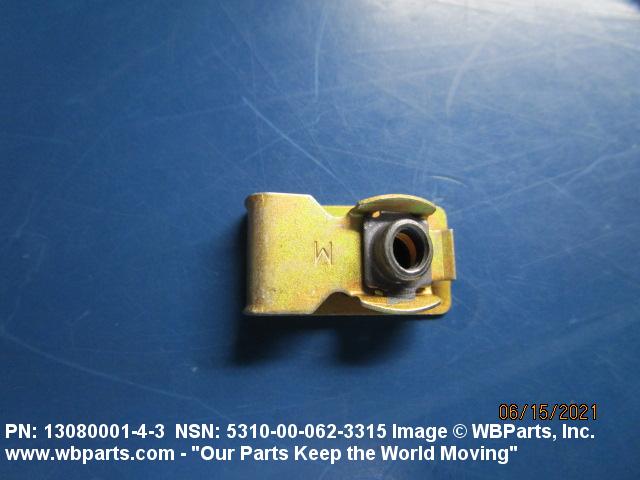

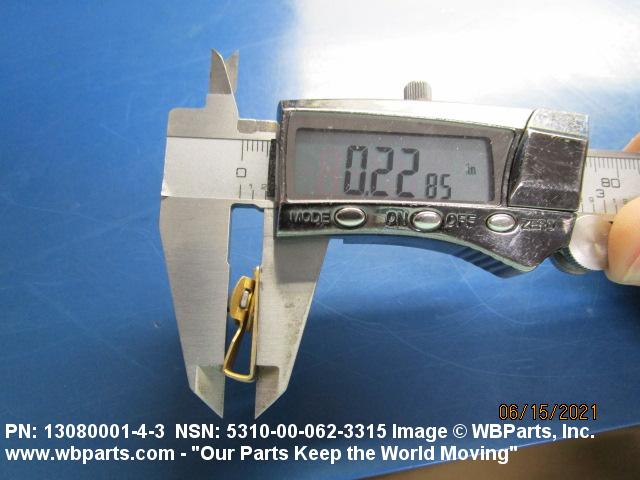

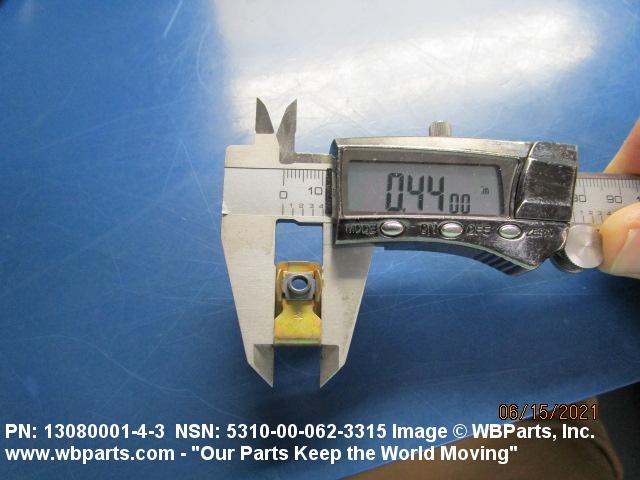

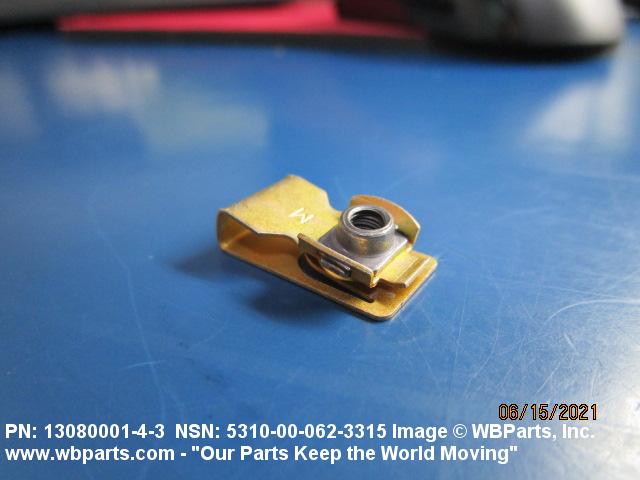

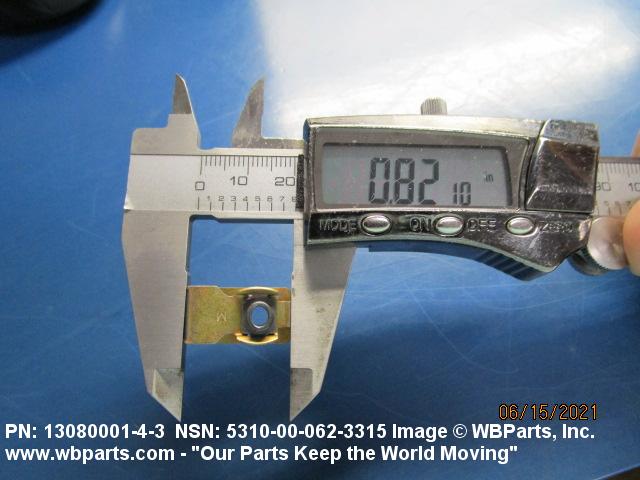

Drawings & Photos | NSN 5310-00-062-3315
Demand History | NSN 5310-00-062-3315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-062-3315 | 2021-06-154 | 50 | United States |
| RM52LHA4972882 | 2021-05-140 | 20 | United States |
| 5310-00-062-3315 | 2018-05-136 | 2274 | US |
| RM52LHA4972882 | 2018-01-31 | 4000 | United States |
| 5310-00-062-3315 | 2017-02-53 | 9 | MANUAL |
| 5310-00-062-3315 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5310-00-062-3315 | 2015-11-326 | 23326 | DIBBS |
| 13080001-4-3 | 2014-06-157 | 50 | United States |
| A4972882 | 2014-04-113 | 200 | US |
| RM52LHA4972882 | 2012-11-332 | 875 | United States |
| RM52LHA4972882 | 2012-11-319 | 800 | US |
| 5310-00-062-3315 | 2011-10-298 | 11517 | DIBBS |
| 5310-00-062-3315 | 2010-11-313 | 25 | US |
| 5310-00-062-3315 | 2010-02-34 | 14785 | DIBBS |
| 5310-00-062-3315 | 2009-02-40 | 4982 | DIBBS |
| SL213081 | 2009-01-08 | 24 | US |
| 5310-00-062-3315 | 2008-11-310 | 10 | US |
| 5310-00-062-3315 | 2008-02-36 | 8038 | DIBBS |
| RM52LHA4972882 | 2007-11-319 | 140 | United States |
| 5310-00-062-3315 | 2007-06-157 | 1 | Germany |
| C64608 | 2006-07-198 | 50 | Thailand |
Cross Reference | NSN 5310-00-062-3315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 062-3315 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 130007 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 13080001-4-3 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 294671L | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| A4972-8-82 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| A4972-8-82 | 72962 | HARVARD INDUSTRIES INC |
| BACN10FX81 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10FX83 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| BACN10FX83 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACN10FX83 | 81205 | THE BOEING COMPANY DBA BOEING |
| BRC500-8-08 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| C646-08 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| RM52LHA4972-8-82 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHA4972-8-82 | 72962 | HARVARD INDUSTRIES INC |
| SL213-08-1 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| SL213-08-1 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| SL2370-11 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| STSCJ004C04 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| STSCJ004E04 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-062-3315
Related Products | NSN 5310-00-062-3315
Technical Data | NSN 5310-00-062-3315
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A397 FLOATING |
| OVERALL WIDTH | 0.437 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.570 INCHES MAXIMUM |
| PANEL THICKNESS | 0.190 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 450.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-062-3315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-062-3315
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
