NSN 5310-00-059-8374 RLA21SM4.213, RLA21SM4213, 12Z30025
Product Details | LOCK WASHER
5310-00-059-8374 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: RLA21SM4.213, RLA21SM4213, 12Z30025, 12Z3002-5, 5310-00-059-8374, 00-059-8374, 5310000598374, 000598374
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1967 | 00-059-8374 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-00-059-8374
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-059-8374
Technical Data | NSN 5310-00-059-8374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 CLASS 7. TYPE A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

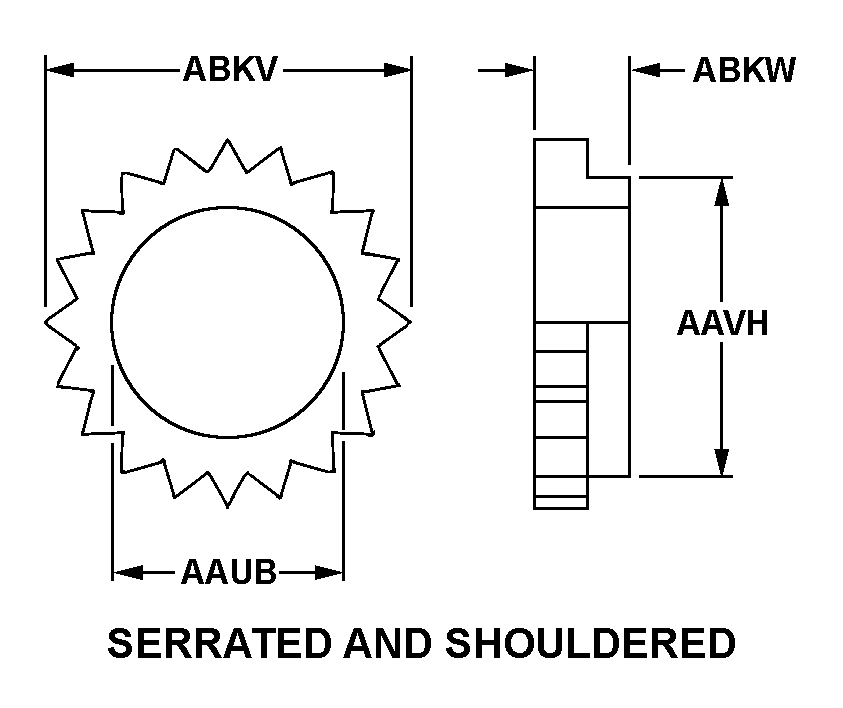

| STYLE DESIGNATOR | 115 SERRATED AND SHOULDERED |
| HOLE DIAMETER | 0.213 INCHES MINIMUM AND 0.216 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.298 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.354 INCHES NOMINAL |
| OVERALL HEIGHT | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| MANUFACTURERS CODE | 94135 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 12Z3002-5 |
Restrictions/Controls & Freight Information | NSN 5310-00-059-8374
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
