NSN 5310-00-054-0041 NAS620C6L, B68023, REW620C6L

Product Details | FLAT WASHER

5310-00-054-0041 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS620C6L, B68023, REW620C6L, 94760-4061, 9476204061, 947620-4061, 004002894057, 004-002894-057, 10001217, 10062714, 1530103018, 153-0103-018, 1530183009, 153-0183-009, 2117200749, 21172-00749, 2117600749, 21176-00749, 25046389, 2504638-9, 2710806PC79, 3100740360, 310-0740-360, 40530006816, 41815457, 418154-57, 4197600023, 4197600-023, 5310-00-054-0041, 00-054-0041, 5310000540041 , 000540041, 947604061

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-0041	13393 ( WASHER, FLAT )

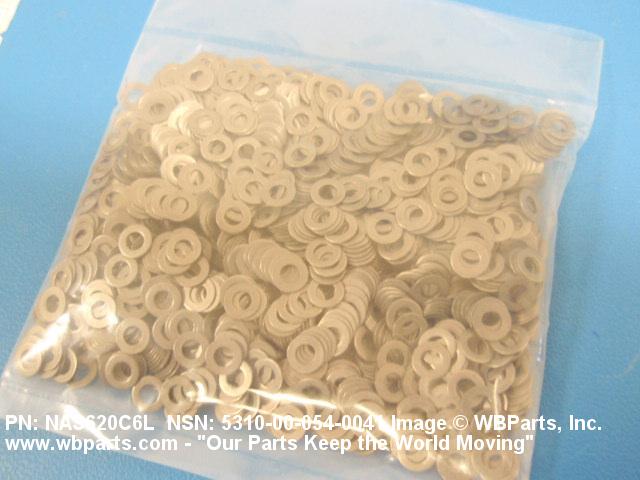

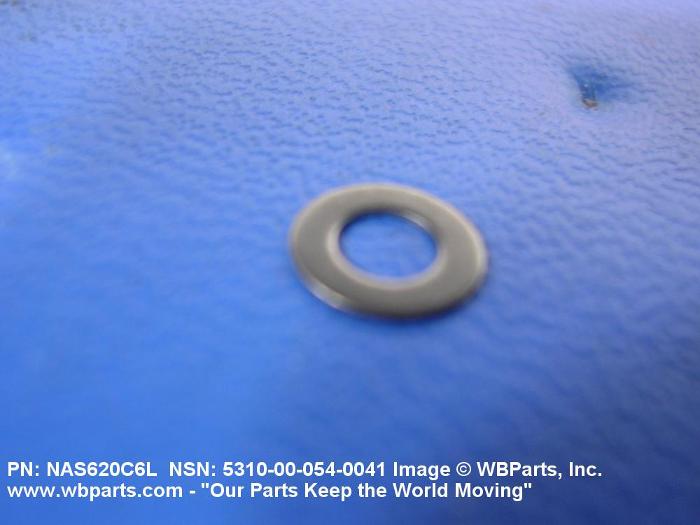

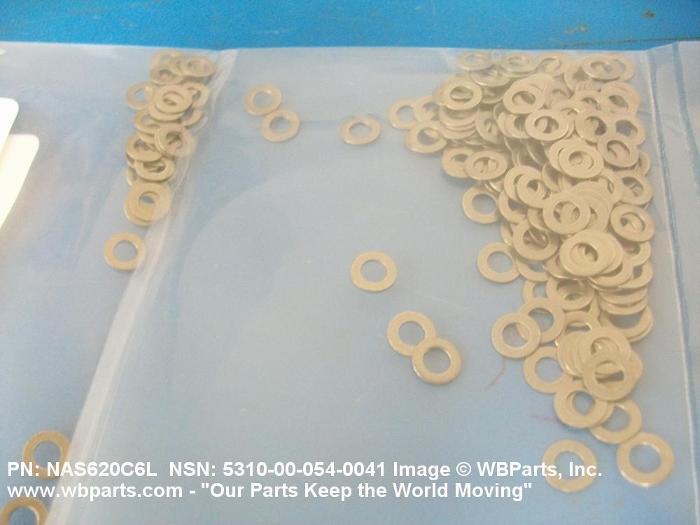

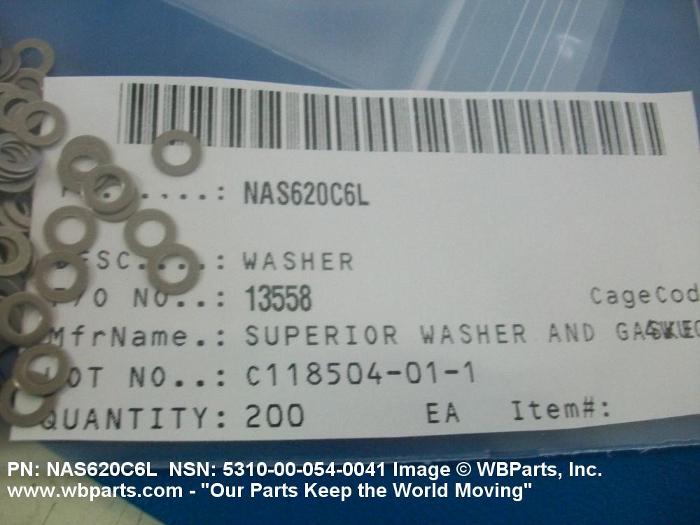

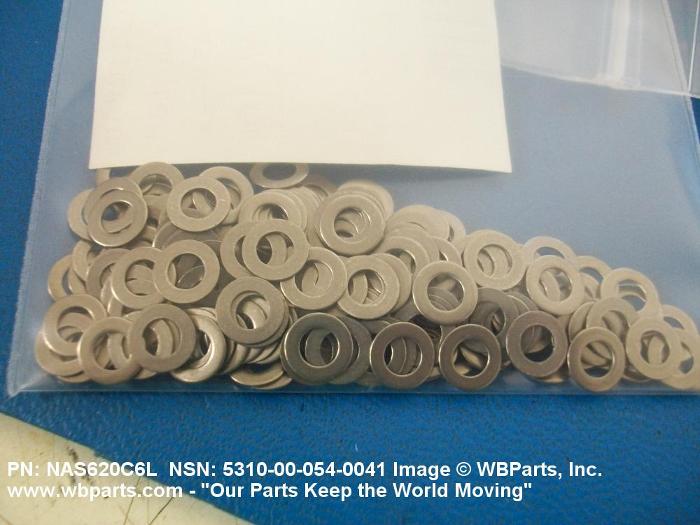

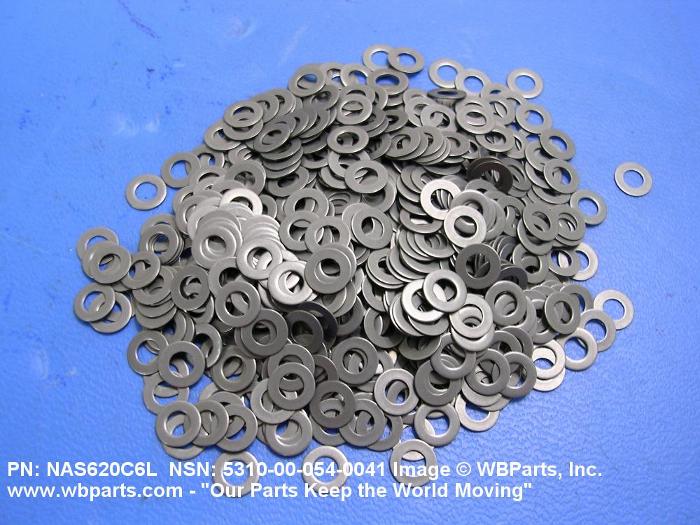

Drawings & Photos | NSN 5310-00-054-0041

Part Number	Request Date	QTY	Origin
NAS620C6L	2024-10-292	30	India
NAS620C6L	2024-05-129	550	South Korea
NAS620C6L	2024-03-88	300	AE
NAS620C6L	2023-11-310	100	United States
NAS620C6L	2023-11-306	10	US
5310-00-054-0041	2023-05-136	2	US
NAS620C6L	2022-06-165	500	US
NAS620C6L	2021-11-319	7770	IN
5310-00-054-0041	2021-09-258	1000	TW
NAS620C6L	2021-07-188	35	United States
5310-00-054-0041	2021-04-116	5	US
NAS620C6L	2019-10-288	10	United States
5310-00-054-0041	2019-08-231	3200	TW
NAS620C6L	2019-02-52	1100	US
NAS620C6L	2019-02-52	4200	US
NAS620C6L	2018-05-143	150	United States
NAS620C6L	2017-06-172	240	United States
NAS620C6L	2017-03-79	6	United States
NAS620C6L	2015-12-349	75	US
NAS620C6L	2015-06-153	8	NL
NAS620C6L	2014-09-246	9	China
NAS620C6L	2014-07-195	1	US
NAS620C6L	2012-11-313	800	us
5310-00-054-0041	2012-06-171	11	MANUAL
NAS620C6L	2012-06-171	11	Malaysia
5310-00-054-0041	2012-05-144	25	United States
NAS620C6L	2012-04-110	65	United States
NAS620C6L	2012-04-110	12	United States
NAS620C6L	2011-09-249	2	South Korea
NAS620C6L	2011-04-115	96	US
NAS620C6L	2011-03-73	3000	US
NAS620C6L	2011-01-24	8000	IN
5310-00-054-0041	2010-10-288	50	United States
NAS620C6L	2010-08-229	20	United States
5310-00-054-0041	2010-04-103	25	US
5310-00-054-0041	2010-04-96	200	United States
5310-00-054-0041	2010-03-63	200	United States
NAS620C6L	2010-02-41	50	United States
NAS620C6L	2009-10-293	92	US
5310-00-054-0041	2009-04-97	1600	United States
NAS620C6L	2008-11-311	500	United States
NAS620C6L	2008-09-273	1000	Canada
NAS620C6L	2008-09-260	30	India
5310-00-054-0041	2008-09-256	72	US
5310-00-054-0041	2008-09-250	50	India
5310-00-054-0041	2008-08-242	50	India
5310-00-054-0041	2008-06-161	200	us
5310-00-054-0041	2008-05-151	12000	US
5310-00-054-0041	2008-05-151	1500	United States
5310-00-054-0041	2008-04-117	2000	US
NAS620C6L	2008-04-112	100	India

Cross Reference | NSN 5310-00-054-0041

Part Number	Cage Code	Manufacturer
004-002894-057	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
10001217	57057	NAVCOM DEFENSE ELECTRONICS, INC.
10001217	95750	AERONAUTICAL INSTRUMENT AND RADIO COMPANY, THE
153-0103-018	94756	BOEING COMPANY, THE DBA BOEING
153-0183-009	94756	BOEING COMPANY, THE DBA BOEING
21172-00749	K0662	SELEX ES LTD
21176-00749	K0662	SELEX ES LTD
2504638-9	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2710806PC79	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
310-0740-360	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
310-0740-360	F5491	ROCKWELL COLLINS FRANCE DBA RCF
40530006816	S0522	TADIRAN LTD
418154-57	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
4197600-023	05869	RAYTHEON COMPANY DBA RAYTHEON
5310000540041	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
94760-4061	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
94760-4061	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
947620-4061	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
947620-4061	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
B68023	K0967	MBDA UK LTD
NAS620C6L	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
REW620C6L	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-054-0041

Compare

Related Products | NSN 5310-00-054-0041

5310-00-054-0074, 5310-00-054-0094, 5310-00-054-0449, 5310-00-054-0468, 5310-00-054-0566

Technical Data | NSN 5310-00-054-0041

Characteristic	Specifications
MATERIAL	STEEL COMP 303 OR STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-766 FED SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL

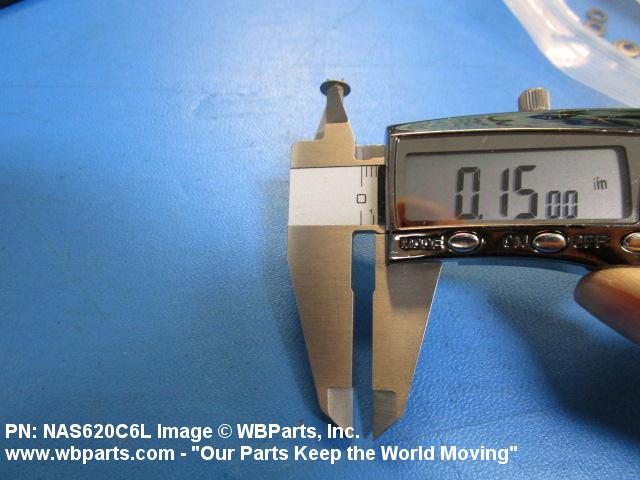

HOLE DIAMETER	0.151 INCHES MINIMUM AND 0.161 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

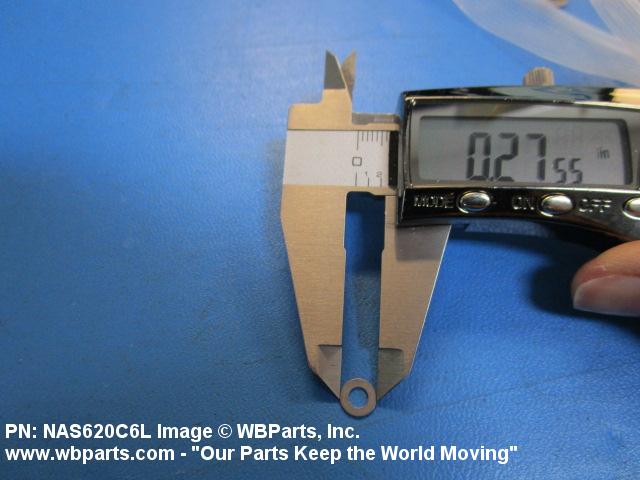

OVERALL DIAMETER	0.267 INCHES NOMINAL
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

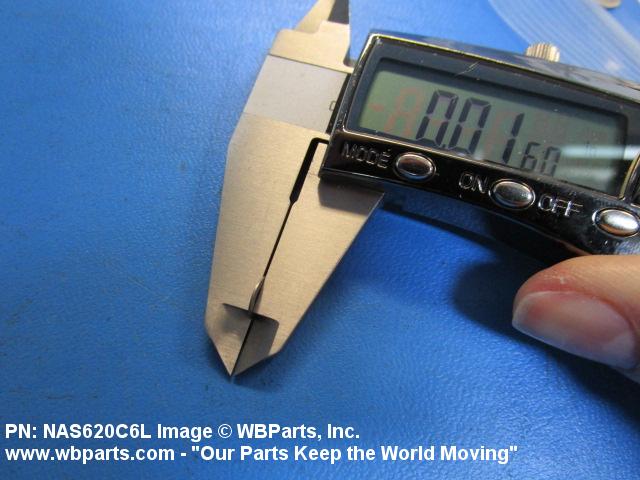

THICKNESS	0.016 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS620 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-054-0041

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-054-0041

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
