NSN 5310-00-052-6742 D9226735, D922673-5, ED483531

Product Details | HEXAGON SELF-LOCKING NUT

5310-00-052-6742 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: D9226735, D922673-5, ED483531, ED48353-1, ED7483531, ED748353-1, L791660256, L79-1660-256, 002-004082, 0191531, 019153-1, 02412001, 02-4120-01, 10116516 , 10706915, 107069-15, 16610426002, 16610426-002, 1JA7510H07, 2775277101, 2775277-101, 32356901, 3235690-1, 40319230701, 4031923-0701, 600029P17, 60076402, 600764-02, 610009P11, 79-1660-256, 79166026, 79-1660-26, 8599420008, 85994200-08, 85994320008, 859943200-08, 9556169, 955616-9, 99982714, 9998-2714, 5310-00-052-6742, 00-052-6742, 5310000526742, 142400203, 002004082, 000526742, 791660256

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	23 MAY 1967	00-052-6742	05277 ( NUT, SELF-LOCKING, HEXAGON )

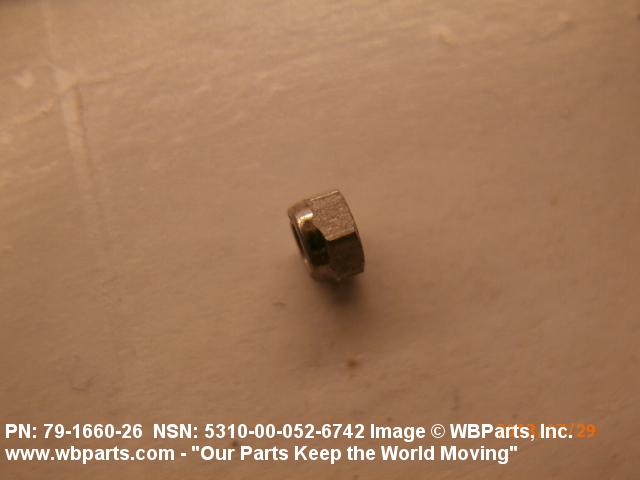

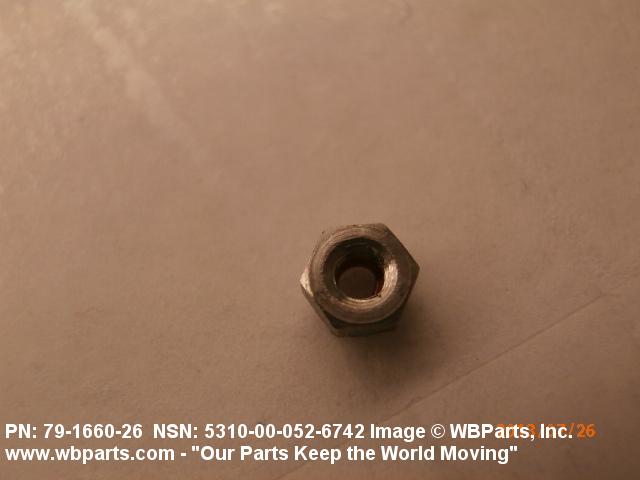

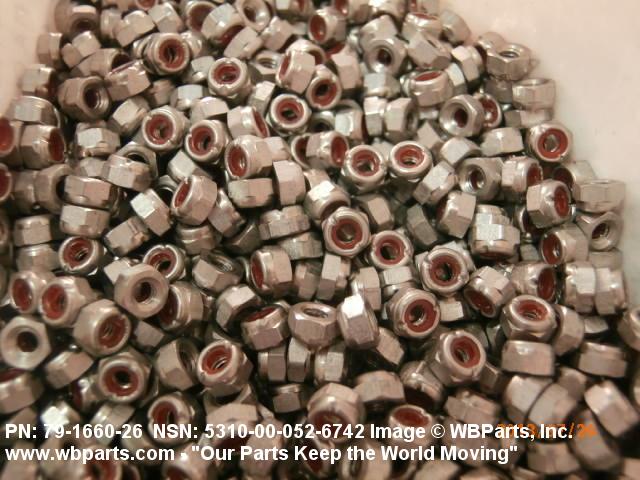

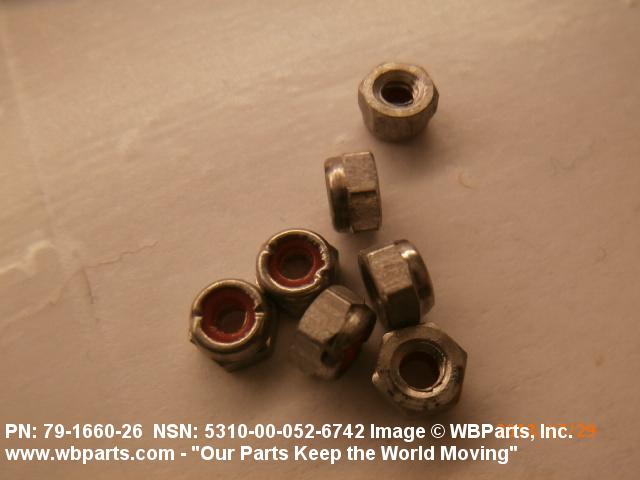

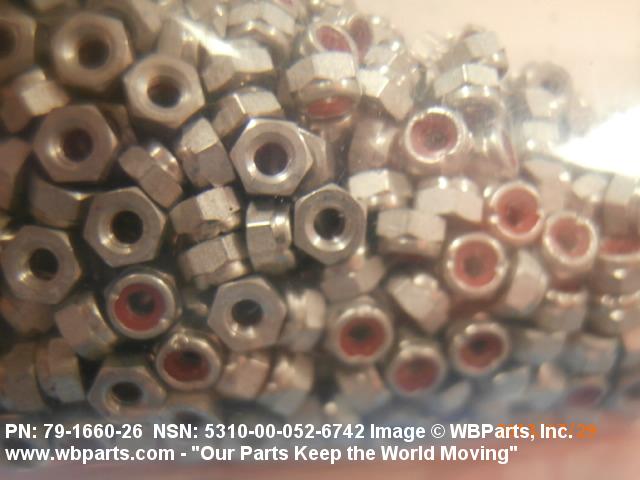

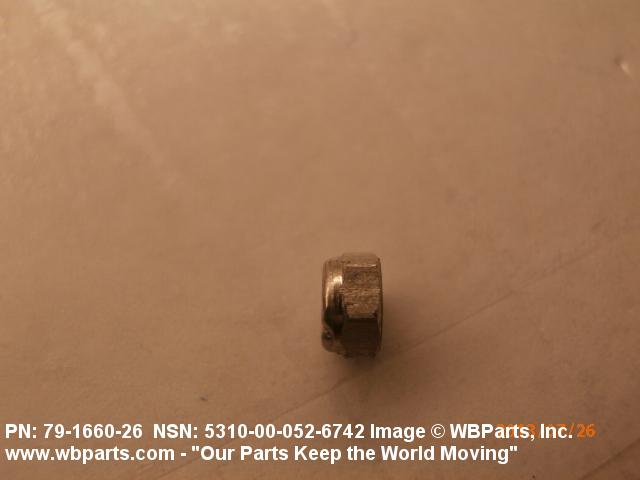

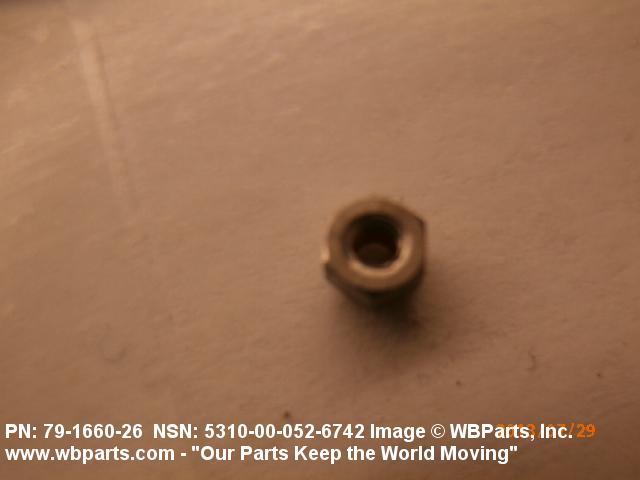

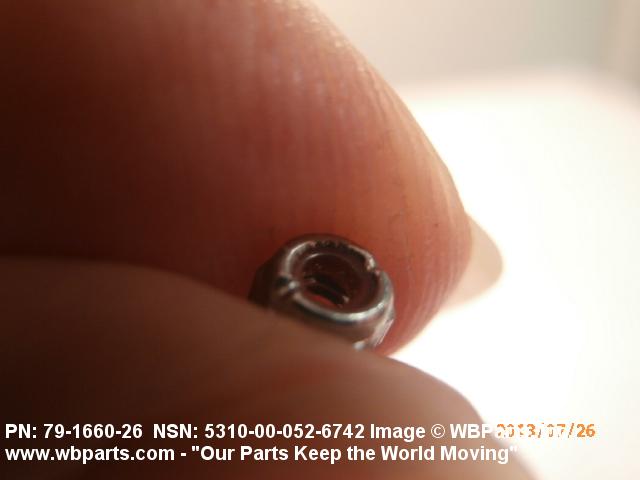

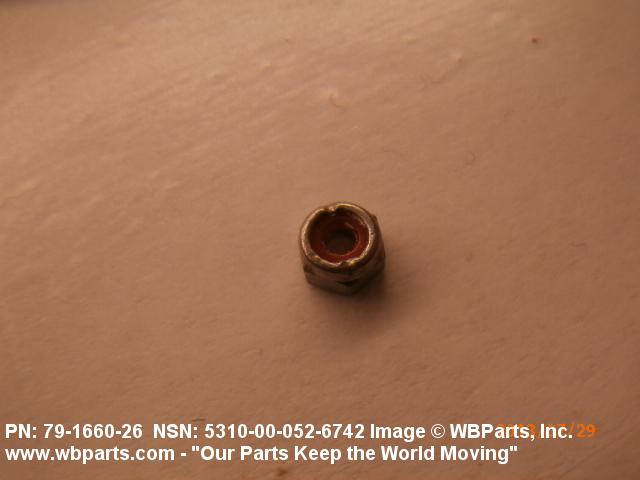

Drawings & Photos | NSN 5310-00-052-6742

Part Number	Request Date	QTY	Origin
D9226735	2023-06-159	4	United States
D9226735	2021-02-56	1	United States
5310-00-052-6742	2017-04-95	100	US
79166026	2014-09-254	288	United States
D9226735	2013-10-282	125	US
5310-00-052-6742	2013-07-200	3000	United States
5310-00-052-6742	2013-04-100	36	Canada
5310-00-052-6742	2013-04-100	3600	Canada
5310-00-052-6742	2013-04-100	14000	Canada
791660256	2011-03-75	8	Canada
5310-00-052-6742	2008-07-198	1000	Canada
5310-00-052-6742	2006-08-219	1000	US

Cross Reference | NSN 5310-00-052-6742

Part Number	Cage Code	Manufacturer
002-004082	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
019153-1	2J622	SCI TECHNOLOGY, INC. DIV DEFENSE AND AEROSPACE SYSTEMS
02-4120-01	31435	LUCAS AEROSPACE POWER EQUIPMENT CORPORATION
02-4120-01	3CPE0	SAFRAN POWER USA, LLC
107069-15	37695	RAYTHEON COMPANY DBA RAYTHEON
142400203	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
16610426-002	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
1JA7510H07	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
2775277-101	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
3235690-1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
4031923-0701	06845	RAYTHEON COMPANY DBA RAYTHEON
600029P17	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
600764-02	54089	DRS C3 & AVIATION COMPANY
610009P11	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
79-1660-256	15653	ALCOA GLOBAL FASTENERS, INC.
79-1660-256	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
79-1660-256	R1120	SATAIR A/S
79-1660-26	08928	ABBOTT-INTERFAST CORP
79-1660-26	10059	BARKER ENGINEERING CORP
79-1660-26	72962	HARVARD INDUSTRIES INC
85994200-08	27963	GENERAL DYNAMICS INFORMATION SYSTEMS INC.
859943200-08	27963	GENERAL DYNAMICS INFORMATION SYSTEMS INC.
859943200-08	3CYA2	GENERAL DYNAMICS ADVANCED INFORMATION SYSTEMS, INC.
955616-9	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
9998-2714	50027	FLIGHTLINE ELECTRONICS, INC. DBA ULTRA ELEC FLIGHTLINE SYSTEMS
D922673-5	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
ED48353-1	73030	HAMILTON SUNDSTRAND CORPORATION
ED748353-1	73030	HAMILTON SUNDSTRAND CORPORATION
L79-1660-256	27687	GREER STOP NUT INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-052-6742

Compare

Related Products | NSN 5310-00-052-6742

5310-00-052-6747, 5310-00-052-6754, 5310-00-052-6825, 5310-00-052-6842, 5310-00-052-6900

Technical Data | NSN 5310-00-052-6742

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 303 OR STEEL COMP 303SE NUT
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,COND A FED SPEC ALL MATERIAL RESPONSES NUT
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

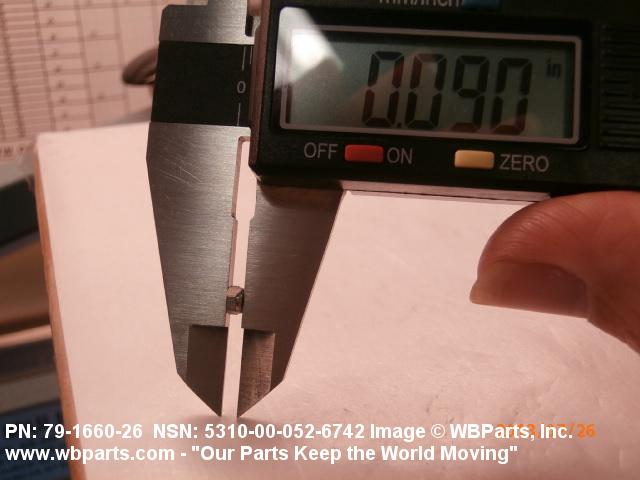

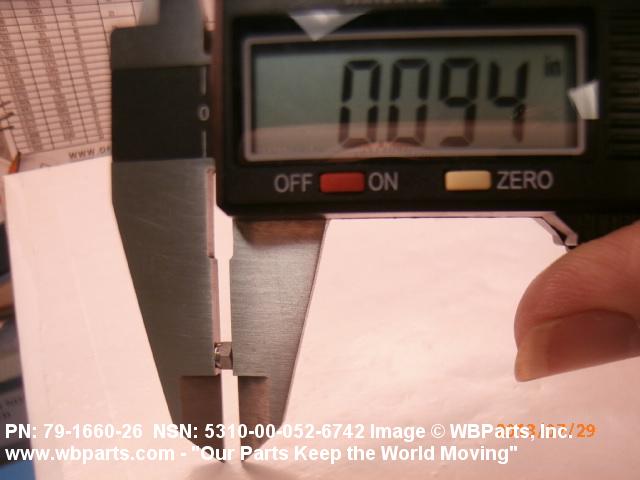

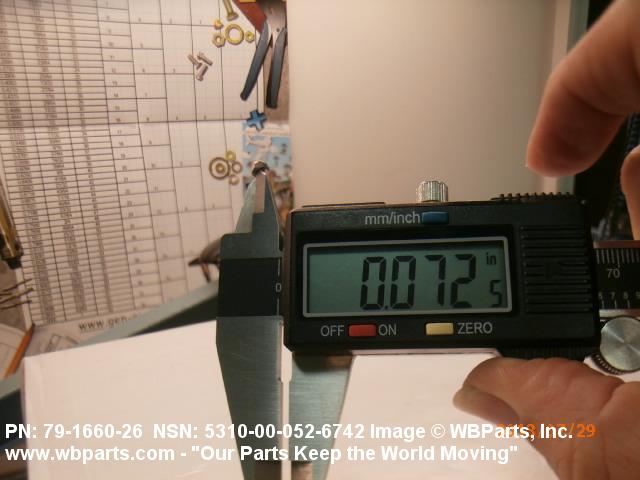

NUT HEIGHT	0.095 INCHES NOMINAL

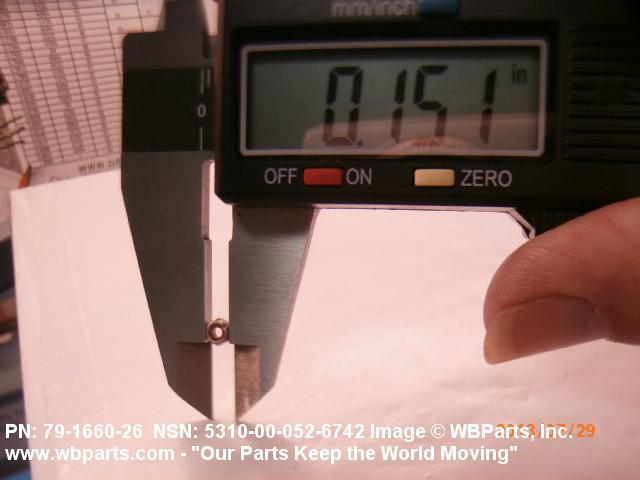

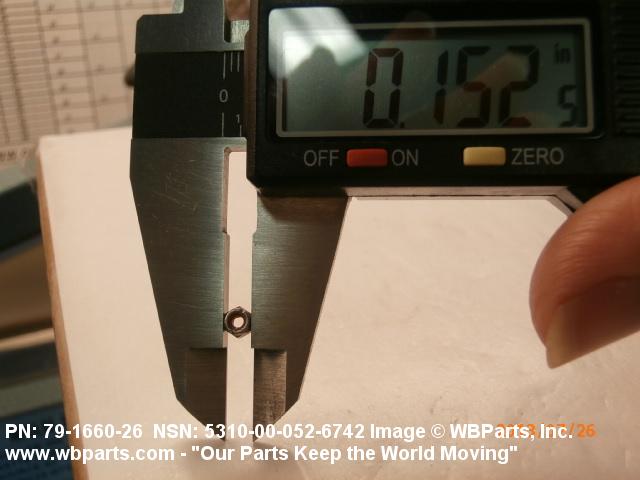

WIDTH ACROSS FLATS	0.150 INCHES MINIMUM AND 0.158 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED OR WASHER FACED
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	73030
DESIGN CONTROL REFERENCE	ED748353-1

Restrictions/Controls & Freight Information | NSN 5310-00-052-6742

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-052-6742

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
