NSN 5310-00-052-3728 10888593, 00-052-3728, 000523728
Product Details | KEY WASHER
5310-00-052-3728 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 10888593, 5310-00-052-3728, 00-052-3728, 5310000523728, 000523728
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAY 1967 | 00-052-3728 | 01869 ( WASHER, KEY ) |

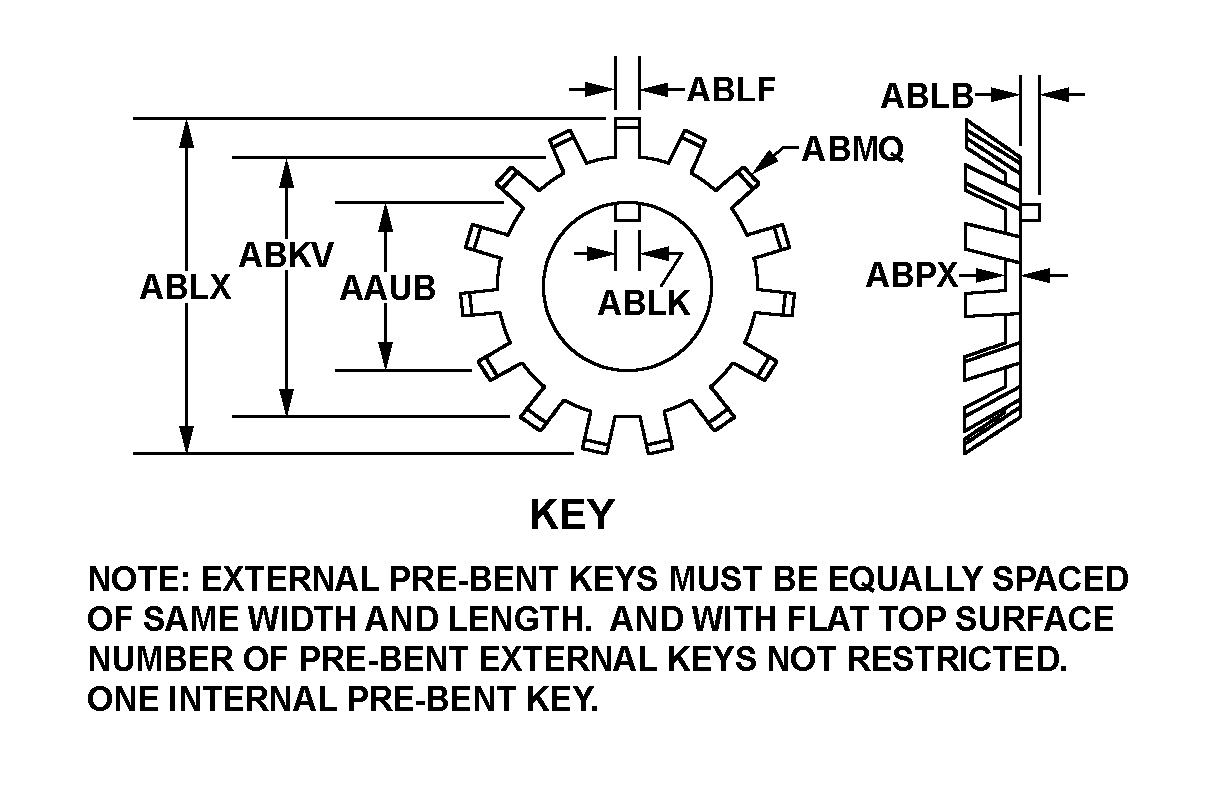

Drawings & Photos | NSN 5310-00-052-3728
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-052-3728
Technical Data | NSN 5310-00-052-3728
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1023W OR STEEL COMP 1524 OR STEEL COMP 1025 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-00640 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 153 KEY |
| EXTERNAL KEY QUANTITY | 17 |
| HOLE DIAMETER | 0.718 INCHES MINIMUM AND 0.728 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.937 INCHES NOMINAL |
| INTERNAL PREBENT KEY LENGTH | 0.062 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.118 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| INTERNAL PREBENT KEY WIDTH | 0.110 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 1.328 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.042 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
Restrictions/Controls & Freight Information | NSN 5310-00-052-3728
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
