Product Details | PLATE SELF-LOCKING NUT

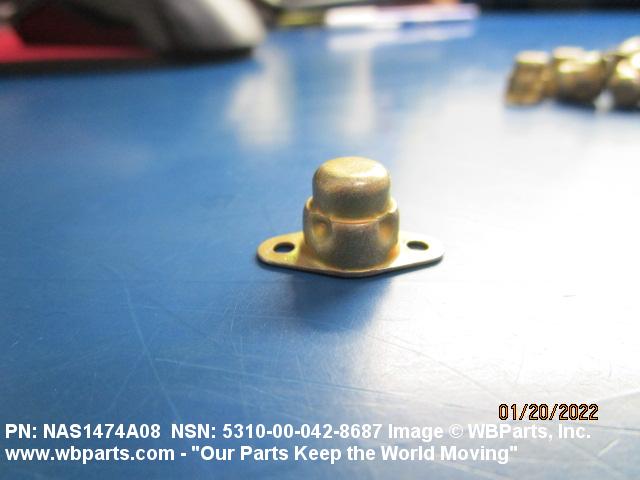

5310-00-042-8687 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: M14630H82, M14630H-82, MF196808, MF1968-08, NAS1474A08, A250682, A2506-82, GHN100412, GHN10041-2 , 3331451030, 333-1451-030, 5310-00-042-8687, 00-042-8687, 5310000428687, 000428687
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAY 1968 | 00-042-8687 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

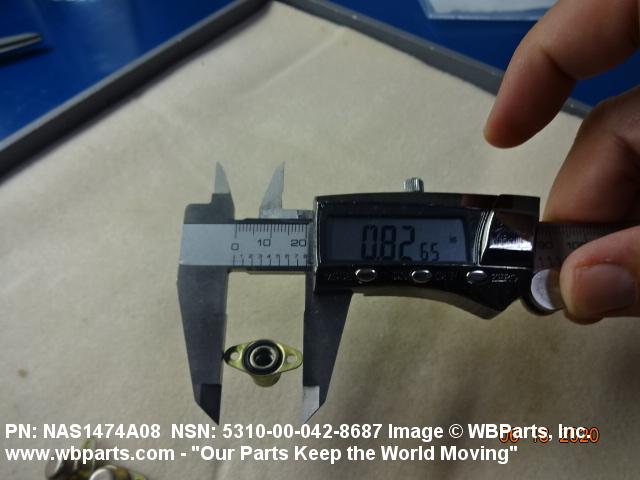

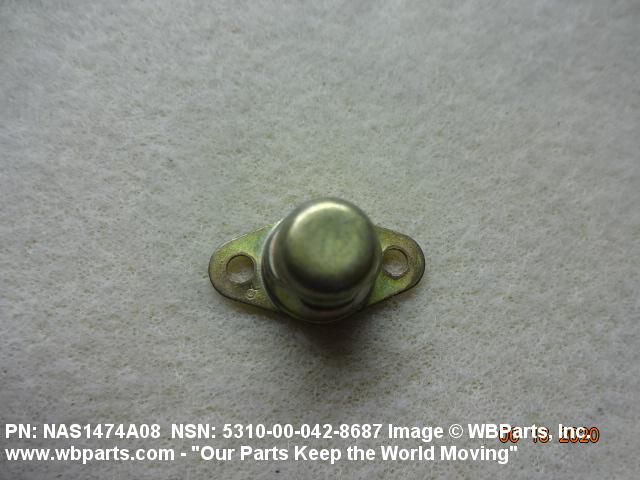

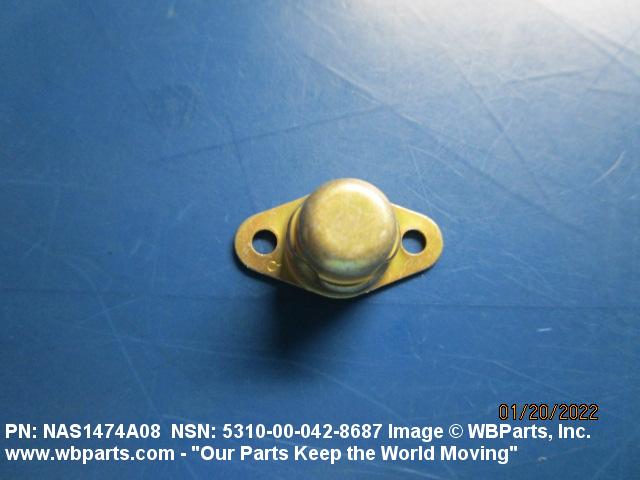

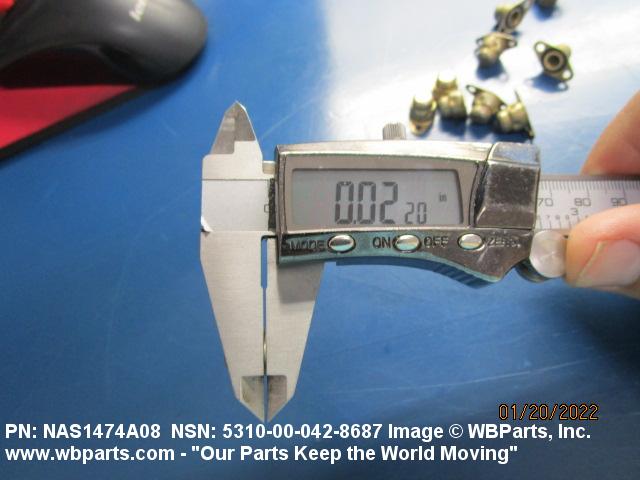

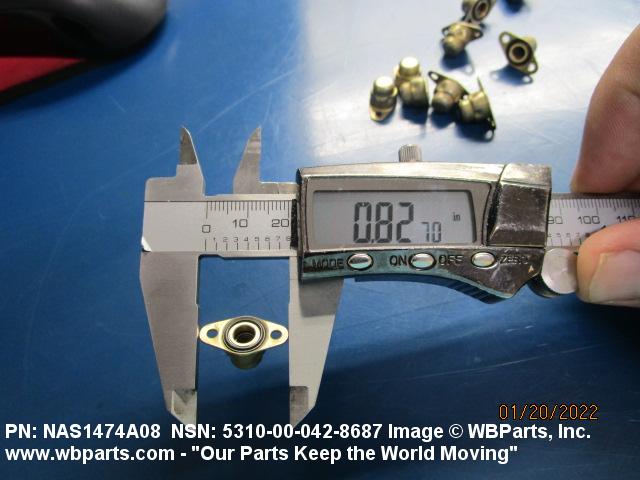

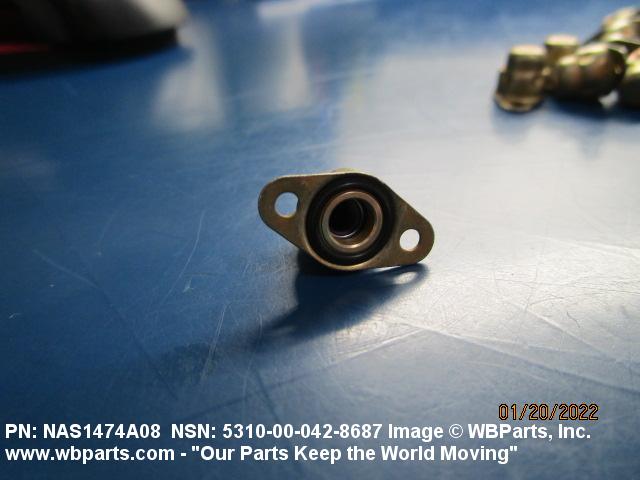

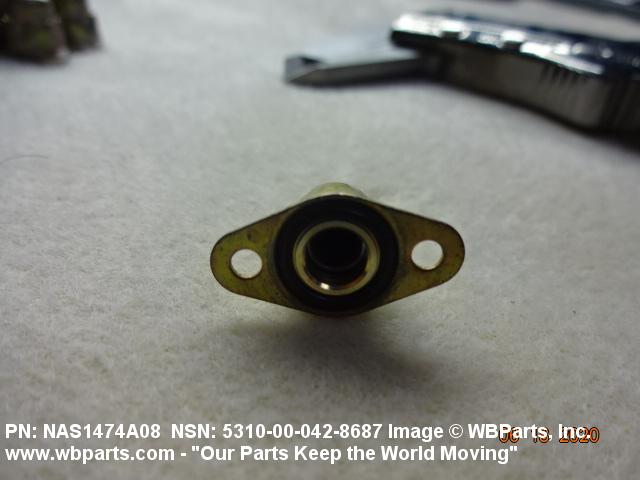

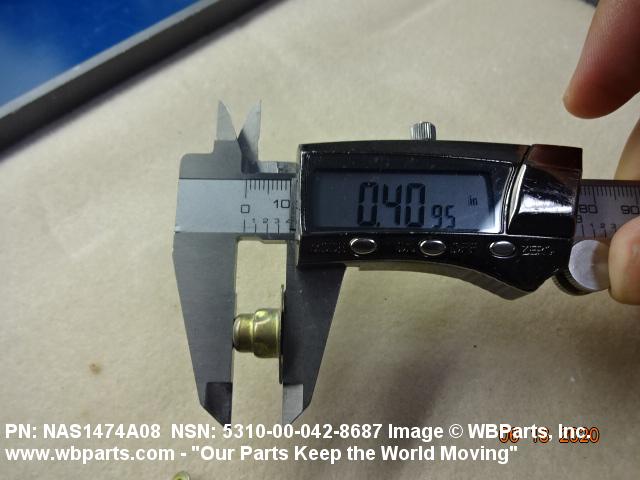

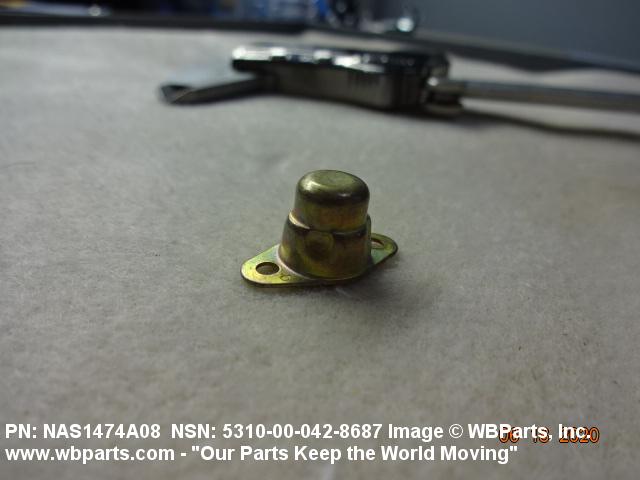

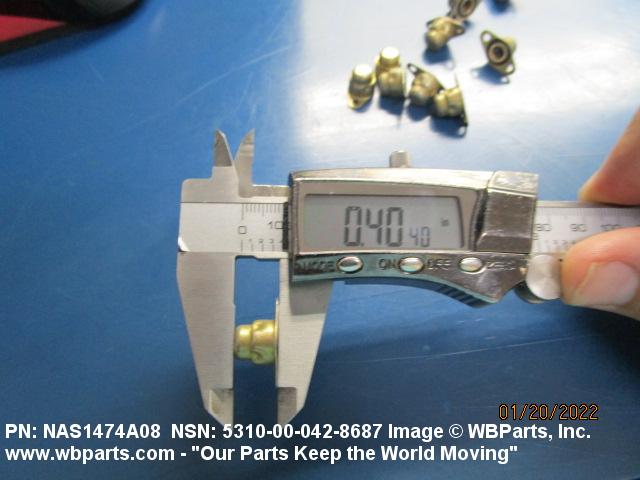

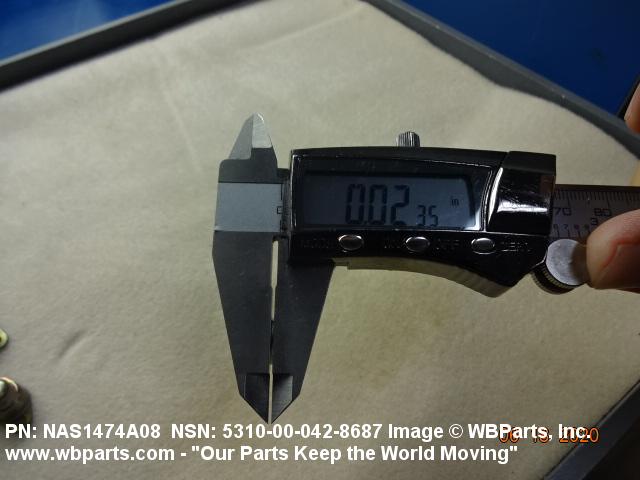

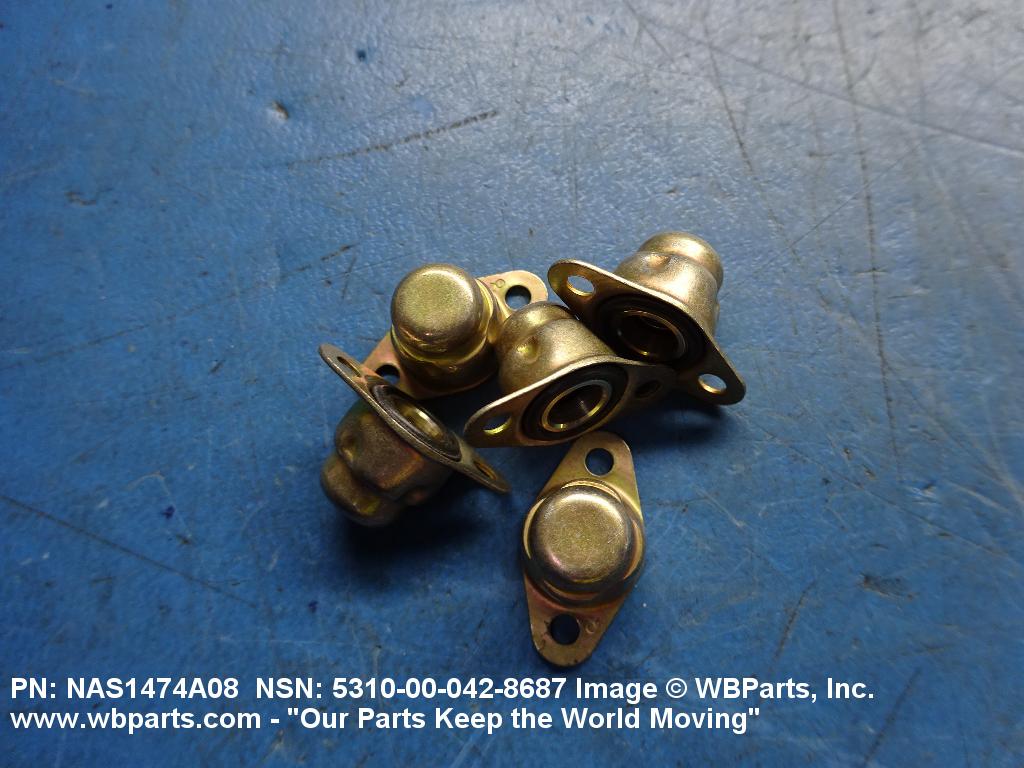

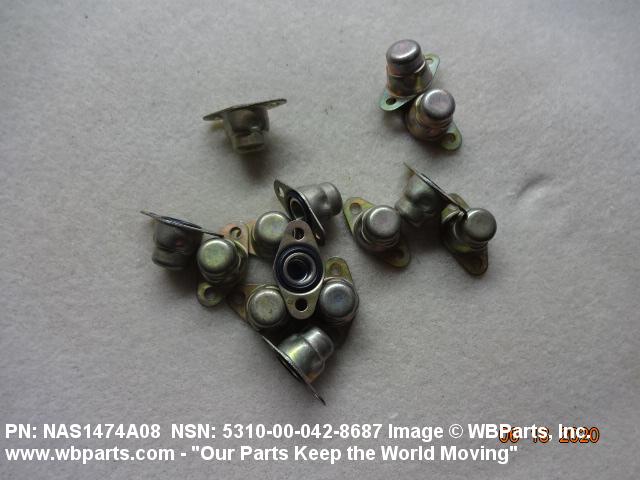

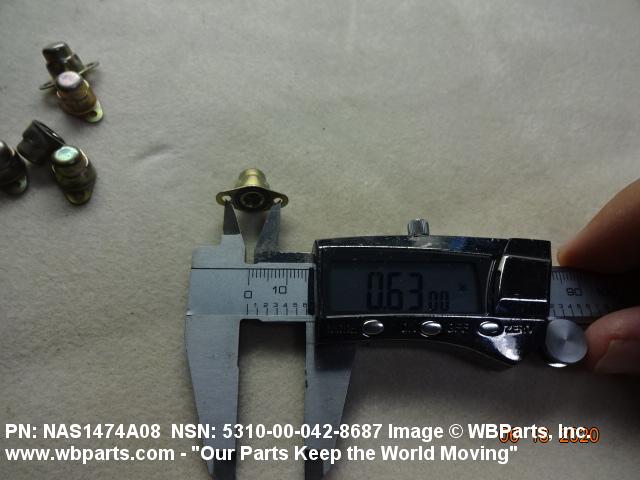

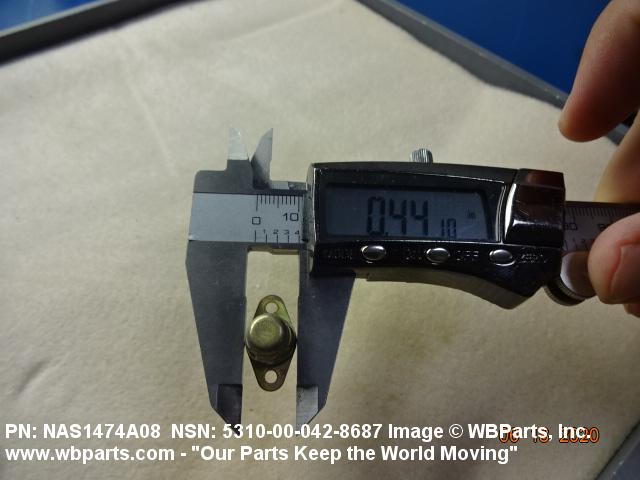

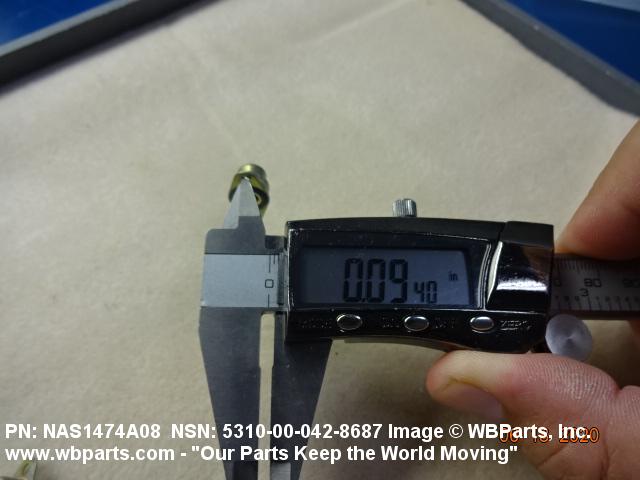

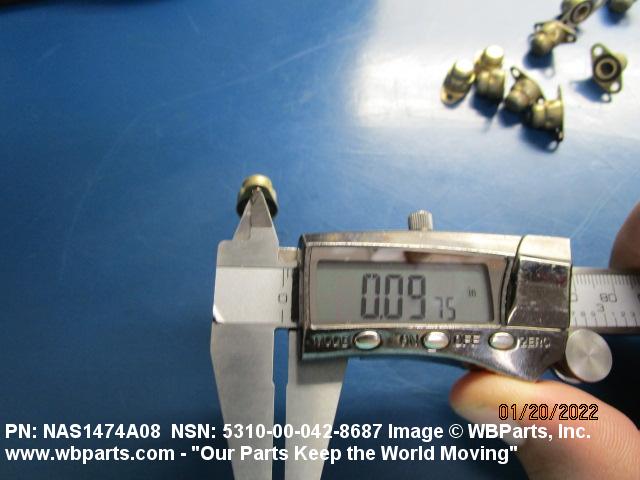

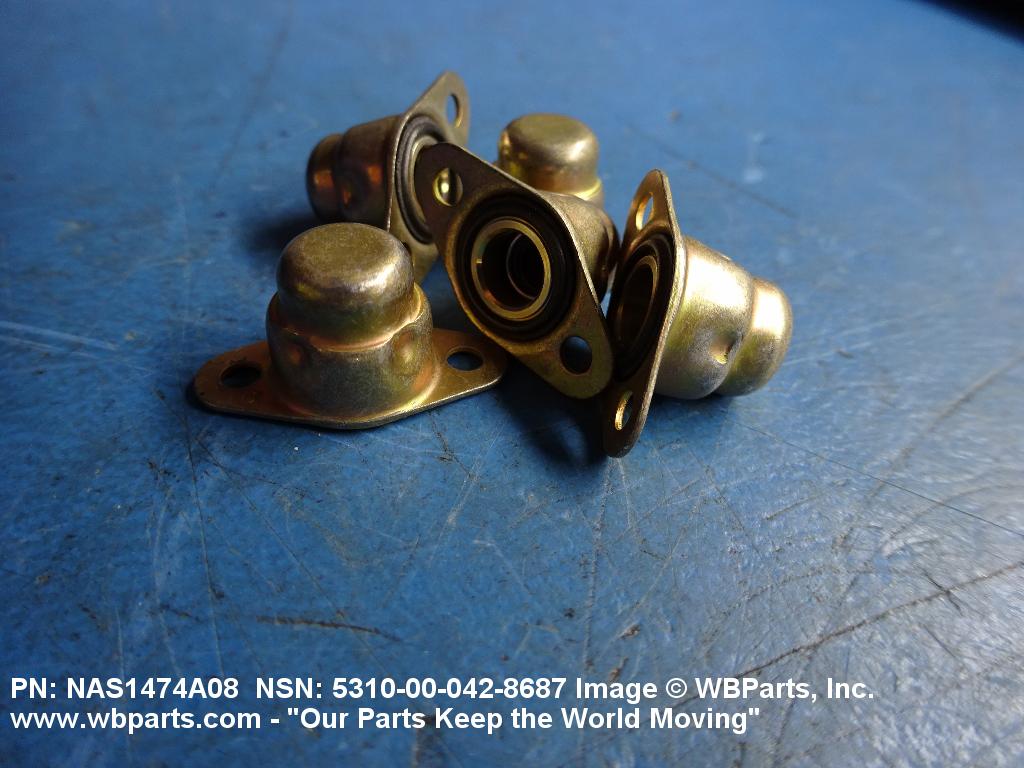

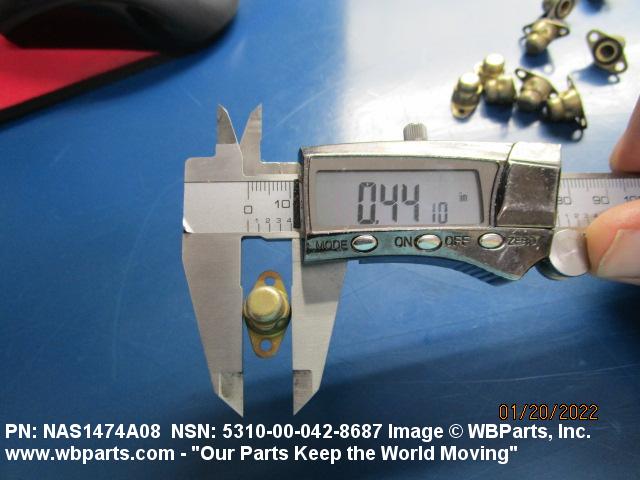

Drawings & Photos | NSN 5310-00-042-8687
Demand History | NSN 5310-00-042-8687
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1474A08 | 2024-08-227 | 30 | United States |
| 5310-00-042-8687 | 2021-06-159 | 30 | MY |
| 5310-00-042-8687 | 2021-05-147 | 30 | Malaysia |
| NAS1474A08 | 2021-05-141 | 30 | US |
| NAS1474A08 | 2021-05-139 | 30 | MY |
| NAS1474A08 | 2021-03-67 | 30 | United States |
| NAS1474A08 | 2020-09-273 | 14 | MX |
| 5310-00-042-8687 | 2017-02-32 | 1 | DIBBS-RFPs |
| NAS1474A08 | 2016-10-284 | 100 | South Africa |
| NAS1474A08 | 2016-08-229 | 20 | South Africa |
| NAS1474A08 | 2014-01-13 | 100 | CN |
| 5310-00-042-8687 | 2011-05-146 | 7234 | DIBBS |
| NAS1474A08 | 2009-04-91 | 600 | Canada |
| NAS1474A08 | 2009-01-28 | 10000 | PL |
| NAS1474A08 | 2008-10-284 | 100 | Greece |
| NAS1474A08 | 2008-05-137 | 10 | us |
Cross Reference | NSN 5310-00-042-8687
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 333-1451-030 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| A2506-82 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| A2506-82 | 72962 | HARVARD INDUSTRIES INC |
| M14630H-82 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MF1968-08 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MF1968-08 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1474A08 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
