NSN 5310-00-004-5034 MS3533850, MS35338-50, FFW84
Product Details | LOCK WASHER
5310-00-004-5034 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS3533850, MS35338-50, FFW84, 004003005059, 004-003005-059, 104J00530, 104J005-30, 5310-00-004-5034, 00-004-5034, 5310000045034 , 000045034
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUN 1972 | 00-004-5034 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-00-004-5034
Demand History | NSN 5310-00-004-5034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3533850 | 2024-06-169 | 200 | US |
| 5310-00-004-5034 | 2020-10-281 | 100 | United States |
| MS3533850 | 2020-08-223 | 6792 | US |
| MS35338-50 | 2014-11-314 | 144 | IL |
| MS3533850 | 2014-07-198 | 136 | US |
| MS3533850 | 2013-02-46 | 8 | US |
| MS3533850 | 2012-06-159 | 1840 | US |
| MS3533850 | 2011-01-31 | 35000 | IL |
| 5310-00-004-5034 | 2009-05-135 | 70 | US |
| 5310-00-004-5034 | 2009-04-98 | 1473 | US |
| 5310-00-004-5034 | 2009-04-92 | 3 | US |
| 5310-00-004-5034 | 2008-10-277 | 100 | United States |
| 5310-00-004-5034 | 2008-04-92 | 20 | US |
Cross Reference | NSN 5310-00-004-5034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 004-003005-059 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 004-003005-059 | 44616 | SOUTHWESTERN HEALTH DEVELOPMENT CORP |
| 104J005-30 | 62793 | BFM ENERGY PRODUCTS CORP |
| 5310000045034 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| FFW84 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35338-50 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-004-5034
Related Products | NSN 5310-00-004-5034
Technical Data | NSN 5310-00-004-5034
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1060 OR STEEL COMP 1070 OR STEEL COMP 1078 OR STEEL COMP 1080 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

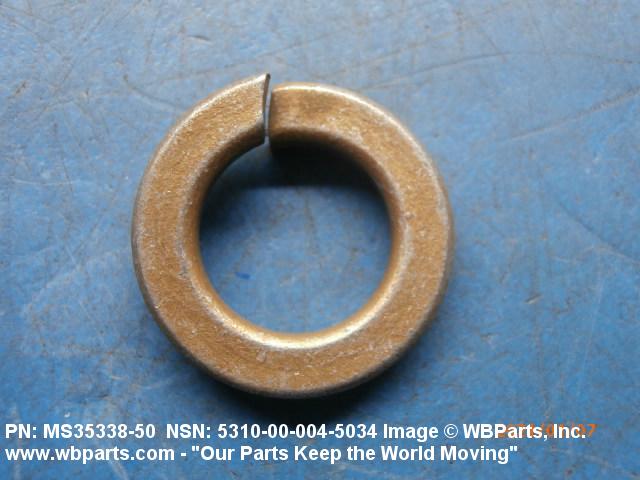

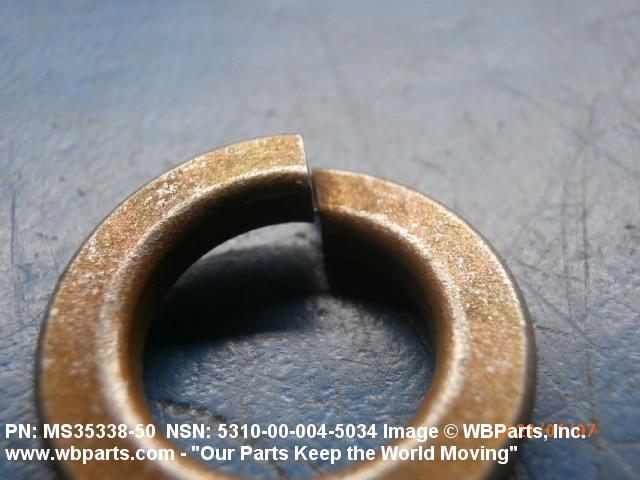

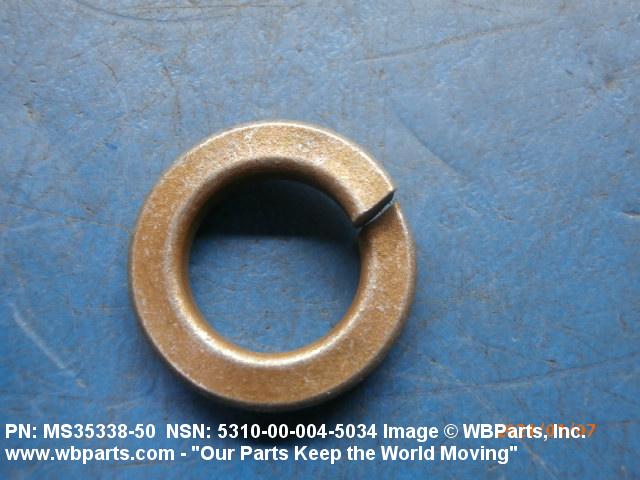

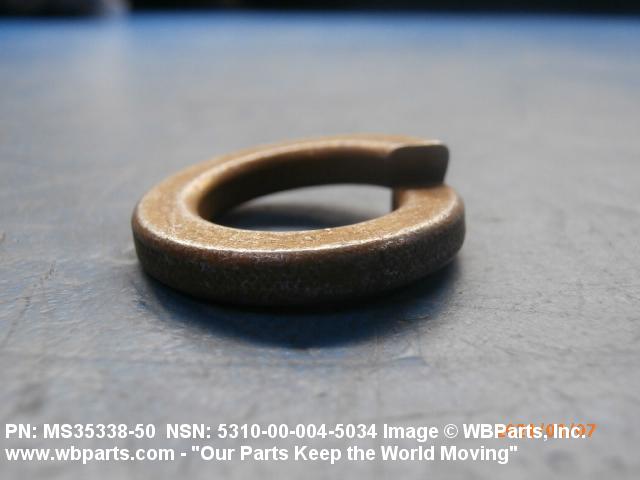

| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

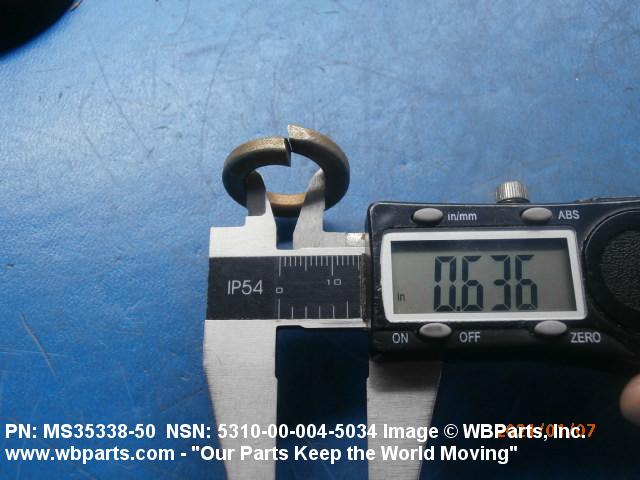

| HOLE DIAMETER | 0.636 INCHES MINIMUM AND 0.653 INCHES MAXIMUM |

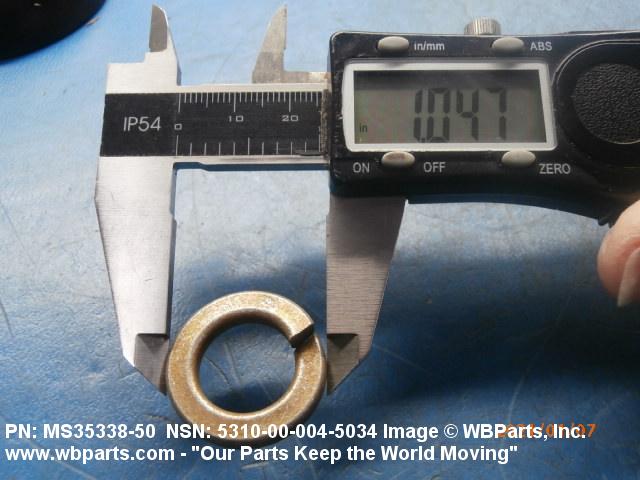

| OUTSIDE DIAMETER | 1.079 INCHES MAXIMUM |

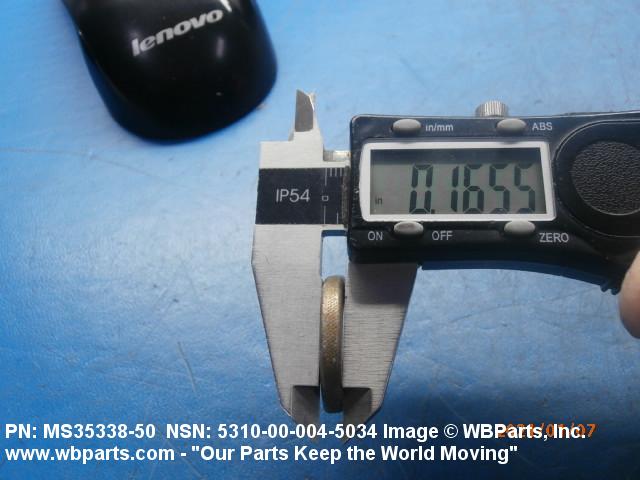

| MATERIAL THICKNESS | 0.156 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| SPECIAL FEATURES | CERTIFIED FREE FROM MERCURY CONTAMINATION |
| TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
| NONDEFINITIVE SPEC/STD DATA | 2 STYLE AND A CLASS |
| DEPARTURE FROM CITED DOCUMENT | MATERIAL MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFW84 |
Restrictions/Controls & Freight Information | NSN 5310-00-004-5034
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-004-5034
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
