NSN 5310-00-003-9664 SC401001, 00-003-9664, 000039664
Product Details | SPRING TENSION WASHER
5310-00-003-9664 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: SC401001, 5310-00-003-9664, 00-003-9664, 5310000039664, 000039664
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAY 1972 | 00-003-9664 | 15938 ( WASHER, SPRING TENSION ) |

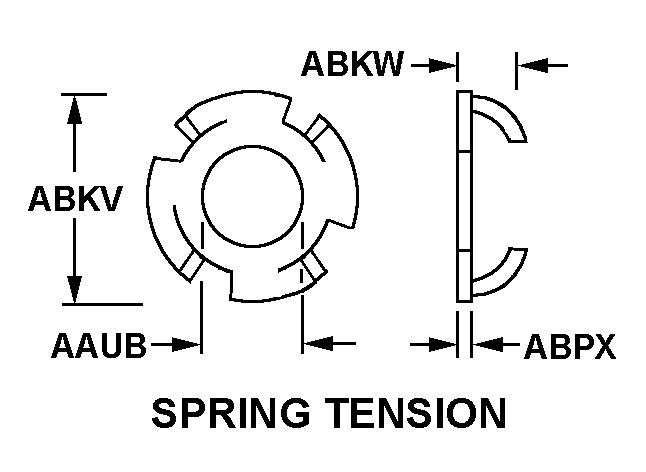

Drawings & Photos | NSN 5310-00-003-9664
Demand History | NSN 5310-00-003-9664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SC401001 | 2024-10-291 | 4 | DIBBS |
| SC401001 | 2024-07-208 | 4 | DIBBS |
| SC401001 | 2024-07-200 | 4 | DIBBS |
| SC401001 | 2024-03-87 | 3 | DIBBS |
| SC401001 | 2024-03-79 | 3 | DIBBS |
| SC401001 | 2022-11-328 | 16 | DIBBS |
| SC401001 | 2022-08-228 | 14 | DIBBS |
| SC401001 | 2019-11-332 | 25 | DIBBS |
| SC401001 | 2019-04-91 | 11 | DIBBS |
| SC401001 | 2019-03-83 | 11 | DIBBS |
| 5310-00-003-9664 | 2018-12-359 | 10 | DIBBS |
| 5310-00-003-9664 | 2018-12-346 | 10 | DIBBS |
| 5310-00-003-9664 | 2018-02-40 | 24 | DIBBS |
| 5310-00-003-9664 | 2018-02-32 | 24 | DIBBS |
| SC401001 | 2011-07-207 | 100 | US |
| 5310-00-003-9664 | 2011-06-179 | 86 | DIBBS |
| 5310-00-003-9664 | 2010-07-182 | 9 | DIBBS |
| 5310-00-003-9664 | 2008-01-18 | 50 | DIBBS |
Cross Reference | NSN 5310-00-003-9664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC401001 | 16746 | SPECLINE INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-003-9664
Related Products | NSN 5310-00-003-9664
Technical Data | NSN 5310-00-003-9664
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 24 SPRING TENSION |
| HOLE DIAMETER | 2.505 INCHES MINIMUM AND 2.520 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 3.485 INCHES MINIMUM AND 3.515 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.178 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
| MANUFACTURERS CODE | 16746 |
| DESIGN CONTROL REFERENCE | SC401001 |
Restrictions/Controls & Freight Information | NSN 5310-00-003-9664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-003-9664
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
