Product Details | CLINCH PLAIN NUT

5310-00-003-9409 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.

Part Alternates: AC04282, AC-0428-2, 3460007, 346000-7, 5310-00-003-9409, 00-003-9409, 5310000039409, 000039409

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 24 MAY 1972 00-003-9409

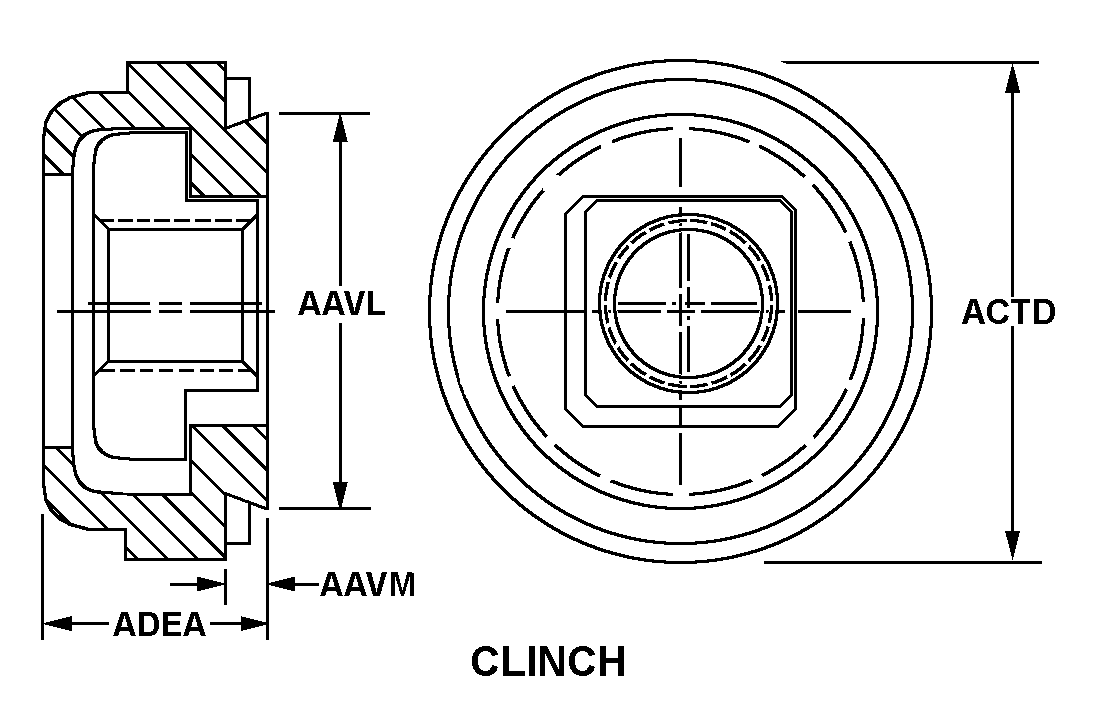

Drawings & Photos | NSN 5310-00-003-9409


Cross Reference | NSN 5310-00-003-9409

Part Number Cage Code Manufacturer
346000-7 3B150 RAYTHEON TECHNICAL SERVICES COMPANY LLC
346000-7 49956 RAYTHEON COMPANY DBA RAYTHEON
AC-0428-2 46384 PENN ENGINEERING & MANUFACTURING CORP.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-003-9409

Technical Data | NSN 5310-00-003-9409

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 2B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 303 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A59 CLINCH
PILOT DIAMETER 0.514 INCHES MAXIMUM
PILOT LENGTH 0.054 INCHES MAXIMUM
NUT DIAMETER 0.594 INCHES NOMINAL
NUT HEIGHT 0.257 INCHES MAXIMUM
TEMP RATING NOT RATED
FEATURES PROVIDED FLOATING NUT
