NSN 5307-01-423-2490 16D2700395, 16D2700-395, 01-423-2490
Product Details | PLAIN STUD
5307-01-423-2490 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.
Part Alternates: 16D2700395, 16D2700-395, 5307-01-423-2490, 01-423-2490, 5307014232490, 014232490
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 DEC 1995 | 01-423-2490 | 15948 ( STUD, PLAIN ) |

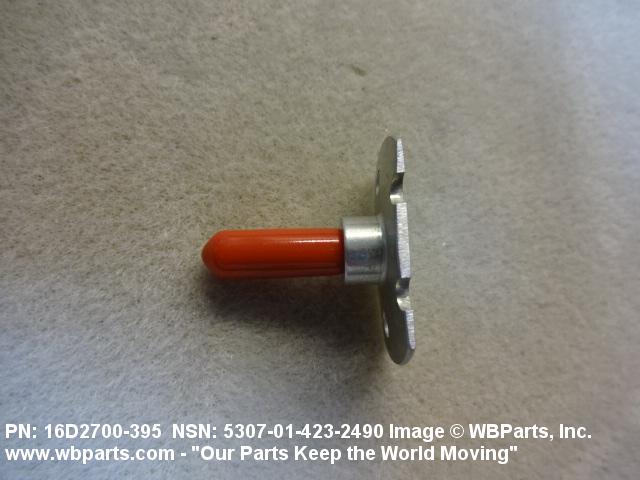

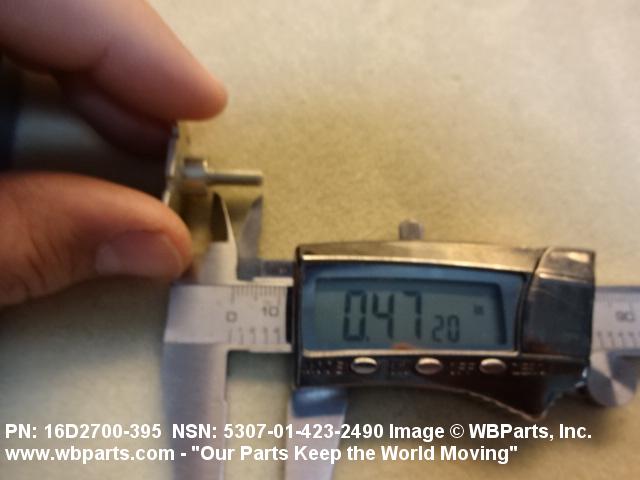

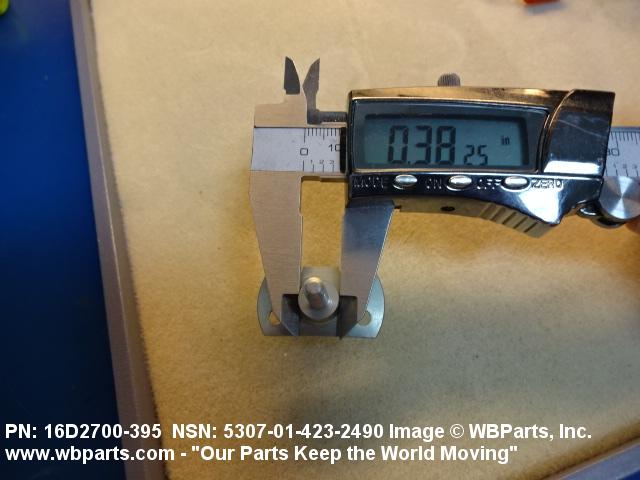

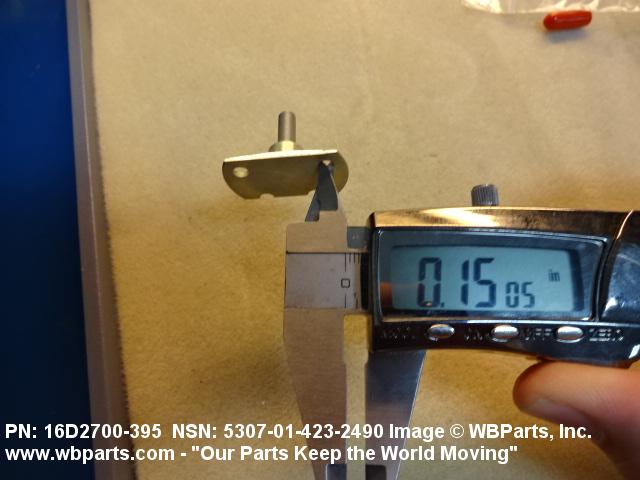

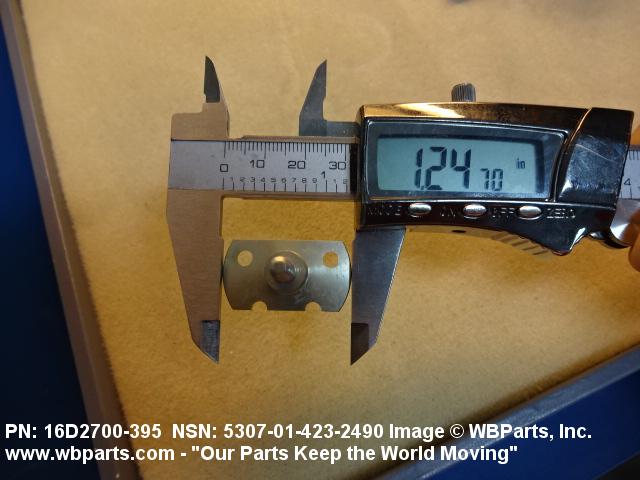

Drawings & Photos | NSN 5307-01-423-2490
Demand History | NSN 5307-01-423-2490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-423-2490 | 2019-10-283 | 81 | US |
| 5307-01-423-2490 | 2017-08-240 | 20 | United States |
Cross Reference | NSN 5307-01-423-2490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16D2700-395 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-423-2490
Technical Data | NSN 5307-01-423-2490
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | ACFT. MODEL F-16 |
Restrictions/Controls & Freight Information | NSN 5307-01-423-2490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
