NSN 5307-01-252-4603 863C1011170028, 863C1011170-028, 01-252-4603
Product Details | RECESSED AND STEPPED STUD
5307-01-252-4603 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The unthreaded section must have more than one diameter, none of which may be larger than the maximum major diameter of the larger thread. It may be thread relieved. Excludes items with tapered threads.
Part Alternates: 863C1011170028, 863C1011170-028, 5307-01-252-4603, 01-252-4603, 5307012524603, 012524603
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 APR 1987 | 01-252-4603 | 15943 ( STUD, RECESSED AND STEPPED ) |

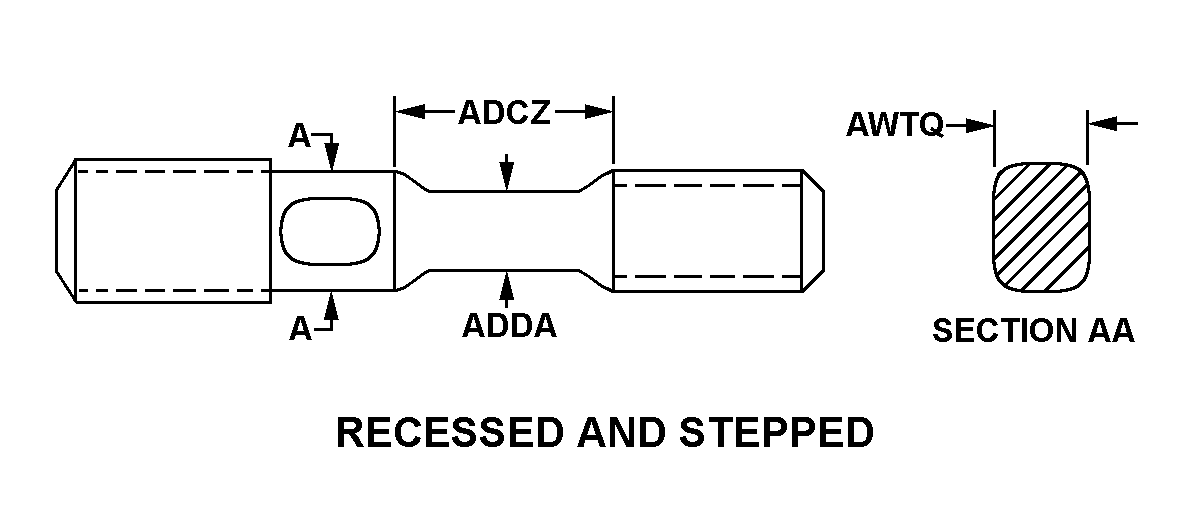

Drawings & Photos | NSN 5307-01-252-4603
Cross Reference | NSN 5307-01-252-4603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 863C1011170-028 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-252-4603
Related Products | NSN 5307-01-252-4603
Technical Data | NSN 5307-01-252-4603
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 68 RECESSED AND STEPPED |
| LENGTH OF RECESSED PORTION OF SHANK | 1.410 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.750 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.600 INCHES NOMINAL |
| OVERALL LENGTH | 6.160 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.750 INCHES NUT THREAD 2.000 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 10 NUT THREAD 11.5 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 2.750 INCHES NOMINAL NUT THREAD 1.000 INCHES NOMINAL STUD THREAD |
| MANUFACTURERS CODE | 04236 |
| DESIGN CONTROL REFERENCE | 863C1011170-028 |
Restrictions/Controls & Freight Information | NSN 5307-01-252-4603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-252-4603
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AI | SU:ADVANCED INTERCONTINENTAL BALLISTIC (MX) |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
