Product Details | PLAIN STUD

5307-01-233-4265 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.

Part Alternates: 024-021729 PIECE 182, 024021729PIECE182, 91211134, 912111-34, 5307-01-233-4265, 01-233-4265, 5307012334265, 012334265

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 30 MAY 1986 01-233-4265

Drawings & Photos | NSN 5307-01-233-4265


Demand History | NSN 5307-01-233-4265

Part Number Request Date QTY Origin
5307-01-233-4265 2024-04-115 10 United States
5307-01-233-4265 2022-11-328 46 DIBBS
5307-01-233-4265 2019-12-339 105 DIBBS
5307-01-233-4265 2016-08-230 100 DIBBS
5307-01-233-4265 2014-02-57 107 DIBBS
5307-01-233-4265 2013-12-353 158 DIBBS
5307-01-233-4265 2013-10-275 107 DIBBS
5307-01-233-4265 2013-06-163 80 DIBBS
5307-01-233-4265 2012-08-236 95 DIBBS
5307-01-233-4265 2011-11-327 164 DIBBS
5307-01-233-4265 2011-08-213 164 DIBBS
5307-01-233-4265 2009-12-356 146 DIBBS
5307-01-233-4265 2009-05-125 146 DIBBS
5307-01-233-4265 2008-09-248 179 DIBBS

Cross Reference | NSN 5307-01-233-4265

Part Number Cage Code Manufacturer
024-021729 PIECE 182 66850 PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL
912111-34 66850 PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-01-233-4265

Technical Data | NSN 5307-01-233-4265

Characteristic Specifications
THREAD DIRECTION RIGHT-HAND NUT THREAD

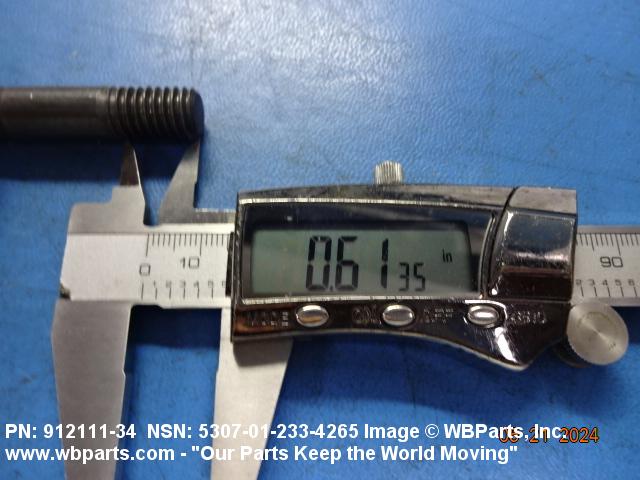

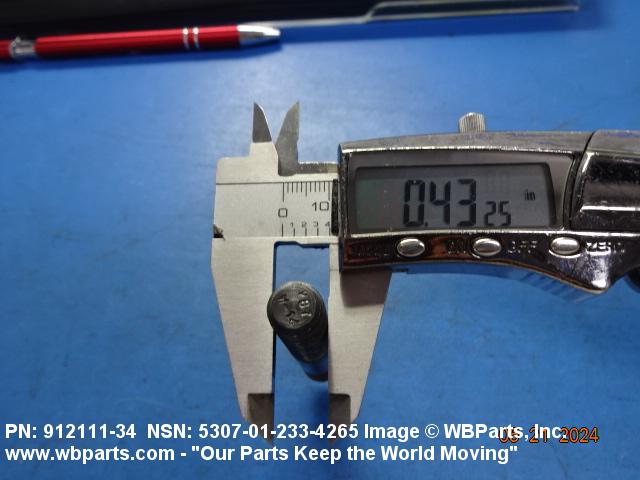

NOMINAL THREAD SIZE 0.438 INCHES STUD THREAD
THREAD CLASS 3A STUD THREAD
MATERIAL STEEL COMP 4140 OR STEEL COMP 4142 OR STEEL COMP 4145
THREAD SERIES DESIGNATOR UNC NUT THREAD

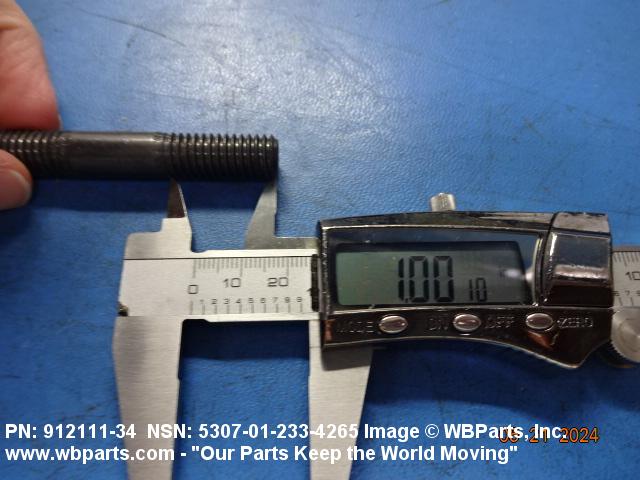

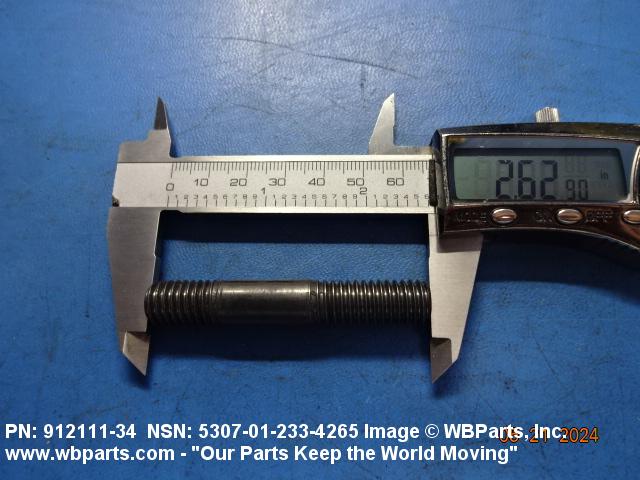

OVERALL LENGTH 2.625 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM A193,B7 ASSN STD ALL MATERIAL RESPONSES
THREAD DIRECTION RIGHT-HAND STUD THREAD
THREAD SERIES DESIGNATOR UNC STUD THREAD
THREAD QUANTITY PER INCH 14 NUT THREAD
THREAD QUANTITY PER INCH 14 STUD THREAD
NOMINAL THREAD SIZE 0.438 INCHES NUT THREAD
THREAD CLASS 2A NUT THREAD

Restrictions/Controls & Freight Information | NSN 5307-01-233-4265

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
