NSN 5307-01-159-6632 14067718, 01-159-6632, 011596632
Product Details | RECESSED STUD
5307-01-159-6632 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Part Alternates: 14067718, 5307-01-159-6632, 01-159-6632, 5307011596632, 011596632
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1983 | 01-159-6632 | 15945 ( STUD, RECESSED ) |

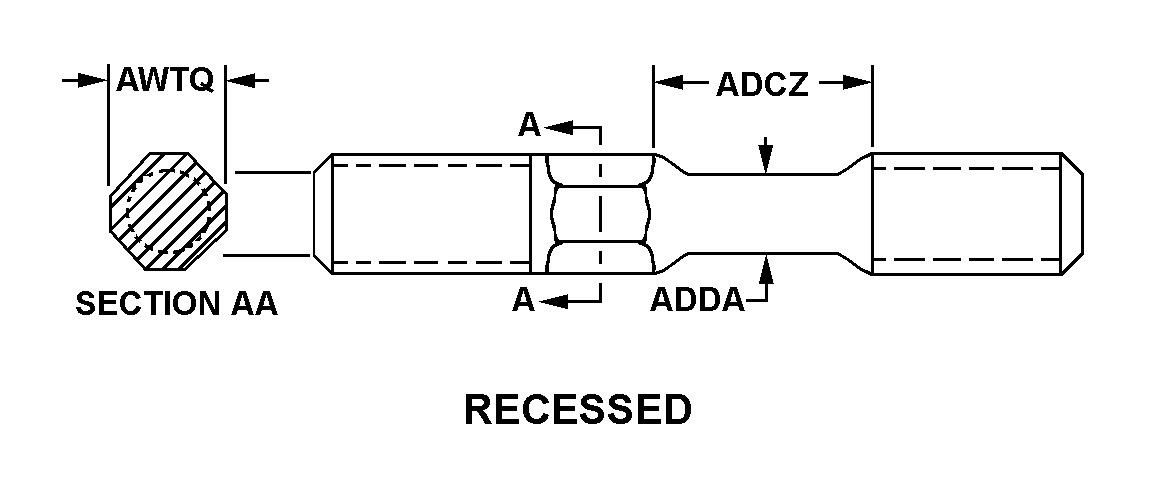

Drawings & Photos | NSN 5307-01-159-6632
Demand History | NSN 5307-01-159-6632
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-159-6632 | 2022-08-22 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-159-6632
Related Products | NSN 5307-01-159-6632
Technical Data | NSN 5307-01-159-6632
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | GM 500-M FSCM 11862 MFR REF SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | GM 4435-M CODE-A FSCM 11862 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 51 RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 58.5 MILLIMETERS MINIMUM AND 85.0 MILLIMETERS MAXIMUM |
| DIAMETER OF RECESSED PORTION OF SHANK | 8.9 MILLIMETERS MINIMUM AND 9.4 MILLIMETERS MAXIMUM |
| DISTANCE ACROSS FLATS | 14.7 MILLIMETERS MINIMUM AND 15.0 MILLIMETERS MAXIMUM |
| OVERALL LENGTH | 107.27 MILLIMETERS MINIMUM AND 110.63 MILLIMETERS MAXIMUM |
| THREAD SERIES DESIGNATOR | M NUT THREAD M STUD THREAD |
| NOMINAL THREAD SIZE | 10.0 MILLIMETERS NUT THREAD 10.0 MILLIMETERS STUD THREAD |
| THREAD TOLERANCE CLASS | 6G EXTERNAL NUT THREAD 6G EXTERNAL STUD THREAD |
| THREAD PITCH IN MILLIMETERS | 1.50 NUT THREAD 1.50 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 25.00 MILLIMETERS MINIMUM NUT THREAD 14.5 MILLIMETERS MINIMUM AND 16.0 MILLIMETERS MAXIMUM STUD THREAD |
Restrictions/Controls & Freight Information | NSN 5307-01-159-6632
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
