NSN 5307-01-095-9421 3177343, 31773-43, 01-095-9421
Product Details | PLAIN STUD
5307-01-095-9421 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.
Part Alternates: 3177343, 31773-43, 5307-01-095-9421, 01-095-9421, 5307010959421, 010959421
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUN 1980 | 01-095-9421 | 15948 ( STUD, PLAIN ) |

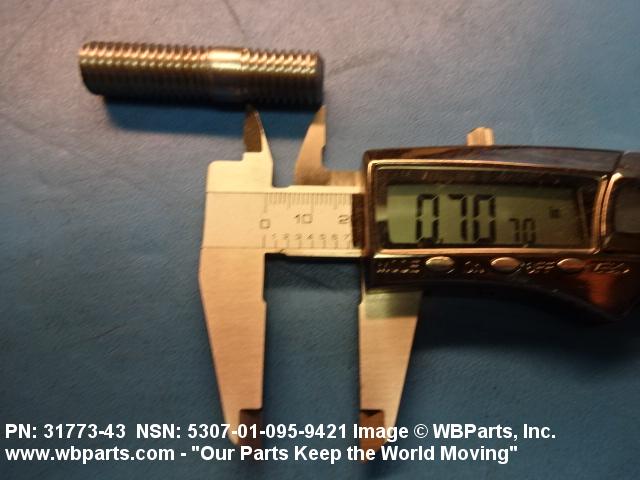

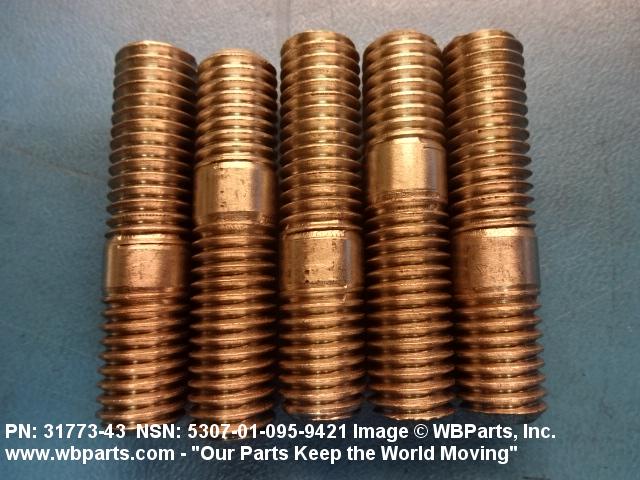

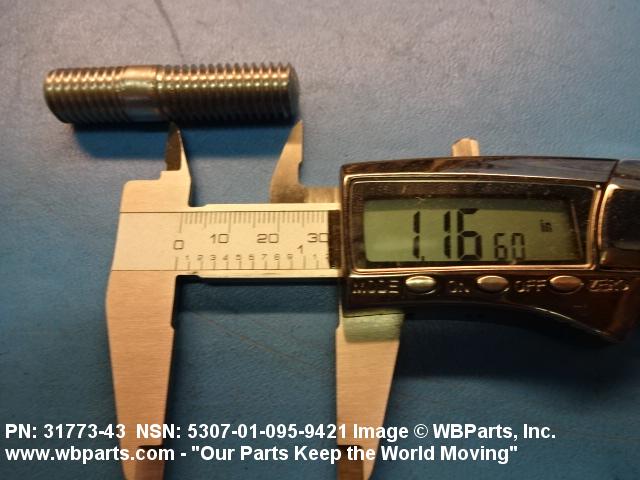

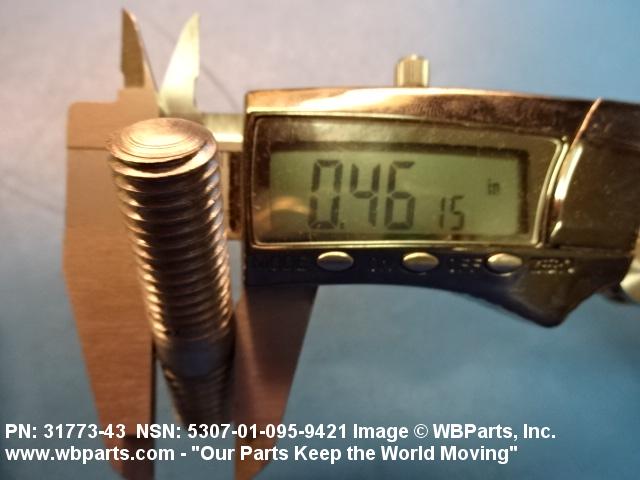

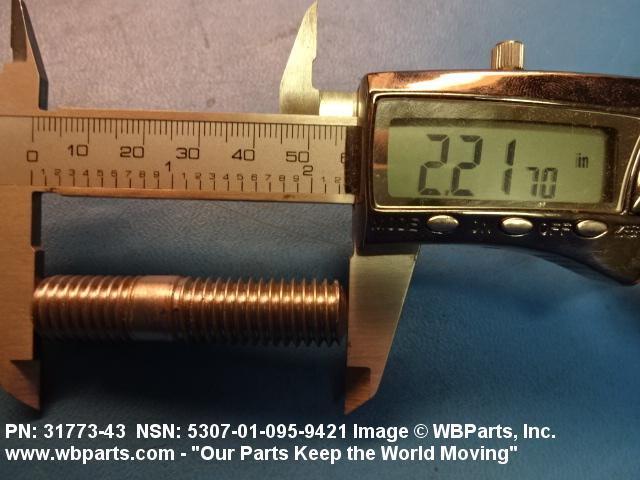

Drawings & Photos | NSN 5307-01-095-9421
Demand History | NSN 5307-01-095-9421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-095-9421 | 2021-11-319 | 9 | DIBBS |
| 5307-01-095-9421 | 2021-06-161 | 5 | DIBBS |
| 5307-01-095-9421 | 2021-03-87 | 11 | DIBBS |
| 31773-43 | 2020-08-243 | 11 | DIBBS |
| 31773-43 | 2020-04-106 | 10 | DIBBS |
| 5307-01-095-9421 | 2018-01-19 | 5 | United States |
| 5307-01-095-9421 | 2017-10-299 | 10 | DIBBS |
| 5307-01-095-9421 | 2017-10-291 | 10 | DIBBS |
| 5307-01-095-9421 | 2013-12-335 | 10 | DIBBS |
| 5307-01-095-9421 | 2008-09-267 | 18 | DIBBS |
| 5307-01-095-9421 | 2008-01-22 | 4 | DIBBS |
Cross Reference | NSN 5307-01-095-9421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31773-43 | 15472 | 3M PURIFICATION INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-095-9421
Technical Data | NSN 5307-01-095-9421
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.500 INCHES NUT THREAD 0.500 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 13 NUT THREAD 13 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 1.125 INCHES NOMINAL NUT THREAD 0.625 INCHES NOMINAL STUD THREAD |
Restrictions/Controls & Freight Information | NSN 5307-01-095-9421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-095-9421
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
