NSN 5307-00-921-5130 DMG0060, 65B9755, 00-921-5130
Product Details | RECESSED STUD
5307-00-921-5130 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Part Alternates: DMG0060, 65B9755, 5307-00-921-5130, 00-921-5130, 5307009215130, 009215130
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 1965 | 00-921-5130 | 15945 ( STUD, RECESSED ) |

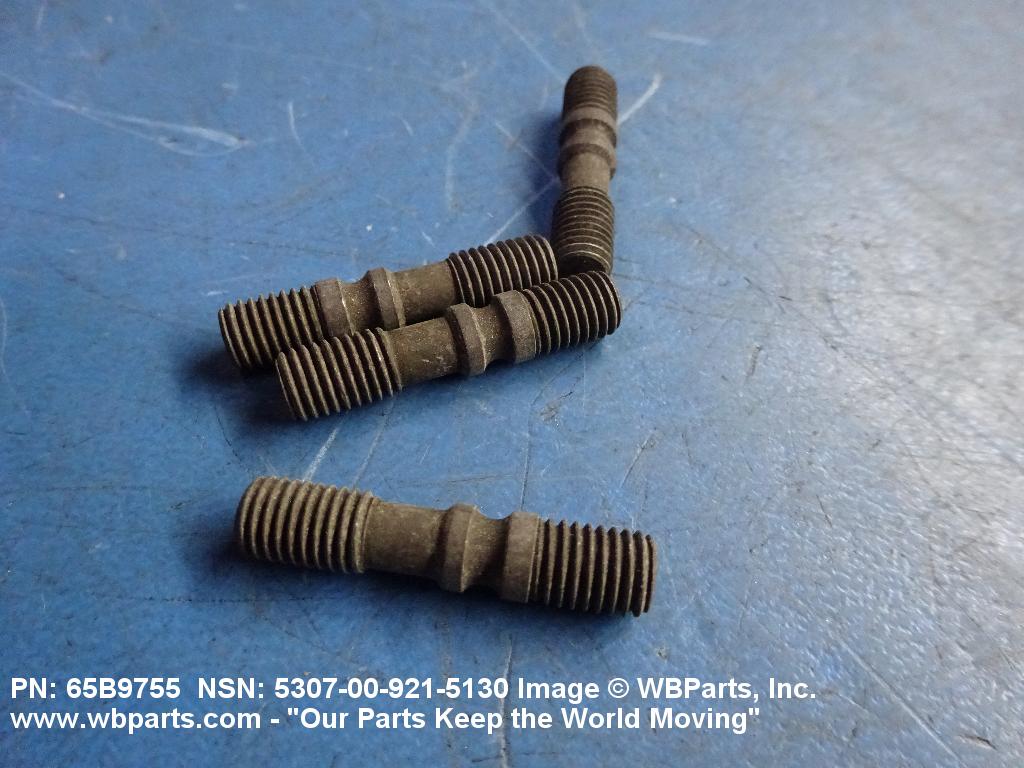

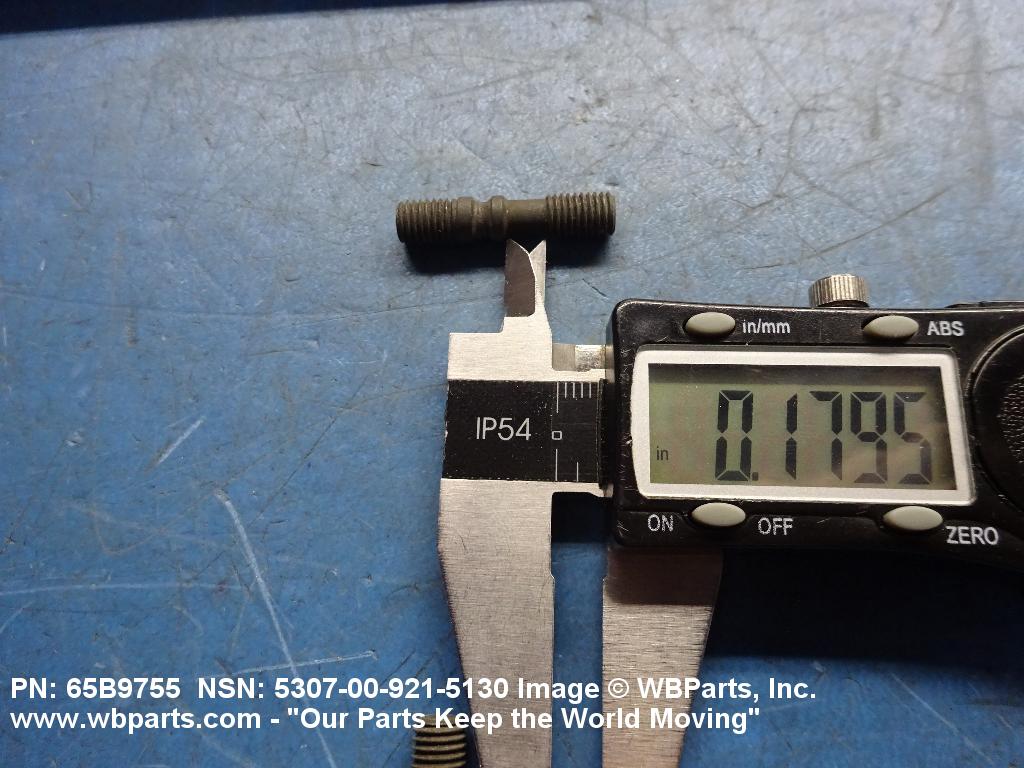

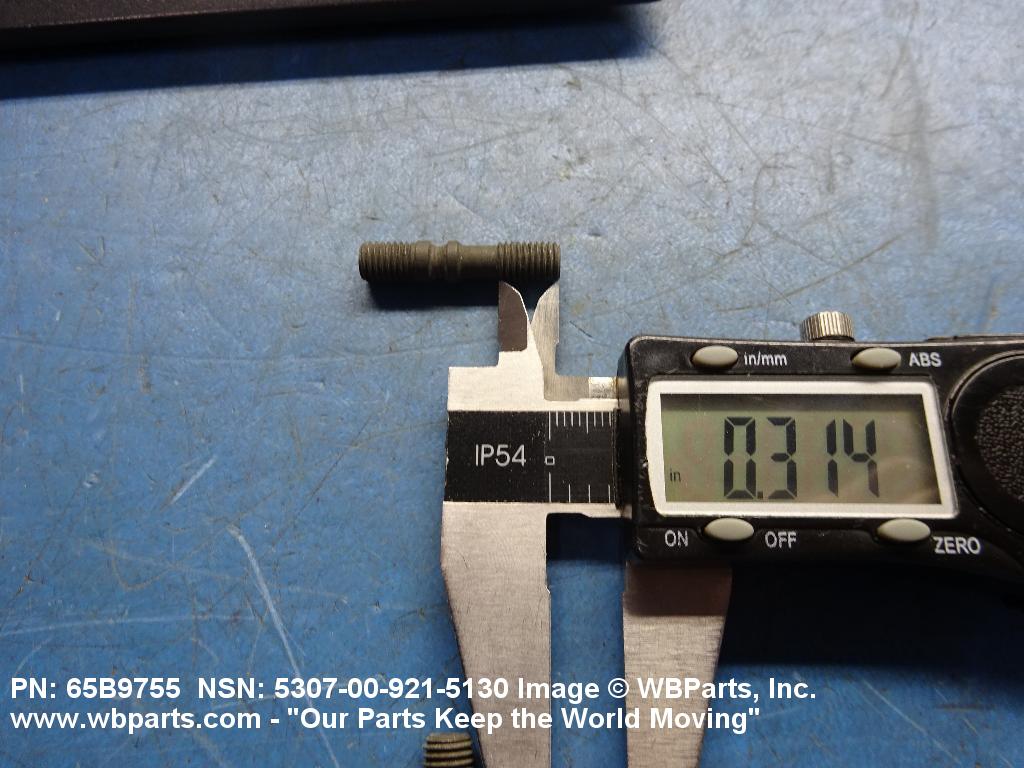

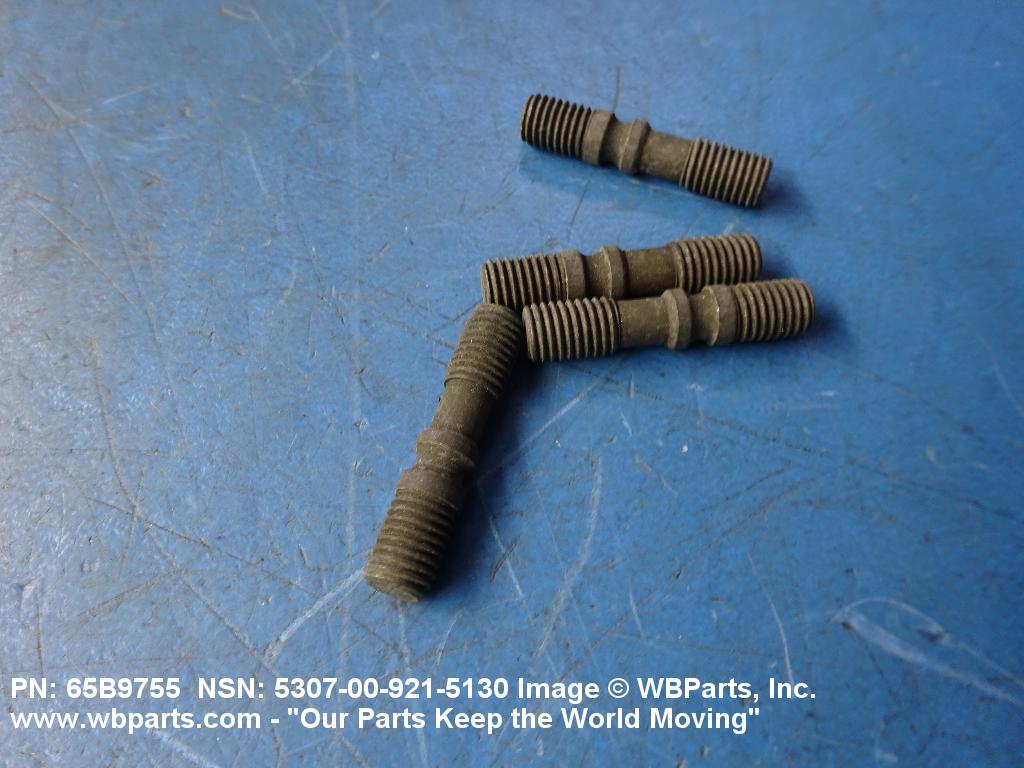

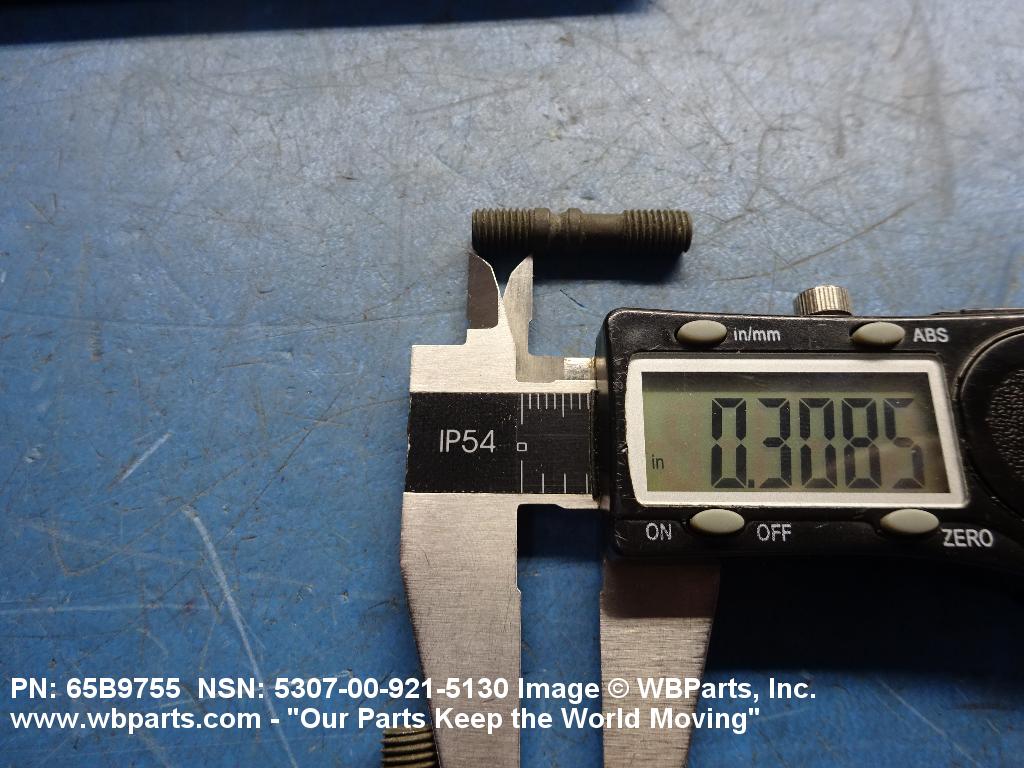

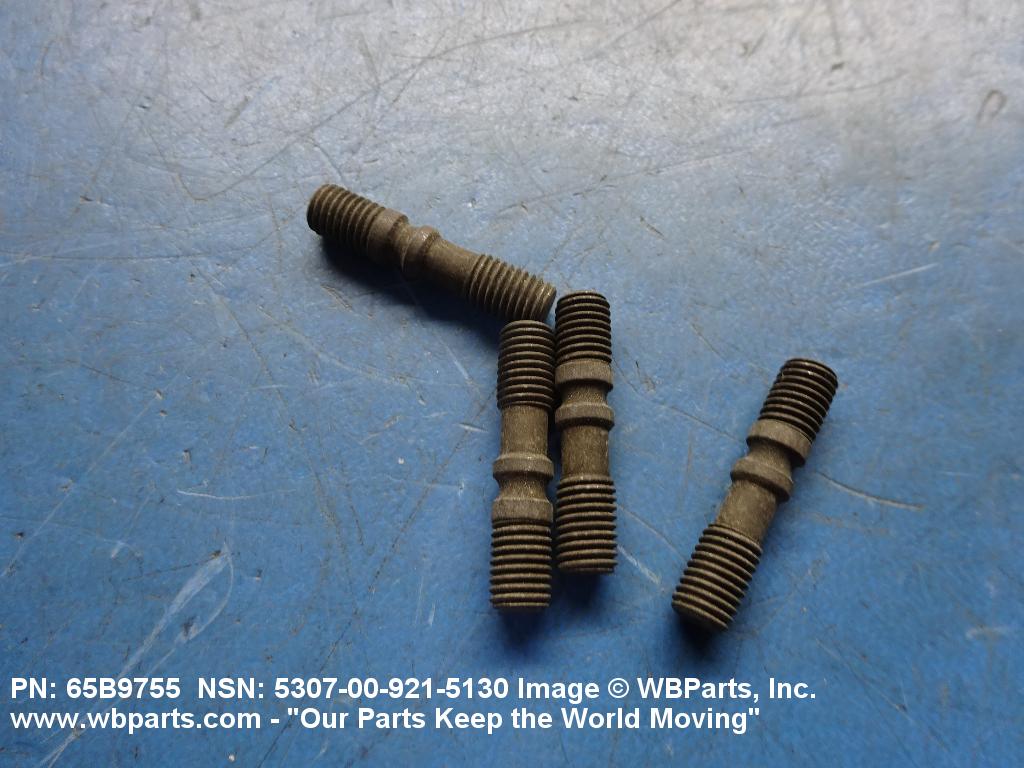

Drawings & Photos | NSN 5307-00-921-5130
Demand History | NSN 5307-00-921-5130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-921-5130 | 2022-05-138 | 1017 | DIBBS |
| 5307-00-921-5130 | 2022-04-110 | 1 | United States |
| 5307-00-921-5130 | 2021-01-18 | 722 | DIBBS |
| 5307-00-921-5130 | 2016-03-90 | 749 | DIBBS |
| 5307-00-921-5130 | 2014-06-177 | 785 | DIBBS |
| 5307-00-921-5130 | 2014-02-42 | 441 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-921-5130
Related Products | NSN 5307-00-921-5130
Technical Data | NSN 5307-00-921-5130
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A331 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | D0D-P-16232,TY Z CL 1 OR TY M CL 1 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 50 RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.190 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| OVERALL LENGTH | 1.160 INCHES MINIMUM AND 1.180 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.330 INCHES MINIMUM AND 0.390 INCHES MAXIMUM NUT THREAD 0.260 INCHES MINIMUM STUD THREAD |
| III SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 19205 |
| DESIGN CONTROL REFERENCE | 65B9755 |
