NSN 5307-00-864-6138 A194101, A1941-01, HL20PB813
Product Details | CONTINUOUS THREAD STUD
5307-00-864-6138 A headless fastener not exceeding 12 inches (304.8 mm) in length having an external thread of one nominal diameter running from end to end. See also ROD, CONTINUOUS THREAD.
Part Alternates: A194101, A1941-01, HL20PB813, HL20PB-8-13 , HL20PB8-13 , QD3255010813, QD3255-01-08-13 , QQ40002 , 5307-00-864-6138, 00-864-6138, 5307008646138, 008646138
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1967 | 00-864-6138 | 15951 ( STUD, CONTINUOUS THREAD ) |

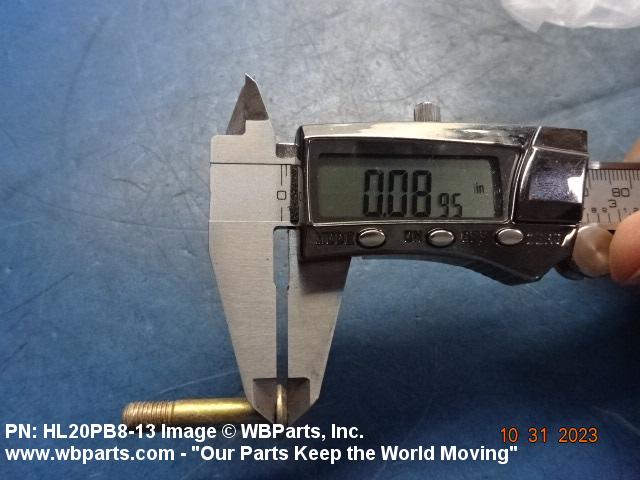

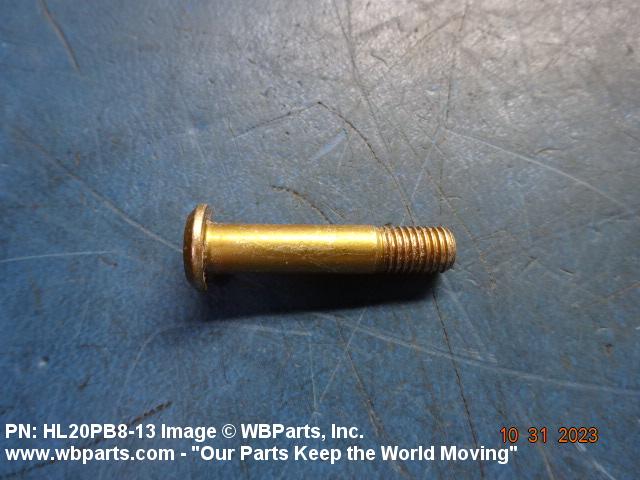

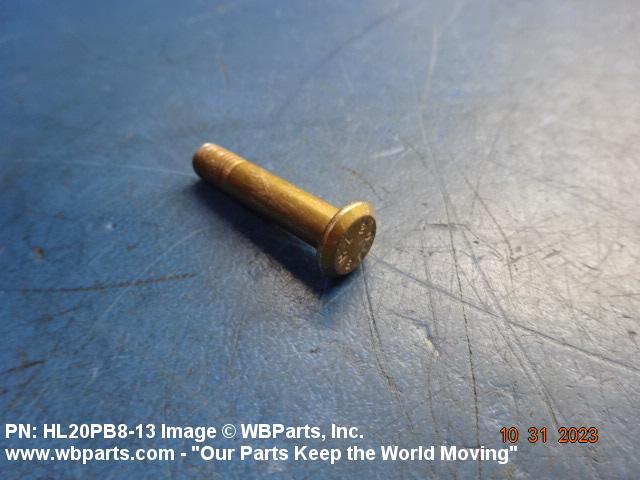

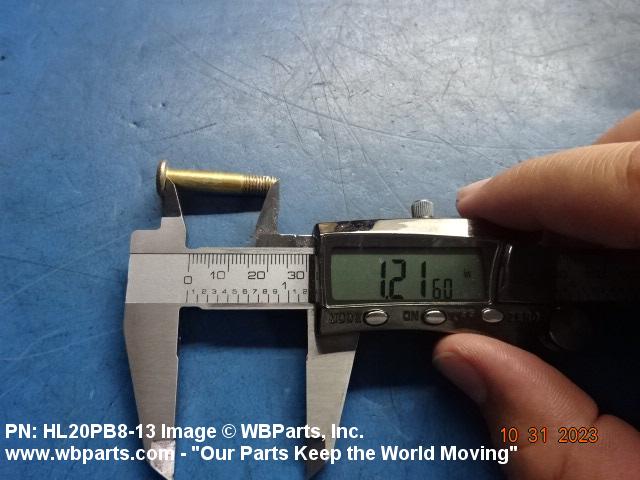

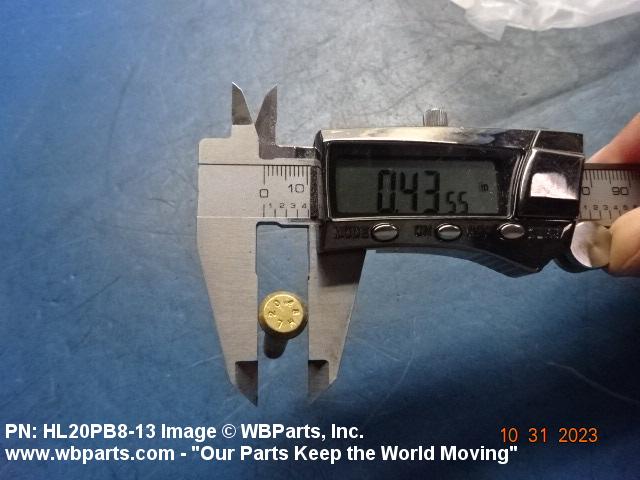

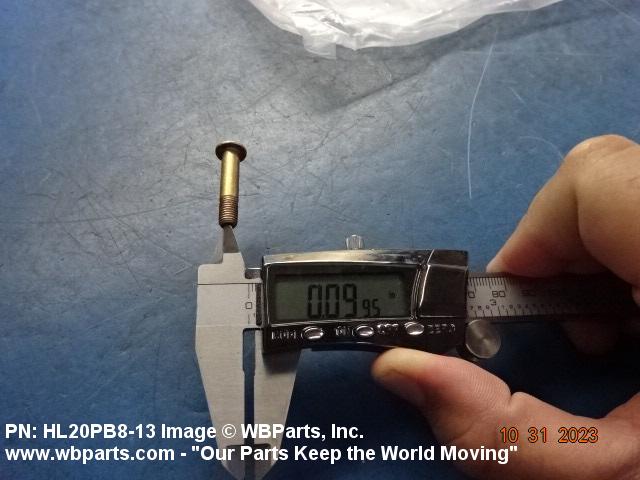

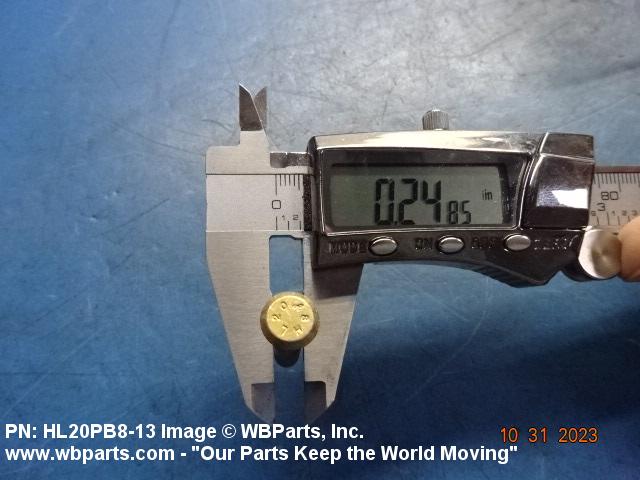

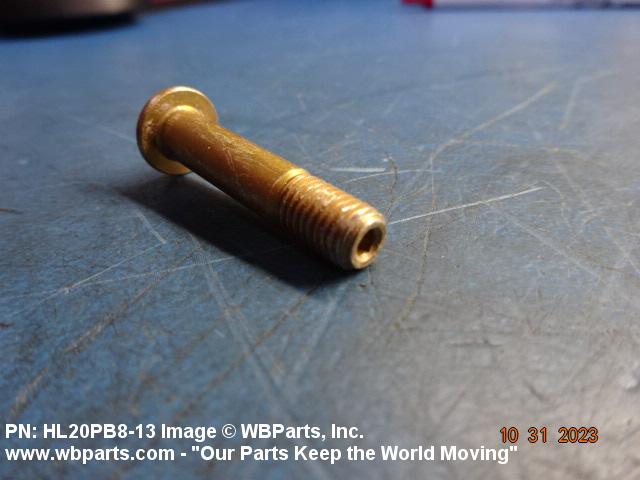

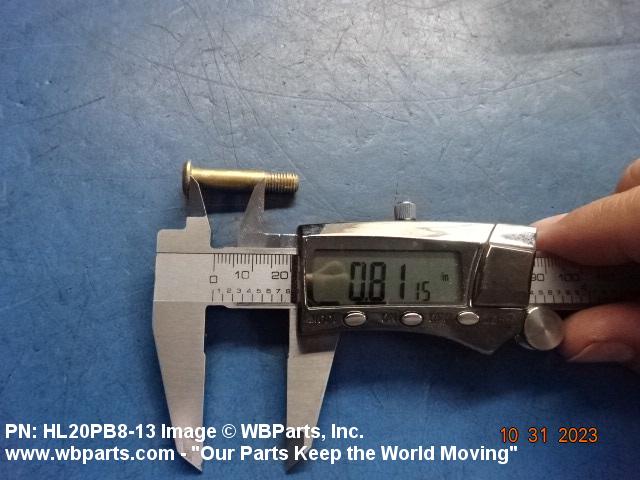

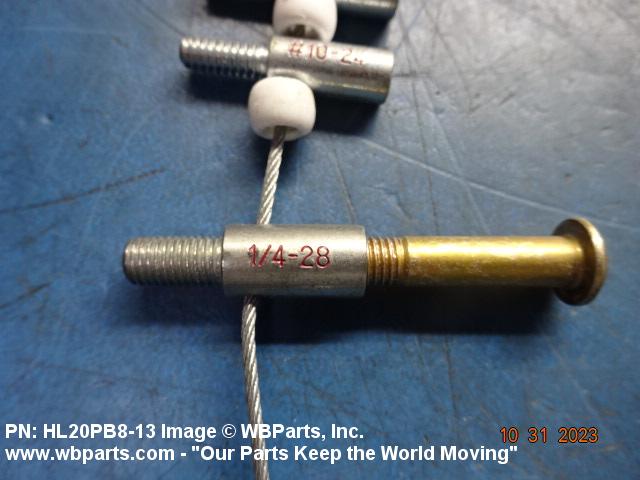

Drawings & Photos | NSN 5307-00-864-6138
Demand History | NSN 5307-00-864-6138
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL20PB813 | 2023-09-254 | 1000 | Germany |
| HL20PB813 | 2023-08-221 | 1000 | Germany |
| HL20PB813 | 2023-02-41 | 100 | United States |
| HL20PB813 | 2021-06-181 | 260 | India |
| HL20PB813 | 2015-02-43 | 10 | South Africa |
| HL20PB8-13 | 2014-06-157 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-864-6138
Related Products | NSN 5307-00-864-6138
Technical Data | NSN 5307-00-864-6138
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OR COPPER ALLOY 268 OR COPPER ALLOY 262 OR COPPER ALLOY 268 OR COPPER ALLOY 270 OR COPPER ALLOY 272 OR COPPER ALLOY 274 OR COPPER ALLOY 280 OR COPPER ALLOY 330 OR COPPER ALLOY 331 OR COPPER ALLOY 332 OR COPPER ALLOY 340 OR COPPER ALLOY 342 OR COPPER ALLOY 344 OR COPPER ALLOY 345 OR COPPER ALLOY 347 OR COPPER ALLOY 348 OR COPPER ALLOY 350 OR COPPER ALLOY 353 OR COPPER ALLOY 356 OR COPPER ALLOY 360 OR COPPER ALLOY 370 OR COPPER ALLOY 462 OR COPPER ALLOY 464 OR COPPER ALLOY 465 OR COPPER ALLOY 466 OR COPPER ALLOY 467 OR COPPER ALLOY 482 OR COPPER ALLOY 485 OR COPPER ALLOY 360 |
| OVERALL LENGTH | 0.870 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | 0.080 IN. DEEP BY 0.055 IN. WIDE SLOT ON ONE END |
