NSN 5307-00-685-3247 187100, 00-685-3247, 006853247
Product Details | PLAIN STUD
5307-00-685-3247 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.
Part Alternates: 187100, 5307-00-685-3247, 00-685-3247, 5307006853247, 006853247
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-685-3247 | 15948 ( STUD, PLAIN ) |

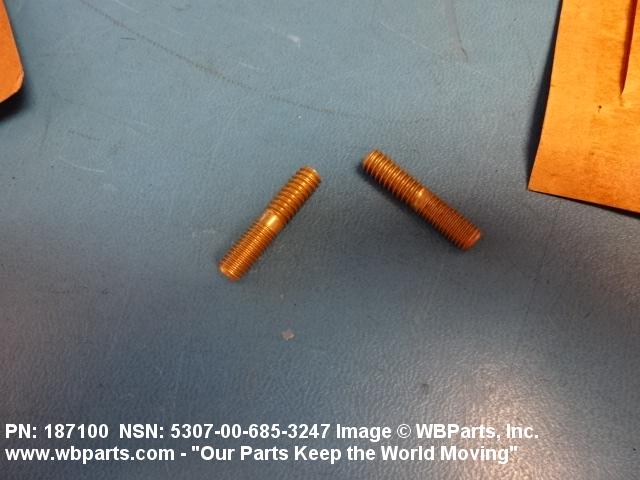

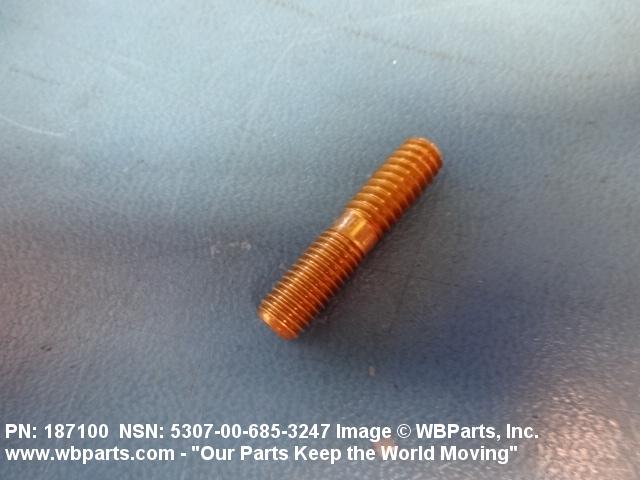

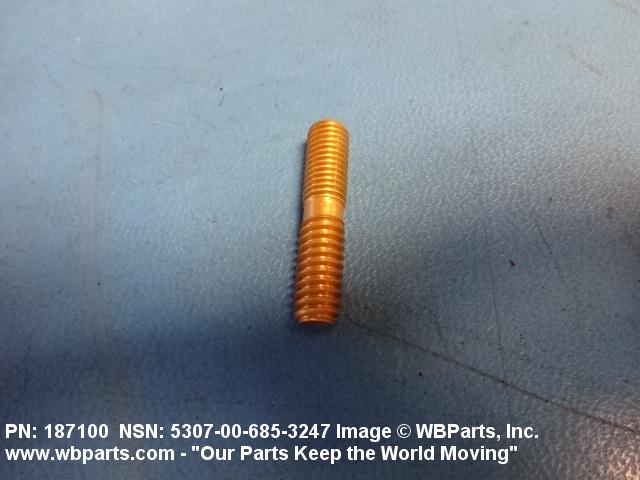

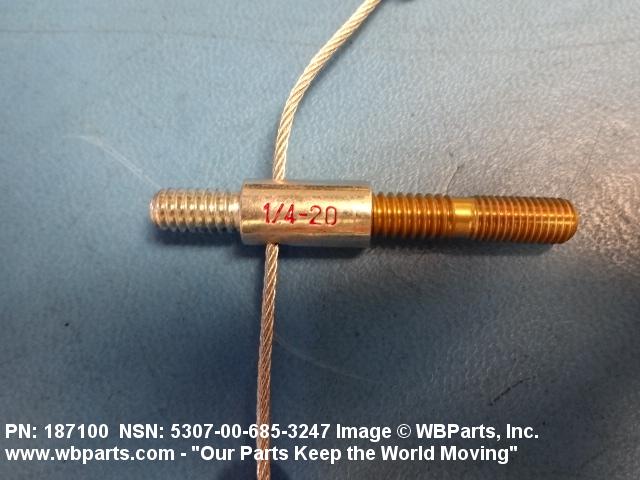

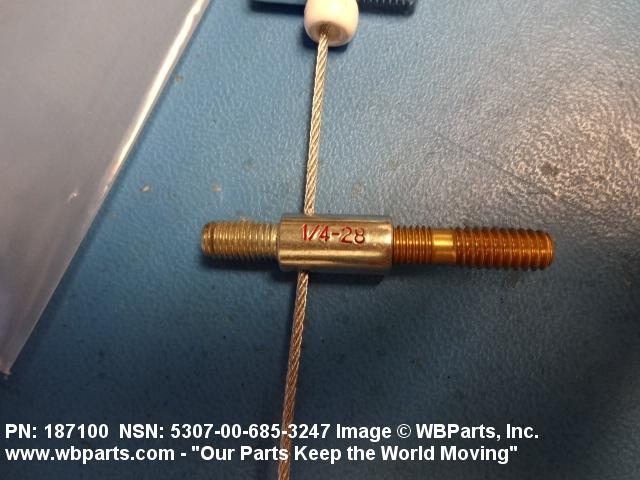

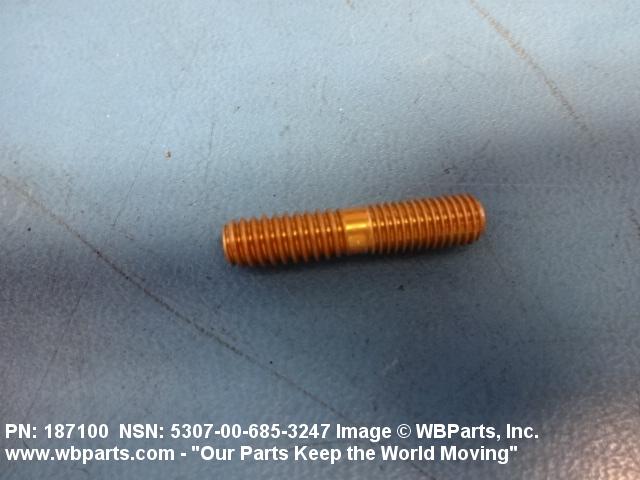

Drawings & Photos | NSN 5307-00-685-3247
Demand History | NSN 5307-00-685-3247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 187100 | 2024-03-84 | 1 | DIBBS |
| 187100 | 2023-06-159 | 7 | DIBBS |
| 187100 | 2023-05-151 | 4 | DIBBS |
| 187100 | 2023-05-143 | 4 | DIBBS |
| 187100 | 2022-06-179 | 3 | DIBBS |
| 187100 | 2022-01-19 | 18 | DIBBS |
| 187100 | 2022-01-06 | 18 | DIBBS |
| 5307-00-685-3247 | 2020-10-304 | 3 | United States |
| 5307-00-685-3247 | 2020-10-304 | 3 | United States |
| 187100 | 2020-09-258 | 6 | DIBBS |
| 187100 | 2020-09-246 | 3 | DIBBS |
| 187100 | 2020-09-246 | 3 | DIBBS |
| 187100 | 2020-08-230 | 3 | DIBBS |
| 187100 | 2020-08-222 | 3 | DIBBS |
| 187100 | 2020-08-222 | 3 | DIBBS |
| 187100 | 2019-09-265 | 3 | DIBBS |
| 187100 | 2019-07-206 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-685-3247
Related Products | NSN 5307-00-685-3247
Technical Data | NSN 5307-00-685-3247
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4140 |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

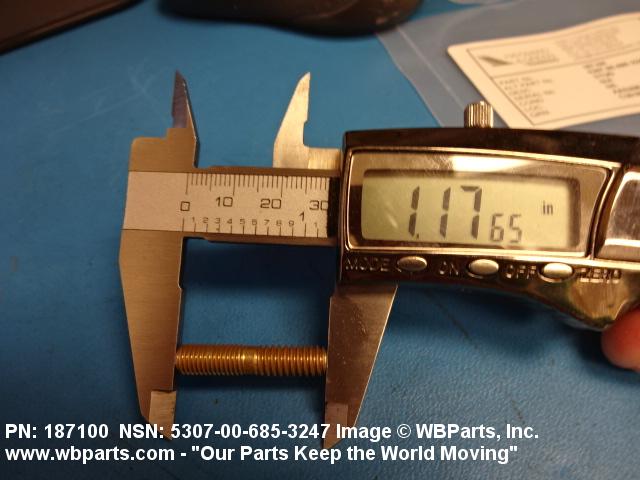

| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 20 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.2193 TO 0.2209 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.500 INCHES MINIMUM NUT THREAD 0.532 INCHES MINIMUM STUD THREAD |
| III HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 36.0 ROCKWELL C MAXIMUM |
| MANUFACTURERS CODE | 2A659 |
| DESIGN CONTROL REFERENCE | 187100 |
Restrictions/Controls & Freight Information | NSN 5307-00-685-3247
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-685-3247
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
