Product Details | RECESSED STUD
5307-00-549-3459 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Part Alternates: 41001598, 5307-00-549-3459, 00-549-3459, 5307005493459, 005493459
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 OCT 1974 | 00-549-3459 | 15945 ( STUD, RECESSED ) |
Drawings & Photos | NSN 5307-00-549-3459
Demand History | NSN 5307-00-549-3459
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 41001598 | 2024-10-304 | 2 | DIBBS |
| 41001598 | 2023-08-215 | 2 | DIBBS |
| 41001598 | 2022-10-296 | 9 | DIBBS |
| 41001598 | 2021-11-311 | 4 | DIBBS |
| 5307-00-549-3459 | 2017-10-283 | 9 | DIBBS |
| 5307-00-549-3459 | 2017-10-275 | 9 | DIBBS |
| 5307-00-549-3459 | 2016-09-250 | 6 | DIBBS |
| 5307-00-549-3459 | 2014-10-286 | 5 | DIBBS |
| 5307-00-549-3459 | 2014-06-168 | 3 | DIBBS |
| 5307-00-549-3459 | 2014-05-139 | 5 | DIBBS |
| 5307-00-549-3459 | 2013-11-332 | 3 | DIBBS |
| 5307-00-549-3459 | 2013-11-332 | 4 | DIBBS |
| 5307-00-549-3459 | 2010-05-132 | 5 | DIBBS |
| 5307-00-549-3459 | 2010-04-92 | 1 | DIBBS |
| 5307-00-549-3459 | 2010-03-81 | 1 | DIBBS |
Cross Reference | NSN 5307-00-549-3459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41001598 | 81873 | WOODWARD HRT, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-549-3459
Related Products | NSN 5307-00-549-3459
Technical Data | NSN 5307-00-549-3459
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6543 ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |

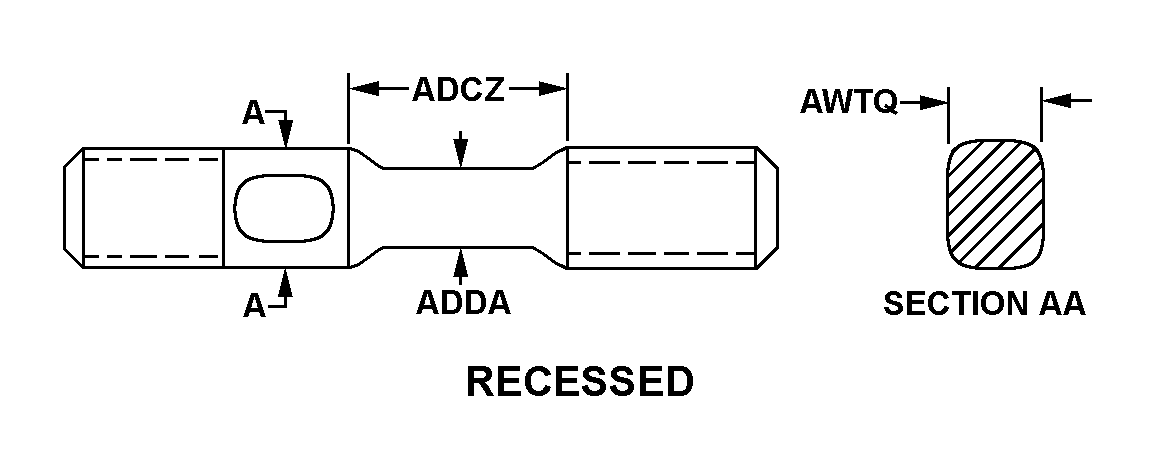

| STYLE DESIGNATOR | 53 RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 0.400 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.312 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 7.460 INCHES MINIMUM AND 7.464 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.610 INCHES NOMINAL NUT THREAD 0.360 INCHES NOMINAL STUD THREAD |
| SPECIAL FEATURES | THREE GROOVES 0.225 IN. DIA FOR TWO. ONE 0.200 IN. DIA |
| MANUFACTURERS CODE | 81873 |
| DESIGN CONTROL REFERENCE | 41001598 |
