NSN 5307-00-527-4447 2140404725, 214-040-472-5, 00-527-4447
Product Details | PLAIN STUD
5307-00-527-4447 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD.
Part Alternates: 2140404725, 214-040-472-5, 5307-00-527-4447, 00-527-4447, 5307005274447, 005274447
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 AUG 1974 | 00-527-4447 | 15948 ( STUD, PLAIN ) |

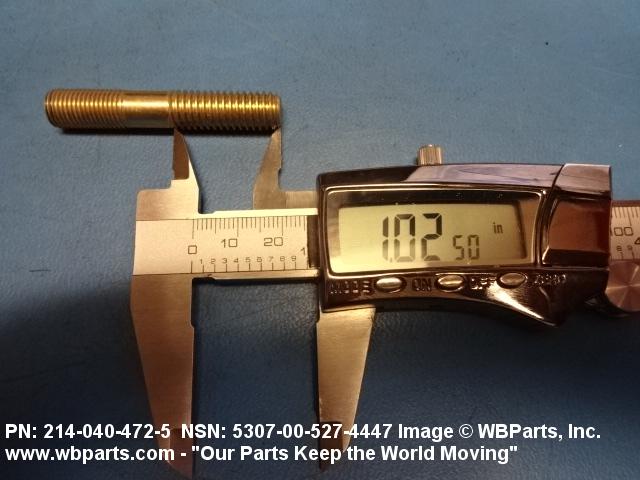

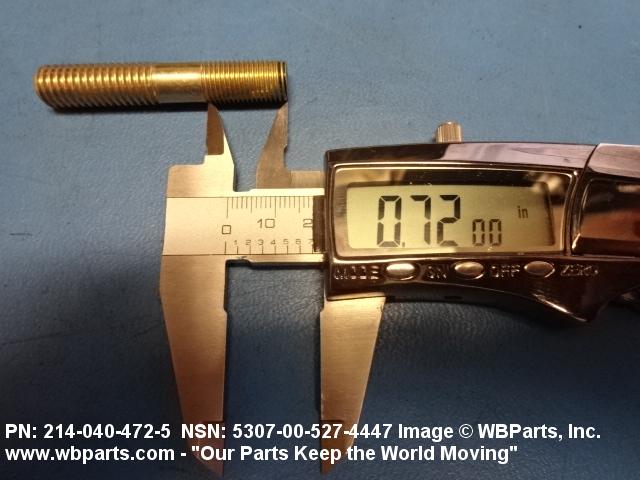

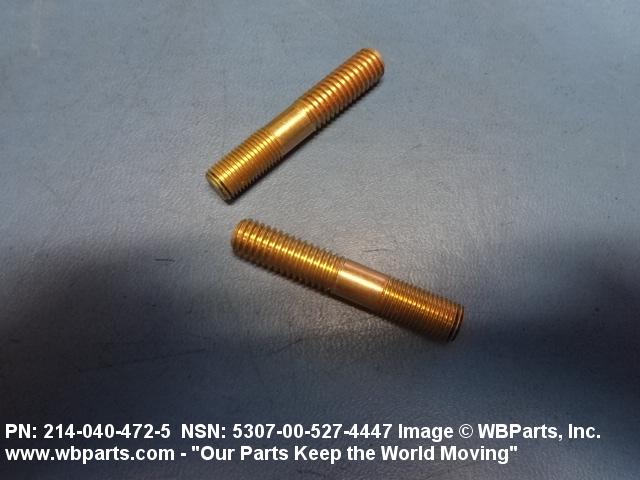

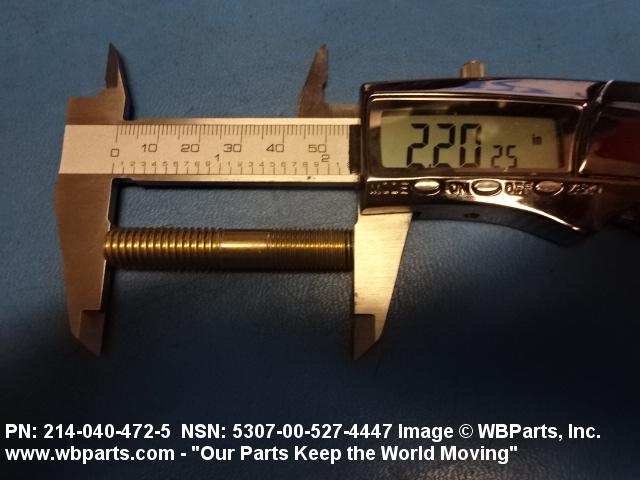

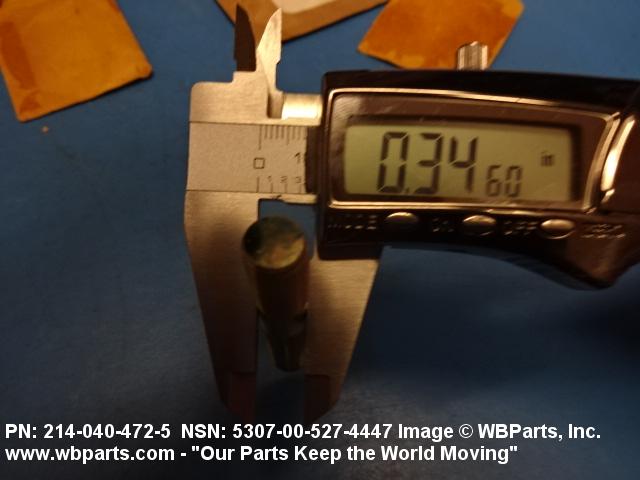

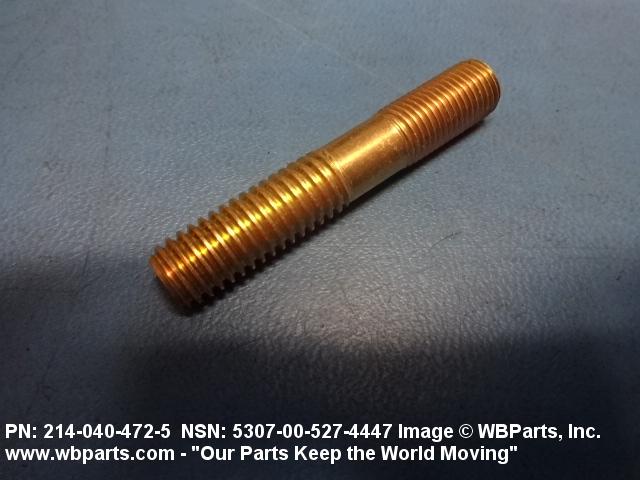

Drawings & Photos | NSN 5307-00-527-4447
Demand History | NSN 5307-00-527-4447
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-527-4447 | 2017-12-335 | 4 | United States |
| 5307-00-527-4447 | 2017-08-239 | 10 | DIBBS |
| 5307-00-527-4447 | 2014-08-238 | 1 | DIBBS |
| 5307-00-527-4447 | 2012-11-316 | 1 | DIBBS |
| 5307-00-527-4447 | 2012-07-202 | 5 | DIBBS |
| 5307-00-527-4447 | 2012-05-137 | 3 | DIBBS |
| 5307-00-527-4447 | 2012-03-79 | 1 | DIBBS |
Cross Reference | NSN 5307-00-527-4447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 214-040-472-5 | 06710 | VALLEY-TODECO, INC. |
| 214-040-472-5 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 214-040-472-5 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 214-040-472-5 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 214-040-472-5 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 214-040-472-5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 214-040-472-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-527-4447
Related Products | NSN 5307-00-527-4447
Technical Data | NSN 5307-00-527-4447
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OR STEEL COMP E4340 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000,C4 MIL SPEC ALL MATERIAL RESPONSES |
| OVERALL LENGTH | 2.196 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 16 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3422 TO 0.3437 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.688 INCHES NOMINAL NUT THREAD 0.938 INCHES NOMINAL STUD THREAD |
| III HARDNESS RATING | 27.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III SURFACE FINISH | 32.0 MICROINCHES NUT THD 63.0 MICROINCHES SHANK 32.0 MICROINCHES STUD THD |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 214-040-472-5 |
Restrictions/Controls & Freight Information | NSN 5307-00-527-4447
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ZQ | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-527-4447
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
