NSN 5307-00-262-6608 ST1283P003, 00-262-6608, 002626608

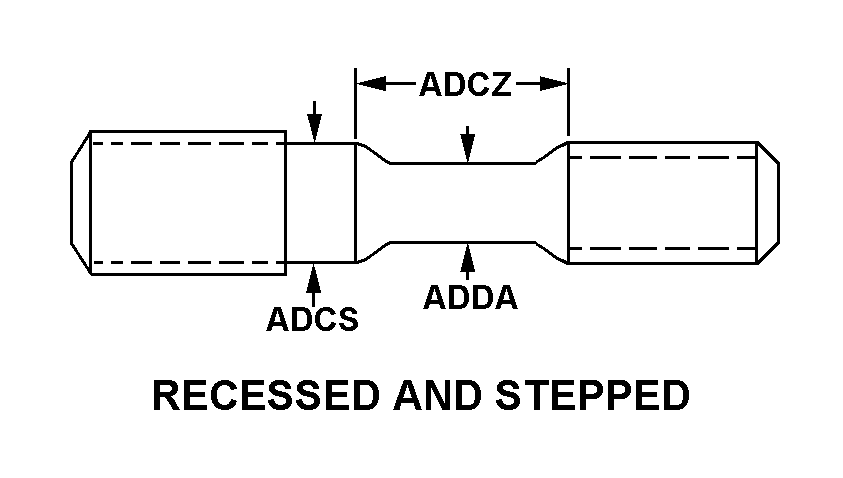

Product Details | RECESSED AND STEPPED STUD
5307-00-262-6608 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The unthreaded section must have more than one diameter, none of which may be larger than the maximum major diameter of the larger thread. It may be thread relieved. Excludes items with tapered threads.
Part Alternates: ST1283P003, 5307-00-262-6608, 00-262-6608, 5307002626608, 002626608
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-262-6608 | 15943 ( STUD, RECESSED AND STEPPED ) |
Drawings & Photos | NSN 5307-00-262-6608
Demand History | NSN 5307-00-262-6608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST1283P003 | 2024-04-99 | 237 | DIBBS |
| 5307-00-262-6608 | 2016-01-19 | 328 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-262-6608
Related Products | NSN 5307-00-262-6608
Technical Data | NSN 5307-00-262-6608
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8735 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6320 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 65 RECESSED AND STEPPED |
| PLAIN SHANK DIAMETER | ANY ACCEPTABLE |
| LENGTH OF RECESSED PORTION OF SHANK | 1.625 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.312 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 16 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3384 TO 0.3400 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.531 INCHES MINIMUM NUT THREAD 0.625 INCHES MINIMUM STUD THREAD |
| SPECIAL FEATURES | MAGNETIC INSPECTION REQUIRED |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III DISTANCE FROM COTTER PIN HOLE CENTERLINE TO NUT END | 0.125 INCHES NOMINAL FIRST HOLE |
| III COTTER PIN HOLE DIAMETER | 0.074 INCHES MINIMUM AND 0.081 INCHES MAXIMUM FIRST HOLE |
