NSN 5306-01-555-9544 NAS100844H, NAS1008-44H, 01-555-9544

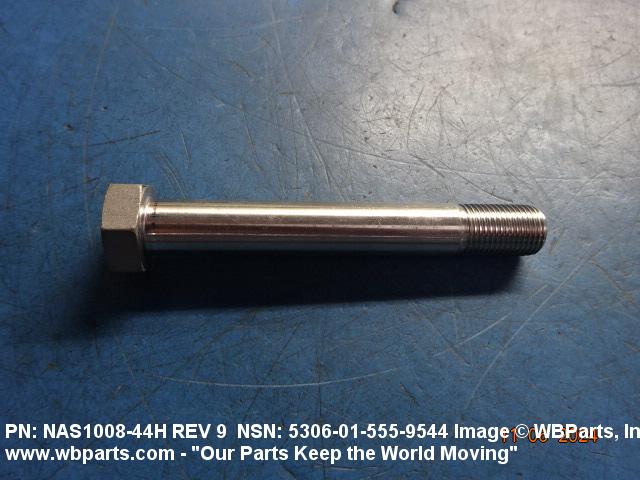

Product Details | MACHINE BOLT
5306-01-555-9544 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: NAS100844H, NAS1008-44H, 5306-01-555-9544, 01-555-9544, 5306015559544, 015559544
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 2007 | 01-555-9544 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-01-555-9544
Demand History | NSN 5306-01-555-9544
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-555-9544 | 2024-10-297 | 4 | United States |
| 5306-01-555-9544 | 2018-09-260 | 4 | United States |
| 5306-01-555-9544 | 2011-11-307 | 47 | DIBBS |
| 5306-01-555-9544 | 2010-09-250 | 32 | DIBBS |
| 5306-01-555-9544 | 2010-05-145 | 15 | DIBBS |
| 5306-01-555-9544 | 2009-07-187 | 8 | DIBBS |
| 5306-01-555-9544 | 2009-03-71 | 8 | DIBBS |
| 5306-01-555-9544 | 2008-12-352 | 8 | DIBBS |
| NAS100844H | 2008-09-253 | 12 | US |
| 5306-01-555-9544 | 2008-07-189 | 8 | DIBBS |
| NAS100844H | 2008-05-137 | 50 | us |
Cross Reference | NSN 5306-01-555-9544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1008-44H | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
