NSN 5306-01-480-1902 AS323718, AS3237-18, 01-480-1902
Product Details | MACHINE BOLT
5306-01-480-1902 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AS323718, AS3237-18, 5306-01-480-1902, 01-480-1902, 5306014801902, 014801902
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 NOV 2000 | 01-480-1902 | 01847 ( BOLT, MACHINE ) |

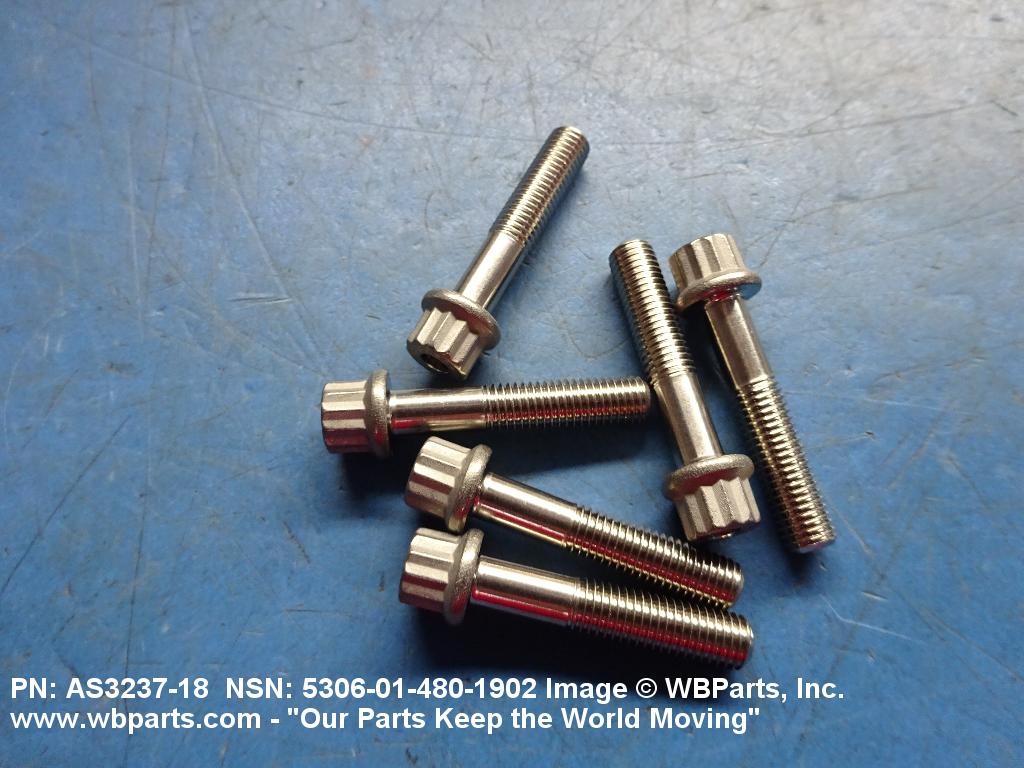

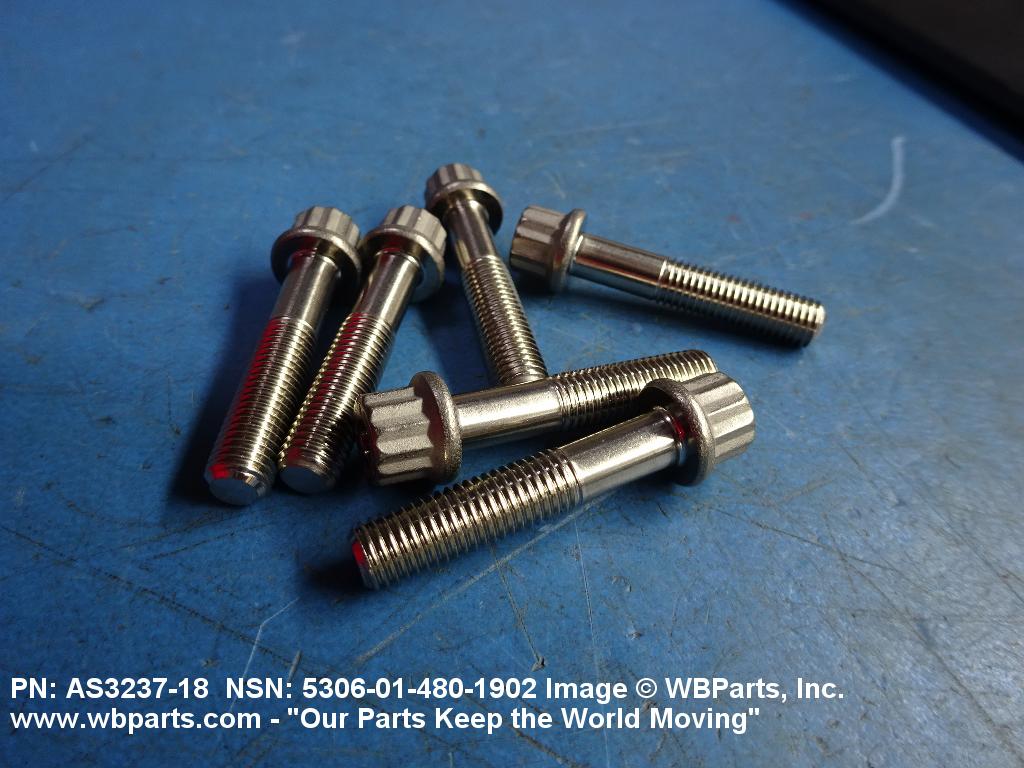

Drawings & Photos | NSN 5306-01-480-1902
Demand History | NSN 5306-01-480-1902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS323718 | 2022-07-209 | 4 | United States |
| AS323718 | 2020-01-16 | 16 | US |
| AS323718 | 2018-03-85 | 6 | India |
| AS323718 | 2018-03-85 | 24 | India |
| 5306-01-480-1902 | 2017-06-159 | 20 | United States |
| 5306-01-480-1902 | 2017-06-159 | 100 | United States |
| 5306-01-480-1902 | 2017-02-34 | 4 | US |
| 5306-01-480-1902 | 2017-02-33 | 10 | US |
| AS323718 | 2016-01-27 | 20 | Taiwan |
| AS323718 | 2014-01-08 | 10 | US |
Cross Reference | NSN 5306-01-480-1902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS3237-18 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-480-1902
Technical Data | NSN 5306-01-480-1902

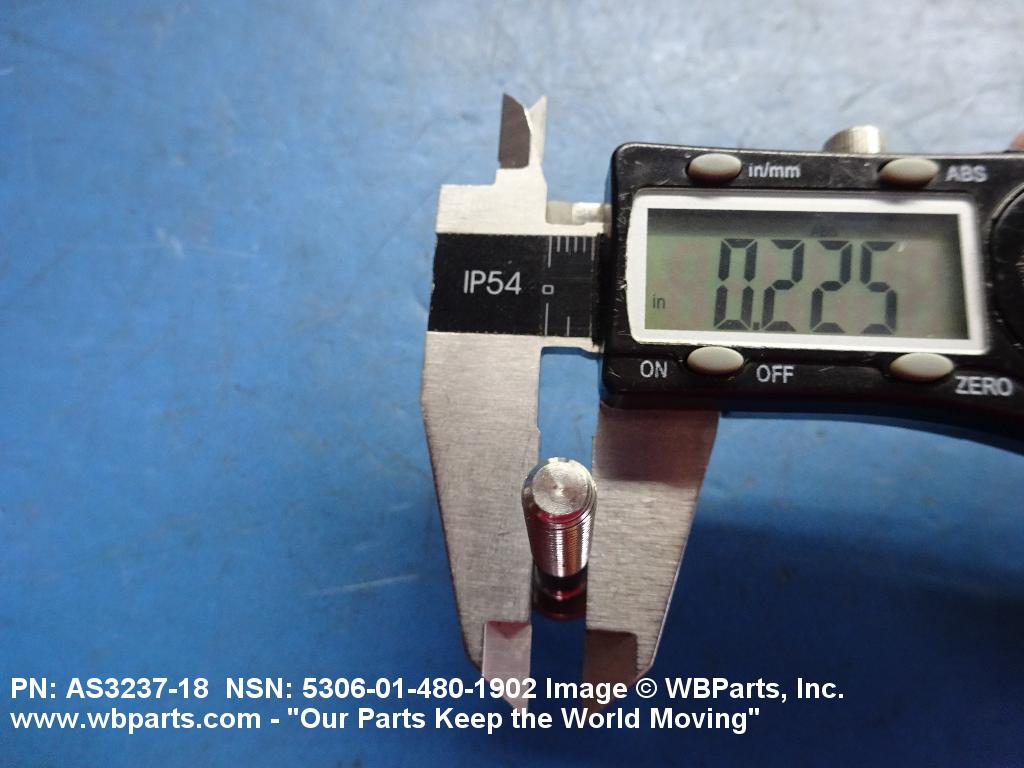

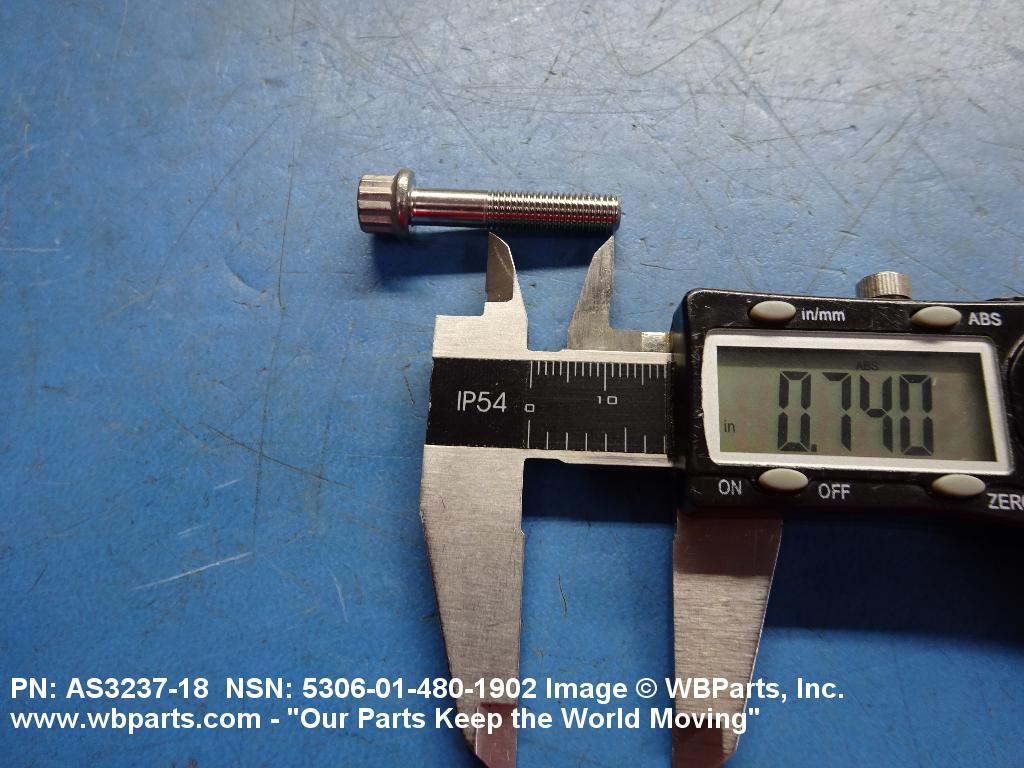

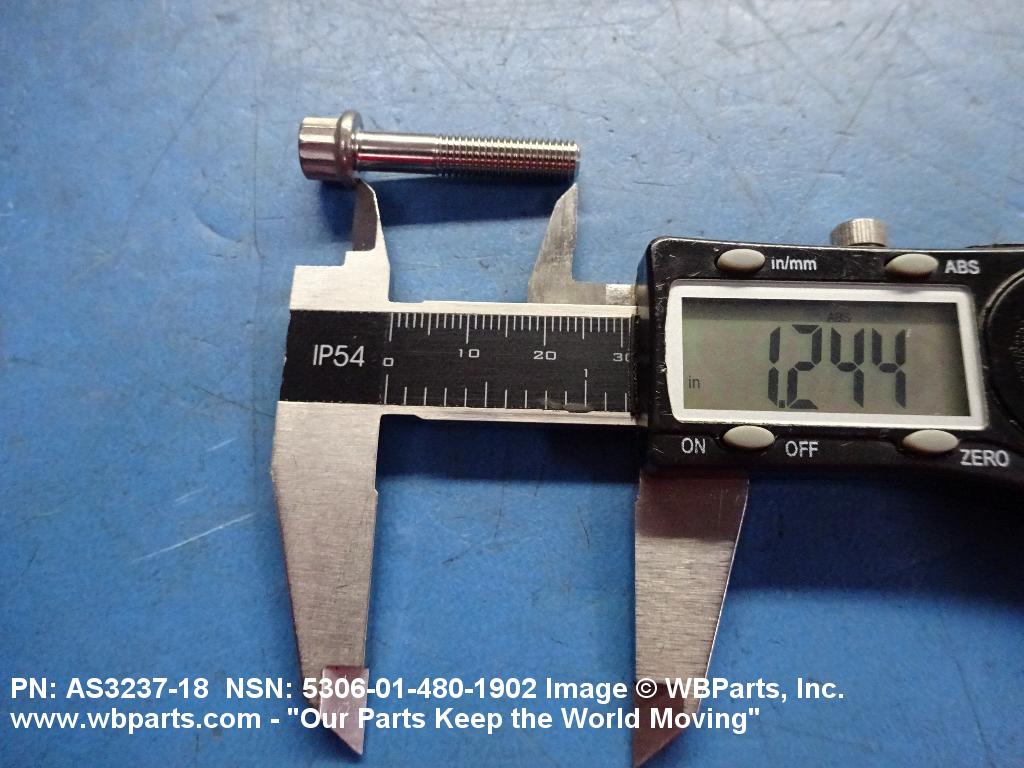

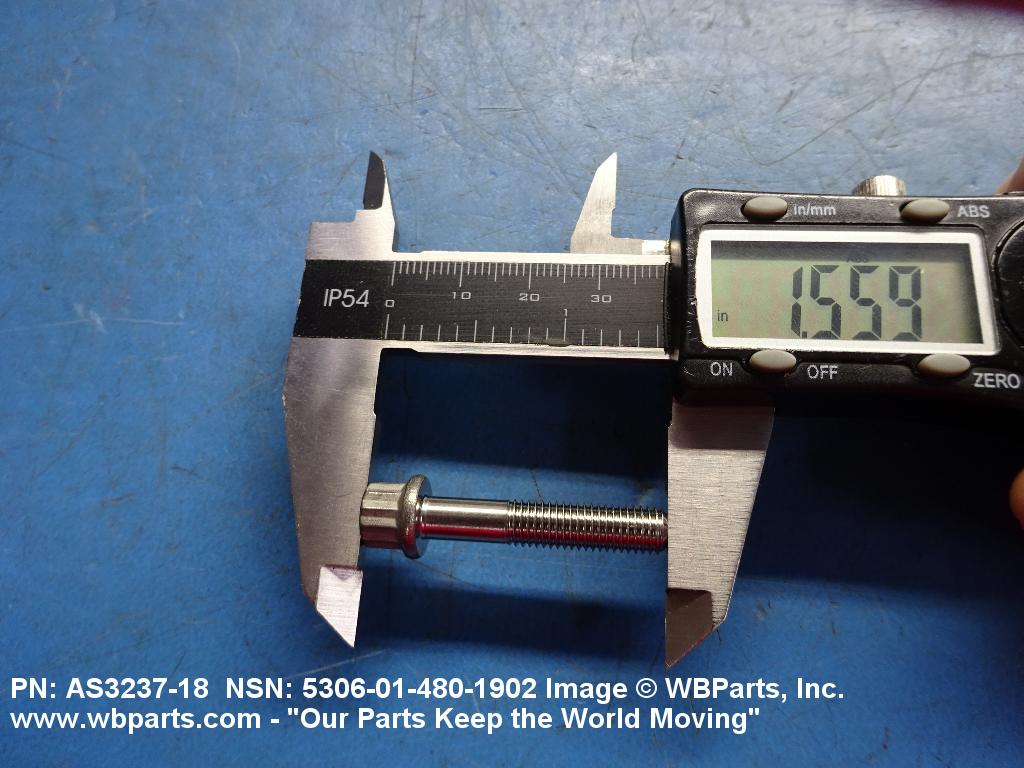

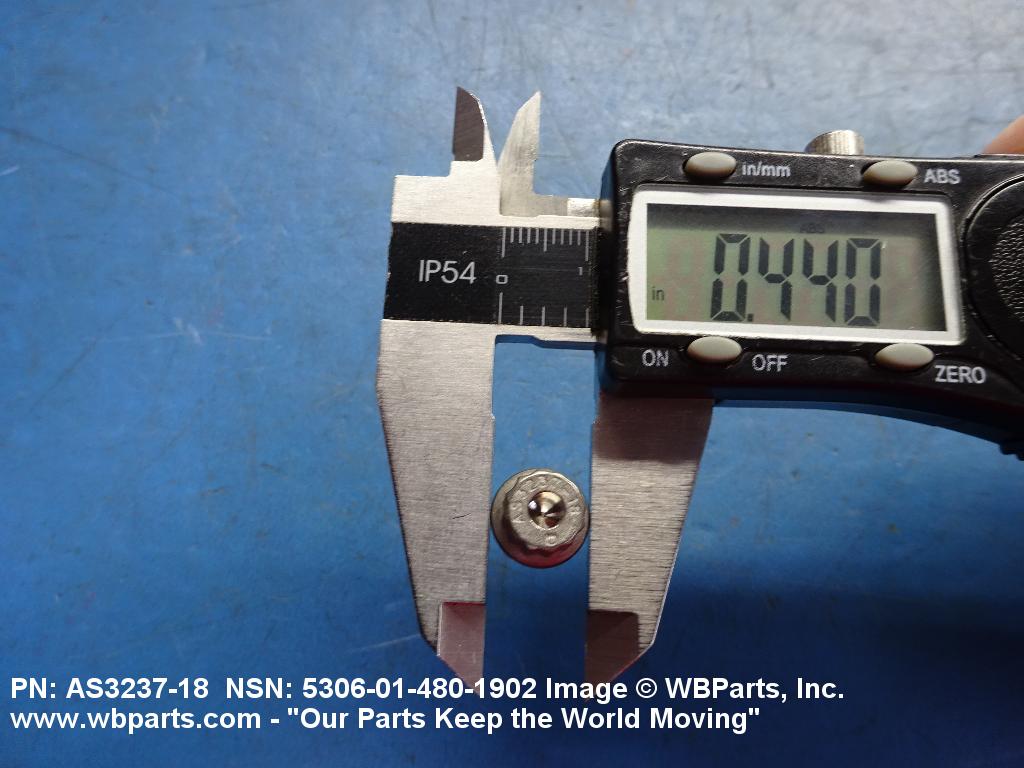

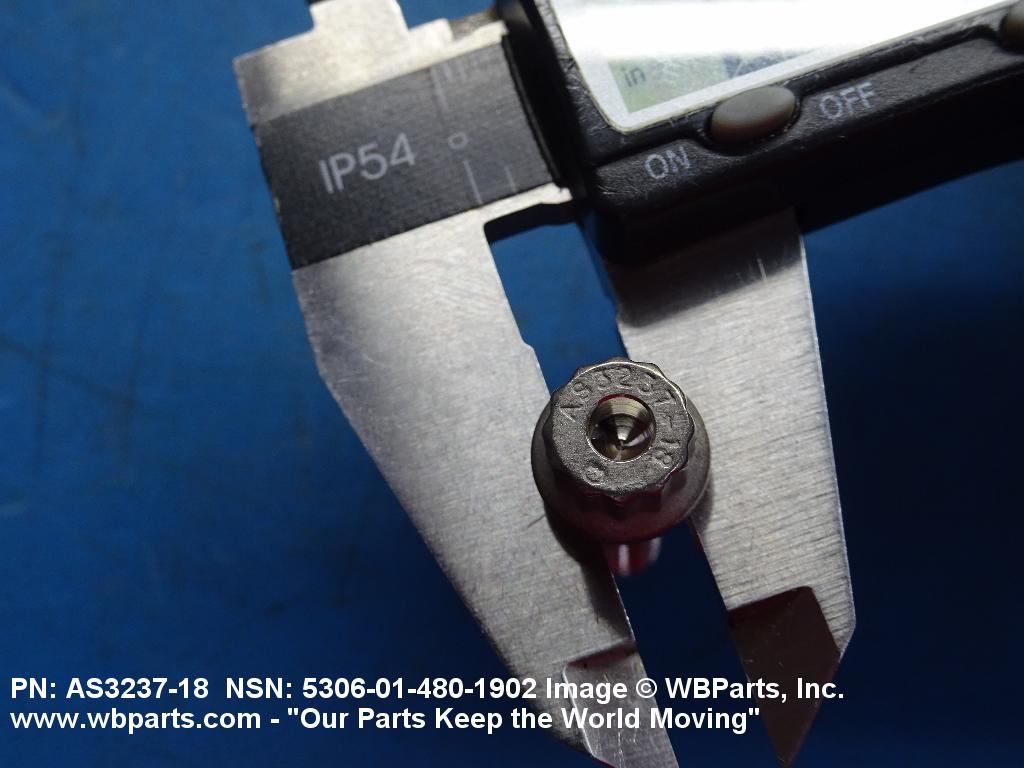

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| FASTENER LENGTH | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.293 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |

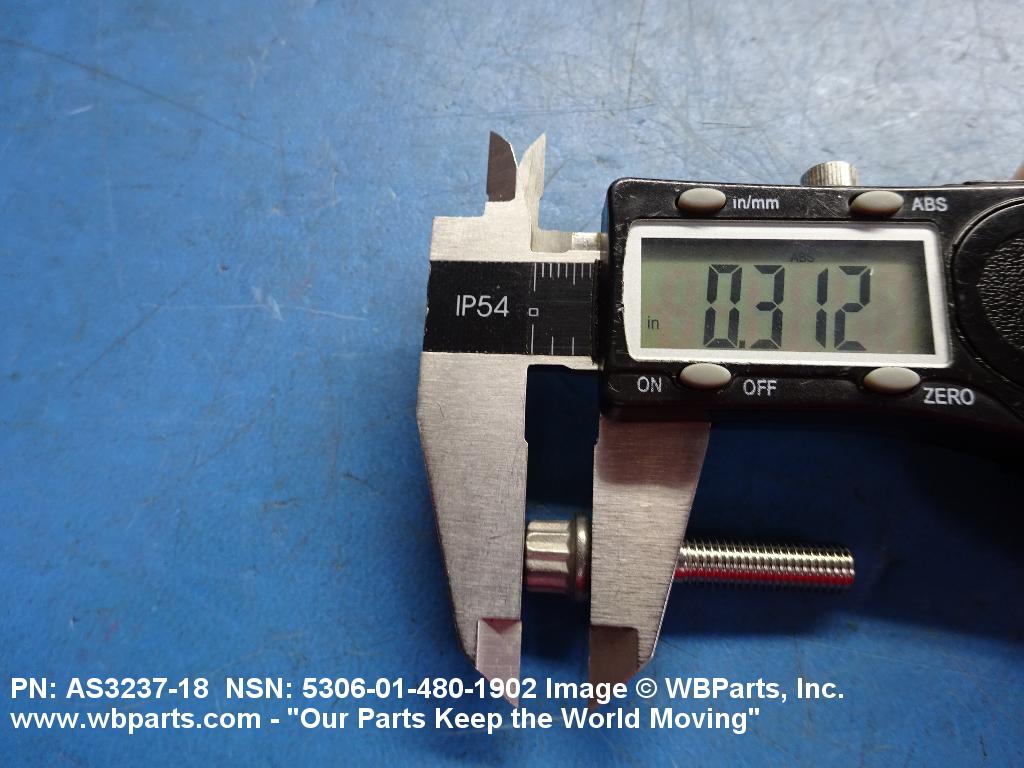

| WIDTH BETWEEN FLATS | 0.312 INCHES NOMINAL |
