NSN 5306-01-479-1492 12422439, 01-479-1492, 014791492

Product Details | TEE HEAD BOLT

5306-01-479-1492 An externally threaded fastener whose threaded portion is of one nominal diameter and with a head specially designed to fit in a slot and hold against turning.

Part Alternates: 12422439, 5306-01-479-1492, 01-479-1492, 5306014791492, 014791492

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 OCT 2000	01-479-1492	06668 ( BOLT, TEE HEAD )

Drawings & Photos | NSN 5306-01-479-1492

Part Number	Request Date	QTY	Origin
5306-01-479-1492	2024-11-311	8980	DIBBS
5306-01-479-1492	2024-11-306	8980	DIBBS
5306-01-479-1492	2024-10-298	8980	DIBBS
5306-01-479-1492	2023-07-187	500	United States
5306-01-479-1492	2023-06-178	2389	DIBBS
5306-01-479-1492	2023-06-170	2389	DIBBS
12422439	2023-06-166	800	us
5306-01-479-1492	2023-05-123	6972	DIBBS
5306-01-479-1492	2023-01-12	1265	DIBBS
5306-01-479-1492	2023-01-04	1265	DIBBS
5306-01-479-1492	2022-12-357	777	DIBBS
5306-01-479-1492	2022-12-349	777	DIBBS
5306-01-479-1492	2022-09-255	37316	DIBBS
5306-01-479-1492	2022-08-242	37316	DIBBS
5306-01-479-1492	2022-08-220	4951	DIBBS
5306-01-479-1492	2022-07-209	4951	DIBBS
5306-01-479-1492	2022-07-198	4951	DIBBS
5306-01-479-1492	2022-06-166	1	US
5306-01-479-1492	2022-06-166	24	US
5306-01-479-1492	2022-03-90	21807	DIBBS
5306-01-479-1492	2022-03-79	6234	DIBBS
5306-01-479-1492	2021-10-280	21807	DIBBS
5306-01-479-1492	2021-07-207	2149	DIBBS
5306-01-479-1492	2021-07-196	2149	DIBBS
5306-01-479-1492	2021-04-97	100	US
5306-01-479-1492	2020-05-124	19899	DIBBS
5306-01-479-1492	2020-01-08	10000	DIBBS
5306-01-479-1492	2019-12-338	8657	DIBBS
5306-01-479-1492	2019-10-281	9071	DIBBS
5306-01-479-1492	2019-10-274	10000	DIBBS
5306-01-479-1492	2019-01-30	12233	DIBBS
5306-01-479-1492	2018-02-53	7667	DIBBS
5306-01-479-1492	2017-11-312	180	US
5306-01-479-1492	2017-09-253	6700	DIBBS
5306-01-479-1492	2017-08-243	9273	DIBBS
5306-01-479-1492	2017-02-38	13000	DIBBS
5306-01-479-1492	2017-02-34	152	United States
5306-01-479-1492	2017-02-34	152	United States
5306-01-479-1492	2016-12-343	4590	DIBBS
5306-01-479-1492	2016-12-341	12000	DIBBS
5306-01-479-1492	2016-09-272	5000	DIBBS
5306-01-479-1492	2014-11-321	1500	DIBBS
5306-01-479-1492	2014-06-155	12344	DIBBS
5306-01-479-1492	2014-01-23	23624	DIBBS
5306-01-479-1492	2012-12-346	100	US
5306-01-479-1492	2012-12-339	5800	DIBBS
5306-01-479-1492	2012-10-303	58	DIBBS
5306-01-479-1492	2012-09-262	1512	DIBBS
5306-01-479-1492	2008-02-38	1180	DIBBS

Cross Reference | NSN 5306-01-479-1492

Part Number	Cage Code	Manufacturer
12422439	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
12422439	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-479-1492

Compare

Related Products | NSN 5306-01-479-1492

5306-01-479-1895, 5306-01-479-1987, 5306-01-479-1997, 5306-01-479-2108, 5306-01-479-2259

Technical Data | NSN 5306-01-479-1492

Characteristic	Specifications
THREAD SERIES DESIGNATOR	ACME
NOMINAL THREAD DIAMETER	0.500 INCHES
THREAD QUANTITY PER INCH	10
THREAD CLASS	2G
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	2.250 INCHES NOMINAL
FASTENER LENGTH	3.000 INCHES NOMINAL
MATERIAL	STEEL OVERALL

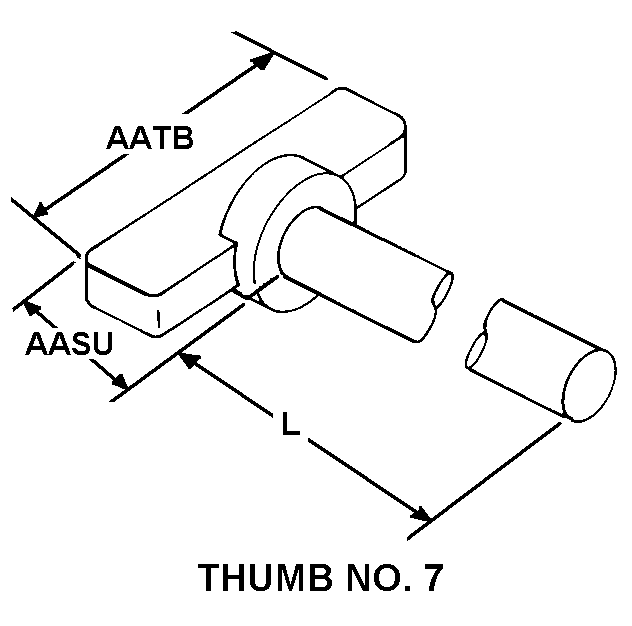

HEAD STYLE	C83 THUMB NO. 7
HEAD HEIGHT	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.770 INCHES MINIMUM AND 0.790 INCHES MAXIMUM
III END ITEM IDENTIFICATION	2320-01-353-9098

Restrictions/Controls & Freight Information | NSN 5306-01-479-1492

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-479-1492

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
