NSN 5306-01-477-7463 BB366614, BB366-6-14 , 5057614
Product Details | ASSEMBLED SLEEVE BOLT

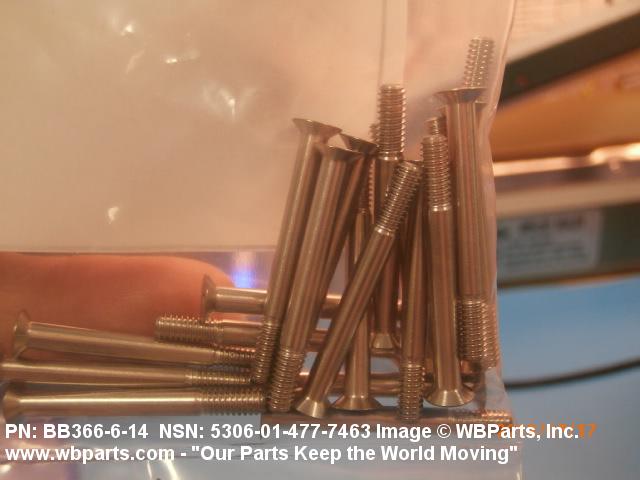

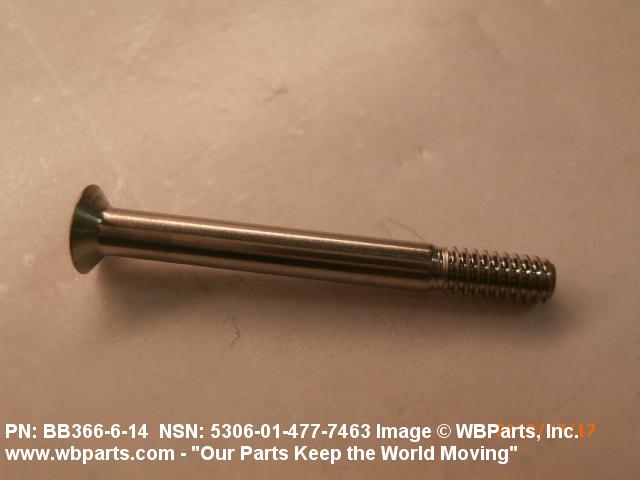

5306-01-477-7463 A headed, externally tapered or straight fastener with a flanged outer sleeve ground externally straight. The head is designed to accommodate an external hand or power operated wrench or driver. The fastener must be tightened or released by torquing a nut.
Part Alternates: BB366614, BB366-6-14 , 5057614, 5057-6-14, 5306-01-477-7463, 01-477-7463, 5306014777463, 014777463
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 2000 | 01-477-7463 | 38893 ( BOLT, ASSEMBLED SLEEVE ) |

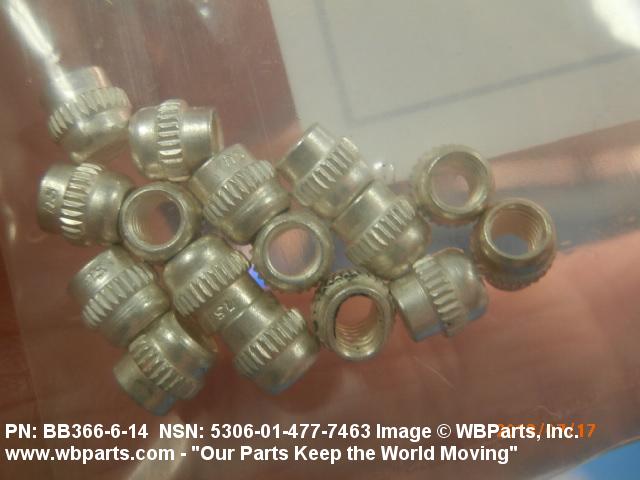

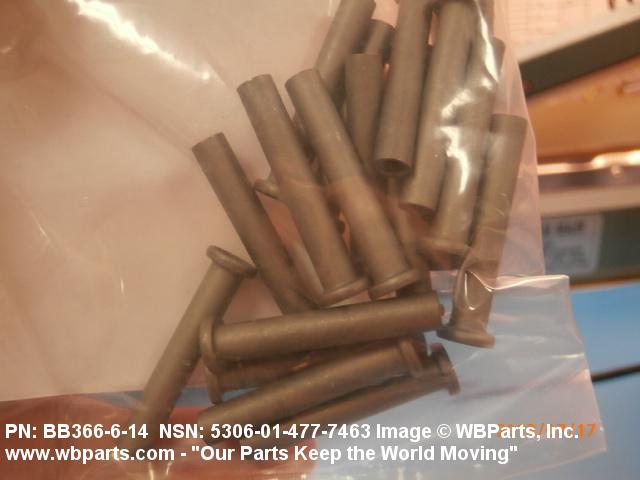

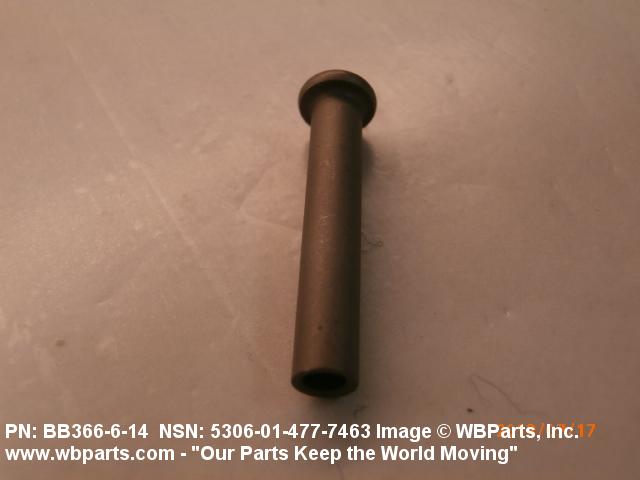

Drawings & Photos | NSN 5306-01-477-7463
Demand History | NSN 5306-01-477-7463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BB366614 | 2013-07-183 | 20 | United States |
| 5057614 | 2011-04-115 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-477-7463
Technical Data | NSN 5306-01-477-7463
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |

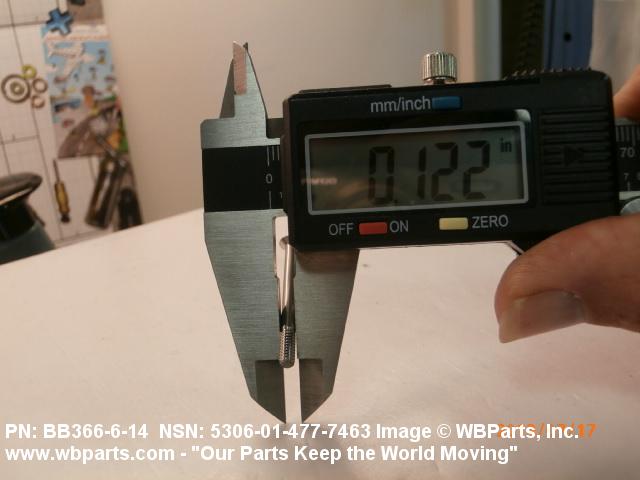

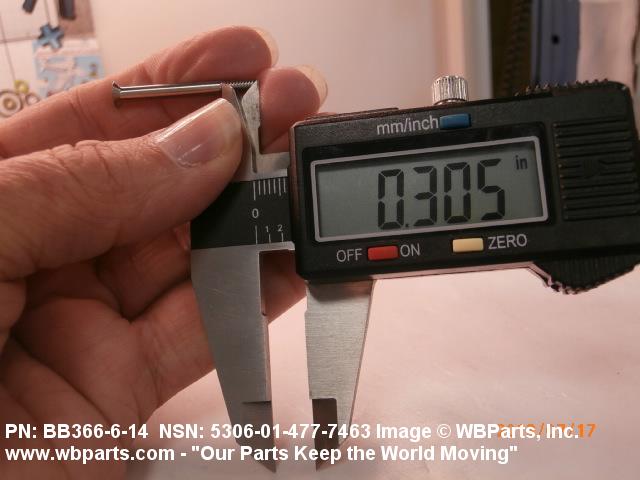

| NOMINAL THREAD DIAMETER | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.304 INCHES NOMINAL |

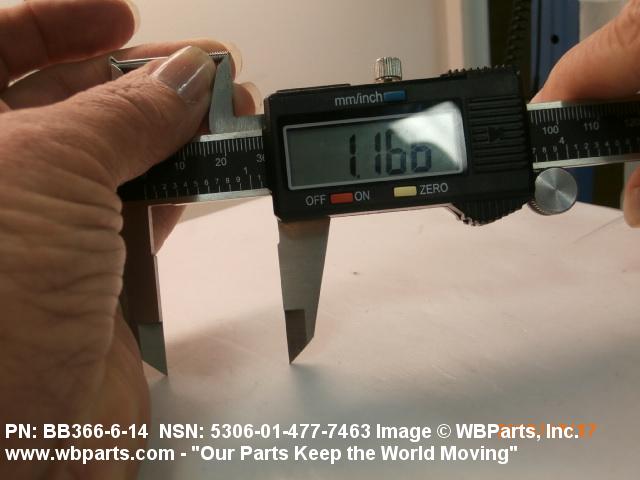

| FASTENER LENGTH | 1.165 INCHES MINIMUM AND 1.167 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5737 ASSN STD 2ND MATERIAL RESPONSE OVERALL |

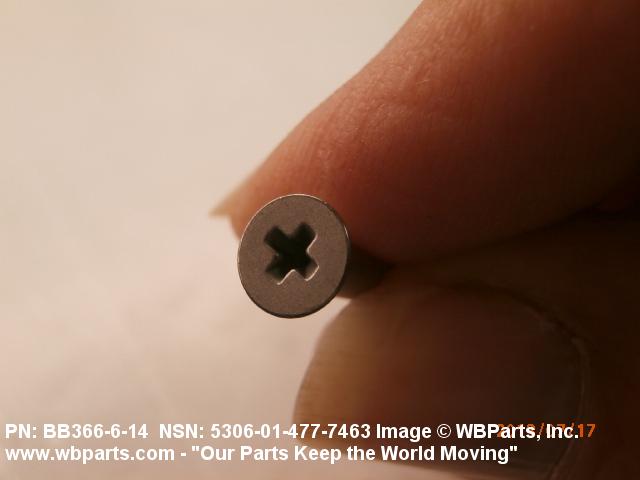

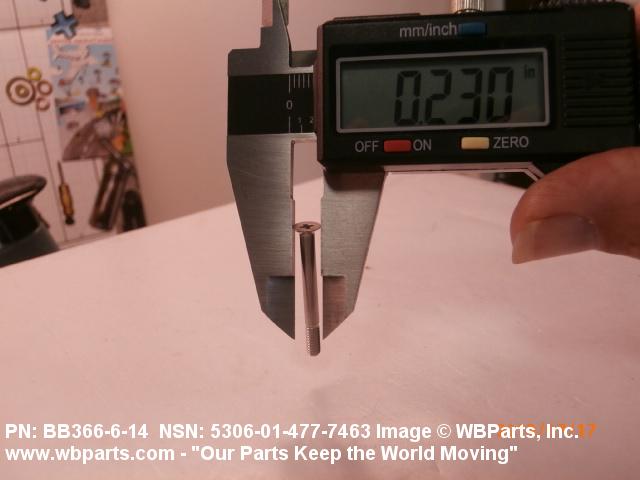

| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.2466 INCHES MINIMUM AND 0.2514 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |

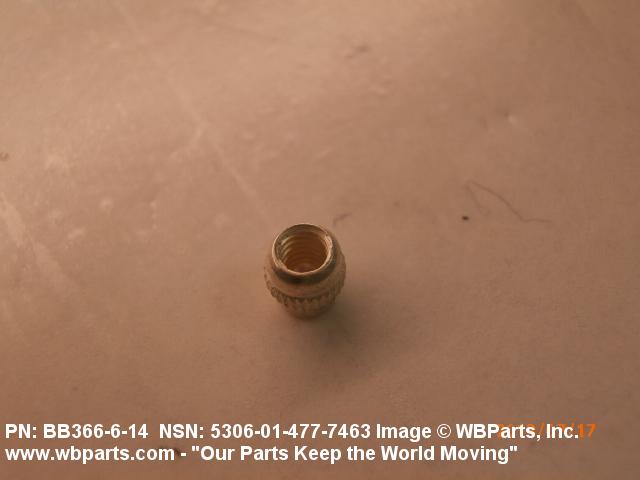

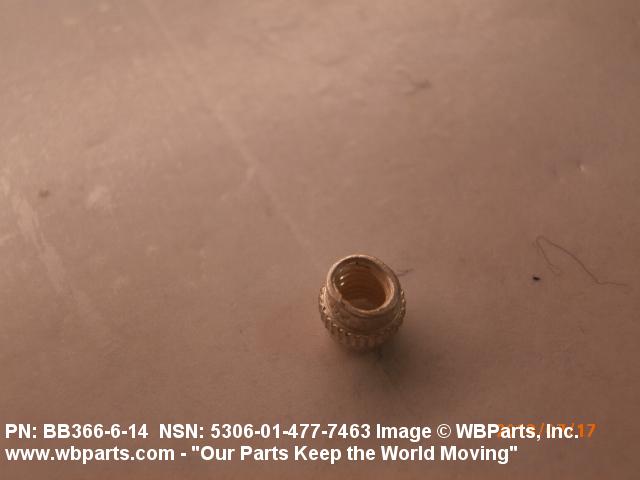

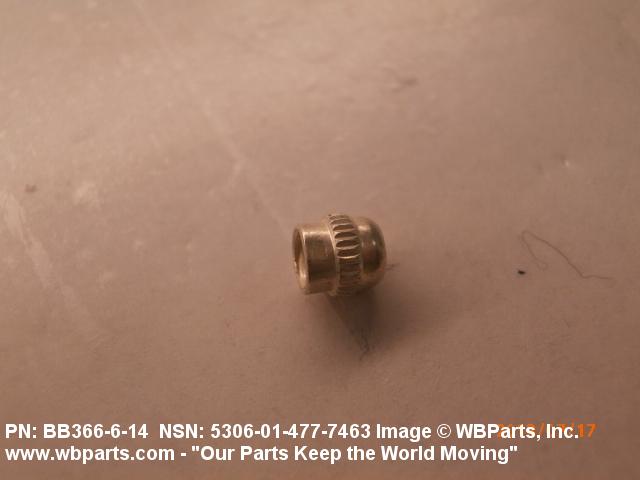

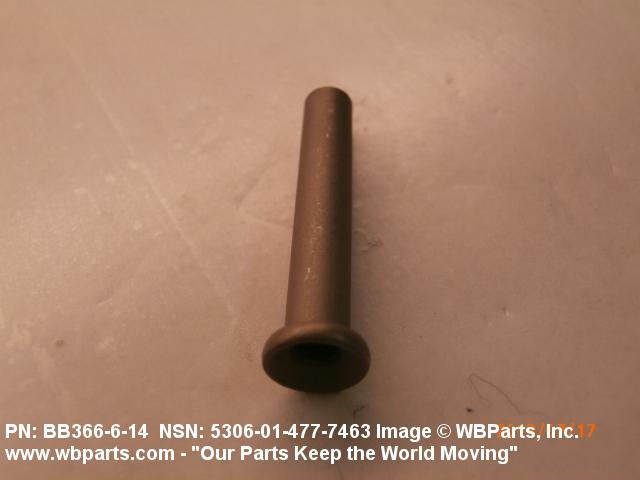

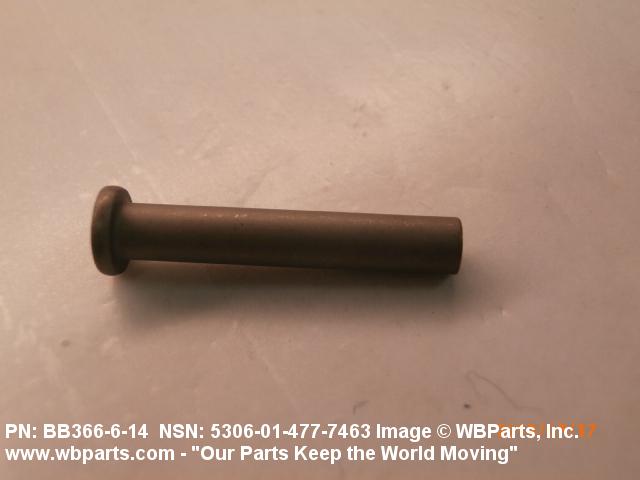

| SPECIAL FEATURES | ASSEMBLY CONSISTS OF A CORE BOLT, SLEEVE, AND AN EXPANDER (NUT); EXPANDER HAS ELLIPTICALLY DISTORTED THREADS FOR SELF-LOCKING |
Restrictions/Controls & Freight Information | NSN 5306-01-477-7463
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-477-7463
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
