NSN 5306-01-446-9762 AN510, AN5-10, NASM5
Product Details | MACHINE BOLT
5306-01-446-9762 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN510, AN5-10, NASM5 , 5306-01-446-9762, 01-446-9762, 5306014469762, 014469762
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1997 | 01-446-9762 | 01847 ( BOLT, MACHINE ) |

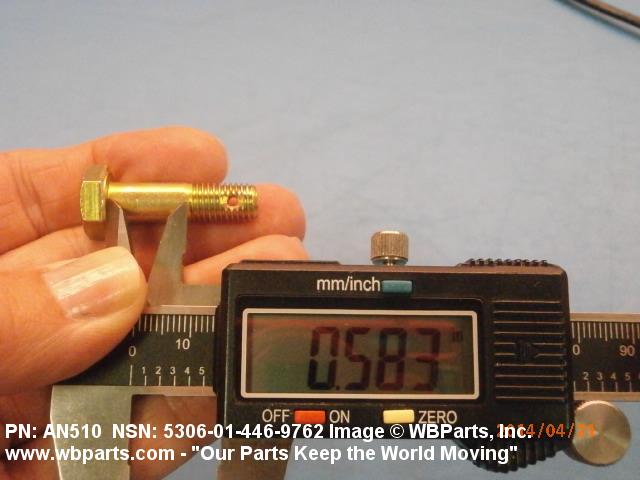

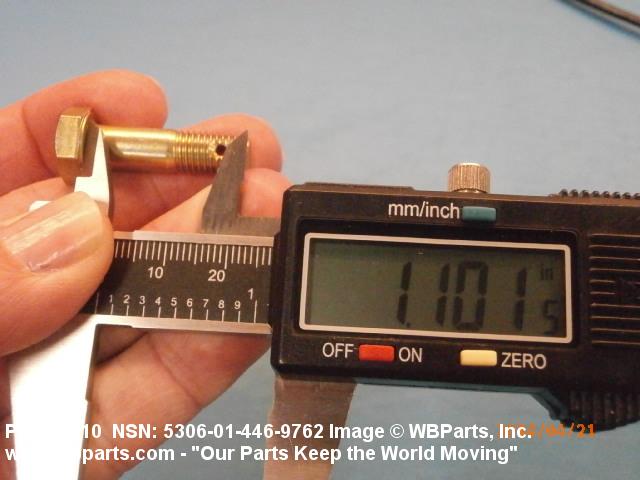

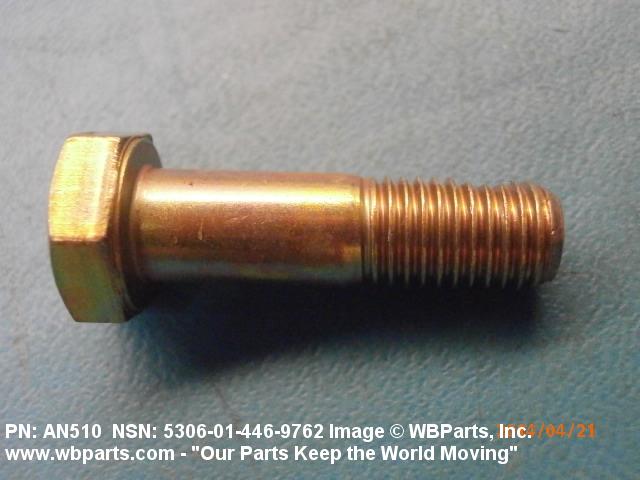

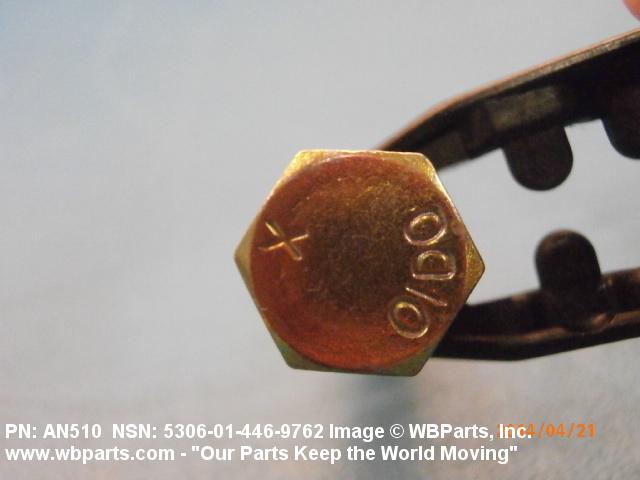

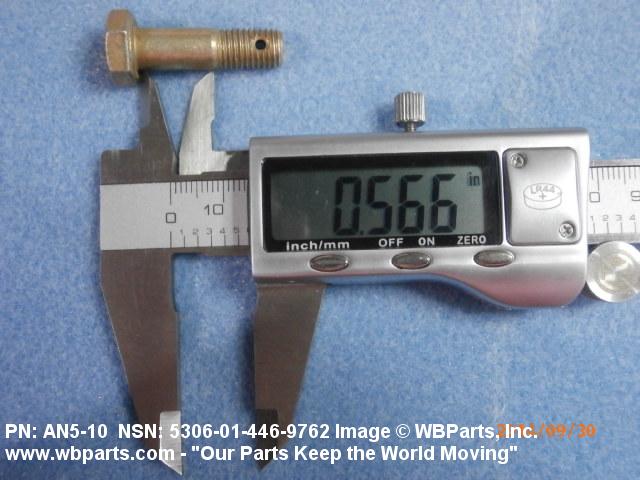

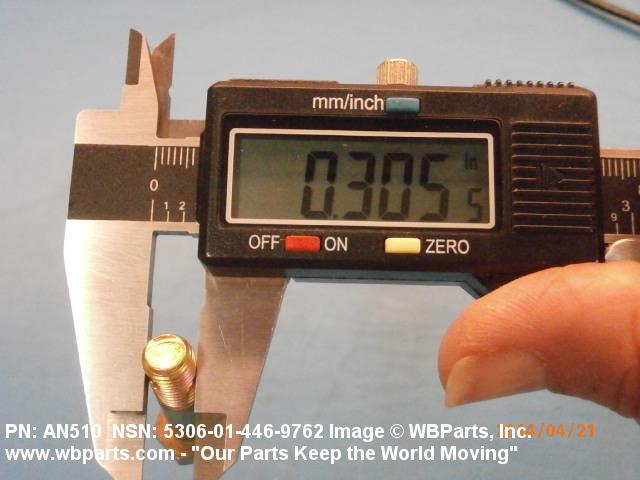

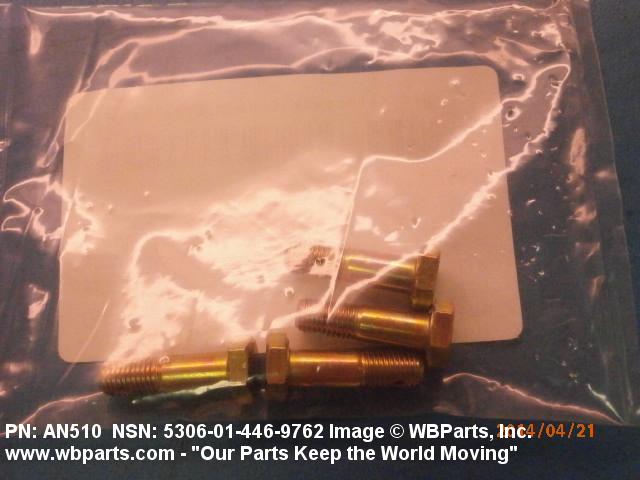

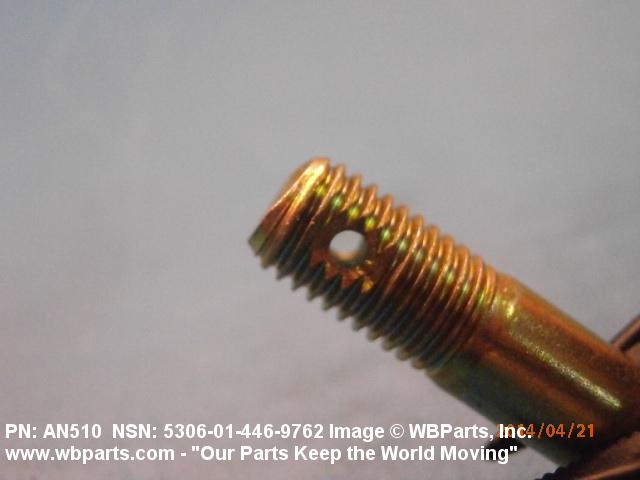

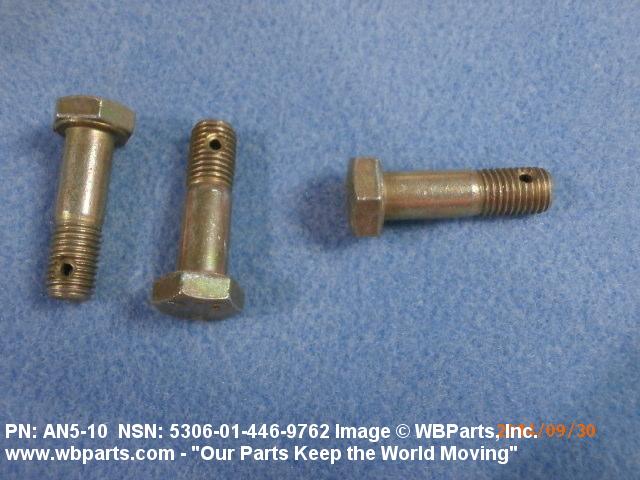

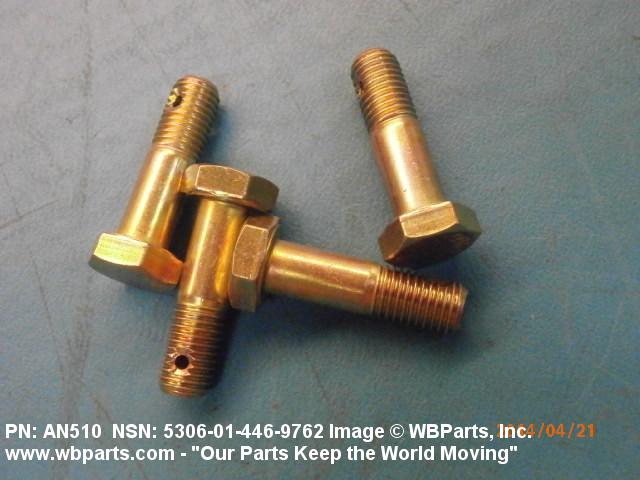

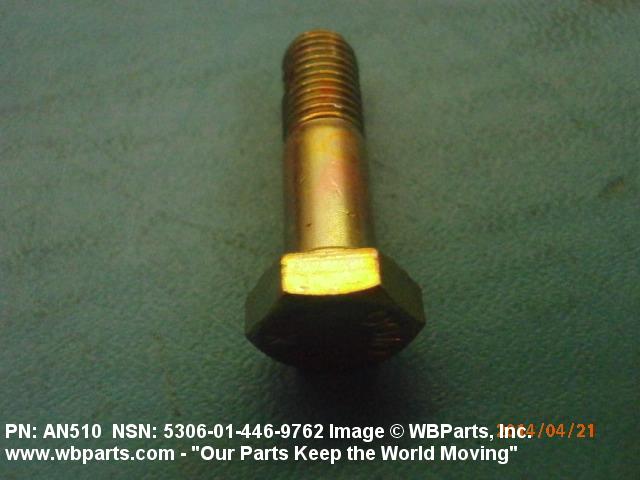

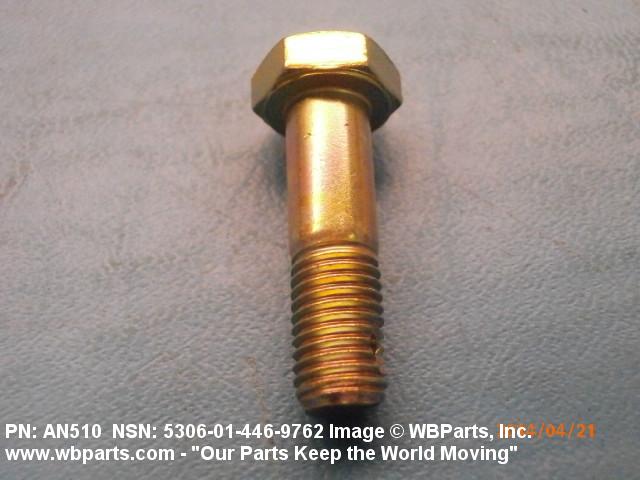

Drawings & Photos | NSN 5306-01-446-9762
Demand History | NSN 5306-01-446-9762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN510 | 2023-08-223 | 100 | us |
| AN510 | 2017-12-350 | 10 | United States |
| AN510 | 2016-04-102 | 4 | United States |
| 5306-01-446-9762 | 2015-08-224 | 715 | DIBBS |
| AN5-10 | 2014-05-142 | 500 | United States |
| AN510 | 2014-04-105 | 4 | United States |
| AN510 | 2014-04-99 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-446-9762
Technical Data | NSN 5306-01-446-9762
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

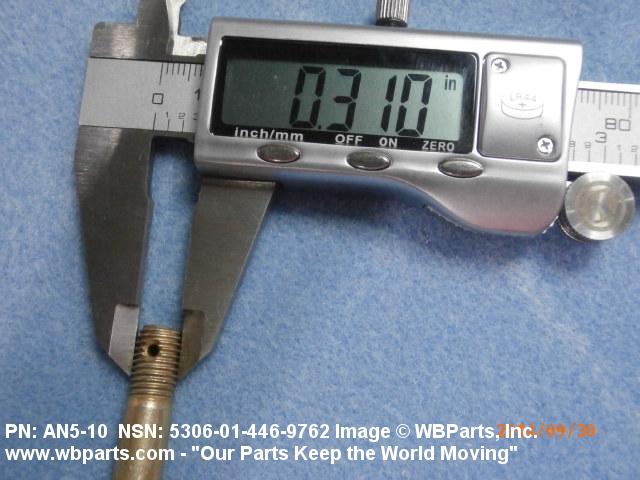

| NOMINAL THREAD DIAMETER | 0.312 INCHES |

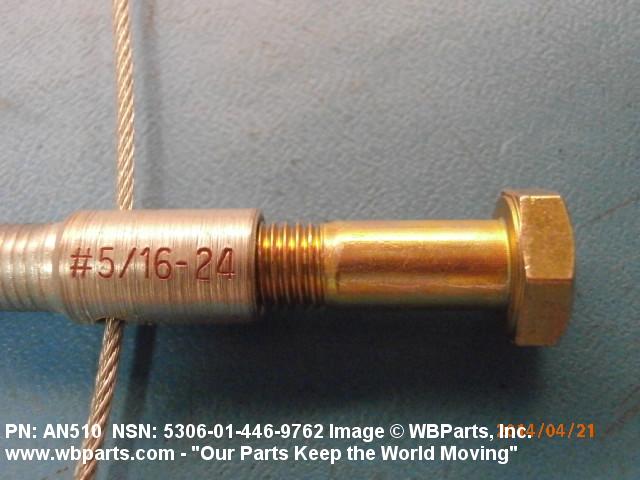

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.625 INCHES MINIMUM AND 1.693 INCHES MAXIMUM |

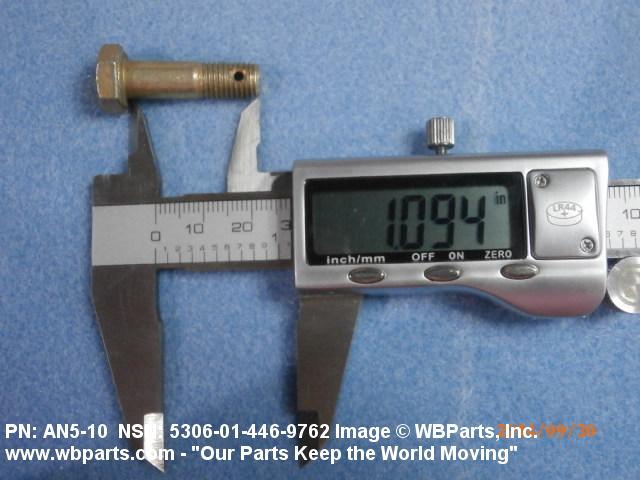

| FASTENER LENGTH | 1.078 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| MATERIAL | STEEL OR STEEL CORROSION RESISTING OR ALUMINUM ALLOY OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |

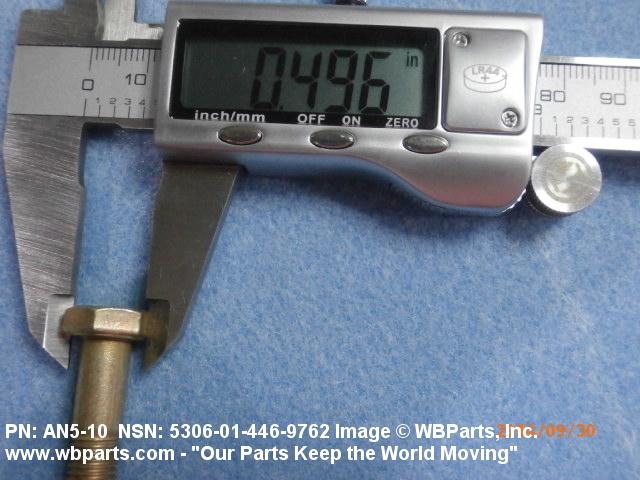

| WIDTH BETWEEN FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| GRIP LENGTH | 0.547 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| GRIP DIAMETER | 0.309 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SPECIAL FEATURES | ULTIMATE TENSILE STRENGTH AT ROOT DIA. FOR STEEL 6500 POUNDS AND FOR ALUMINUM ALLOY 3220 POUNDS; YIELD TENSILE STRENGTH AT ROOT DIA. FOR STEEL 4980 POUNDS AND FOR ALUMINUM ALLOY 2080 POUNDS; SINGLE SHEAR STRENGTH AT FULL DIA. FOR STEEL 5750 POUNDS AND FOR ALUMINUM ALLOY 2685 POUNDS |
| TEST DATA DOCUMENT | 88044-AN5 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 88044-AN5 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, MACHINE, AIRCRAFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5-10 |
Restrictions/Controls & Freight Information | NSN 5306-01-446-9762
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | QH | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-446-9762
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
