NSN 5306-01-373-3004 310610F01, 76038F01, 01-373-3004
Product Details | MACHINE BOLT

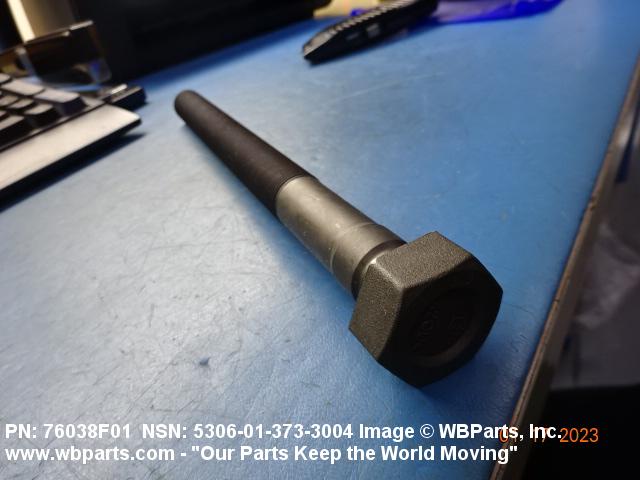

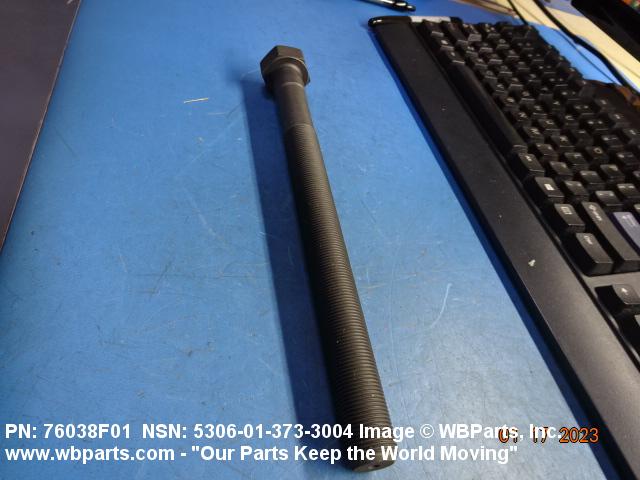

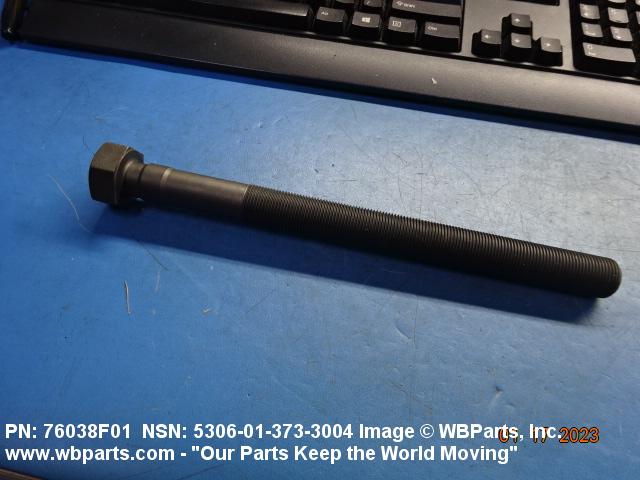

5306-01-373-3004 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 310610F01, 76038F01, 5306-01-373-3004, 01-373-3004, 5306013733004, 013733004
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 APR 1993 | 01-373-3004 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-01-373-3004
Demand History | NSN 5306-01-373-3004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 76038F01 | 2023-02-53 | 5 | DIBBS |
| 5306-01-373-3004 | 2022-12-339 | 20 | United States |
| 76038F01 | 2022-11-312 | 59 | DIBBS |
| 76038F01 | 2022-09-254 | 71 | DIBBS |
| 76038F01 | 2022-07-201 | 8 | US |
| 76038F01 | 2022-06-166 | 13 | DIBBS |
| 76038F01 | 2021-06-168 | 25 | DIBBS |
| 76038F01 | 2021-01-19 | 387 | DIBBS |
| 76038F01 | 2021-01-11 | 387 | DIBBS |
| 76038F01 | 2020-12-352 | 370 | DIBBS |
| 76038F01 | 2020-12-344 | 370 | DIBBS |
| 76038F01 | 2019-10-293 | 5 | DIBBS |
| 76038F01 | 2019-04-93 | 7 | DIBBS |
| 5306-01-373-3004 | 2017-10-304 | 12 | DIBBS |
| 5306-01-373-3004 | 2017-10-296 | 12 | DIBBS |
Cross Reference | NSN 5306-01-373-3004
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-373-3004
Technical Data | NSN 5306-01-373-3004
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |

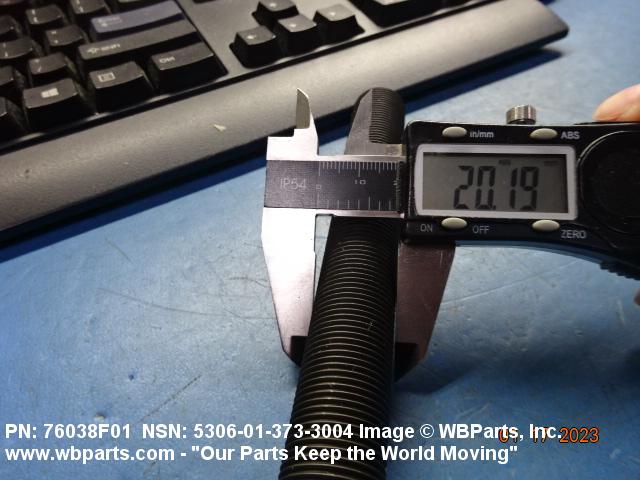

| NOMINAL THREAD DIAMETER | 20.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.5 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 180.0 MILLIMETERS NOMINAL |

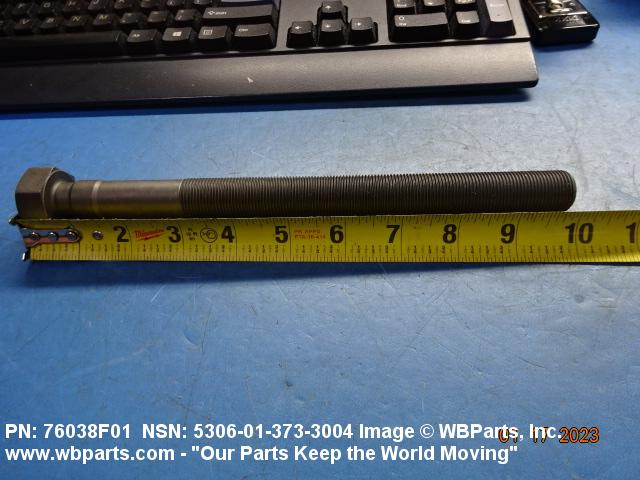

| FASTENER LENGTH | 243.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL COMP 4135 OVERALL |
| SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
| HEAD STYLE | C1 HEXAGON |

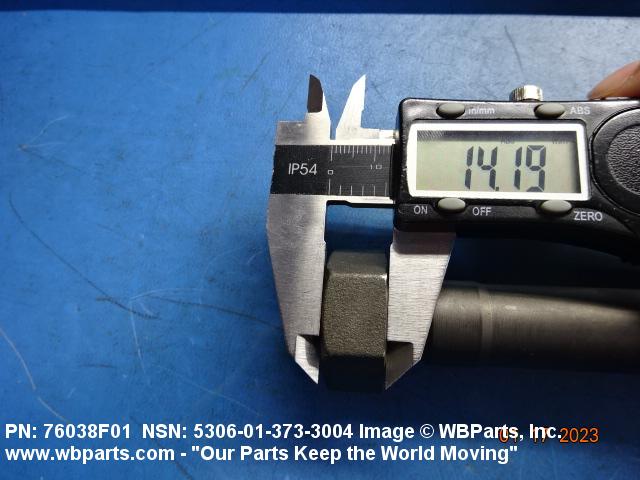

| HEAD HEIGHT | 14.0 MILLIMETERS NOMINAL |

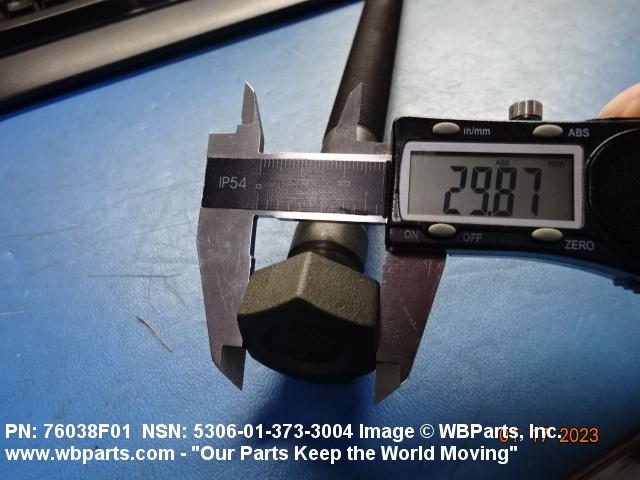

| WIDTH BETWEEN FLATS | 29.0 MILLIMETERS NOMINAL |
