NSN 5306-01-372-0787 DIN6921M16X15X60109A3D, 12414307143, 12414307-143
Product Details | MACHINE BOLT
5306-01-372-0787 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: DIN6921M16X15X60109A3D, 12414307143, 12414307-143, 5306-01-372-0787, 01-372-0787, 5306013720787, 013720787
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAR 1993 | 01-372-0787 | 01847 ( BOLT, MACHINE ) |

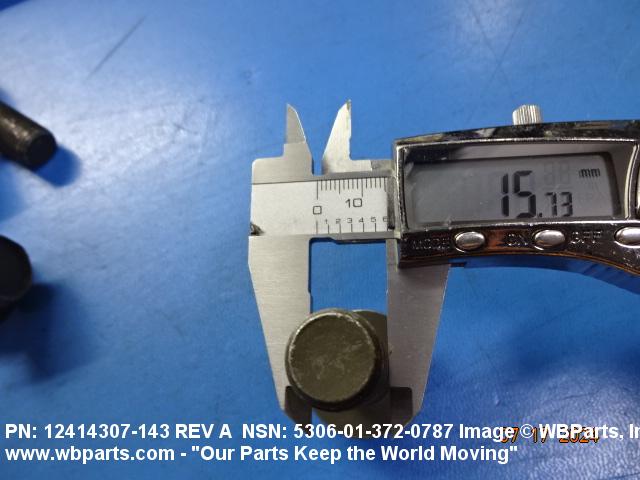

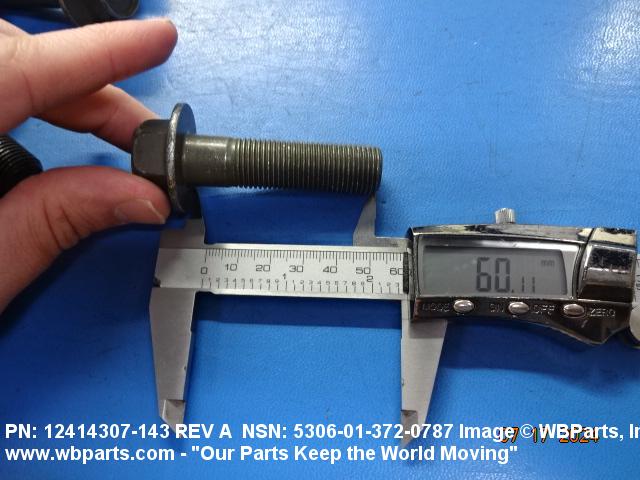

Drawings & Photos | NSN 5306-01-372-0787
Demand History | NSN 5306-01-372-0787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-372-0787 | 2024-08-233 | 563 | DIBBS |
| 5306-01-372-0787 | 2024-07-183 | 1 | United States |
| 5306-01-372-0787 | 2021-04-94 | 792 | DIBBS |
| 5306-01-372-0787 | 2019-02-36 | 1134 | DIBBS |
| 5306-01-372-0787 | 2019-01-27 | 1134 | DIBBS |
| 5306-01-372-0787 | 2018-12-353 | 563 | DIBBS |
| 5306-01-372-0787 | 2018-12-345 | 563 | DIBBS |
| 12414307143 | 2018-01-19 | 48 | United States |
| 12414307143 | 2017-03-89 | 9 | United States |
| 12414307-143 | 2016-04-110 | 300 | US |
| 5306-01-372-0787 | 2009-09-244 | 1353 | DIBBS |
| 5306-01-372-0787 | 2009-08-219 | 658 | DIBBS |
| 5306-01-372-0787 | 2008-10-282 | 1085 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-372-0787
Related Products | NSN 5306-01-372-0787
Technical Data | NSN 5306-01-372-0787
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | M |
| NOMINAL THREAD DIAMETER | 16.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.5 |
| EXTERNAL THREAD TOLERANCE CLASS | 6G |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 38.0 MILLIMETERS NOMINAL |
| FASTENER LENGTH | 60.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL PROPERTY CLASS 10.9 OVERALL |
| HEAD STYLE | C7 HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 20.2 MILLIMETERS NOMINAL |
| WIDTH BETWEEN FLATS | 20.67 MILLIMETERS NOMINAL |
| EXTENDED WASHER DIAMETER | 23.15 MILLIMETERS NOMINAL |
| EXTENDED WASHER THICKNESS | 8.6 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-01-372-0787
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-372-0787
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
