NSN 5306-01-353-5331 RS107907, 01-353-5331, 013535331
Product Details | TOGGLE BOLT
5306-01-353-5331 An externally threaded fastener whose threaded portion is of one nominal diameter having a wing or wings mounted on the bolt head or on a trunnion nut. The wing or wings upset when the toggle bolt is inserted in a constricted passage in a hollow wall and when the bolt is tightened, the wing or wings assume a transverse or athwart position. It is used for securely holding fixtures or devices to hollow walls.
Part Alternates: RS107907, 5306-01-353-5331, 01-353-5331, 5306013535331, 013535331
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 FEB 1992 | 01-353-5331 | 00799 ( BOLT, TOGGLE ) |
Drawings & Photos | NSN 5306-01-353-5331
Cross Reference | NSN 5306-01-353-5331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RS107907 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-353-5331
Technical Data | NSN 5306-01-353-5331
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD DIRECTION | RIGHT-HAND |

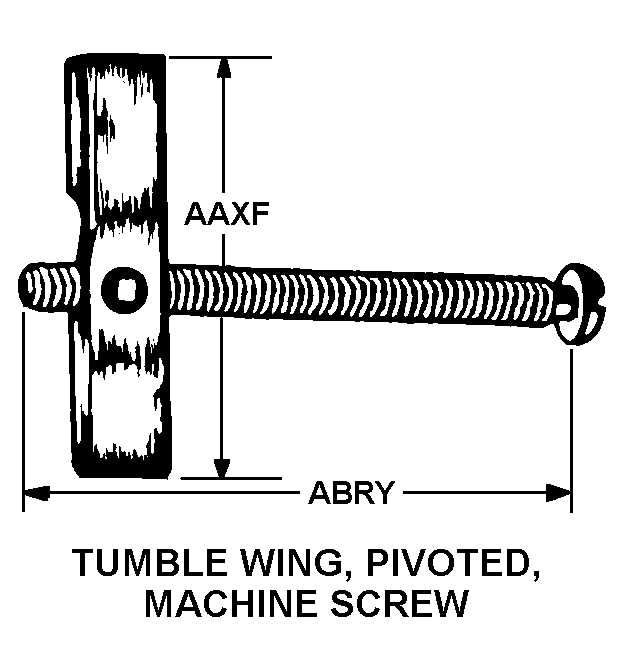

| STYLE DESIGNATOR | B65 TUMBLE WING, PIVOTED, MACHINE SCREW |
| WING SPREAD WIDTH | 1.875 INCHES NOMINAL |
| LENGTH | 5.187 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-01-353-5331
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 097240 | TOGGLE BOLTS I/S IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-353-5331
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
