NSN 5306-01-352-4788 MS5193432, MS51934-32, 01-352-4788
Product Details | WELDING BOLT
5306-01-352-4788 An externally threaded fastener whose threaded portion is of one nominal diameter having small raised projections on the top side or underside of the head to facilitate welding the head. May or may not be designed to be held or turned with a wrench or inserted driver.
Part Alternates: MS5193432, MS51934-32, 5306-01-352-4788, 01-352-4788, 5306013524788, 013524788
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JAN 1992 | 01-352-4788 | 01850 ( BOLT, WELDING ) |

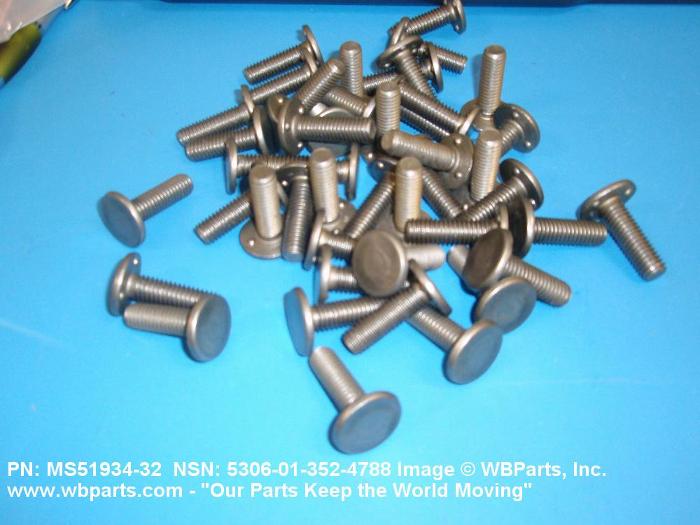

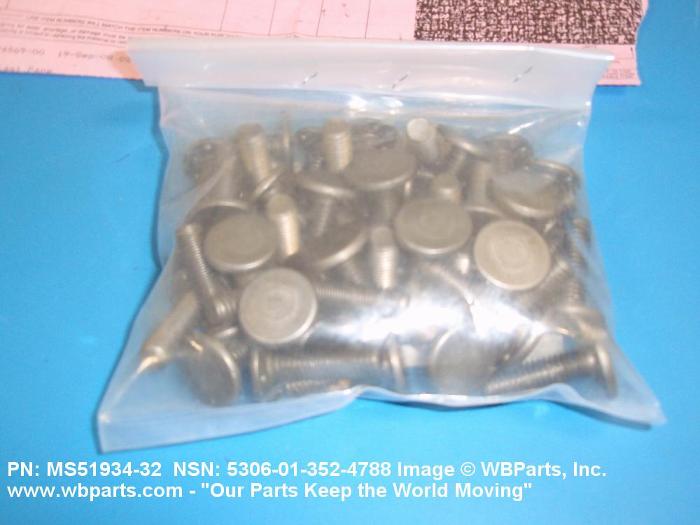

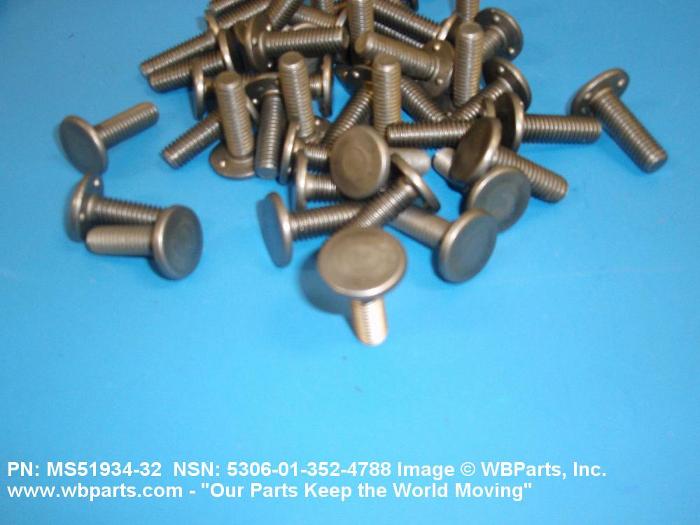

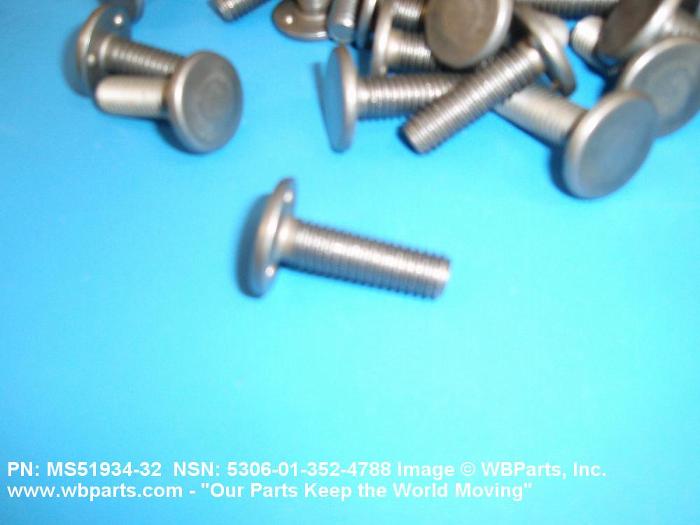

Drawings & Photos | NSN 5306-01-352-4788
Demand History | NSN 5306-01-352-4788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5193432 | 2022-04-119 | 6 | US |
| MS5193432 | 2019-05-137 | 900 | United States |
| 5306-01-352-4788 | 2019-03-74 | 200 | MANUAL |
| MS51934-32 | 2019-03-74 | 200 | Canada |
| MS5193432 | 2018-03-81 | 100 | India |
| MS5193432 | 2014-10-280 | 2000 | US |
| 5306-01-352-4788 | 2013-07-206 | 500 | US |
| 5306-01-352-4788 | 2012-11-318 | 65 | us |
| MS5193432 | 2010-10-288 | 200 | United States |
| MS5193432 | 2010-01-13 | 20 | United States |
| MS51934-32 | 2009-05-126 | 20000 | United States |
| MS5193432 | 2008-09-262 | 44 | United States |
| 5306-01-352-4788 | 2008-09-255 | 20 | United States |
| 5306-01-352-4788 | 2008-09-248 | 32 | US |
Cross Reference | NSN 5306-01-352-4788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51934-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-352-4788
Technical Data | NSN 5306-01-352-4788
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| MATERIAL | STEEL OVERALL |
| HEAD DIAMETER | 0.875 INCHES NOMINAL |
| HEAD HEIGHT | 0.1094 INCHES NOMINAL |
| SPECIAL FEATURES | COARSE THREADS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51934-32 |
Restrictions/Controls & Freight Information | NSN 5306-01-352-4788
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
