NSN 5306-01-236-1585 WE1018TB, 0142821 , 1275900163
Product Details | MACHINE BOLT
5306-01-236-1585 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: WE1018TB, 0142821 , 1275900163, 12759-00163 , 1336700 , 3820286C1, 5306-01-236-1585, 01-236-1585, 5306012361585, 012361585
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUL 1986 | 01-236-1585 | 01847 ( BOLT, MACHINE ) |

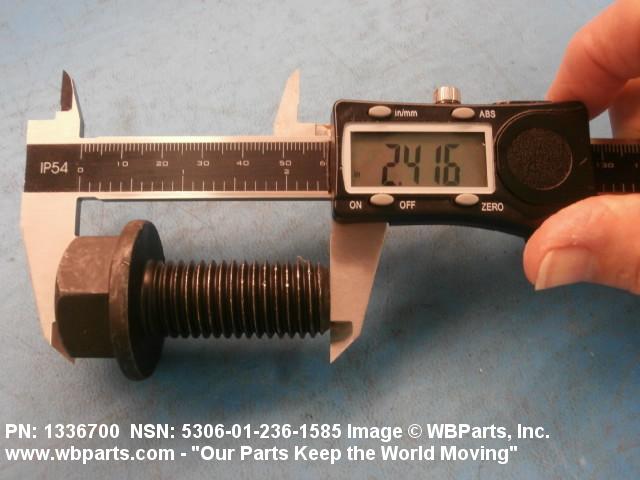

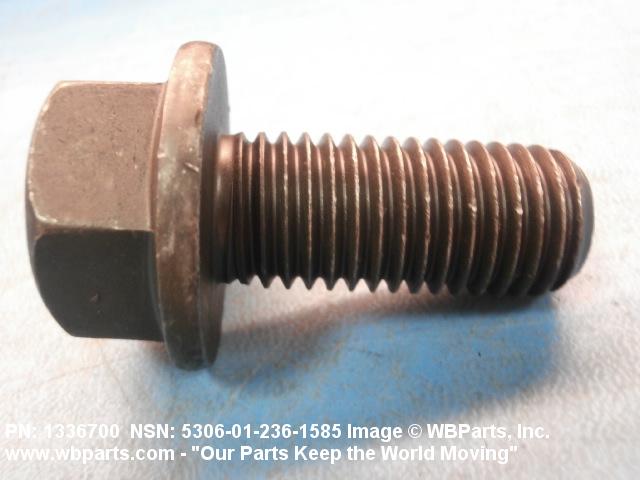

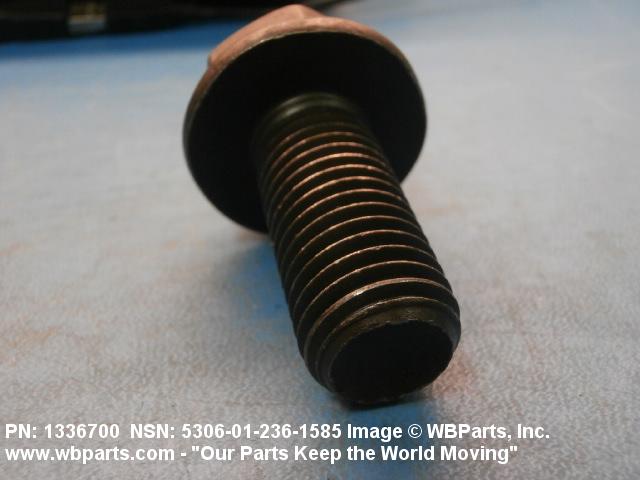

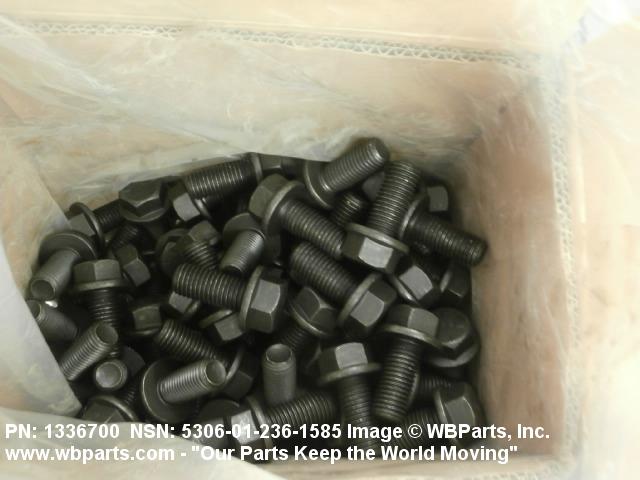

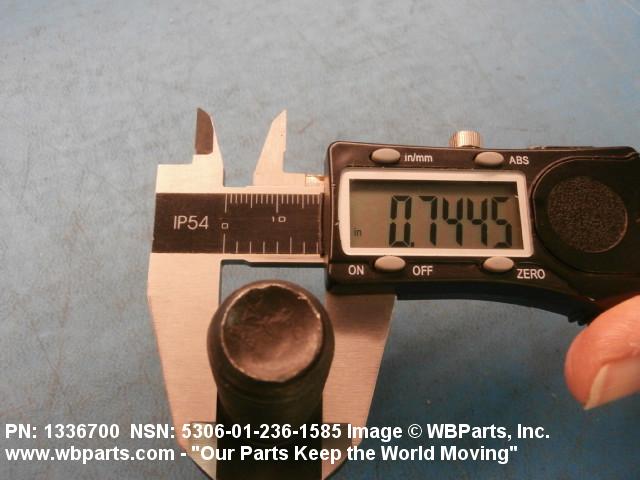

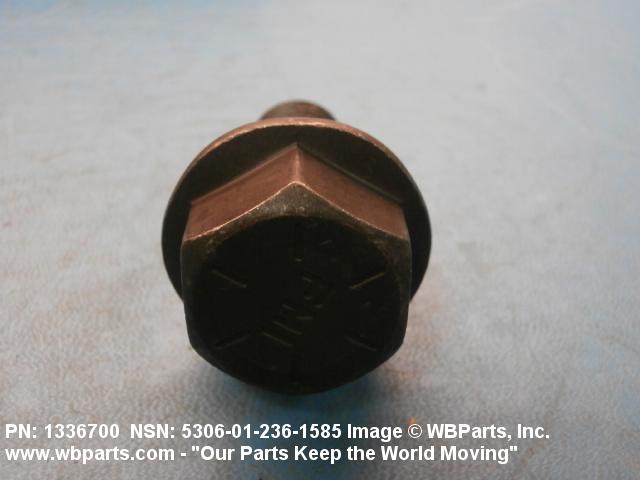

Drawings & Photos | NSN 5306-01-236-1585
Demand History | NSN 5306-01-236-1585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-236-1585 | 2014-02-43 | 500 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-236-1585
Related Products | NSN 5306-01-236-1585
Technical Data | NSN 5306-01-236-1585
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |

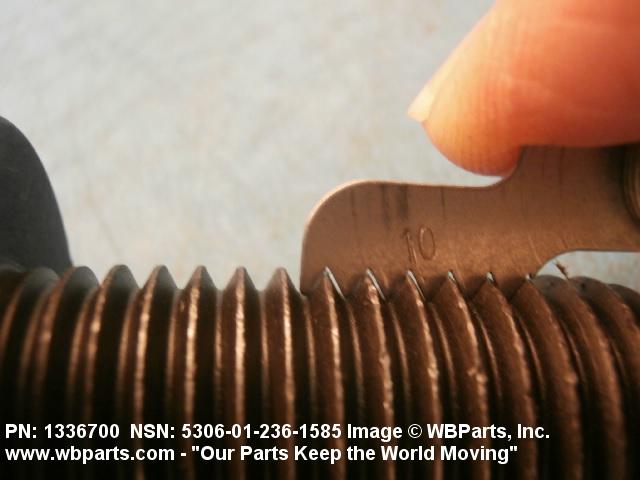

| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.550 INCHES NOMINAL |

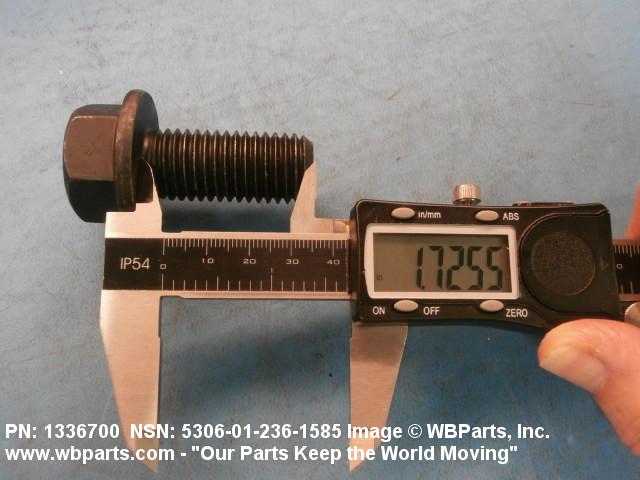

| FASTENER LENGTH | 1.750 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1025 OR STEEL COMP 1026 OR STEEL COMP 1029 OR STEEL COMP 1030 OR STEEL COMP 1033 OR STEEL COMP 1034 OR STEEL COMP 1035 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OR STEEL COMP 1524 OR STEEL COMP 1527 OR STEEL COMP 1536 OR STEEL COMP 1541 OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C7 HEXAGON EXTENDED WASHER |

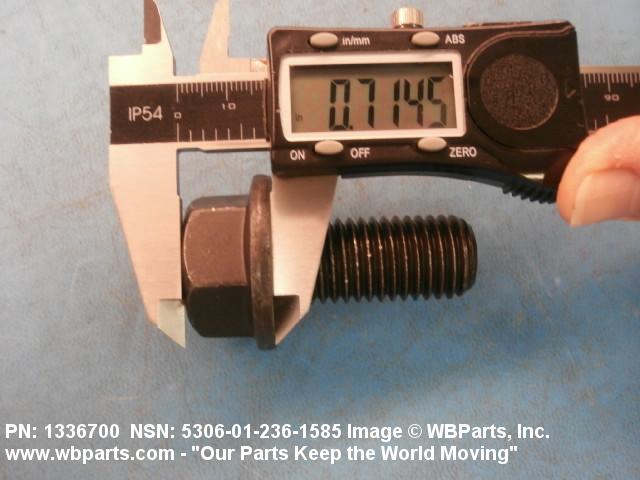

| HEAD HEIGHT | 0.730 INCHES NOMINAL |

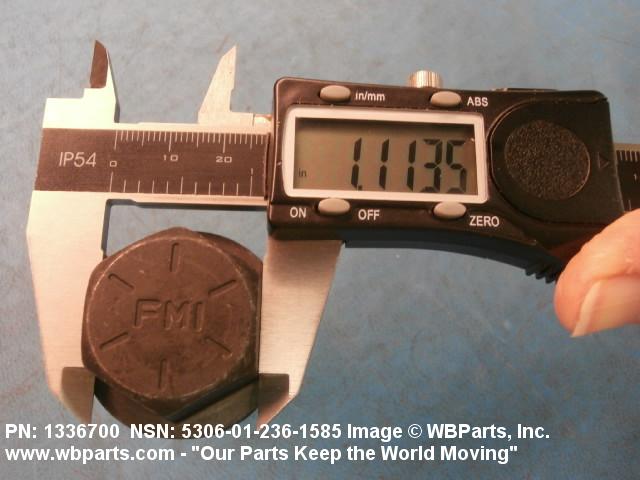

| WIDTH BETWEEN FLATS | 1.120 INCHES NOMINAL |

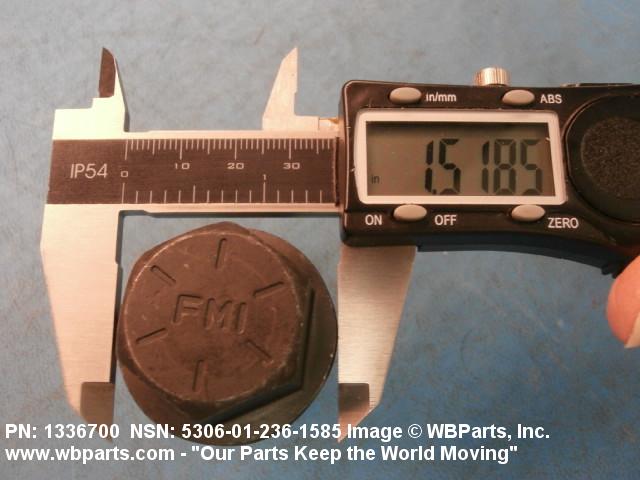

| EXTENDED WASHER DIAMETER | 1.590 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.110 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| SPECIAL FEATURES | OIL COATING IN COMPLIANCE WITH MIL-P-16232 |
| III END ITEM IDENTIFICATION | HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS); 2320-01-304-2277, TRUCK, PLS (PALLETIZED LOADING SYSTEM) |
Restrictions/Controls & Freight Information | NSN 5306-01-236-1585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
