NSN 5306-01-215-3995 J814P022A, 01-215-3995, 012153995
Product Details | CLOSE TOLERANCE BOLT
5306-01-215-3995 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: J814P022A, 5306-01-215-3995, 01-215-3995, 5306012153995, 012153995
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 AUG 1985 | 01-215-3995 | 27851 ( BOLT, CLOSE TOLERANCE ) |

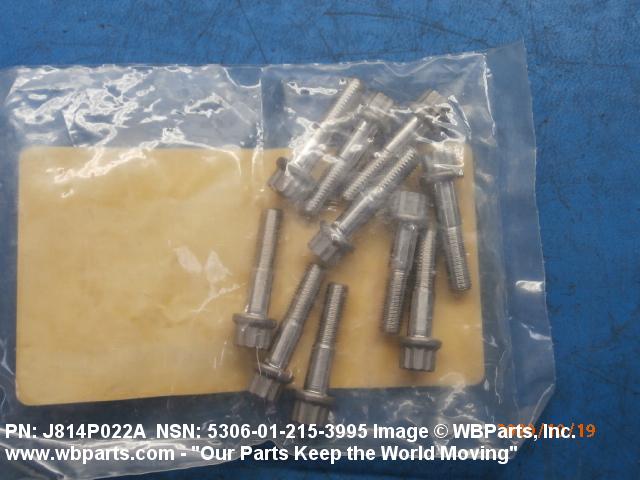

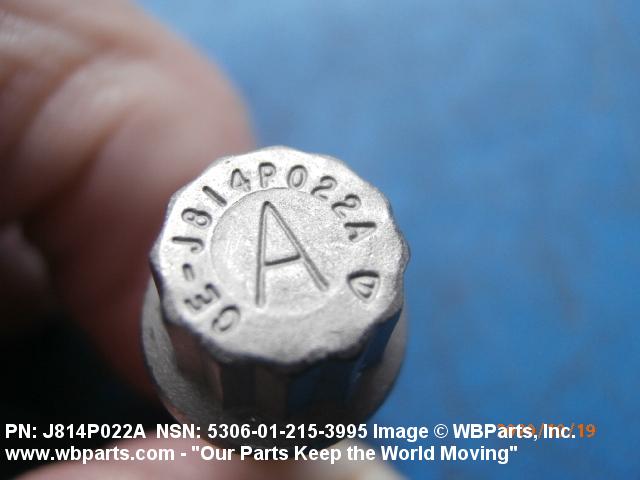

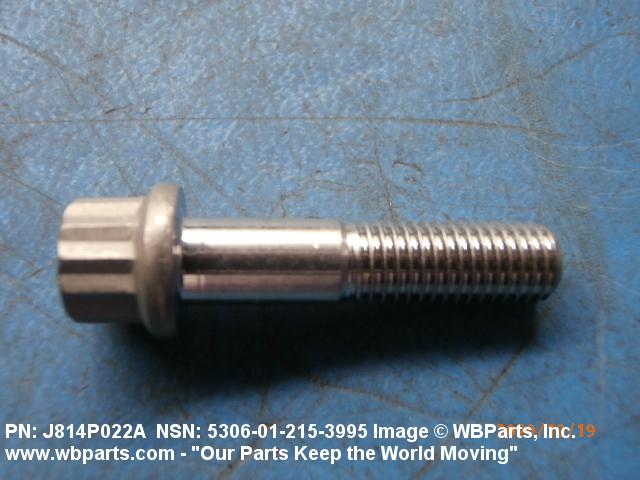

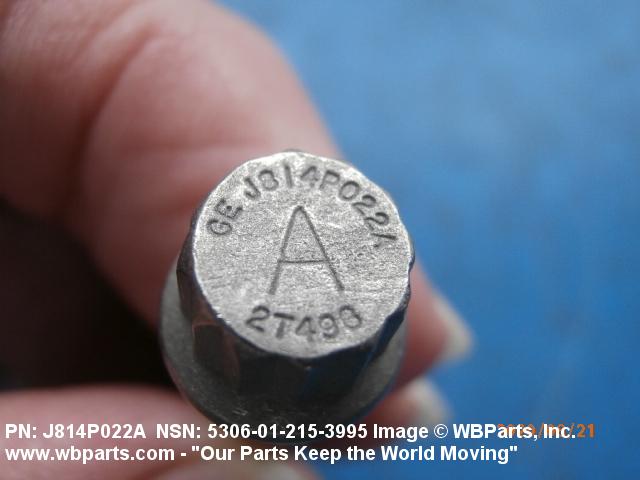

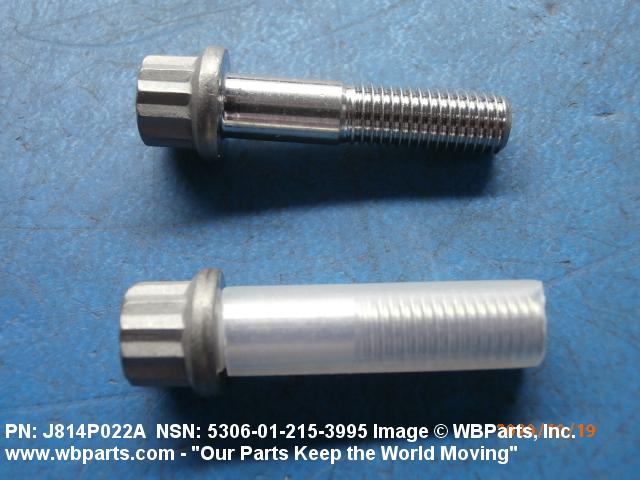

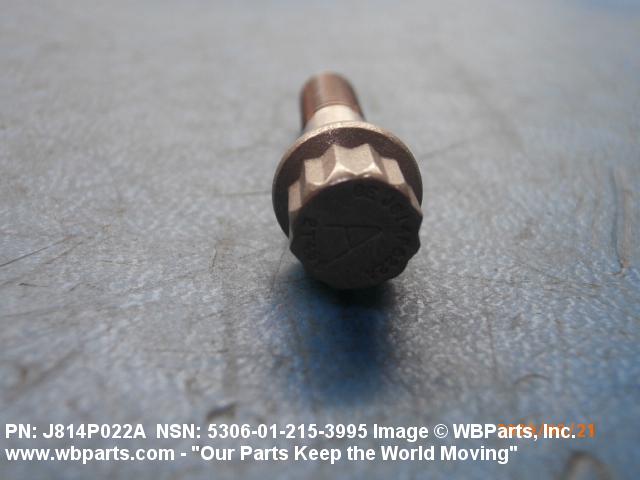

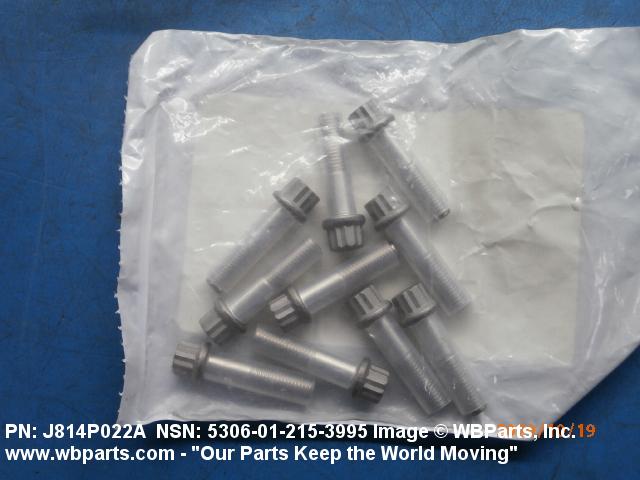

Drawings & Photos | NSN 5306-01-215-3995
Demand History | NSN 5306-01-215-3995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J814P022A | 2023-02-32 | 670 | DIBBS |
| J814P022A | 2023-01-24 | 670 | DIBBS |
| J814P022A | 2021-05-140 | 1017 | DIBBS |
| J814P022A | 2021-05-129 | 1017 | DIBBS |
| J814P022A | 2021-04-98 | 799 | DIBBS |
| J814P022A | 2021-03-90 | 799 | DIBBS |
| J814P022A | 2020-10-280 | 20 | United States |
| J814P022A | 2020-07-197 | 100 | United States |
| 5306-01-215-3995 | 2018-12-346 | 1 | DIBBS-RFPs |
| 5306-01-215-3995 | 2018-06-154 | 2066 | DIBBS |
| 5306-01-215-3995 | 2018-03-77 | 1232 | DIBBS |
Cross Reference | NSN 5306-01-215-3995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J814P022A | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| J814P022A | 0UCY9 | M.S. AEROSPACE INC. |
| J814P022A | 23899 | J.W. MANUFACTURING, INC DBA VAN PETTY MANUFACTURING |
| J814P022A | 58828 | CFM INTERNATIONAL, INC. |
| J814P022A | 7Z016 | KAMPI COMPONENTS CO., INC. |
| J814P022A | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| J814P022A | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-215-3995
Technical Data | NSN 5306-01-215-3995
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | C50TF13 CL-B FSCM 07482 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| THREAD DIRECTION | RIGHT-HAND |
| GRIP LENGTH | 0.433 INCHES MINIMUM AND 0.443 INCHES MAXIMUM |
| GRIP DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| FASTENER LENGTH | 1.073 INCHES MINIMUM AND 1.093 INCHES MAXIMUM |
| HEAD HEIGHT | 0.293 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| THREAD LENGTH | 0.630 INCHES MINIMUM AND 0.660 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 28 |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| THREAD SERIES DESIGNATOR | UNJF |
| HEAD STYLE | DOUBLE HEXAGON EXTENDED WASHER |
| EXTENDED WASHER DIAMETER | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.312 INCHES NOMINAL |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| EXTENDED WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-215-3995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-215-3995
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
