NSN 5306-01-214-2759 1285M91G01, 1285M91G02, 01-214-2759
Product Details | EXTERNALLY RELIEVED BODY BOLT
5306-01-214-2759 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY.
Part Alternates: 1285M91G01, 1285M91G02, 5306-01-214-2759, 01-214-2759, 5306012142759, 012142759
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 AUG 1985 | 01-214-2759 | 06675 ( BOLT, EXTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-214-2759
Demand History | NSN 5306-01-214-2759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1285M91G02 | 2019-03-86 | 1423 | DIBBS |
| 1285M91G02 | 2019-02-38 | 1212 | DIBBS |
| 5306-01-214-2759 | 2018-10-301 | 1873 | DIBBS |
| 5306-01-214-2759 | 2018-07-210 | 1212 | DIBBS |
Cross Reference | NSN 5306-01-214-2759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1285M91G01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 1285M91G02 | 03350 | GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV |
| 1285M91G02 | 06710 | VALLEY-TODECO, INC. |
| 1285M91G02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 1285M91G02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 1285M91G02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-214-2759
Related Products | NSN 5306-01-214-2759
Technical Data | NSN 5306-01-214-2759
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.738 INCHES NOMINAL |
| FASTENER LENGTH | 1.648 INCHES MINIMUM AND 1.668 INCHES MAXIMUM |
| MATERIAL | NICKEL ALLOY OVERALL |

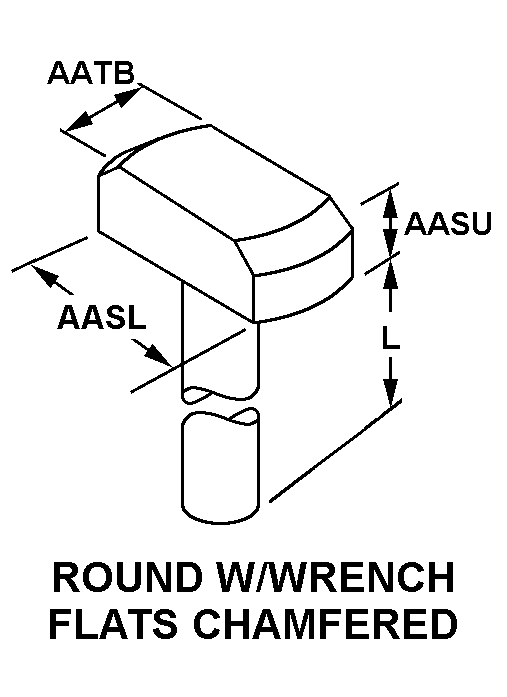

| HEAD STYLE | C24 ROUND WITH WRENCH FLATS CHAMFERED |
| HEAD DIAMETER | 0.450 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| HEAD HEIGHT | 0.075 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.320 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 3 |
| FIRST DIAMETER FROM HEAD | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SECOND DIAMETER FROM HEAD | 0.215 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| THIRD DIAMETER FROM HEAD | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF SECOND DIAMETER | 0.560 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF THIRD DIAMETER | 0.910 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |
| SPECIAL FEATURES | 3 PINS EQUALLY SPACED AND KEY ON TOP OF HEAD |
Restrictions/Controls & Freight Information | NSN 5306-01-214-2759
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139780 | NICKEL ARTICLES NOI |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-214-2759
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
