NSN 5306-01-197-6594 13211E9223, 01-197-6594, 011976594
Product Details | RIBBED SHOULDER BOLT
5306-01-197-6594 An externally threaded fastener whose threaded portion is of one nominal diameter. It has a series of longitudinal ribs, splines or serrations on all or a part of the shoulder. The minor diameter of the ribs must be greater than the major diameter of the threads. See also BOLT, RIBBED NECK.
Part Alternates: 13211E9223, 5306-01-197-6594, 01-197-6594, 5306011976594, 011976594
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 DEC 1984 | 01-197-6594 | 16014 ( BOLT, RIBBED SHOULDER ) |

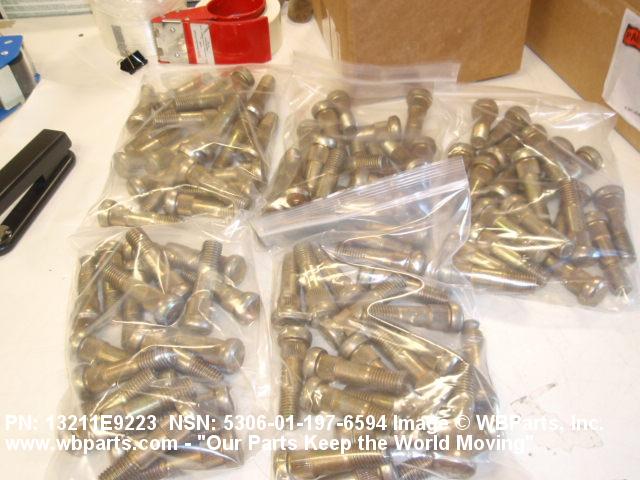

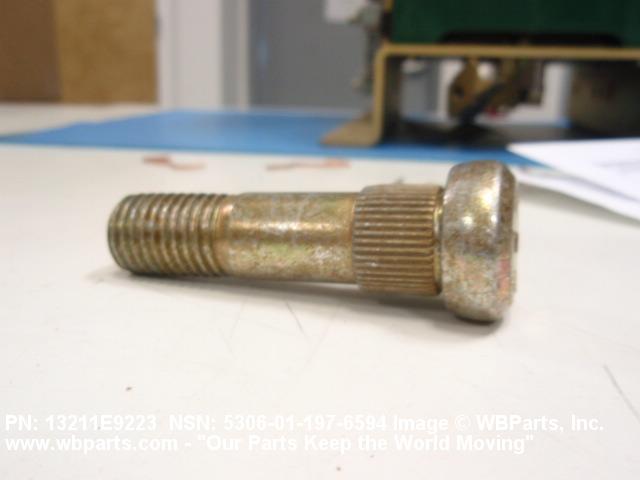

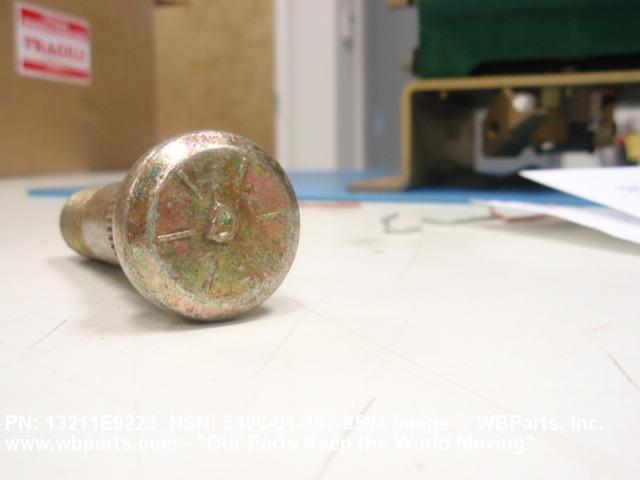

Drawings & Photos | NSN 5306-01-197-6594
Demand History | NSN 5306-01-197-6594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-197-6594 | 2010-11-319 | 100 | United States |
| 5306-01-197-6594 | 2010-05-133 | 100 | United States |
| 5306-01-197-6594 | 2010-04-117 | 100 | United States |
Cross Reference | NSN 5306-01-197-6594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E9223 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-197-6594
Related Products | NSN 5306-01-197-6594
Technical Data | NSN 5306-01-197-6594
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.960 INCHES NOMINAL |
| FASTENER LENGTH | 2.660 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8640 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 1.190 INCHES NOMINAL |
| HEAD HEIGHT | 0.470 INCHES NOMINAL |
| SHOULDER SHAPE | RIBBED FIRST SHOULDER |
| SHOULDER DIAMETER | 0.940 INCHES NOMINAL FIRST SHOULDER |
| SHOULDER LENGTH | 0.570 INCHES NOMINAL FIRST SHOULDER |
| RIB QUANTITY | 43 |
| RIB MAJOR DIAMETER | 0.873 INCHES MINIMUM AND 0.878 INCHES MAXIMUM |
| RIB LENGTH | 0.570 INCHES NOMINAL |
| DISTANCE FROM LARGEST DIAMETER OF BEARING SURFACE OF HEAD TO RIBS | 0.090 INCHES NOMINAL |
| RIB INCLUDED ANGLE | 90.0 DEGREES NOMINAL |
| RIB MINOR DIAMETER | 0.837 INCHES MINIMUM AND 0.852 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-01-197-6594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-197-6594
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | I | Construction Equipment |
| Weapons Systems/End Item or Homogeneous Group | IN | Armored Combat Earthmover (ACE), M9 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
