NSN 5306-01-169-5424 6550W37P001, 01-169-5424, 011695424
Product Details | MACHINE BOLT
5306-01-169-5424 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 6550W37P001, 5306-01-169-5424, 01-169-5424, 5306011695424, 011695424
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1984 | 01-169-5424 | 01847 ( BOLT, MACHINE ) |

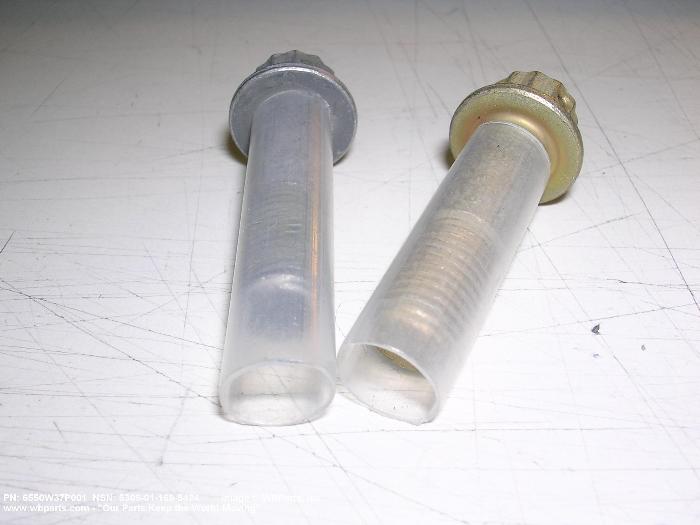

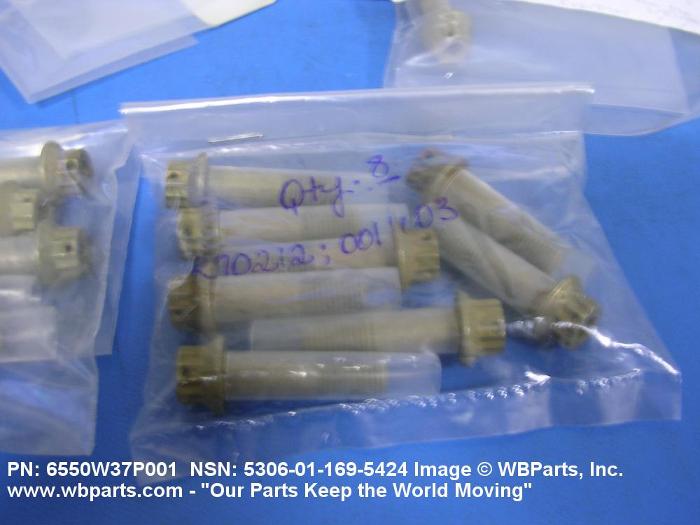

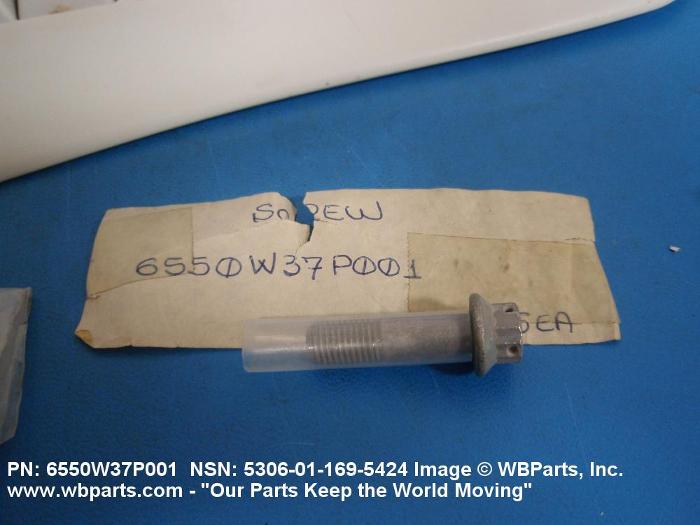

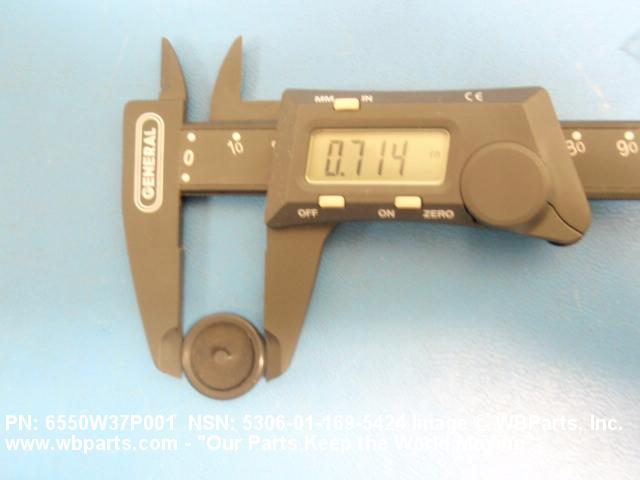

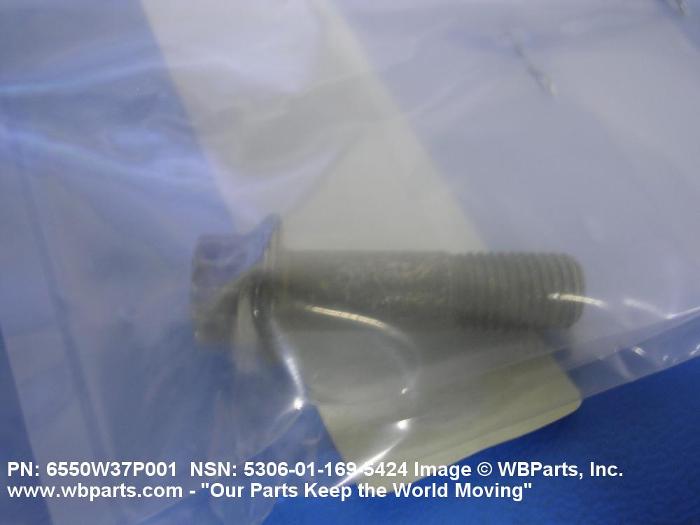

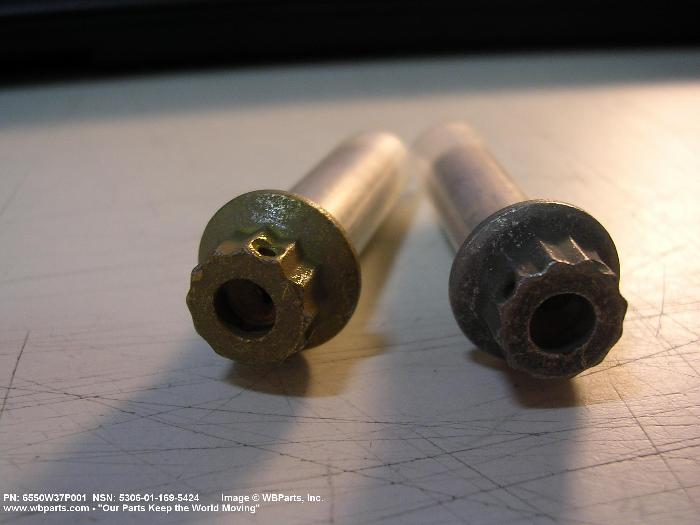

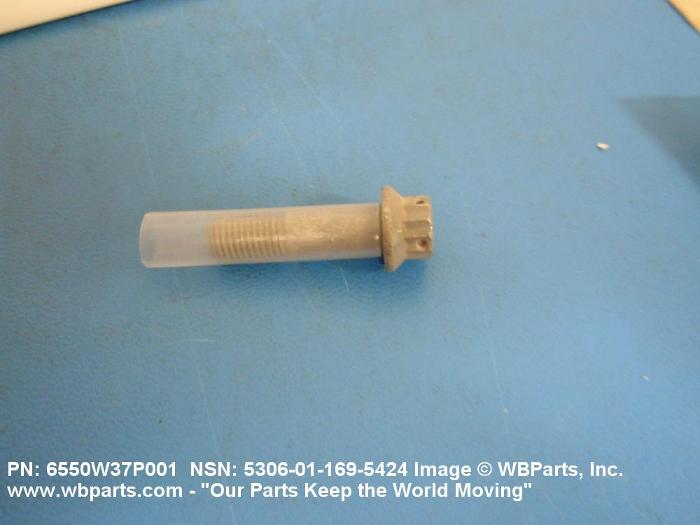

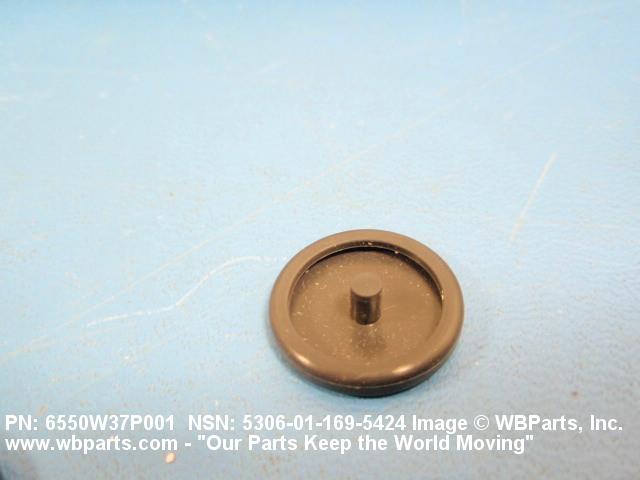

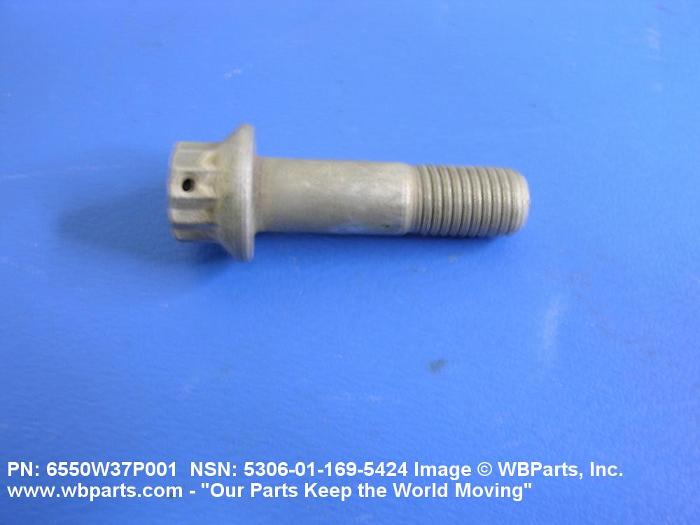

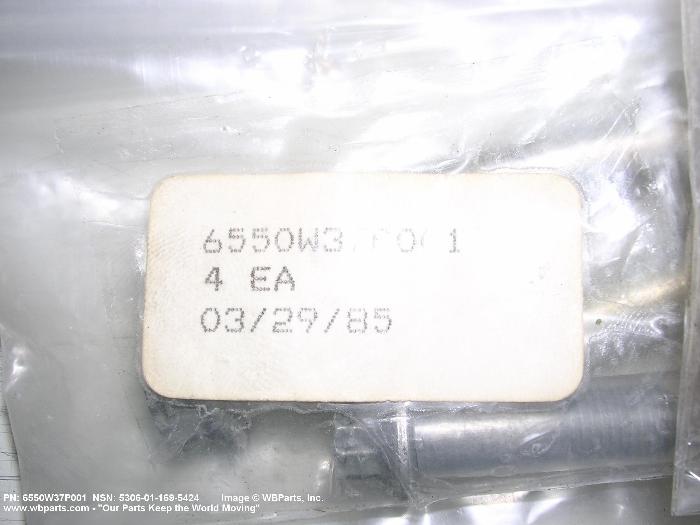

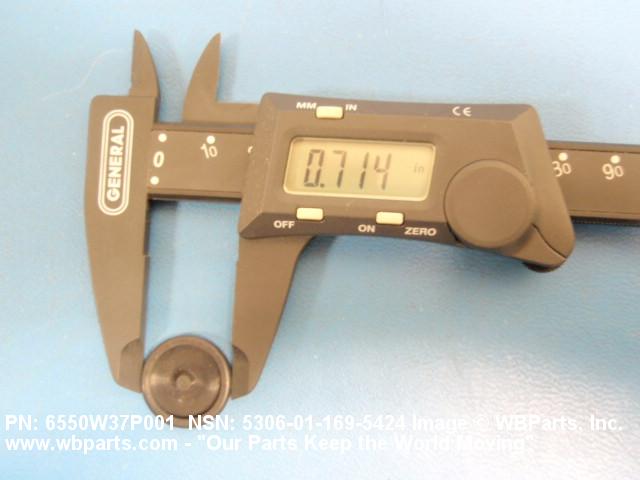

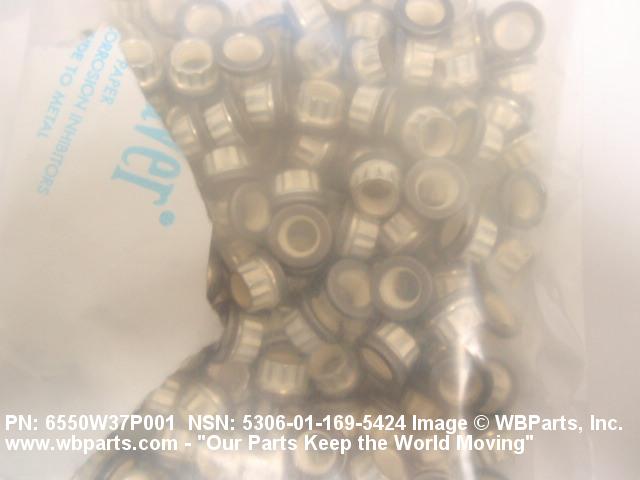

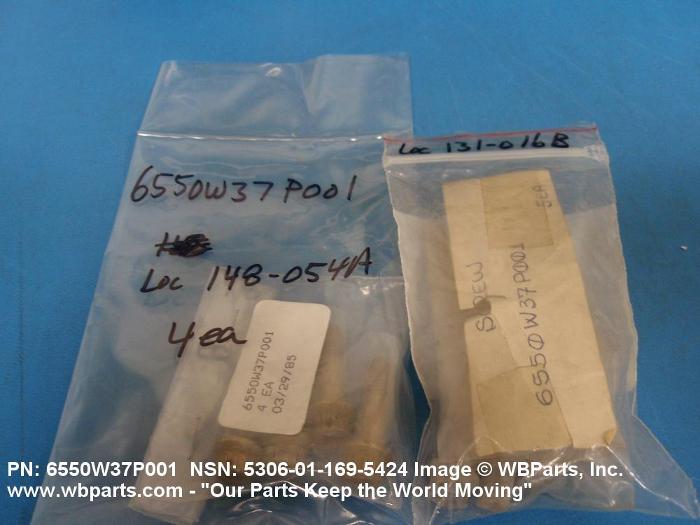

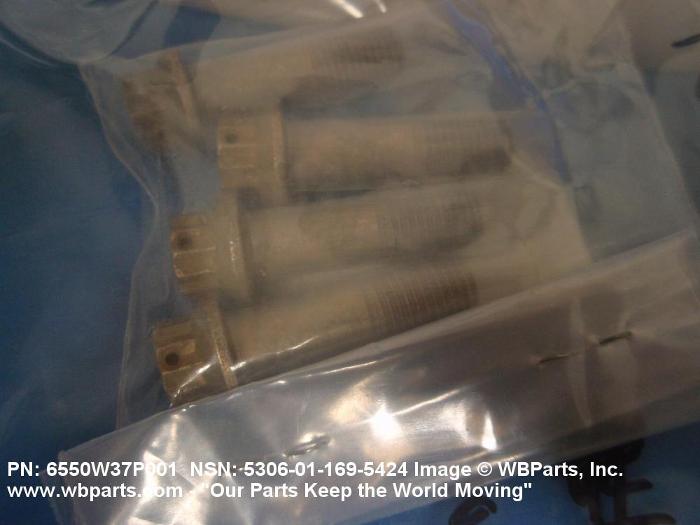

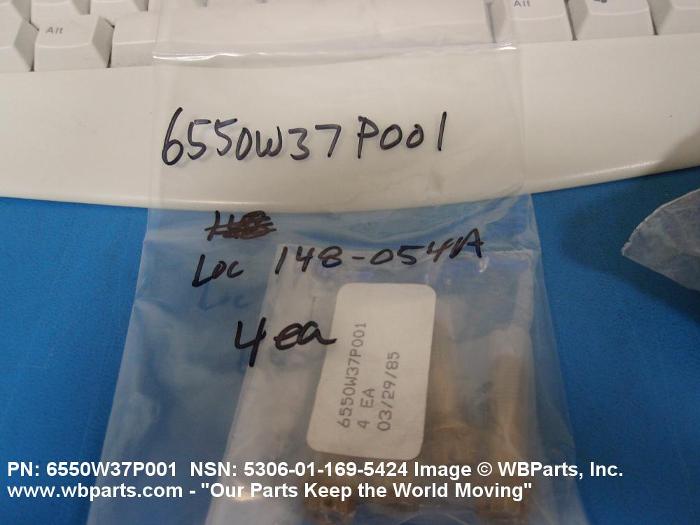

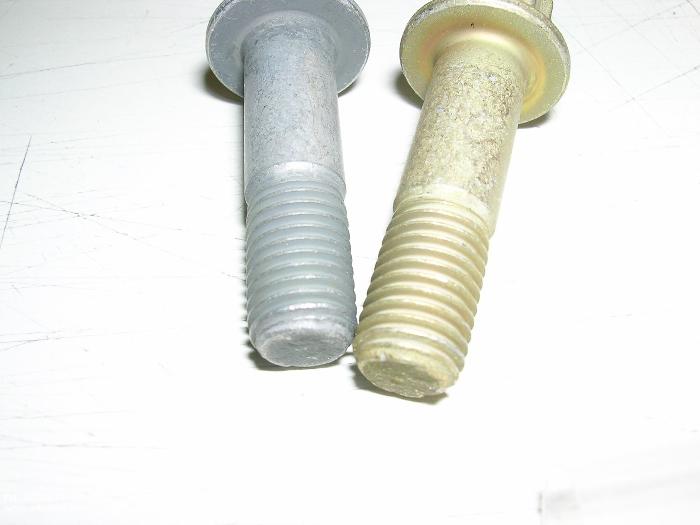

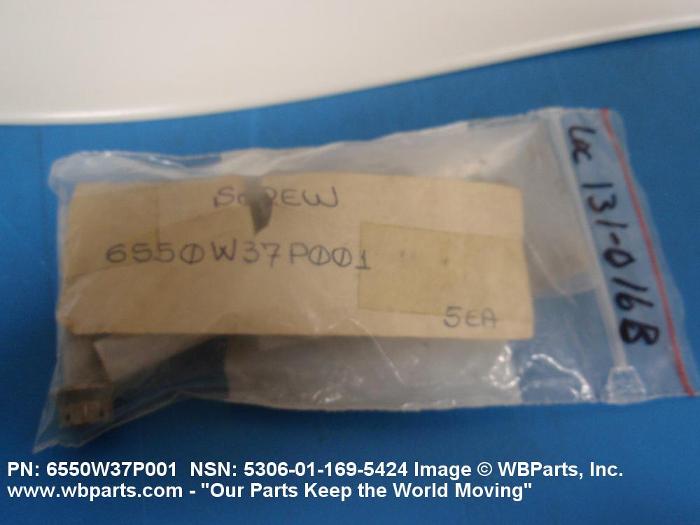

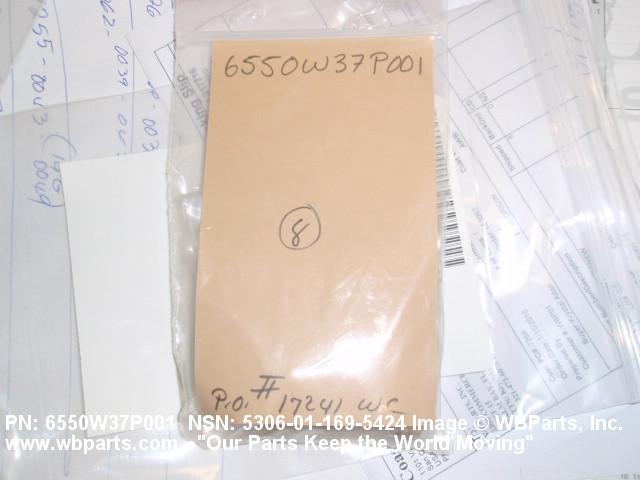

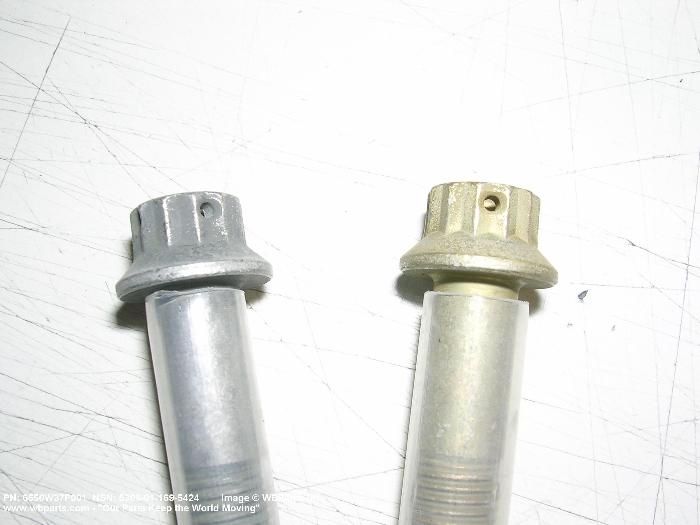

Drawings & Photos | NSN 5306-01-169-5424
Demand History | NSN 5306-01-169-5424
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6550W37P001 | 2012-09-07 | 20 | United States |
| 6550W37P001 | 2012-08-10 | 70 | US |
| 6550W37P001 | 2012-05-17 | 10 | United States |
| 6550W37P001 | 2012-05-17 | 20 | United States |
| 6550W37P001 | 2012-05-17 | 30 | United States |
| 6550W37P001 | 2010-11-16 | 3 | United States |
| 6550W37P001 | 2010-10-01 | 22 | United States |
| 6550W37P001 | 2010-08-12 | 10 | United States |
| 6550W37P001 | 2010-01-15 | 20 | United States |
| 6550W37P001 | 2010-01-12 | 20 | United States |
| 6550W37P001 | 2009-07-30 | 160 | United States |
| 6550W37P001 | 2008-08-21 | 10 | United States |
| 6550W37P001 | 2008-08-21 | 15 | United States |
| 6550W37P001 | 2008-07-11 | 40 | United States |
Cross Reference | NSN 5306-01-169-5424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6550W37P001 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-169-5424
Related Products | NSN 5306-01-169-5424
Technical Data | NSN 5306-01-169-5424
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.531 INCHES NOMINAL |
| FASTENER LENGTH | 1.156 INCHES NOMINAL |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6485 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.319 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.575 INCHES MINIMUM AND 0.585 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.050 INCHES NOMINAL |
| GRIP LENGTH | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
Restrictions/Controls & Freight Information | NSN 5306-01-169-5424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-169-5424
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
