NSN 5306-01-165-7533 MB1567H30, MB156-7H30, AIC7637H30
Product Details | SHEAR BOLT

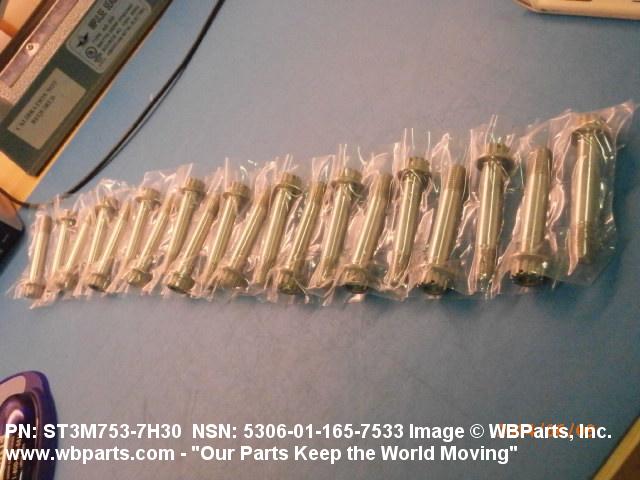

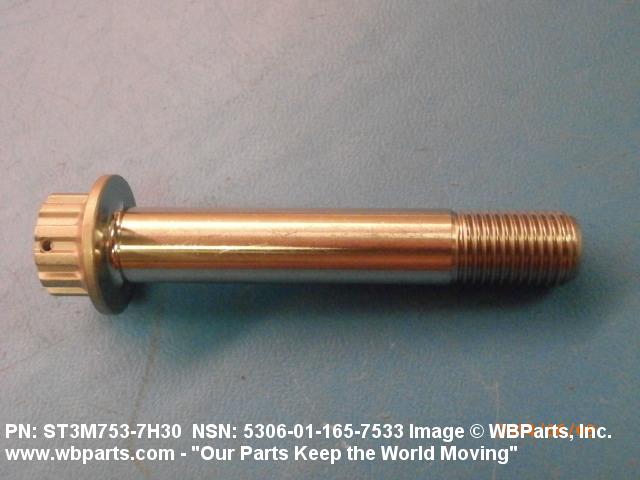

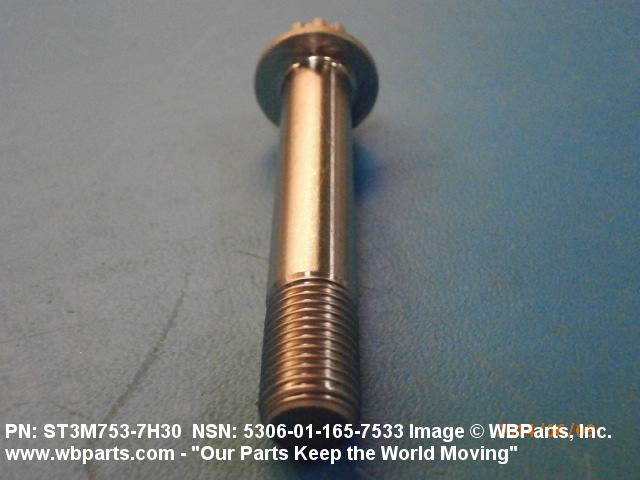

5306-01-165-7533 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MB1567H30, MB156-7H30, AIC7637H30, AIC763-7H30, S3437H30, S343-7H30, S3437H30E, S343-7H30E, ST3M7537H30, ST3M753-7H30 , VFK6007H30, VFK600-7H30, VS31907H30, VS3190-7H30, PBF12677H30, PBF1267-7H30, 10116055 , 1228977H30, 122897-7H30, 5306-01-165-7533, 01-165-7533, 5306011657533, 011657533
Hardware and Abrasives | Bolts
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 03 NOV 1983 | 01-165-7533 | 15903 ( BOLT, SHEAR ) |
Demand History | NSN 5306-01-165-7533
Part Number | Request Date | QTY | Origin |
---|---|---|---|
ST3M753-7H30 | 2022-04-24 | 10 | DIBBS |
ST3M753-7H30 | 2021-11-14 | 87 | DIBBS |
ST3M753-7H30 | 2021-02-01 | 250 | DIBBS |
ST3M753-7H30 | 2020-11-17 | 73 | DIBBS |
ST3M753-7H30 | 2019-12-23 | 110 | DIBBS |
ST3M753-7H30 | 2019-08-27 | 26 | DIBBS |
ST3M7537H30 | 2014-10-08 | 30 | United States |
ST3M7537H30 | 2014-06-02 | 20 | United States |
ST3M7537H30 | 2014-06-02 | 20 | United States |
ST3M7537H30 | 2014-05-13 | 20 | United States |
ST3M7537H30 | 2013-04-23 | 4 | UK |
5306-01-165-7533 | 2013-03-06 | 142 | DIBBS |
5306-01-165-7533 | 2010-01-11 | 152 | DIBBS |
5306-01-165-7533 | 2009-04-17 | 77 | DIBBS |
5306-01-165-7533 | 2009-02-24 | 54 | DIBBS |
5306-01-165-7533 | 2008-12-08 | 5 | DIBBS |
5306-01-165-7533 | 2008-07-16 | 22 | DIBBS |
Cross Reference | NSN 5306-01-165-7533
Part Number | Cage Code | Manufacturer |
---|---|---|
122897-7H30 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
AIC763-7H30 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
MB156-7H30 | 73197 | HI-SHEAR CORPORATION |
PBF1267-7H30 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
S343-7H30 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
S343-7H30 | 97928 | HUCK INTL INC |
S343-7H30E | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
S343-7H30E | 97928 | HUCK INTL INC |
ST3M753-7H30 | 06710 | VALLEY-TODECO, INC. |
ST3M753-7H30 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
ST3M753-7H30 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
ST3M753-7H30 | 0PTK6 | SPS TECHNOLOGIES INC |
ST3M753-7H30 | 0ZC92 | HEARTLAND PRECISION FASTENERS, INC. |
ST3M753-7H30 | 16258 | SPACELOK INC. |
ST3M753-7H30 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
ST3M753-7H30 | 1EM77 | B & B SPECIALTIES INC. DBA G S AEROSPACE DIVISION DIV GS |
ST3M753-7H30 | 1VSL7 | HOUSTON PRECISION FASTENER L.L.C. |
ST3M753-7H30 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
ST3M753-7H30 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
ST3M753-7H30 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
ST3M753-7H30 | 73197 | HI-SHEAR CORPORATION |
ST3M753-7H30 | 76301 | BOEING COMPANY, THE DBA BOEING |
ST3M753-7H30 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
ST3M753-7H30 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
VFK600-7H30 | 06710 | VALLEY-TODECO, INC. |
VS3190-7H30 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
VS3190-7H30 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5306-01-165-7533
Technical Data | NSN 5306-01-165-7533
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNJF |
NOMINAL THREAD DIAMETER | 0.438 INCHES |
THREAD QUANTITY PER INCH | 20 |
THREAD CLASS | 3A |
THREAD DIRECTION | RIGHT-HAND |

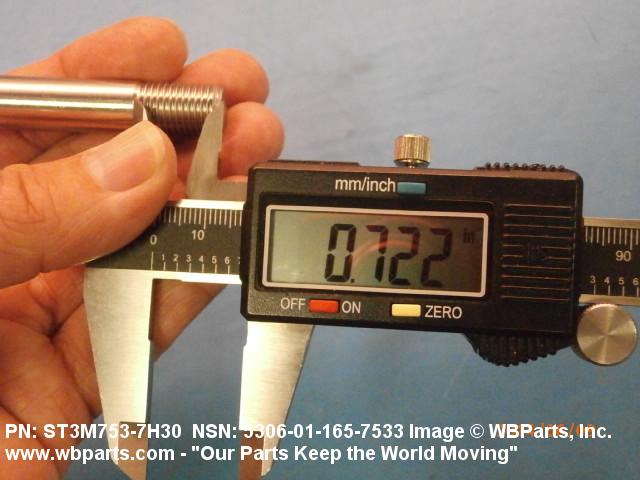

THREAD LENGTH | 0.680 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |

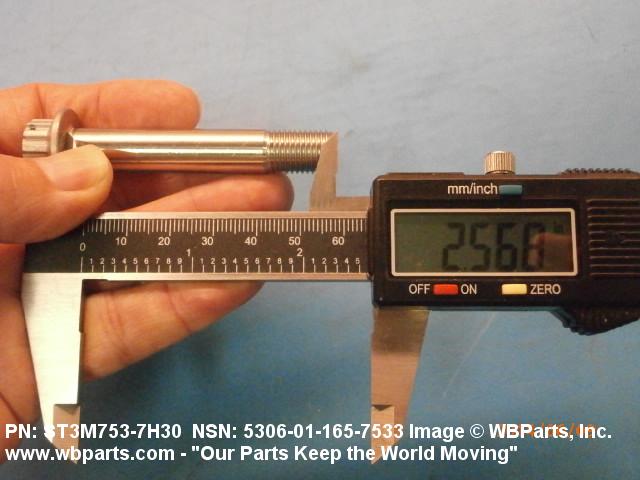

FASTENER LENGTH | 2.565 INCHES MINIMUM AND 2.595 INCHES MAXIMUM |
MATERIAL | STEEL COMP XM-13 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | PASSIVATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |

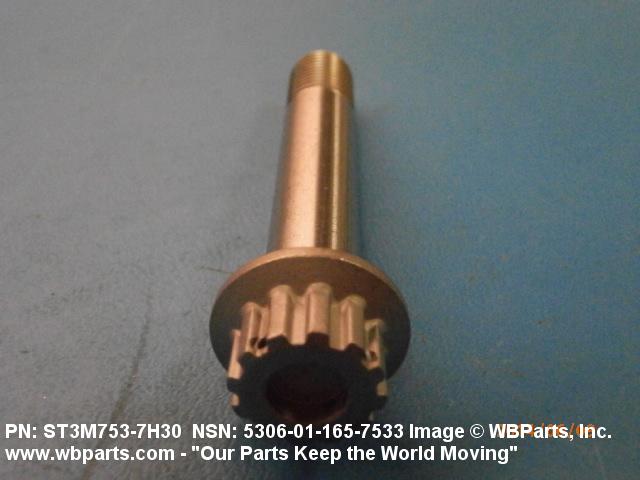

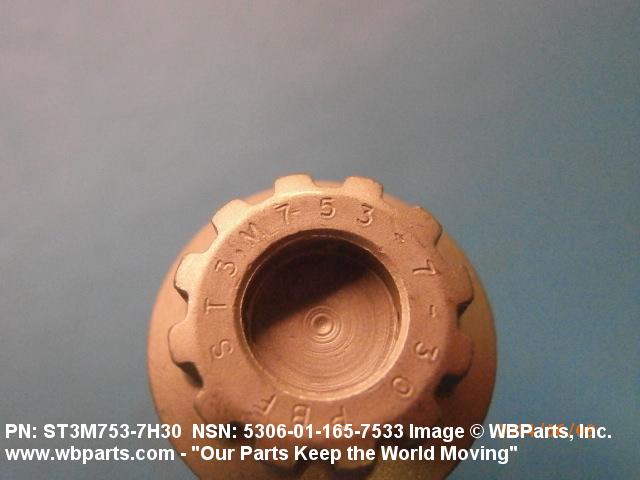

HEAD STYLE | C11 SPLINE EXTENDED WASHER |

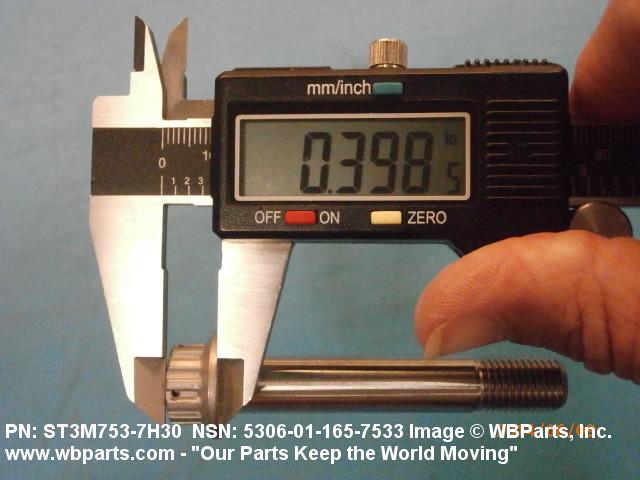

HEAD HEIGHT | 0.383 INCHES MINIMUM AND 0.403 INCHES MAXIMUM |

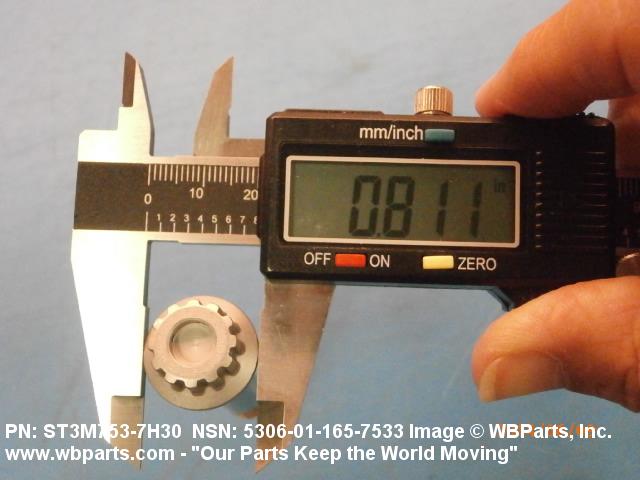

EXTENDED WASHER DIAMETER | 0.807 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |

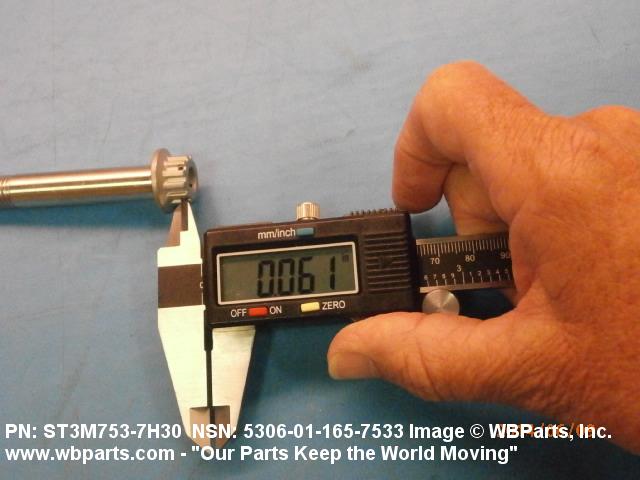

EXTENDED WASHER THICKNESS | 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
HEAD MINOR DIAMETER | 0.514 INCHES MINIMUM AND 0.521 INCHES MAXIMUM |
HOLE CONFIGURATION STYLE | E18 SPLINE |
HOLE TYPE | DRILLED |
HOLE QUANTITY | 4 |
HOLE DIAMETER | 0.050 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
GRIP LENGTH | 1.865 INCHES MINIMUM AND 1.885 INCHES MAXIMUM |

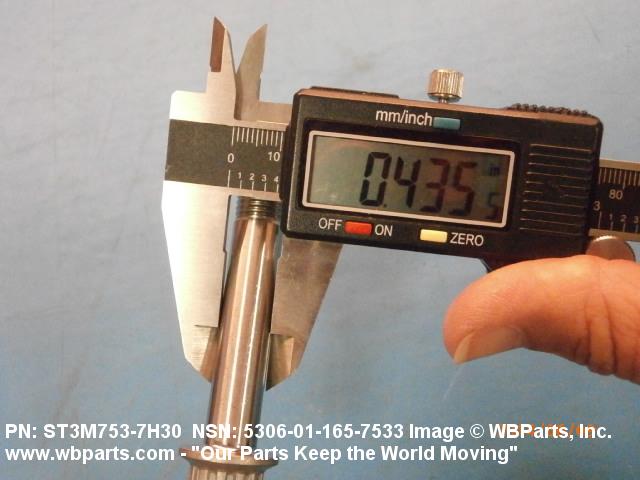

GRIP DIAMETER | 0.4365 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-01-165-7533
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-165-7533
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
