NSN 5306-01-130-1219 361-11463-1, 01-130-1219, 361114631
Product Details | MACHINE BOLT

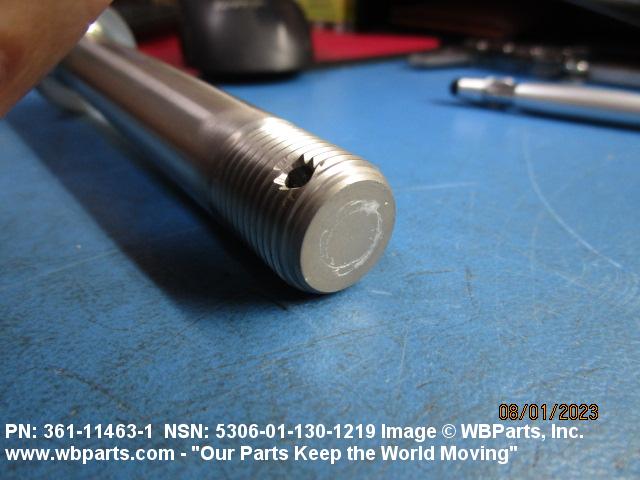

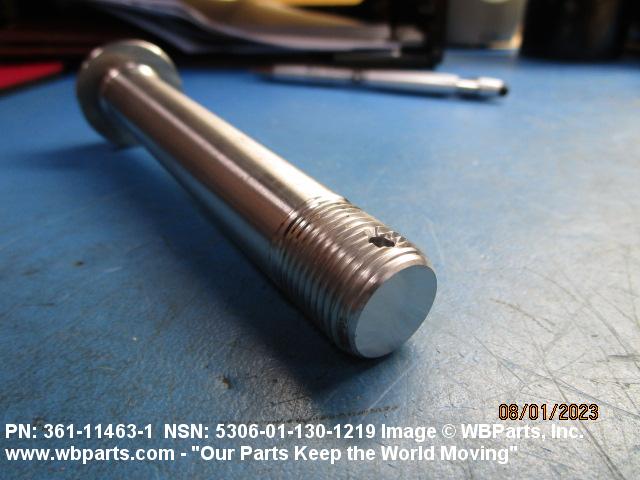

5306-01-130-1219 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 361-11463-1, 5306-01-130-1219, 01-130-1219, 5306011301219, 361114631, 011301219
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 APR 1982 | 01-130-1219 | 01847 ( BOLT, MACHINE ) |

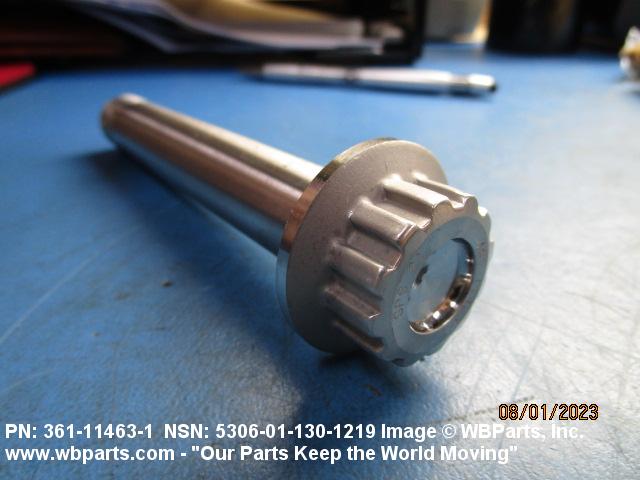

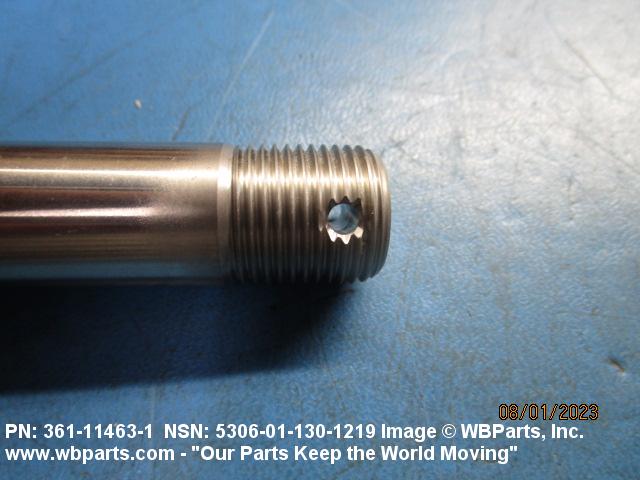

Drawings & Photos | NSN 5306-01-130-1219
Demand History | NSN 5306-01-130-1219
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 361114631 | 2024-10-282 | 48 | United States |
| 361114631 | 2024-09-262 | 32 | United States |
| 361114631 | 2024-09-247 | 90 | US |
| 361114631 | 2024-09-247 | 253 | US |
| 5306-01-130-1219 | 2024-05-123 | 100 | US |
| 361114631 | 2023-07-199 | 32 | United States |
| 5306-01-130-1219 | 2023-01-25 | 4 | US |
| 361-11463-1 | 2019-04-113 | 513 | DIBBS |
| 361-11463-1 | 2019-02-45 | 600 | DIBBS |
| 5306-01-130-1219 | 2018-09-252 | 56 | DIBBS |
| 5306-01-130-1219 | 2018-08-221 | 400 | DIBBS |
| 5306-01-130-1219 | 2018-01-22 | 400 | US |
| 5306-01-130-1219 | 2018-01-21 | 400 | DIBBS |
| 5306-01-130-1219 | 2018-01-10 | 10 | DIBBS |
| 5306-01-130-1219 | 2017-07-194 | 152 | DIBBS |
| 5306-01-130-1219 | 2017-03-74 | 155 | DIBBS |
| 5306-01-130-1219 | 2017-02-46 | 35 | DIBBS |
| 5306-01-130-1219 | 2017-02-43 | 38 | DIBBS |
| 5306-01-130-1219 | 2016-08-223 | 35 | DIBBS |
| 5306-01-130-1219 | 2016-06-181 | 152 | DIBBS |
| 5306-01-130-1219 | 2016-06-166 | 8 | DIBBS |
| 5306-01-130-1219 | 2015-11-321 | 199 | DIBBS |
| 5306-01-130-1219 | 2015-08-237 | 96 | DIBBS |
| 5306-01-130-1219 | 2012-01-19 | 157 | DIBBS |
| 5306-01-130-1219 | 2010-08-224 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-130-1219
Technical Data | NSN 5306-01-130-1219
| Characteristic | Specifications |
|---|---|

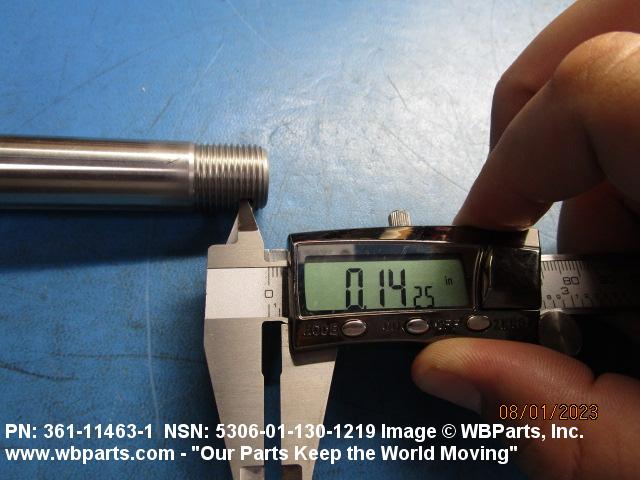

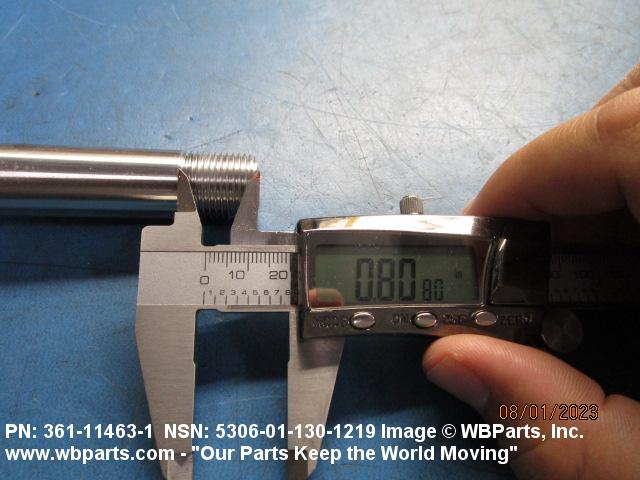

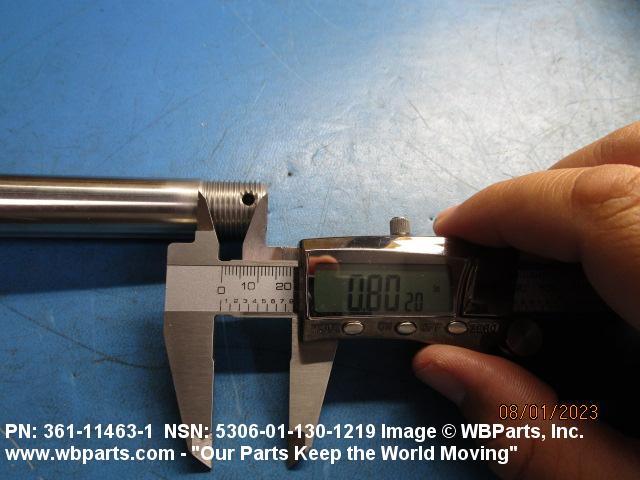

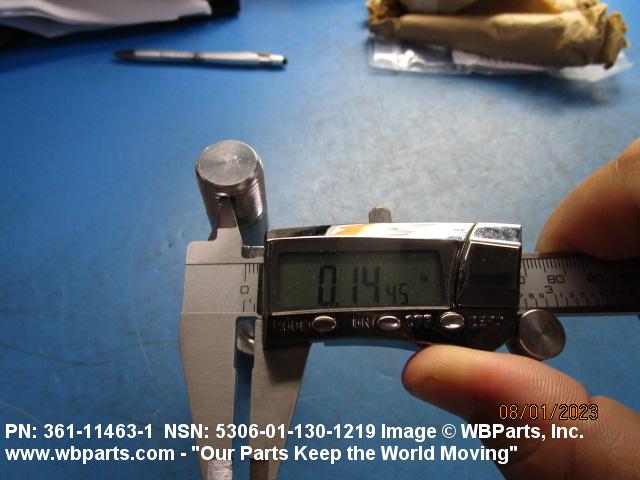

| THREAD LENGTH | 0.800 INCHES NOMINAL |

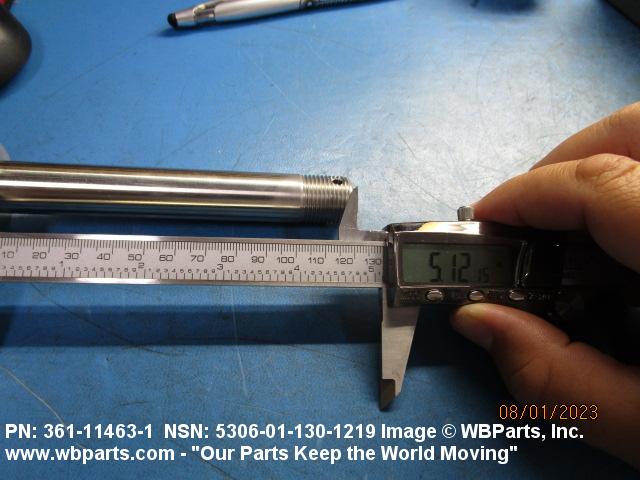

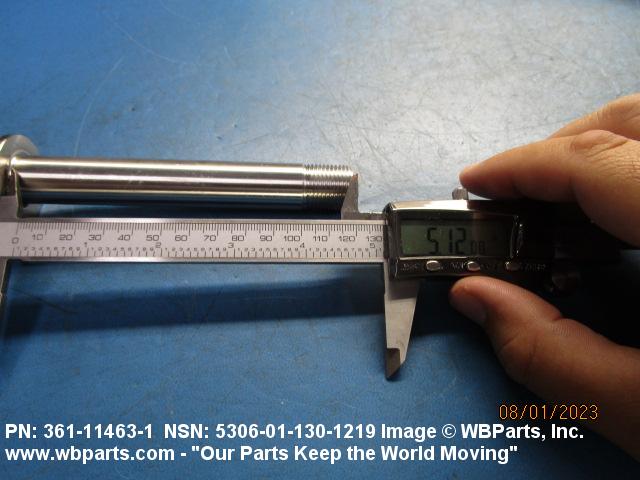

| FASTENER LENGTH | 5.132 INCHES NOMINAL |

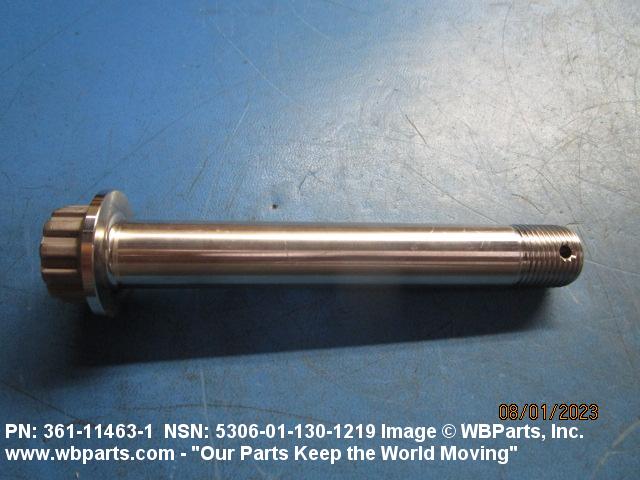

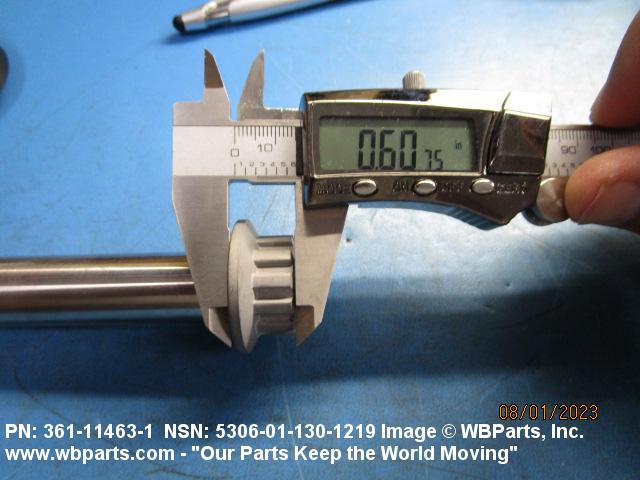

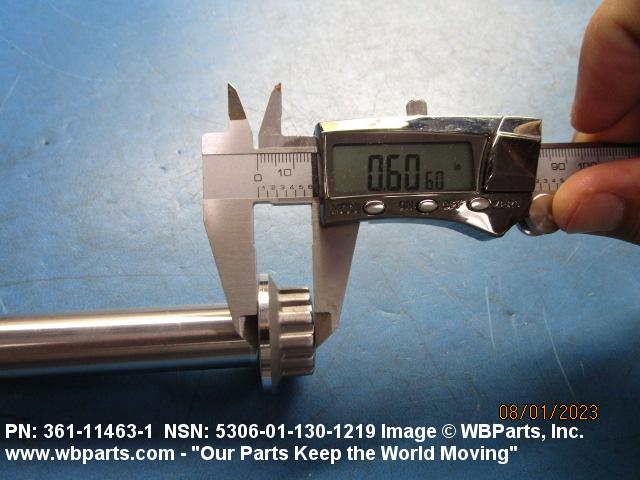

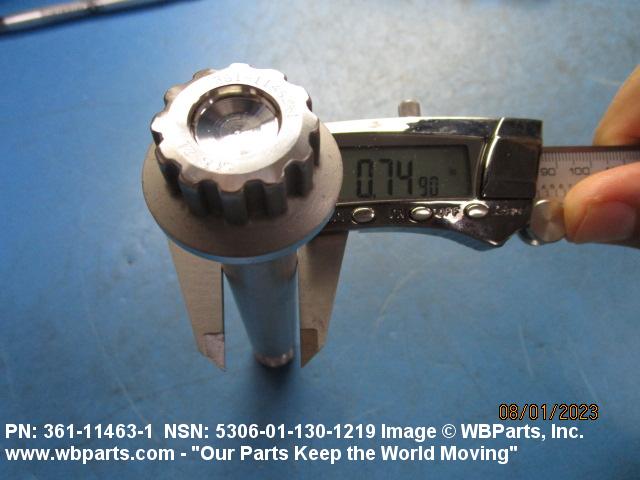

| HEAD STYLE | C11 SPLINE EXTENDED WASHER |
| HEAD HEIGHT | 0.472 INCHES MINIMUM AND 0.512 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.797 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |

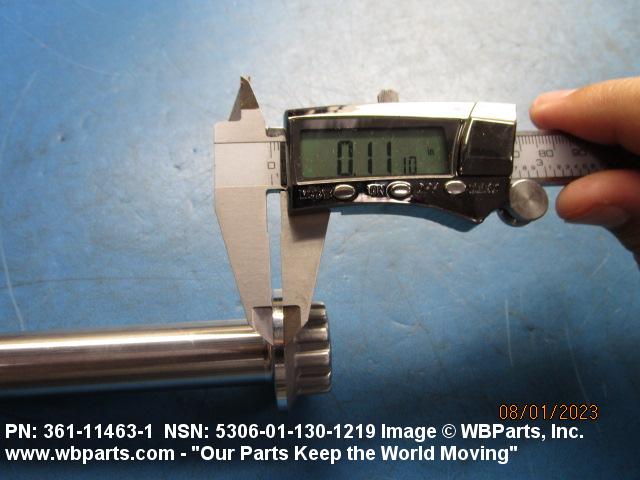

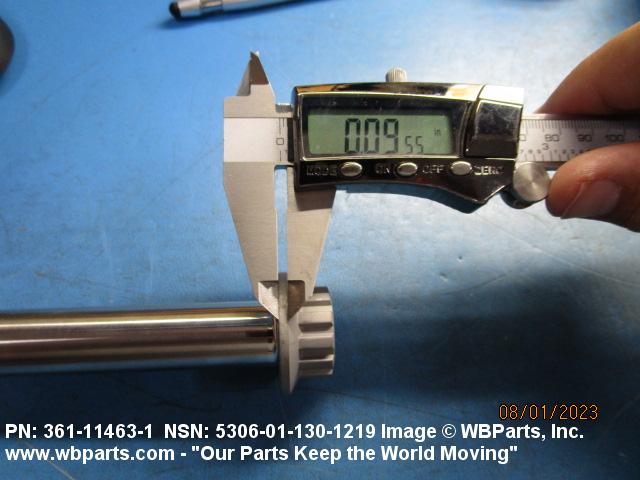

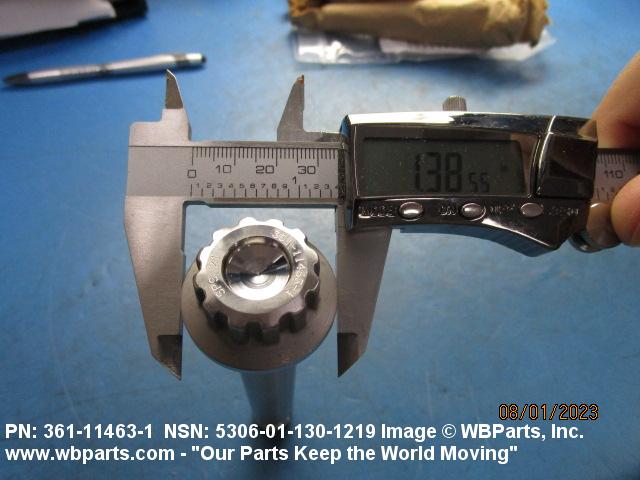

| EXTENDED WASHER THICKNESS | 0.098 INCHES MINIMUM AND 0.118 INCHES MAXIMUM |

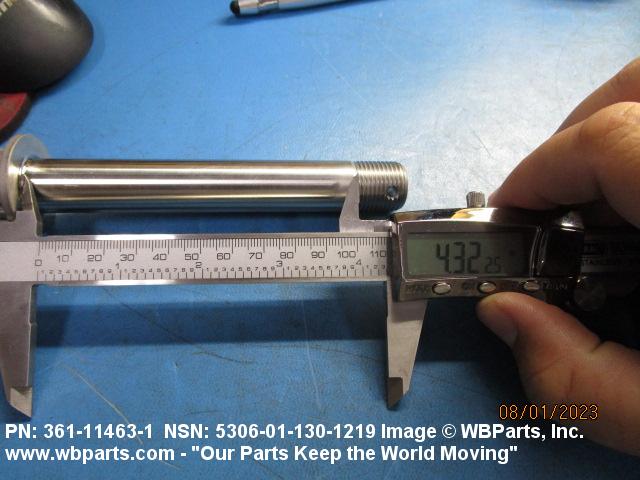

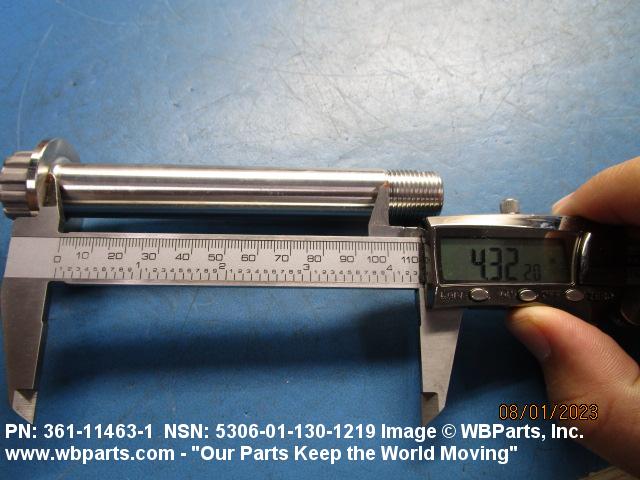

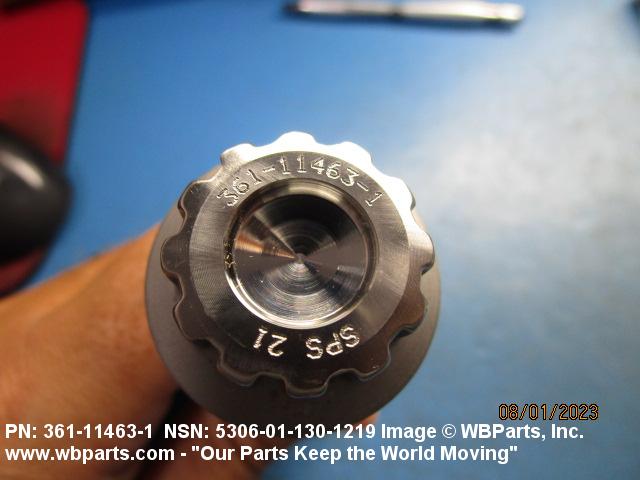

| GRIP LENGTH | 4.332 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 361-11463-1 |
Restrictions/Controls & Freight Information | NSN 5306-01-130-1219
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
