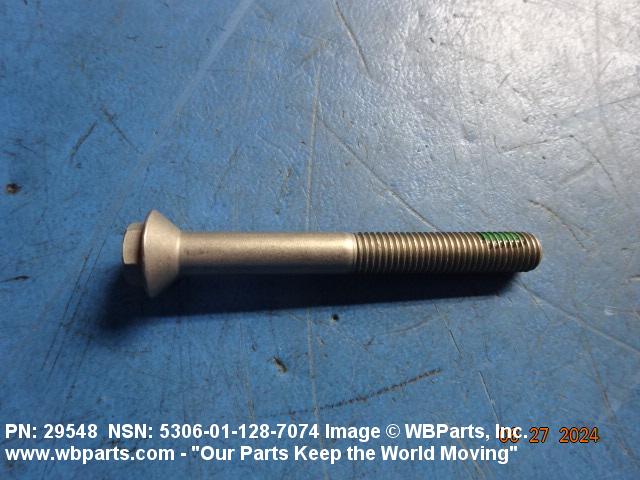

Product Details | SHOULDER BOLT
5306-01-128-7074 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 29548, 5306-01-128-7074, 01-128-7074, 5306011287074, 011287074
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1982 | 01-128-7074 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-01-128-7074
Demand History | NSN 5306-01-128-7074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-128-7074 | 2024-06-156 | 20 | United States |
| 5306-01-128-7074 | 2024-05-149 | 225 | United States |
| 29548 | 2023-08-228 | 225 | DIBBS |
| 29548 | 2022-11-306 | 113 | DIBBS |
| 5306-01-128-7074 | 2017-01-04 | 397 | DIBBS |
| 5306-01-128-7074 | 2015-04-102 | 425 | DIBBS |
Cross Reference | NSN 5306-01-128-7074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29548 | 24235 | WILLIAMS INTERNATIONAL CO., L.L.C. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-128-7074
Technical Data | NSN 5306-01-128-7074
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES NOMINAL |
| FASTENER LENGTH | 2.360 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.110 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.480 INCHES MINIMUM AND 0.531 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.149 INCHES NOMINAL FIRST SHOULDER |
| SPECIAL FEATURES | SHOULDER FULL TAPER FROM SHANK TO O.D. ANGLE 82 DEGREES NOMINAL |
| MANUFACTURERS CODE | 24235 |
| DESIGN CONTROL REFERENCE | 29548 |
