NSN 5306-01-125-7514 MBEU65546, MBEU-65546, 01-125-7514
Product Details | MACHINE BOLT
5306-01-125-7514 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MBEU65546, MBEU-65546, 5306-01-125-7514, 01-125-7514, 5306011257514, 011257514
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 FEB 1982 | 01-125-7514 | 01847 ( BOLT, MACHINE ) |

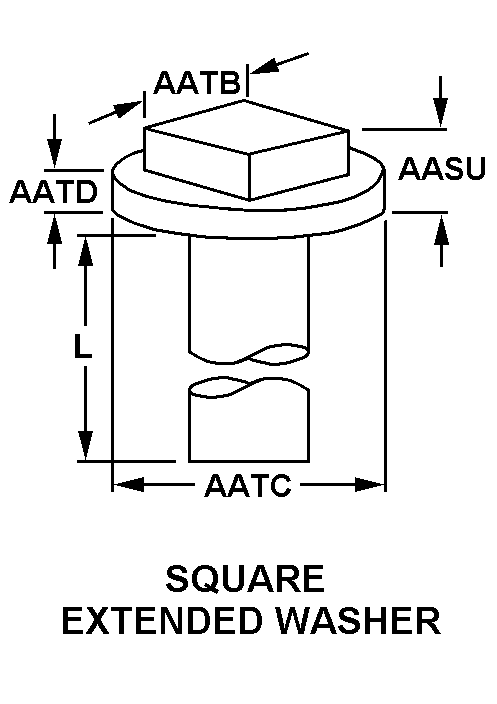

Drawings & Photos | NSN 5306-01-125-7514
Cross Reference | NSN 5306-01-125-7514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MBEU-65546 | U1604 | MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-125-7514
Technical Data | NSN 5306-01-125-7514
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.390 INCHES NOMINAL |
| FASTENER LENGTH | 3.330 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C15 SQUARE EXTENDED WASHER |
| HEAD HEIGHT | 0.170 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.625 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.093 INCHES NOMINAL |
| III ASKEWED HEAD ANGLE | 90.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | U1604 |
| DESIGN CONTROL REFERENCE | MBEU-65546 |
Restrictions/Controls & Freight Information | NSN 5306-01-125-7514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
