NSN 5306-01-119-9320 S111065426, S11-1065-4-26, ST3M494426
Product Details | SHOULDER BOLT
5306-01-119-9320 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: S111065426, S11-1065-4-26, ST3M494426, ST3M494-4-26, VS3251426, VS3251-4-26, PBF1263426, PBF1263-4-26, 10115754 , 5306-01-119-9320, 01-119-9320, 5306011199320, 011199320
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 OCT 1981 | 01-119-9320 | 04905 ( BOLT, SHOULDER ) |

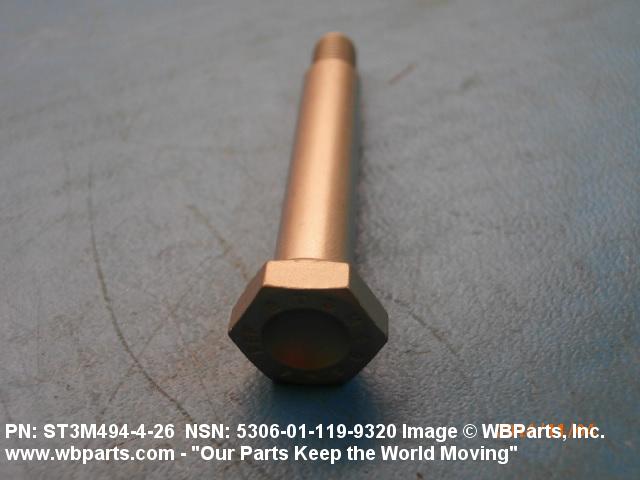

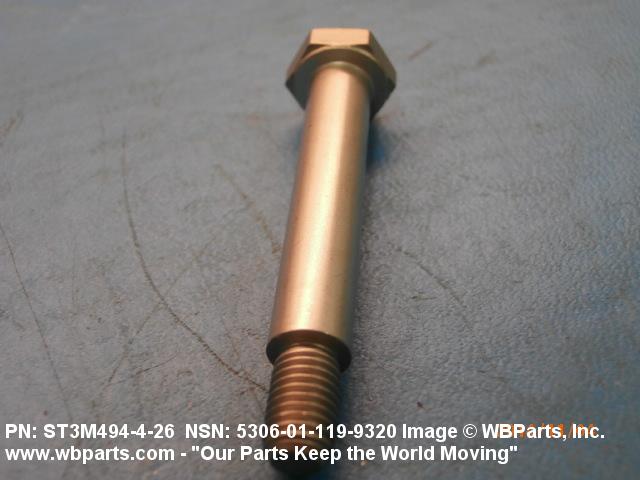

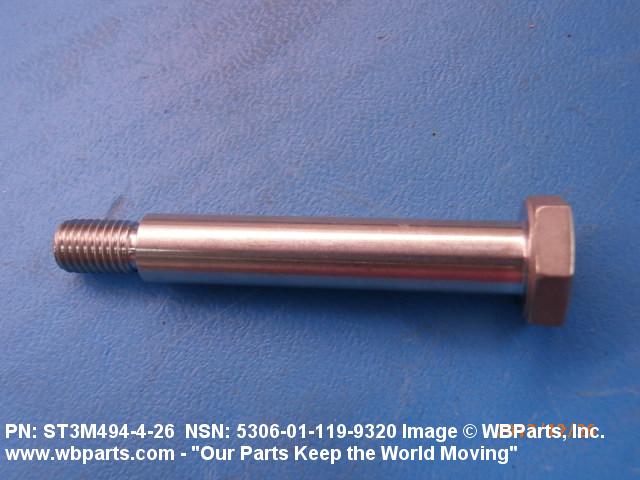

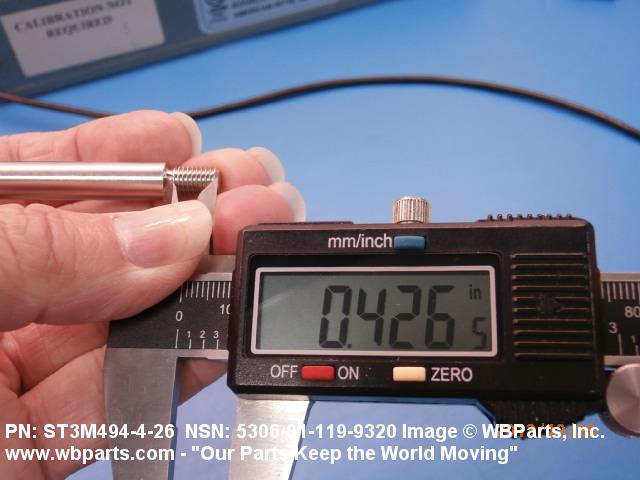

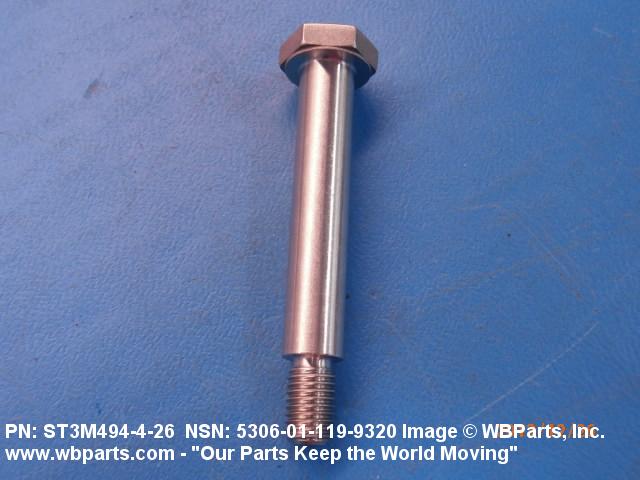

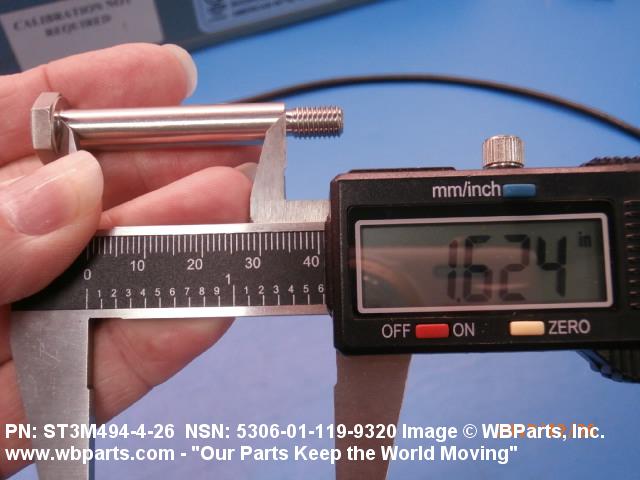

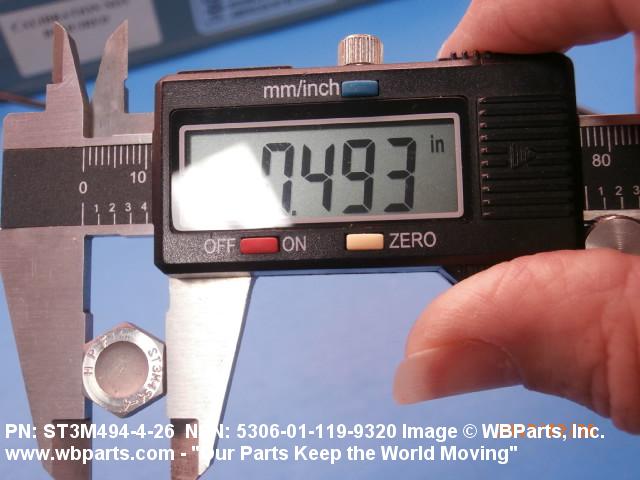

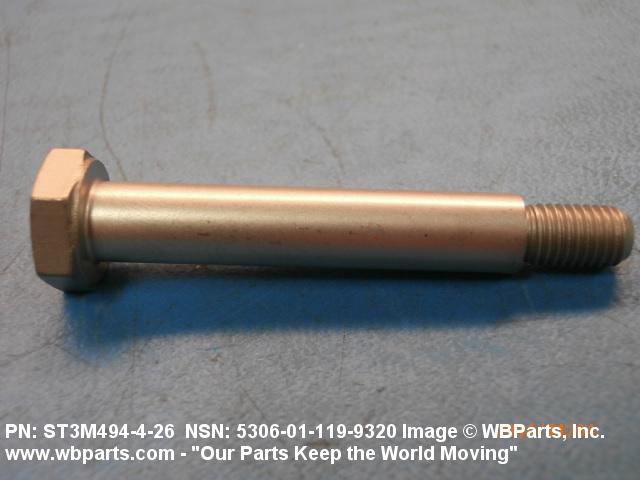

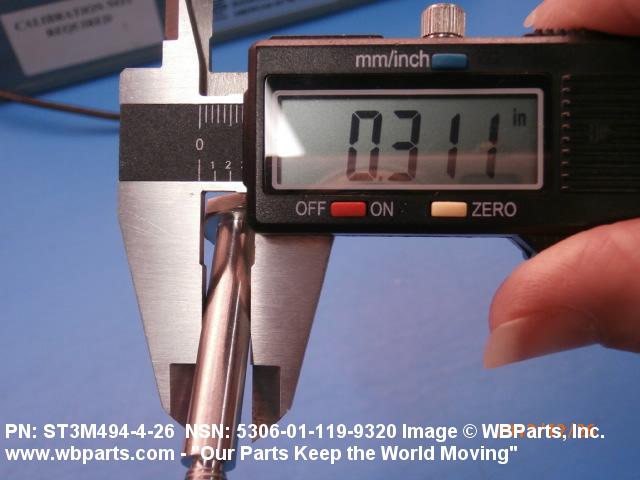

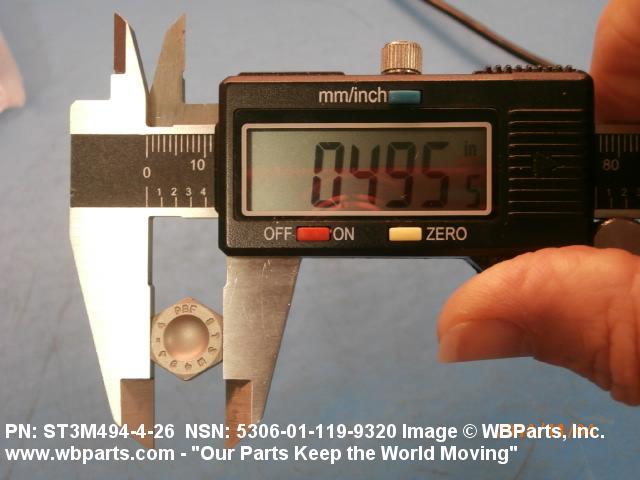

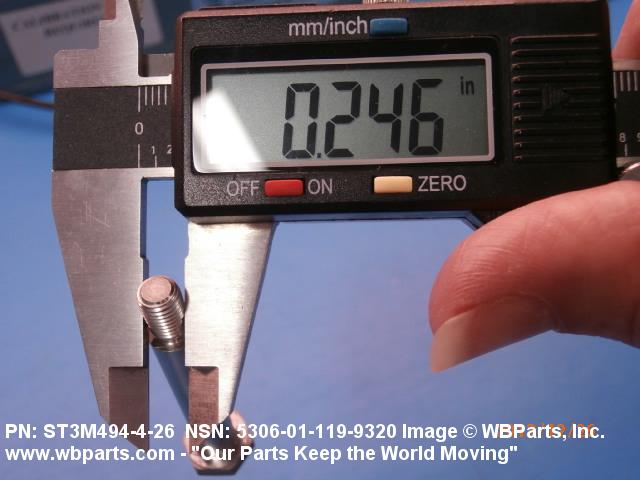

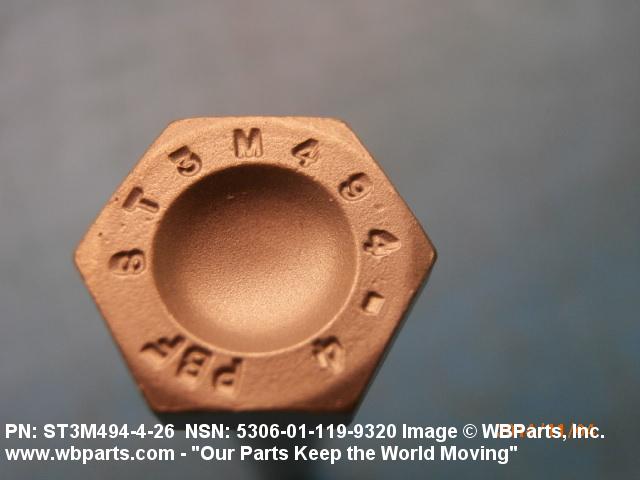

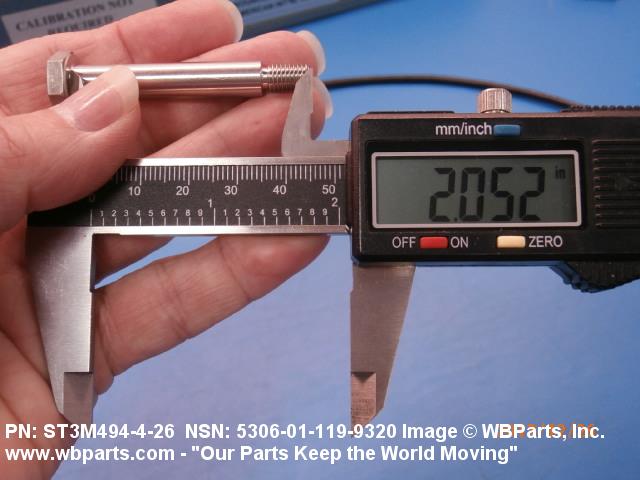

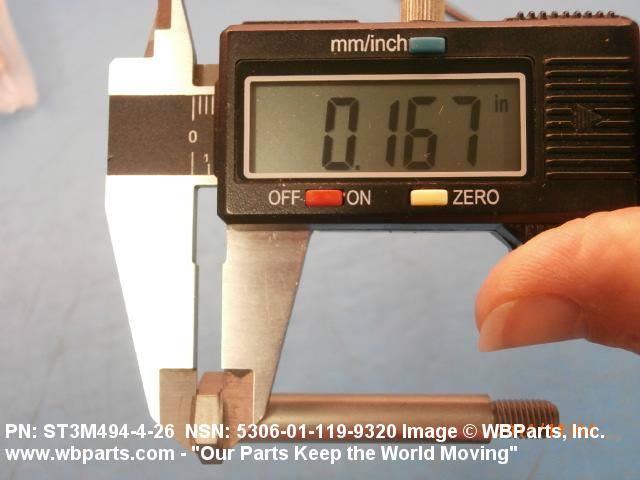

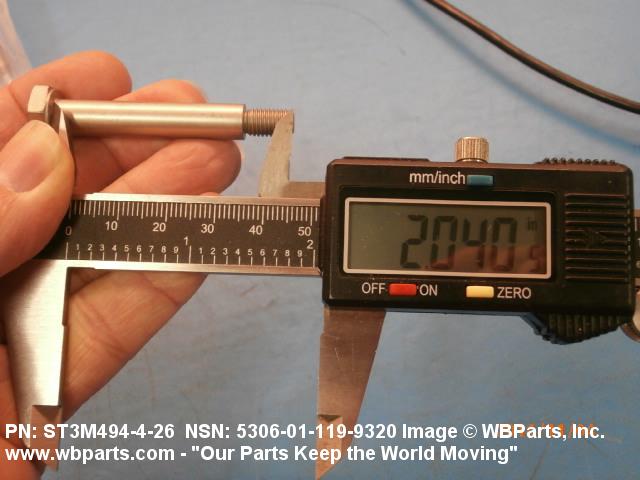

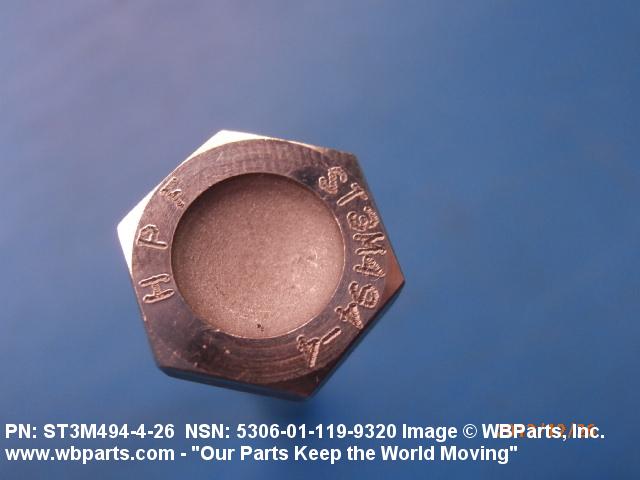

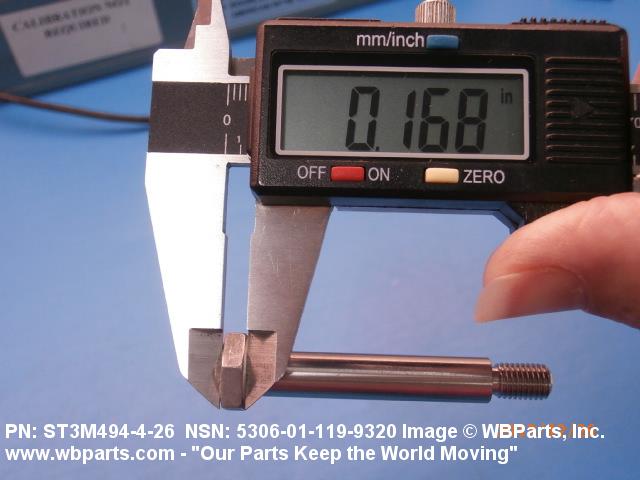

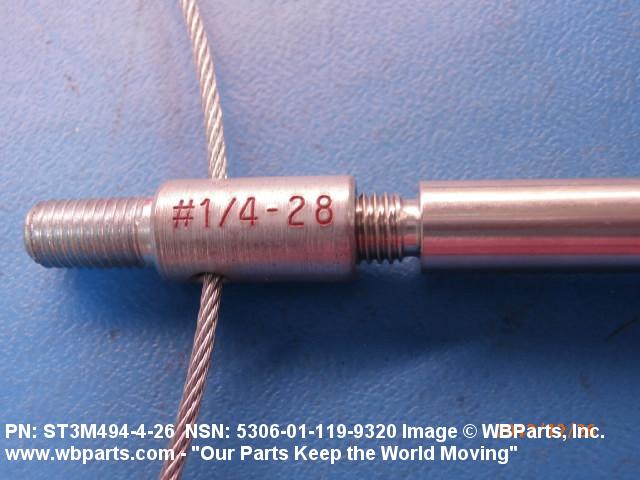

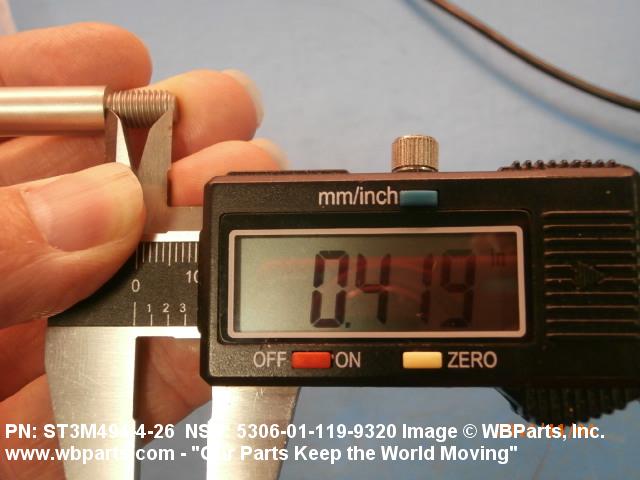

Drawings & Photos | NSN 5306-01-119-9320
Demand History | NSN 5306-01-119-9320
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-119-9320 | 2017-10-304 | 10 | United States |
| 5306-01-119-9320 | 2015-07-182 | 12 | DIBBS |
| ST3M494426 | 2014-10-300 | 2 | United States |
| 5306-01-119-9320 | 2014-04-97 | 12 | DIBBS |
| ST3M494426 | 2013-10-295 | 9 | United States |
| 5306-01-119-9320 | 2013-04-115 | 12 | DIBBS |
| 5306-01-119-9320 | 2012-07-193 | 50 | US |
| 5306-01-119-9320 | 2012-07-193 | 80 | US |
| 5306-01-119-9320 | 2012-01-13 | 25 | US |
| 5306-01-119-9320 | 2012-01-13 | 50 | US |
Cross Reference | NSN 5306-01-119-9320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M494-4-26 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| ST3M494-4-26 | 57928 | SONIC INDUSTRIES INC. |
| ST3M494-4-26 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M494-4-26 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M494-4-26 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M494-4-26 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
