NSN 5306-01-105-8056 AN935A, AN9-35A, 01-105-8056
Product Details | MACHINE BOLT

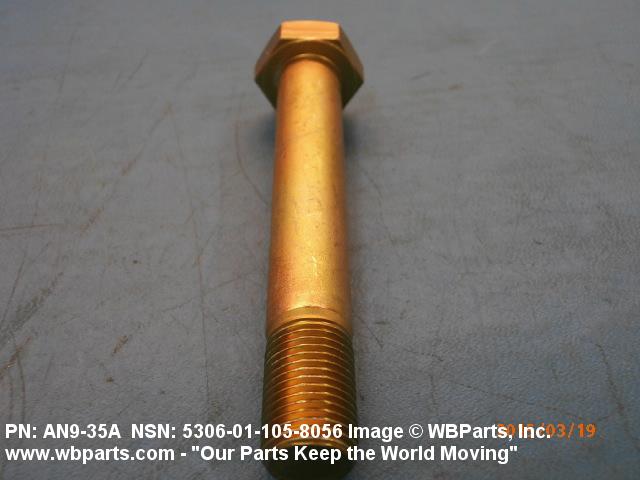

5306-01-105-8056 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN935A, AN9-35A, 5306-01-105-8056, 01-105-8056, 5306011058056, 011058056
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JAN 1981 | 01-105-8056 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-01-105-8056
Demand History | NSN 5306-01-105-8056
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN935A | 2018-08-06 | 20 | United States |
| AN935A | 2018-04-25 | 14 | United States |
| AN935A | 2017-02-23 | 14 | United States |
| AN935A | 2016-11-22 | 10 | United States |
| AN935A | 2015-06-22 | 15 | United States |
| AN935A | 2015-03-13 | 12 | United States |
| AN935A | 2013-08-20 | 5 | United States |
Cross Reference | NSN 5306-01-105-8056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN9-35A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-105-8056
Technical Data | NSN 5306-01-105-8056
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

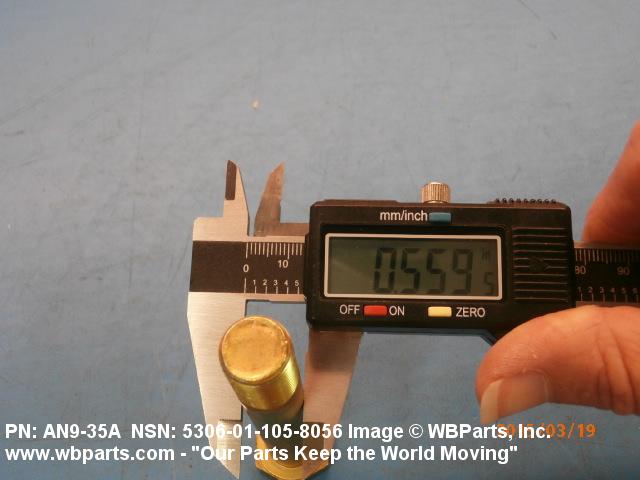

| NOMINAL THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.906 INCHES NOMINAL |

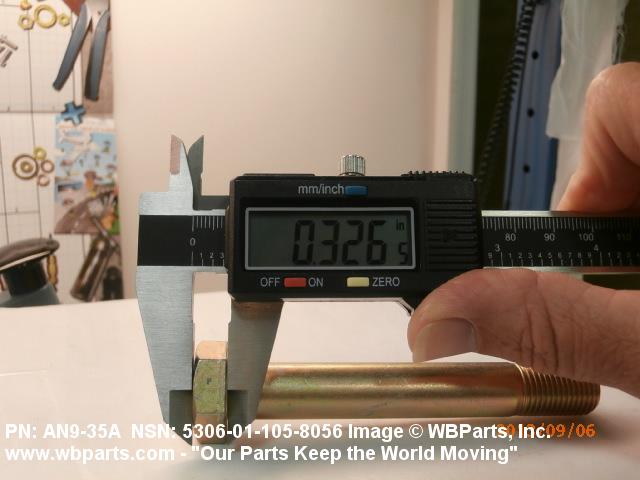

| FASTENER LENGTH | 3.781 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MINIMUM YIELD STRENGTH | 18100 POUNDS PER SQUARE INCH |

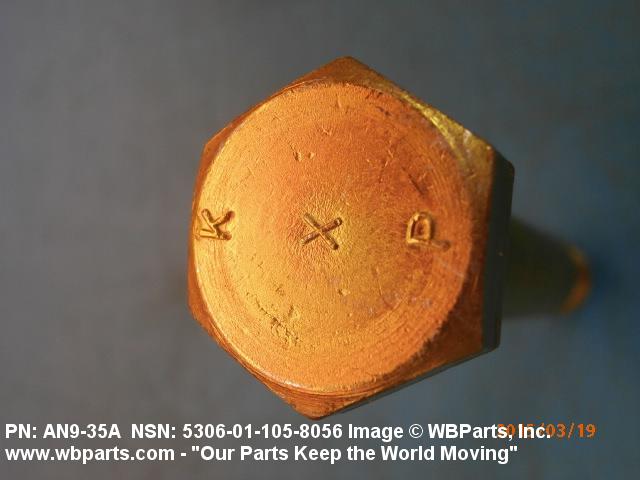

| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.883 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN9-35A |
Restrictions/Controls & Freight Information | NSN 5306-01-105-8056
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
