NSN 5306-01-103-1151 MS955908, MS9559-08, 01-103-1151
Product Details | MACHINE BOLT

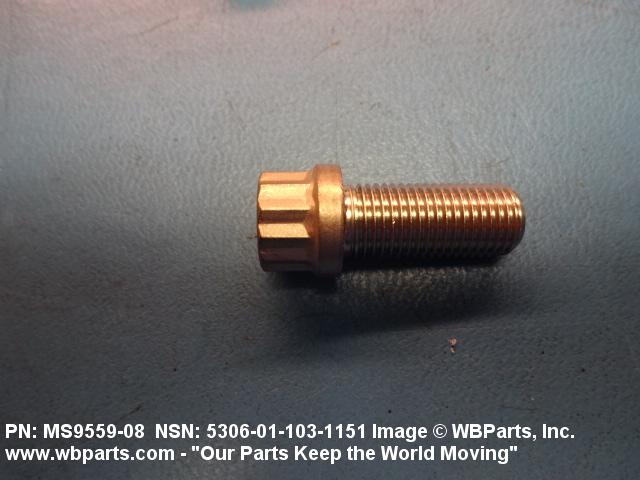

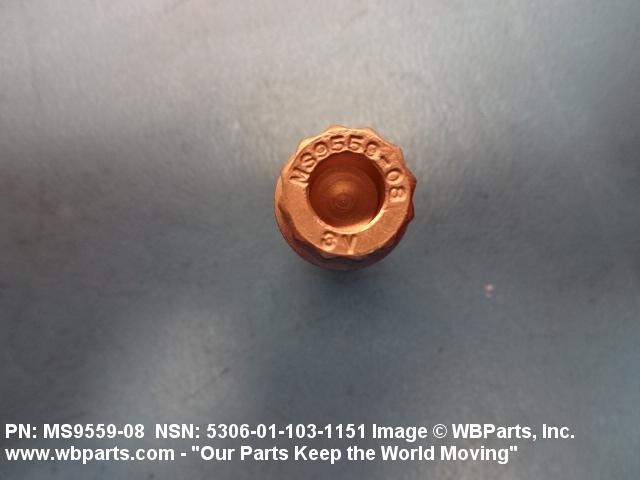

5306-01-103-1151 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS955908, MS9559-08, 5306-01-103-1151, 01-103-1151, 5306011031151, 011031151
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 NOV 1980 | 01-103-1151 | 01847 ( BOLT, MACHINE ) |

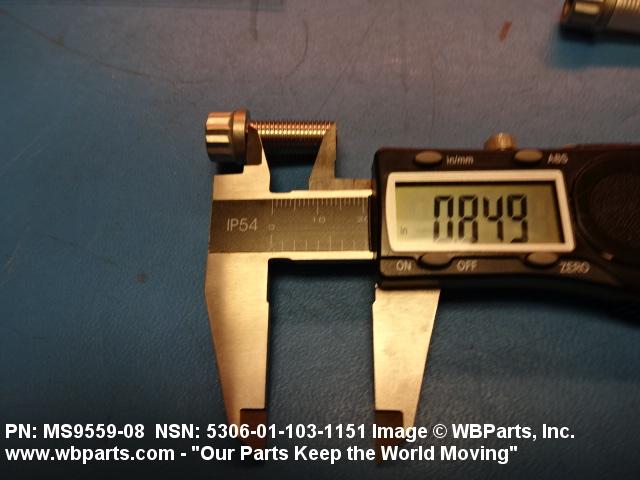

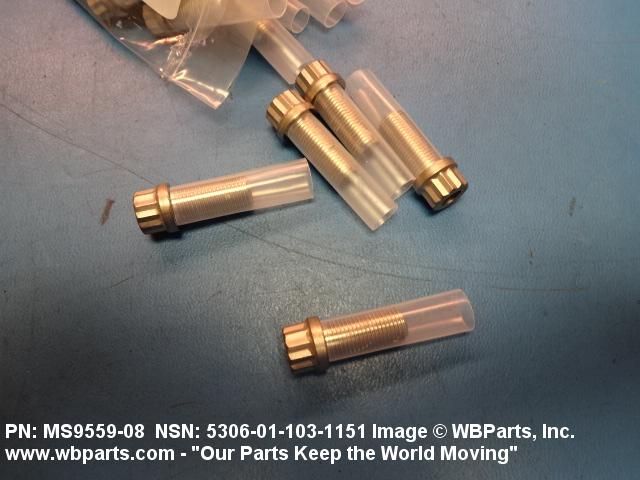

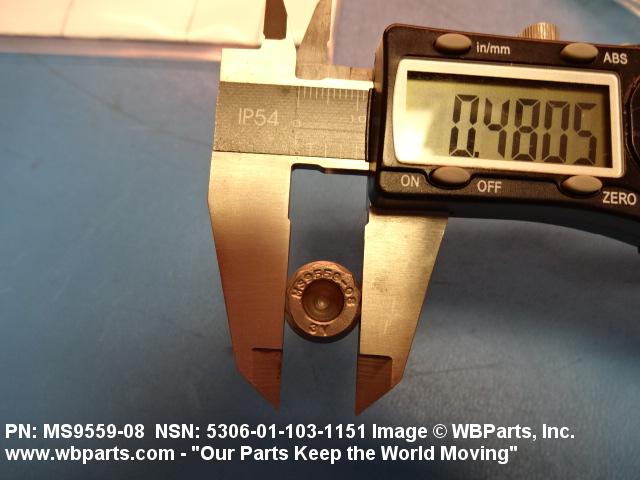

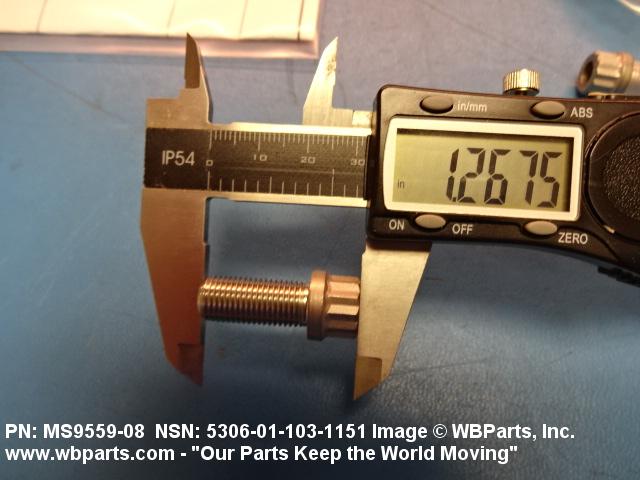

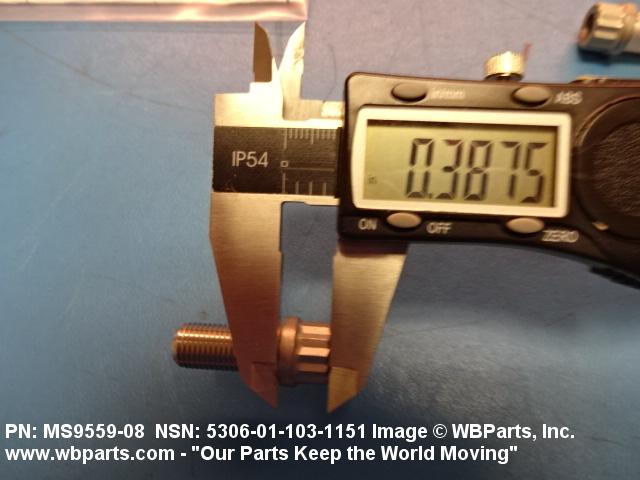

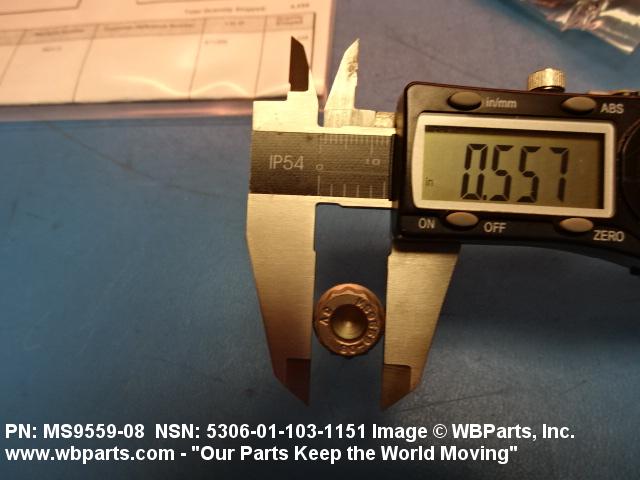

Drawings & Photos | NSN 5306-01-103-1151
Demand History | NSN 5306-01-103-1151
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS955908 | 2022-03-14 | 40 | US |
| 5306-01-103-1151 | 2019-02-11 | 24 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-103-1151
Related Products | NSN 5306-01-103-1151
Technical Data | NSN 5306-01-103-1151
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.777 INCHES NOMINAL |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.388 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.437 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 0.562 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.090 INCHES MINIMUM |
| GRIP LENGTH | 0.088 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP |
| SPECIFICATION/STANDARD DATA | 96906-MS9559 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9559-08 |
