NSN 5306-01-055-9731 RBA144SA2513, RBA144SA25-13, 01-055-9731
Product Details | MACHINE BOLT
5306-01-055-9731 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: RBA144SA2513, RBA144SA25-13, 5306-01-055-9731, 01-055-9731, 5306010559731, 010559731
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 1978 | 01-055-9731 | 01847 ( BOLT, MACHINE ) |

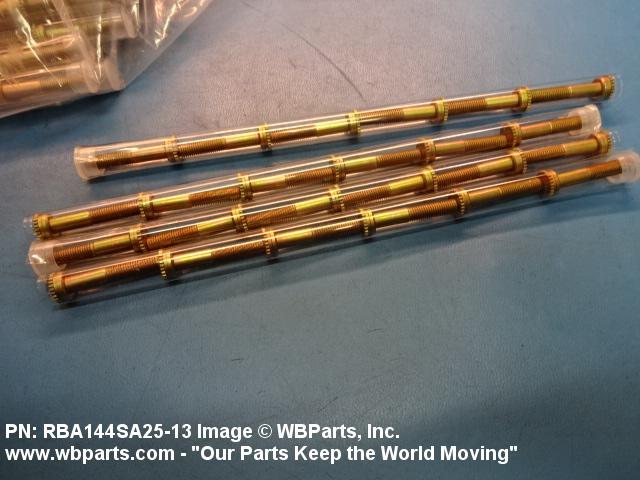

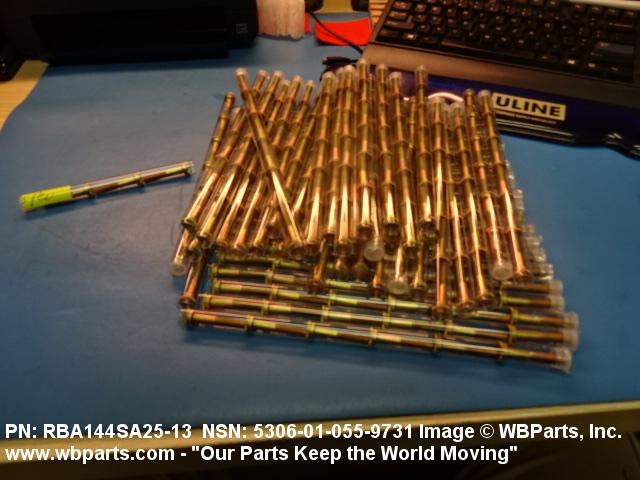

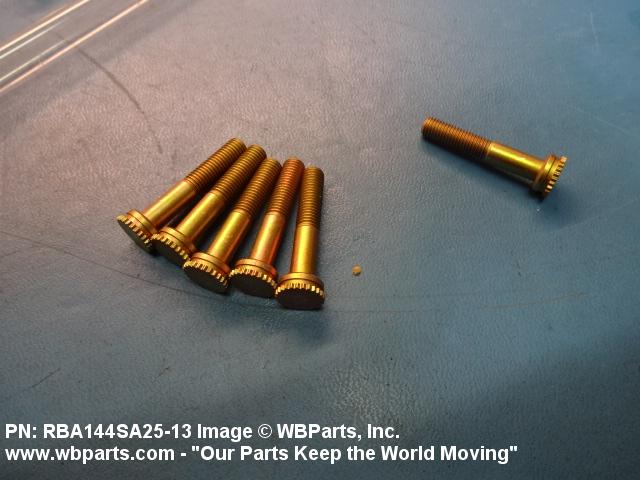

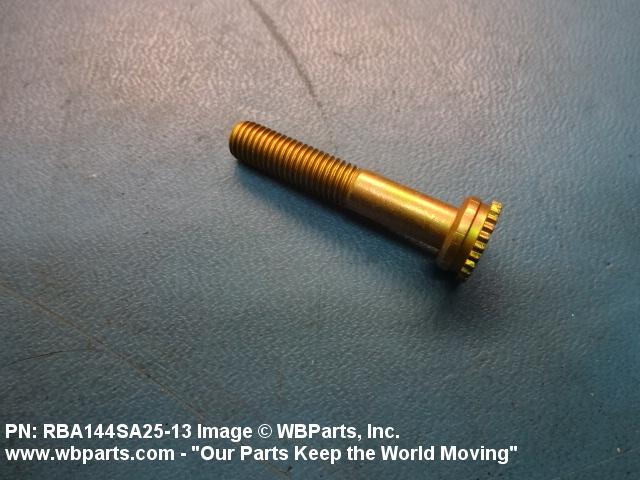

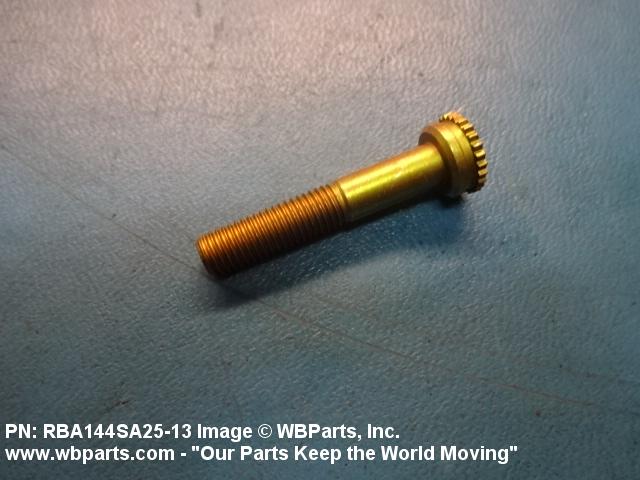

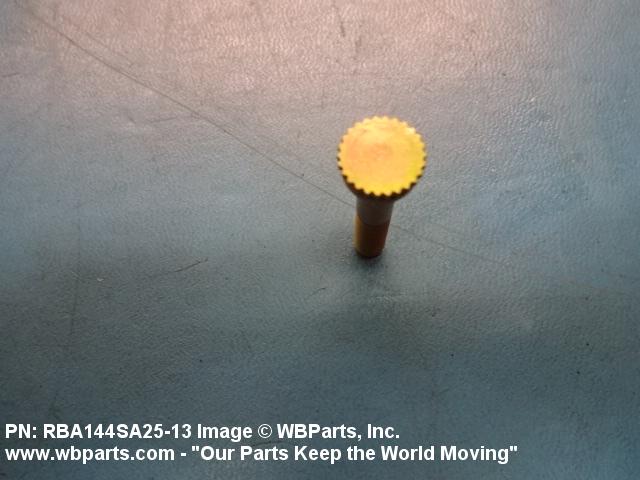

Drawings & Photos | NSN 5306-01-055-9731
Demand History | NSN 5306-01-055-9731
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-055-9731 | 2024-07-192 | 100 | US |
| 5306-01-055-9731 | 2024-07-189 | 100 | US |
| 5306-01-055-9731 | 2024-05-137 | 40 | United States |
| 5306-01-055-9731 | 2024-01-29 | 250 | United States |
| 5306-01-055-9731 | 2024-01-04 | 50 | US |
| 5306-01-055-9731 | 2022-08-222 | 216 | US |
| 5306-01-055-9731 | 2022-06-178 | 150 | UM |
| 5306-01-055-9731 | 2021-03-68 | 39 | GE |
| RBA144SA25-13 | 2020-03-63 | 94 | DIBBS |
| RBA144SA25-13 | 2020-02-40 | 94 | DIBBS |
| 5306-01-055-9731 | 2018-05-150 | 51 | DIBBS |
| 5306-01-055-9731 | 2018-05-130 | 50 | DIBBS |
| 5306-01-055-9731 | 2018-02-53 | 84 | DIBBS |
| 5306-01-055-9731 | 2017-12-361 | 315 | United States |
| 5306-01-055-9731 | 2017-10-295 | 315 | DIBBS |
| 5306-01-055-9731 | 2017-08-234 | 85 | DIBBS |
| 5306-01-055-9731 | 2017-08-215 | 85 | DIBBS |
| 5306-01-055-9731 | 2015-10-292 | 50 | KR |
| RBA144SA2513 | 2015-09-271 | 100 | US |
| 5306-01-055-9731 | 2014-01-20 | 4 | us |
| 5306-01-055-9731 | 2013-10-300 | 320 | KR |
| 5306-01-055-9731 | 2013-10-281 | 54 | DIBBS |
| 5306-01-055-9731 | 2013-01-17 | 67 | DIBBS |
| 5306-01-055-9731 | 2012-12-356 | 114 | DIBBS |
| 5306-01-055-9731 | 2012-09-245 | 70 | DIBBS |
| 5306-01-055-9731 | 2012-05-152 | 96 | DIBBS |
| RBA144SA2513 | 2008-05-142 | 500 | US |
| RBA144SA2513 | 2007-06-179 | 4 | US |
Cross Reference | NSN 5306-01-055-9731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RBA144SA25-13 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-055-9731
Related Products | NSN 5306-01-055-9731
Technical Data | NSN 5306-01-055-9731
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

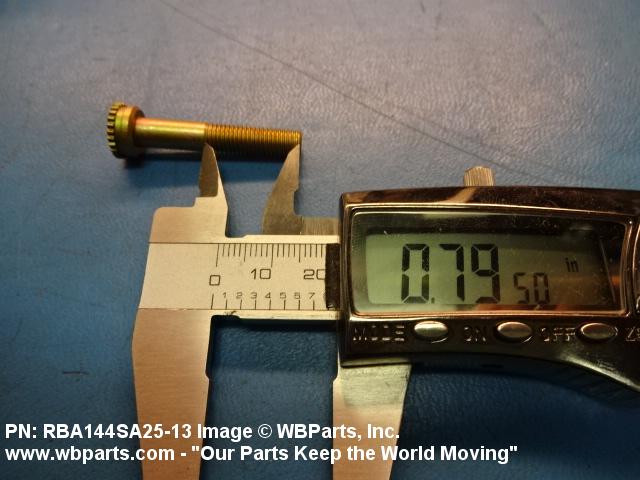

| THREAD LENGTH | 0.807 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |

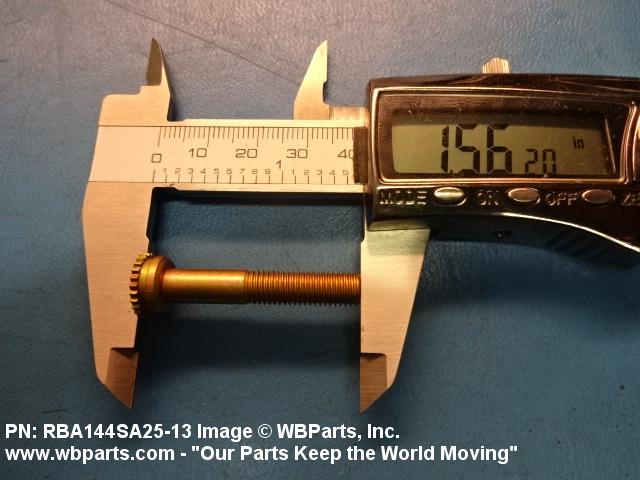

| FASTENER LENGTH | 1.557 INCHES MINIMUM AND 1.567 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C67 KNURLED NO. 2 |

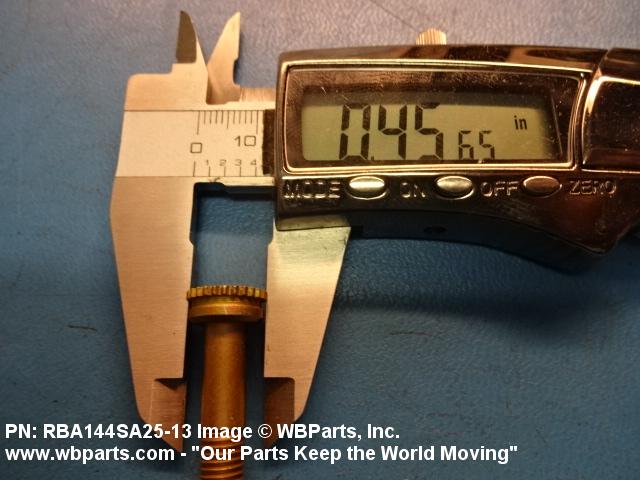

| HEAD DIAMETER | 0.468 INCHES NOMINAL |

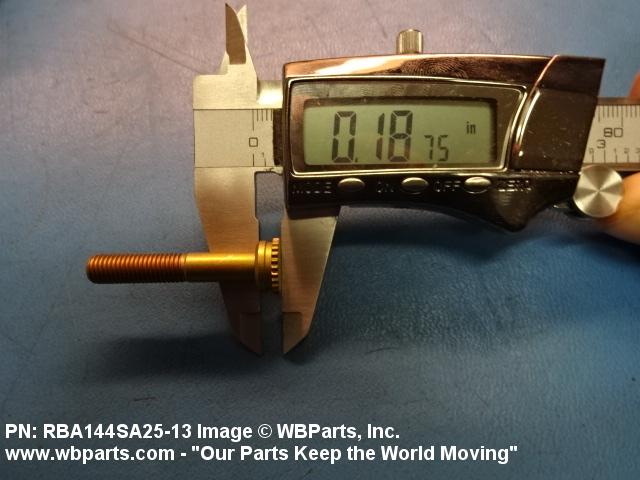

| HEAD HEIGHT | 0.187 INCHES NOMINAL |
| LOCKING FEATURE | DISTORTIONS BEARING SURFACE OF HEAD |

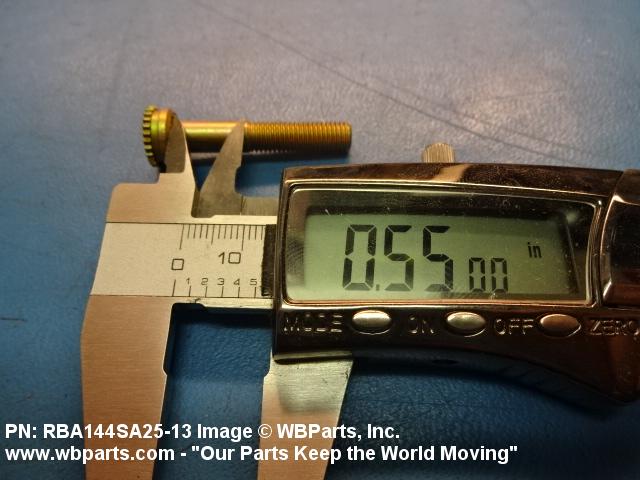

| GRIP LENGTH | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-01-055-9731
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-055-9731
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
