NSN 5306-01-020-9479 MS917023, MS9170-23 , AS91701
Product Details | MACHINE BOLT
5306-01-020-9479 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS917023, MS9170-23 , AS91701 , 5306-01-020-9479, 01-020-9479, 5306010209479, 010209479
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAY 1976 | 01-020-9479 | 01847 ( BOLT, MACHINE ) |

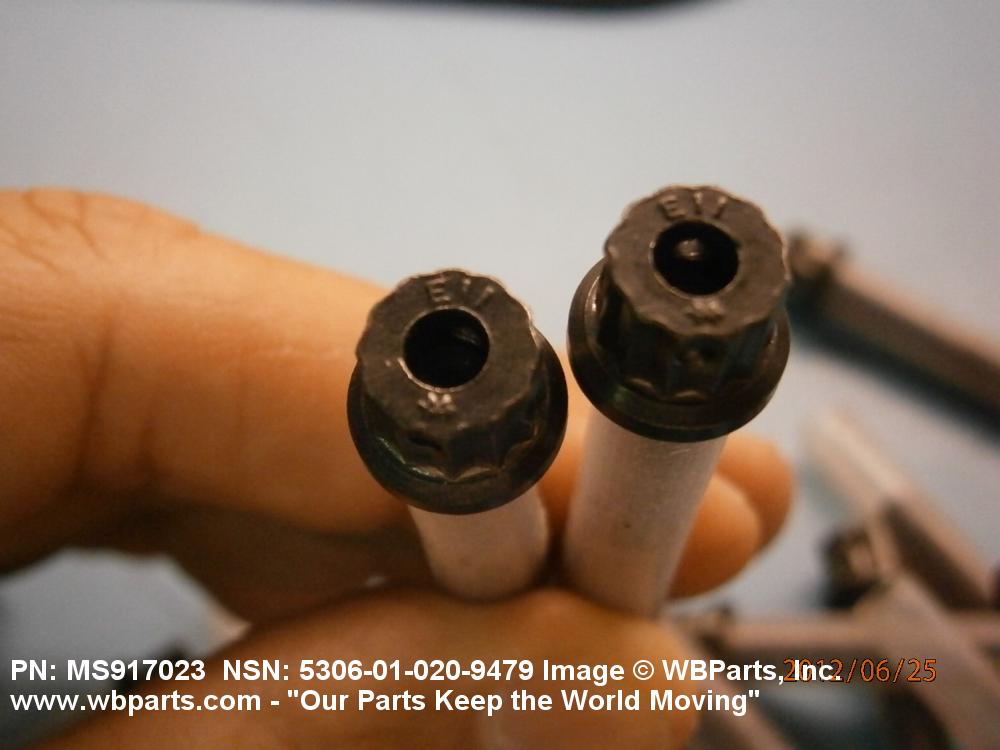

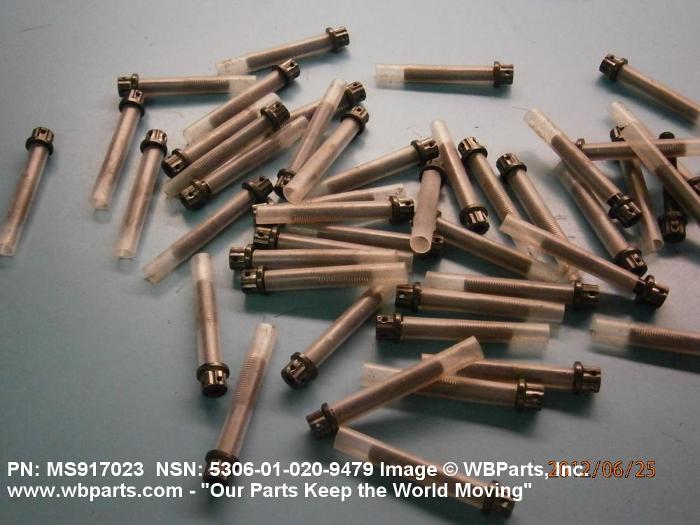

Drawings & Photos | NSN 5306-01-020-9479
Demand History | NSN 5306-01-020-9479
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-020-9479 | 2014-08-233 | 439 | DIBBS |
| 5306-01-020-9479 | 2012-06-158 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-020-9479
Technical Data | NSN 5306-01-020-9479
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.740 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
| FASTENER LENGTH | 1.552 INCHES MINIMUM AND 1.572 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2485 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.320 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.304 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E2 DOUBLE HEXAGON LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.070 INCHES NOMINAL |
| GRIP LENGTH | 0.752 INCHES MINIMUM AND 0.812 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9170-23 |
Restrictions/Controls & Freight Information | NSN 5306-01-020-9479
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-020-9479
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
